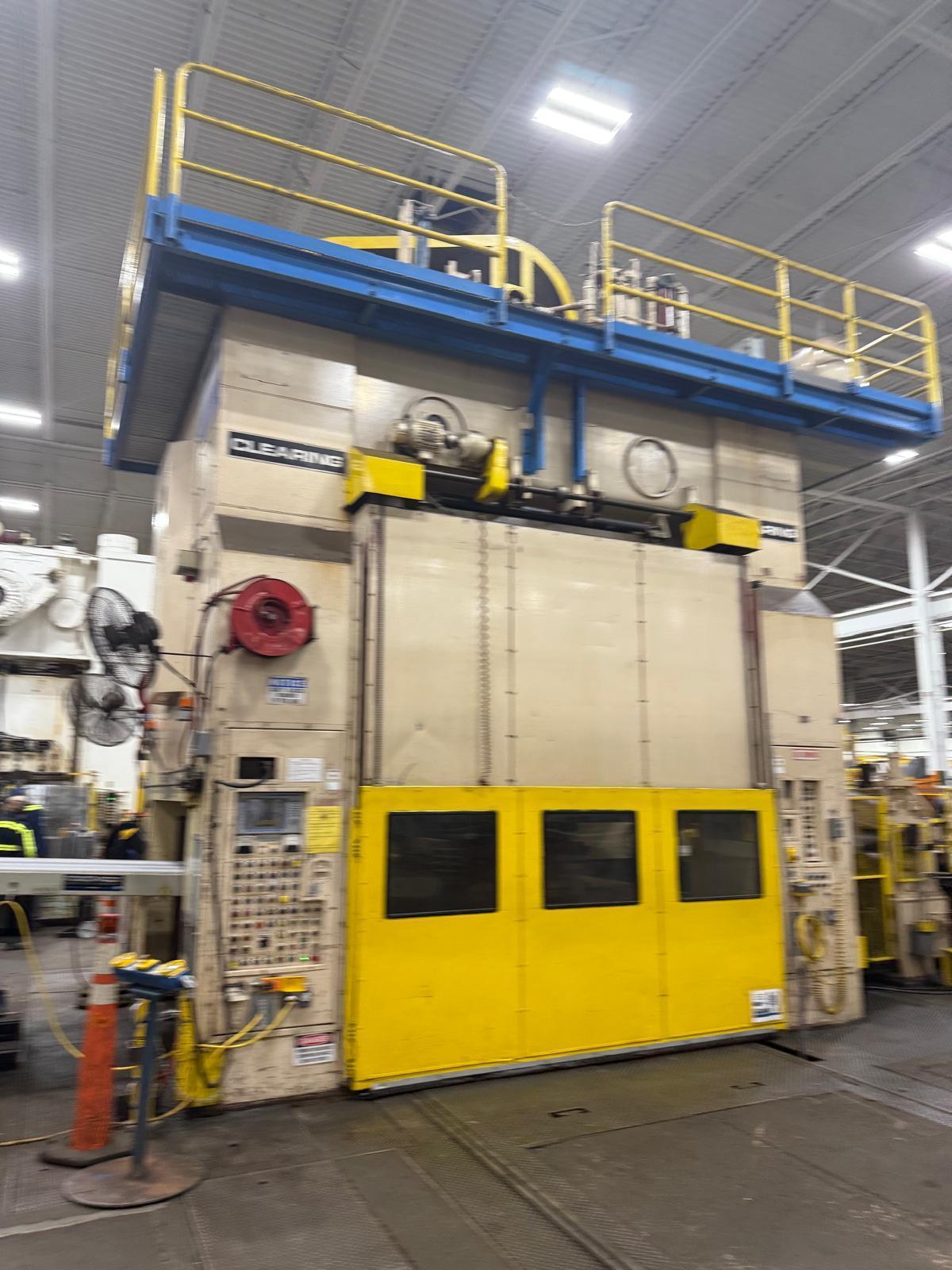

Brand
CLEARING
Model
S4 1000 120-84
Stock #
501977
Condition
Not specified
Year
Location
Detroit, Michigan
United States
General Press Specifications
Job No. 10-4681 & 10-4683
Press Designation: S4-1000-120-84B
Type of Equipment: Four point suspension single action, Eccentric gear, plunger guided
Dimension & Capacities:
Frame capacity: 1000 tons
Drive capacity: 1000 tons, ½″ up on stroke
Slide & bed area: 120″ L–R × 84″ F–B
Clearance between uprights: 122″
Upright opening: 94″ F–B × 69″ high — starting at top of bed
Integral moving bolster carriage: 120″ L–R × 84″ F–B with 8″ thick top plate
Total bolster carriage height: 17″
Passline above bolster carriage: 30″
Stroke of slide: 12″
Adjustment of slide: 2″ by motor
Strokes per minute: 20 to 60 continuous, 30 intermittent
Full flywheel energy @ 40 S.P.M.
Inch speed: 20 S.P.M.
Shut-height/stroke down adjustment up: 44″ top of integral carriage to bottom of slide
Shop floorline to top of bed: 0″
Overall press height – floor line to top of press: approx. 269″
Estimated Weights:
Crown assembly: 145,000 lbs
Slide assembly: 57,900 lbs
Upright assembly (2): 49,500 lbs
Bed structure: 78,000 lbs
Bolster carriages (2): 33,000 lbs
Tie rods, hydraulic nuts & standard nuts: 21,000 lbs
Miscellaneous: 59,000 lbs
Total: 476,400 lbs
