1000Ton CMC Bliss with Colt Feedline
Press Specifications
Press Make – CMC Bliss
Press Model – SE4-1000-144-72
Press Serial Number – H9875
Press Tonnage – 1000
Front to Back – 72”
Left to Right – 144”
Shut Height – Max 49” Min 34” with out Ram Riser
Shut Height – Max 39.250” Min 29.250” with Ram Riser
Stroke – 22”
SPM – 10-20
Window Size – 54” X 57”

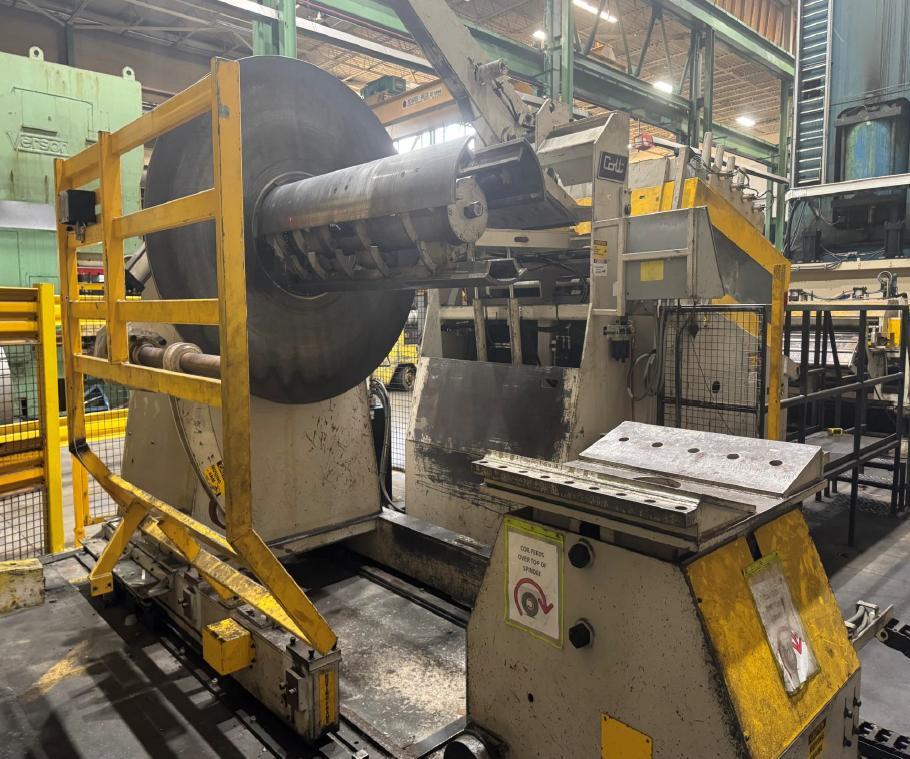

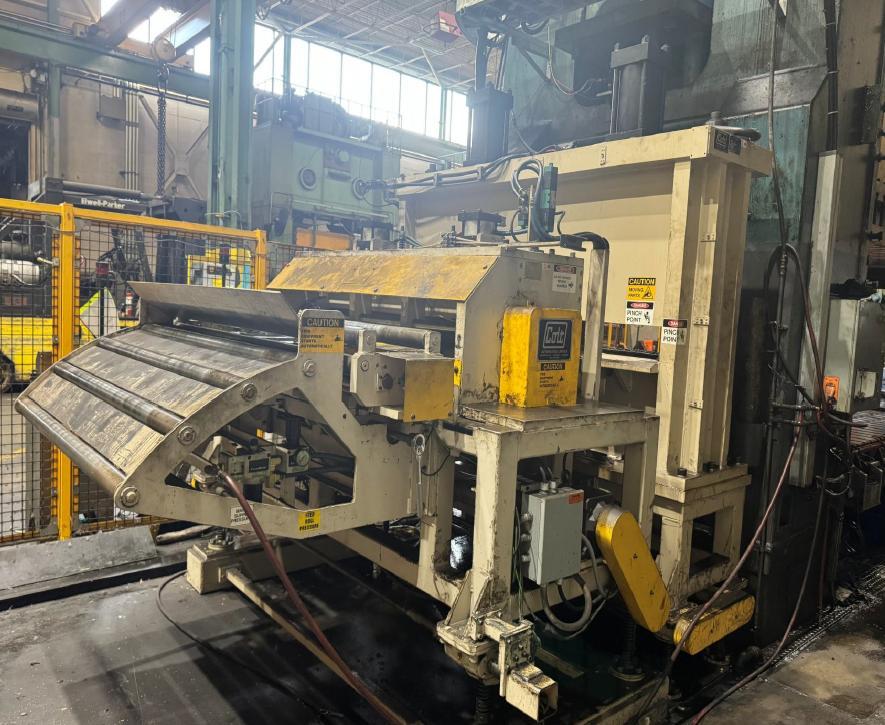

Feeder Specifications
Model Number - CERF-60-60HD
Serial Number – 1141588
Max Material Thickness - .200”
Min Material Thickness - .020”
Max Material Thickness 72” @ Max Material Width – 60”
Min Material Width – 6”
Max SPM – 25SPM @ 48” of Progression
Feeder Mounted Shear

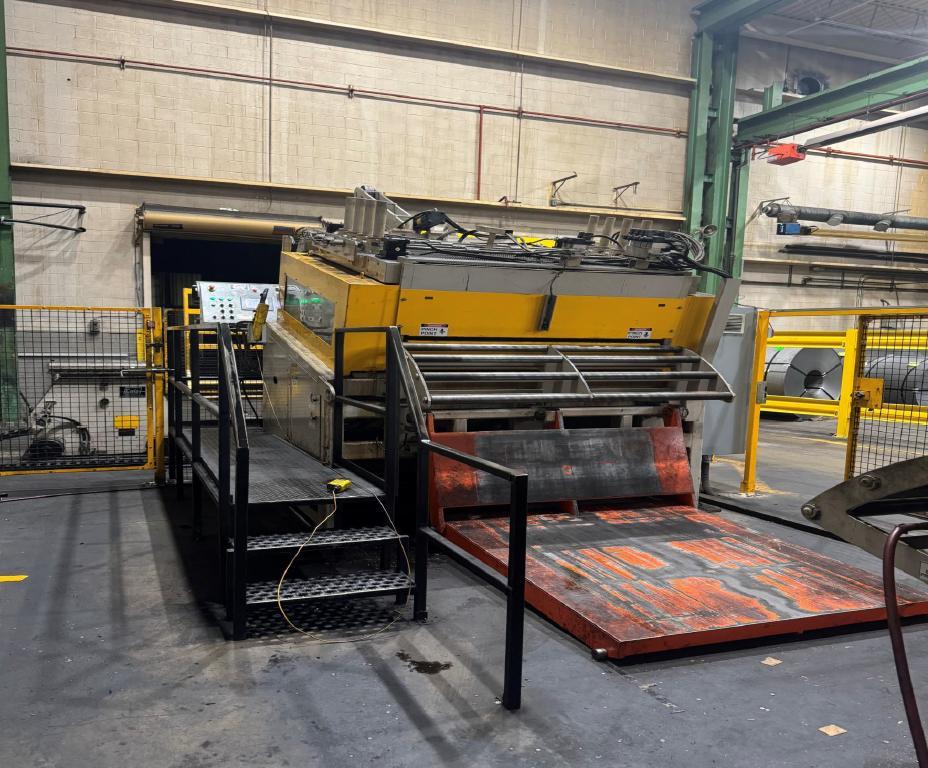

Straightener Specifications:
Model Number - CPTHD-60
Serial Number – 1601659
Max Material Thickness - .200”
Min Material Thickness - .020”
Max Material Width – 60”
Min Material Width – 6”
Max SPM – 25SPM @ 48” of Progression
