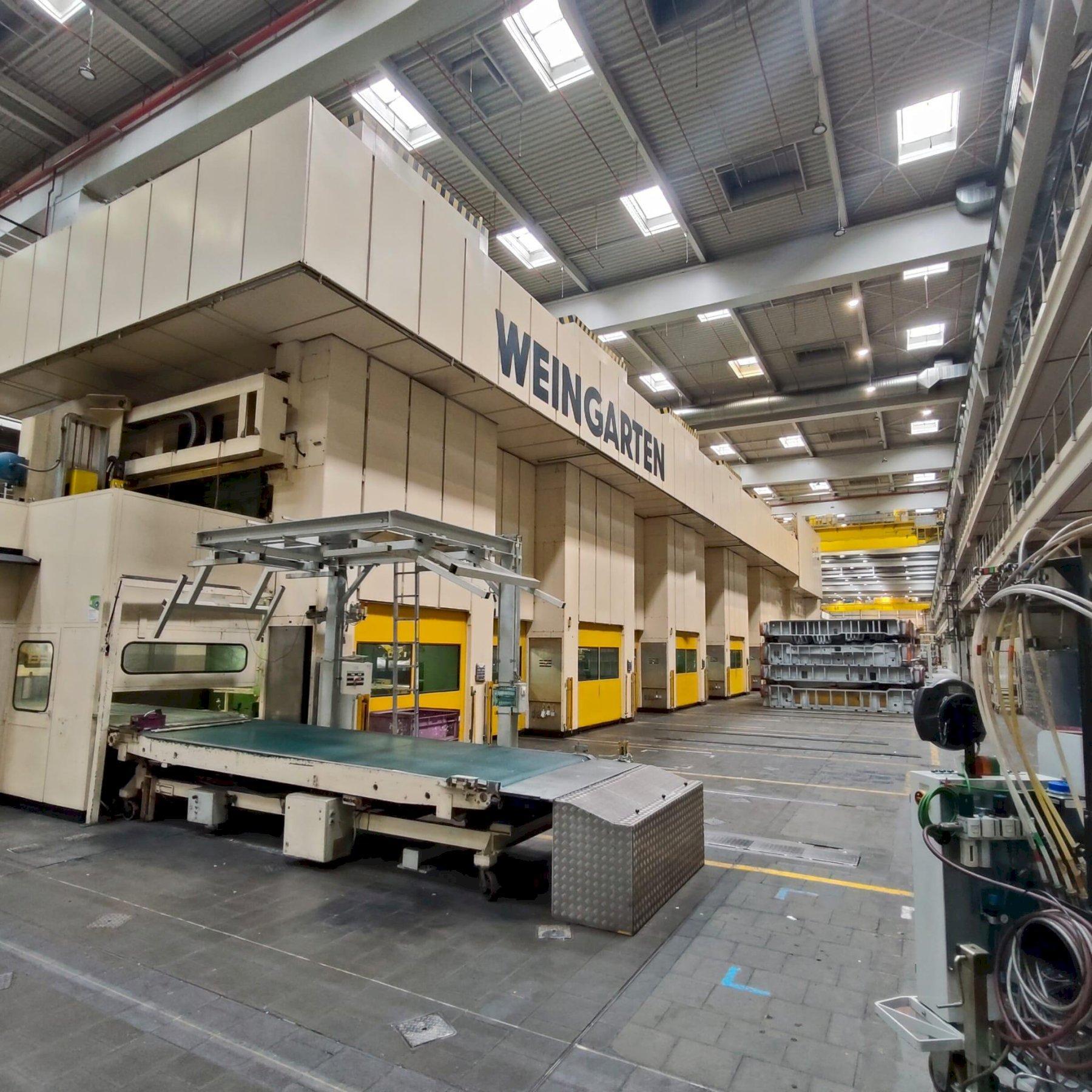

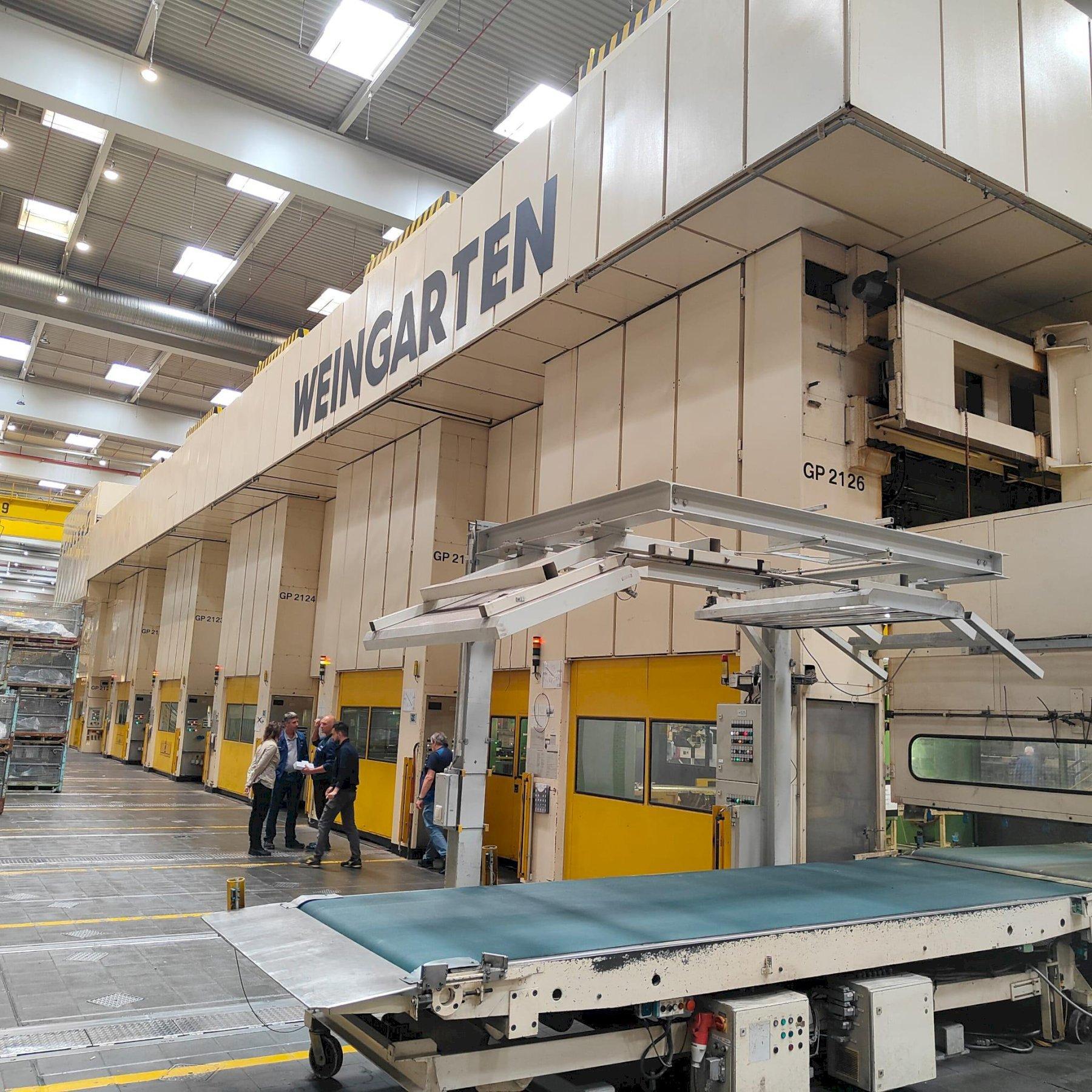

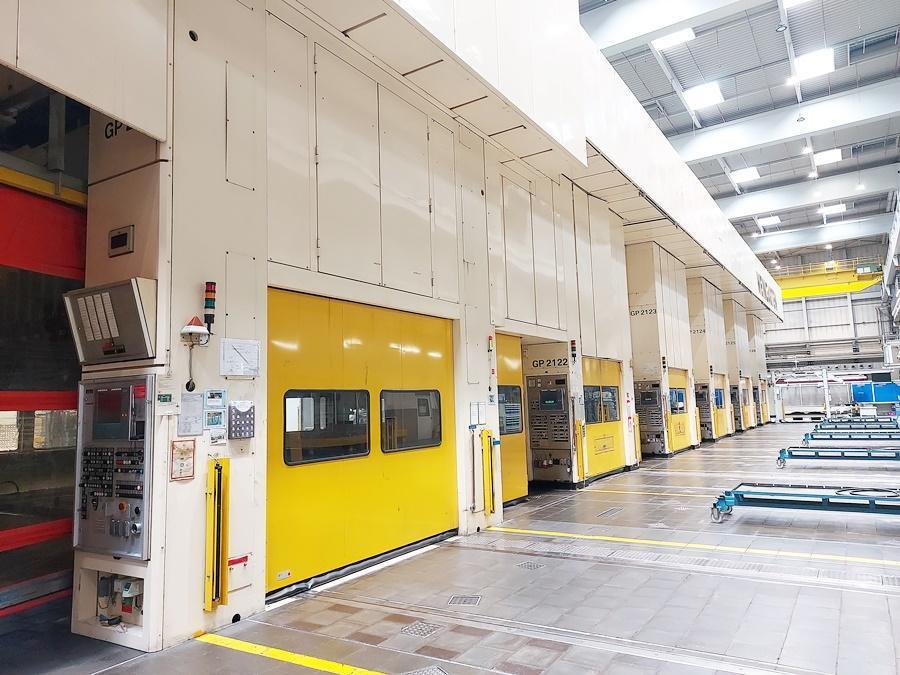

1000 Ton Presses (5 Available):
Press force Slide @ 20mm before BDC 10000 KN
Working capacity Slide at 8 strokes/min 350 kj
Slide stroke 900mm
MAX. Draw Depth Slide 200mm
Slide Adjustment 250mm
Air Cushion in Slide/Cushion force @ 8.5 bar 1000 KN
Cushion stroke 200mm
Die Space Bolster – Slide in BDC and Adjustment on top 1400mm
Bolster Height 544mm
Strokes per minute, adjustable 8 – 20
Strokes per minute in Setting mode 3
Dimensions Bolster Plate 4600 X 2200mm
Dimensions Slide Plate 4600 X 2200mm
Dimensions Slide Adapter Plate 4000 X 2200mm
Air Cushion in Press bed/Cushion Force @ 9 bar MAX. 2000 KN
Adjustable Cushion Stroke 0 – 200mm
Main Drive Motor Power 90 – 225 kW
RPM 720 – 1800 U/min
Equipped with side to side moving bolsters, no lower cushion
