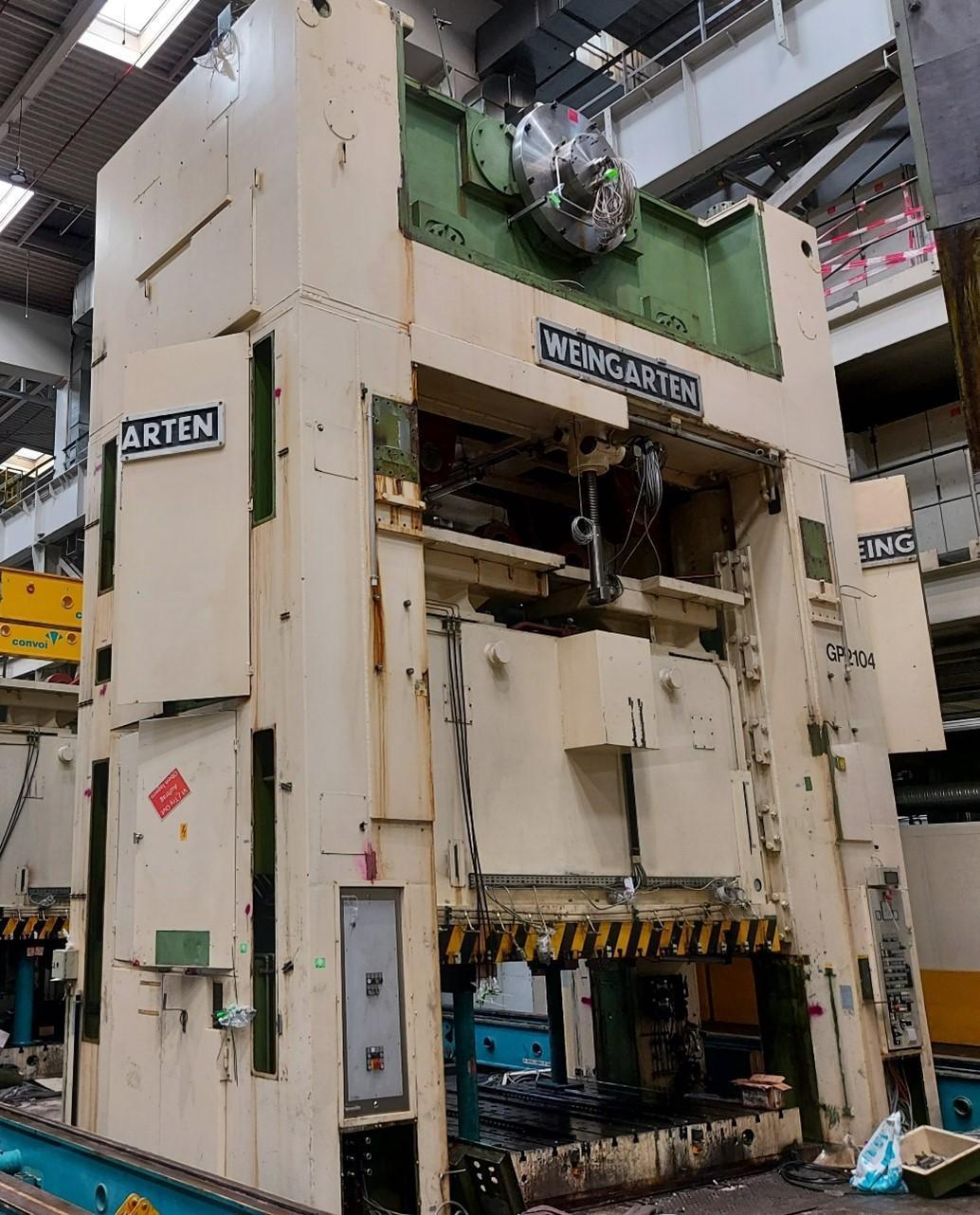

1000 Ton WEINGARTEN 4000 x 2200 Linkdrive press

H FRAME MECHANICAL PRESS - Single Action

WEINGARTEN  1000 TON-LINKDRIVE

MODELLO - TYPE                                             : VK 1000 . 40 . 80

LINK DRIVE KINEMATICS                                               : eccentric

RATED CAPACITY at 20mm to dsp                               : 1000 Tons

RATED CAPACITY at 12mm to dsp                               : 1200 Tons

NUMBER of connecting rod                                         : 4

SLIDE STROKE                                                                : mm 800

SHUT HEIGHT, from top of bolster, SDAU                      : mm 1400

SLIDE ADJUSTMENT                                                       : mm 500

SLIDE DIMENSIONS (L-R x F-B)                                       : 4000 x 2200 mm

BOLSTER DIMENSIONS                                                   : 4000 x 2200 mm

BOLSTER HEIGHT                                                            : 300 mm

CONTINUOUS SPEED (variable)                     : spm 10 – 22

SET UP SPEED                                                    : spm 3

 MAIN DIMENSIONS

MAXIMUM HEIGHT from FLOOR LEVEL                          : mm.9500

CLEARANCE BETWEEN UPRIGHTS (L-R)                         : 4400 mm

CLEARANCE BETWEEN UPRIGHTS (F-B)                         : mm 1900

MAXIMUM PRESS WEIGHT                                             : 300.000 KG approx.
