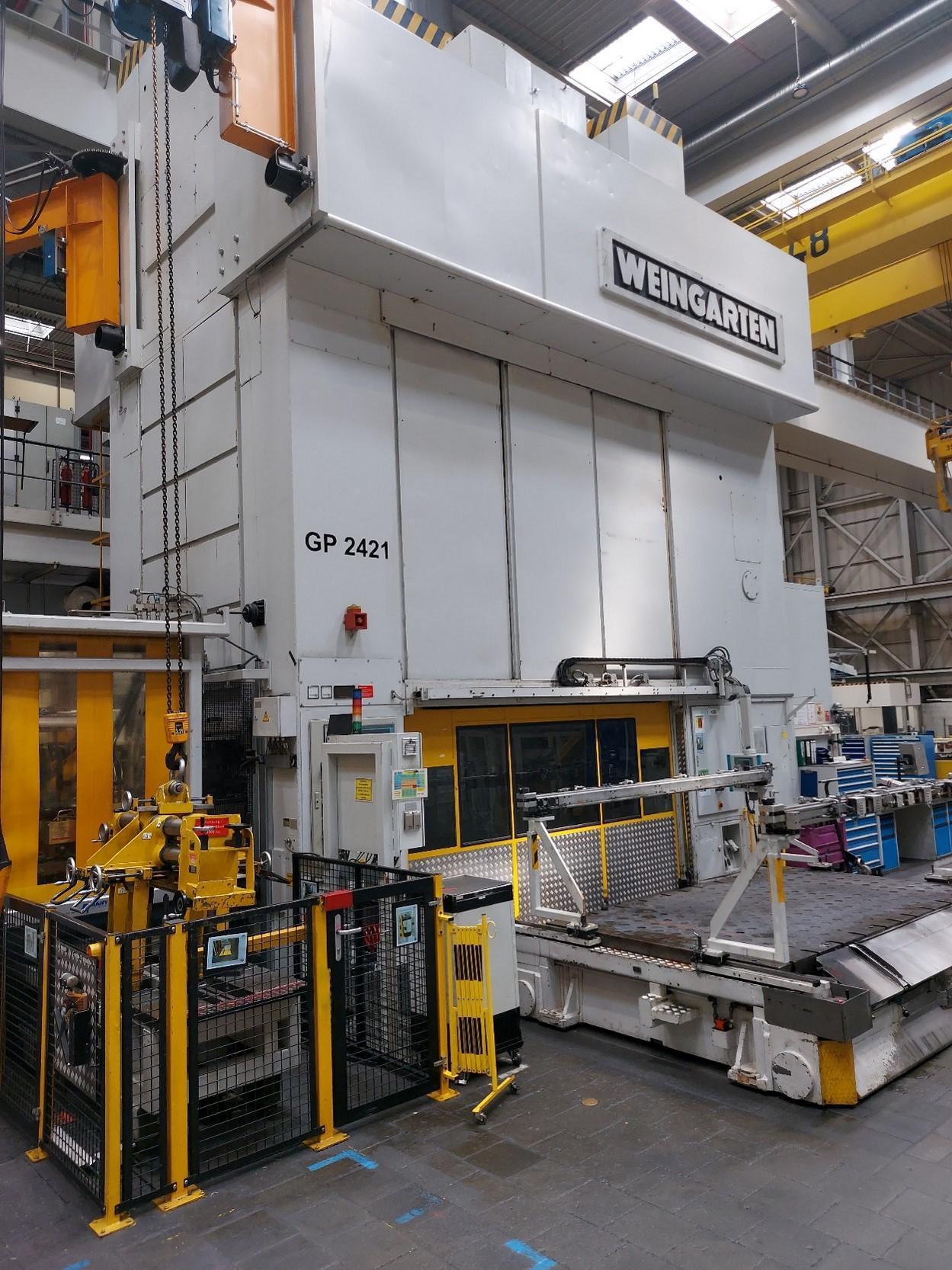

1000 Ton Weingarten press model S1000-04-75 Link Drive
  • 1000 Ton Weingarten press model S1000-04-75 Link Drive

1000 Ton Weingarten press model S1000-04-75 Link Drive

Brand
WEINGARTEN

Model
S1000-04-75

Type
Presses, Straight Side, Double Crank (Single Action)

Stock #
501887

Condition
Not specified

Year
1982

Location
Detroit, Michigan
United States

Request a Quote

Equipped With

H FRAME MECHANICAL PRESS – LINK DRIVE



WEINGARTEN  1000 TON





 MODELLO - TYPE                                            : S1000-04-75

YEAR of CONSTRUCTION                                     : 1982

DRIVE KINEMATICS                                                       : eccentric-LINKDRIVE

RATED CAPACITY                                                         : 1000 Tons A 20mm

SLIDE STROKE                                                                : mm 700

SHUT HEIGHT, from top of bolster, SDAU                       : mm 1400

SLIDE ADJUSTMENT                                                       : mm 400

SLIDE DIMENSIONS (L-R x F-B)                                        : 3150 x 1900 mm

BOLSTER DIMENSIONS (L-R x F-B)                                   : 3150 x 1900 mm

NUMBER of MOVING BOLSTERS                                    : 2

MOVING BOLSTER EXIT                                                 :  FRONT-BACK

CONTINUOUS SPEED (variable)                     : spm 8-22

SIDE WINDOW                                                  : mm.2200 x h.2150

FRONT PASSAGE                                              : mm.3600

 CUSHIONS                                                       : YES / 4 X 50 TON STROKE 250mm
