1250 Ton Erfurt Transfer Press

Brand
ERFURT

Model
PE4-HHTr - 1250.2 /5000x2200/ 825 ss/e

Stock #
501582

Condition
Used

Year
1994

Location
Wayne, Michigan
United States

Equipped With

Machine type : Two-column multi-position Press
Make :   ERFURT
Model : PE4-HHTr - 1250.2 /5000x2200/ 825 ss/e
YOM:  1994
Technical data – Dimension              Unit

Number of points 4
Power     1250    tons
Stroke per min     8 / 20
Stroke      825       mm
Distance between Column: 5800  mm
Ram adjustment    300    mm
Daylight  Maxi   1400           mm

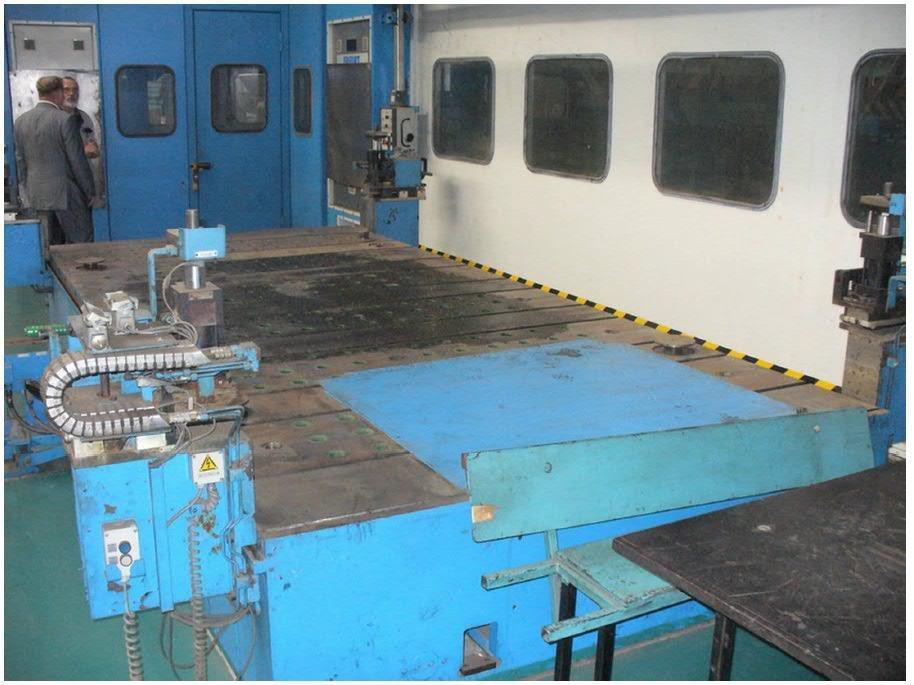

Sliding tables tipe SS            2
table size 2200X5000           mm
Ram size  2200x5000           mm
Work positions                      6                    Pc.
Size between centres of  Work pos.:  750  mm

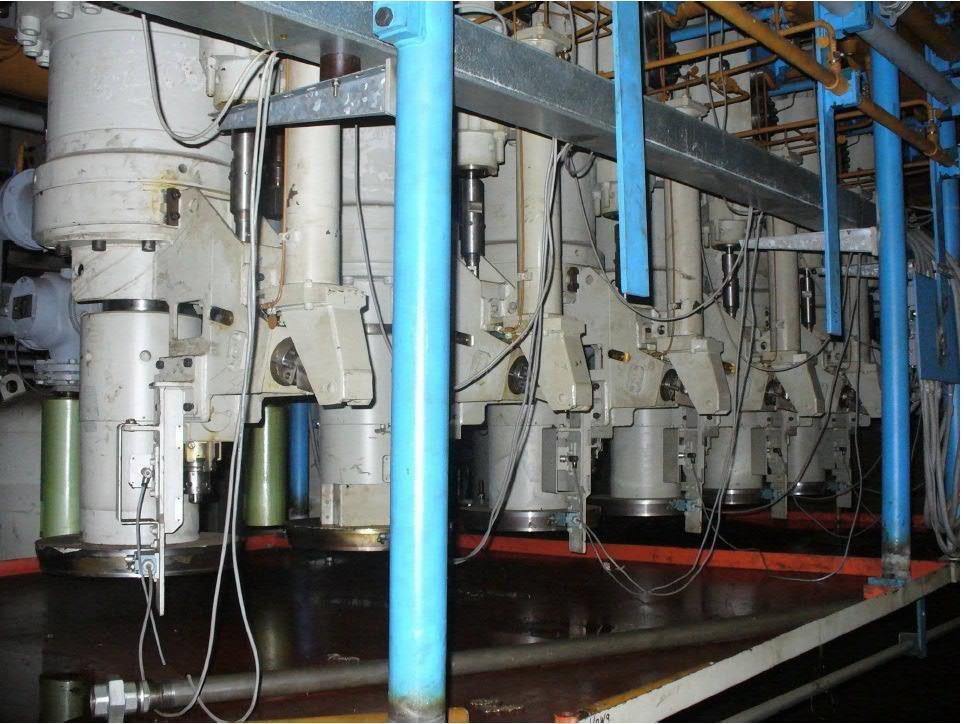

Cushion in Bolster 6
Cushion Stroke   mm
Cushion stroke adjustment   mm
Cavaties in Base (for cushion): 6X1600X520   mm

Main motor                         200                     kVA
Hydraulically Overload’s System: 4 points
WEIGHT (Approx.)     680                        TONS

Included :

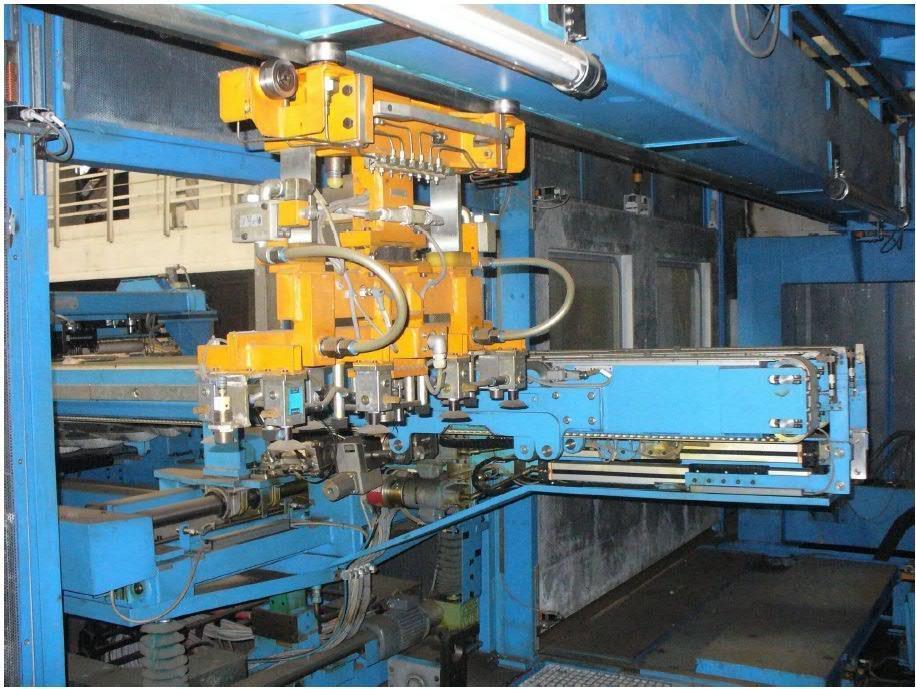

Gripper loader  MT - 3D -750/200/160
Sheet's boot  MZBB 1400x650 NC
CNC Siemens Simatic S5
