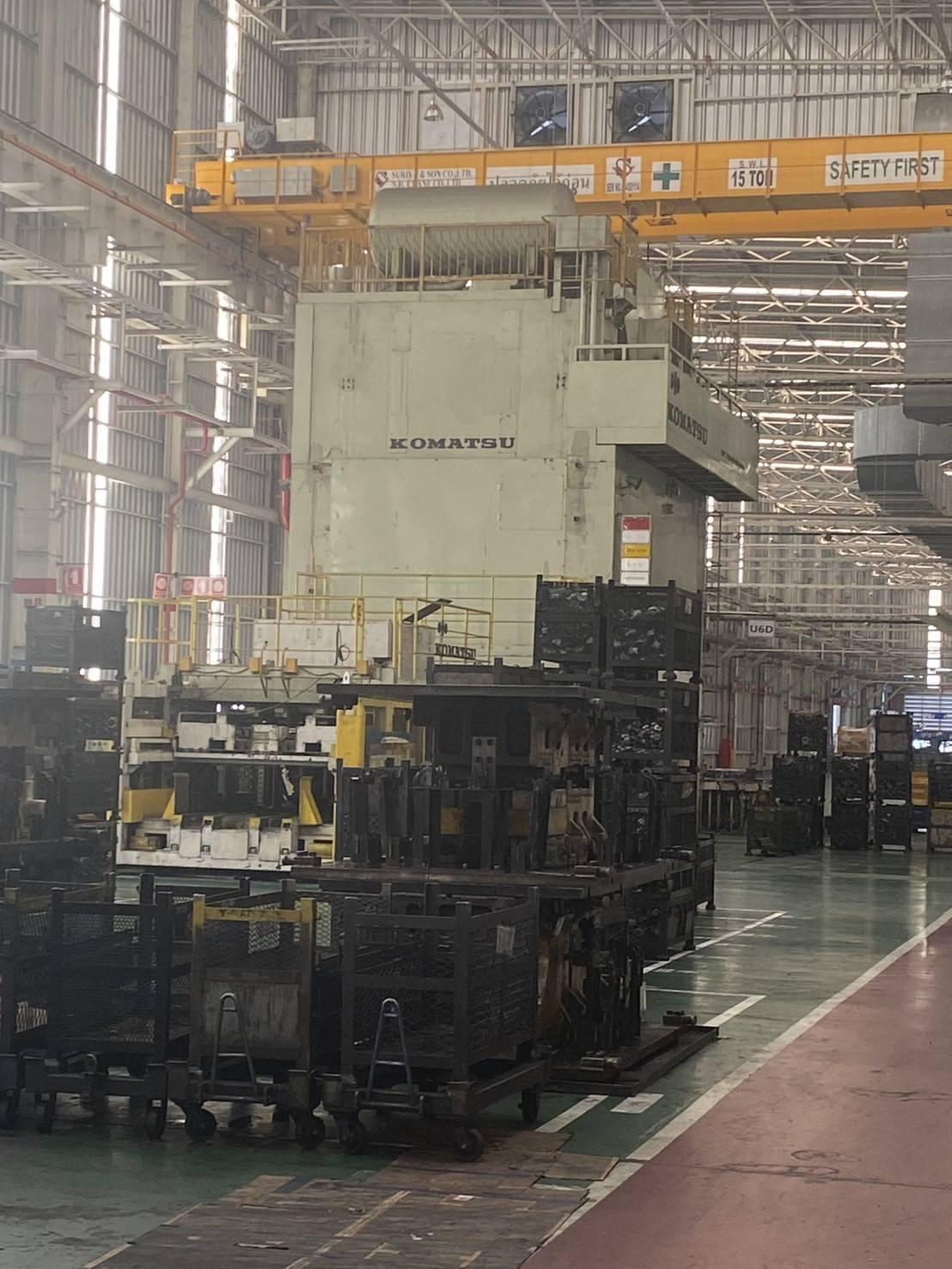

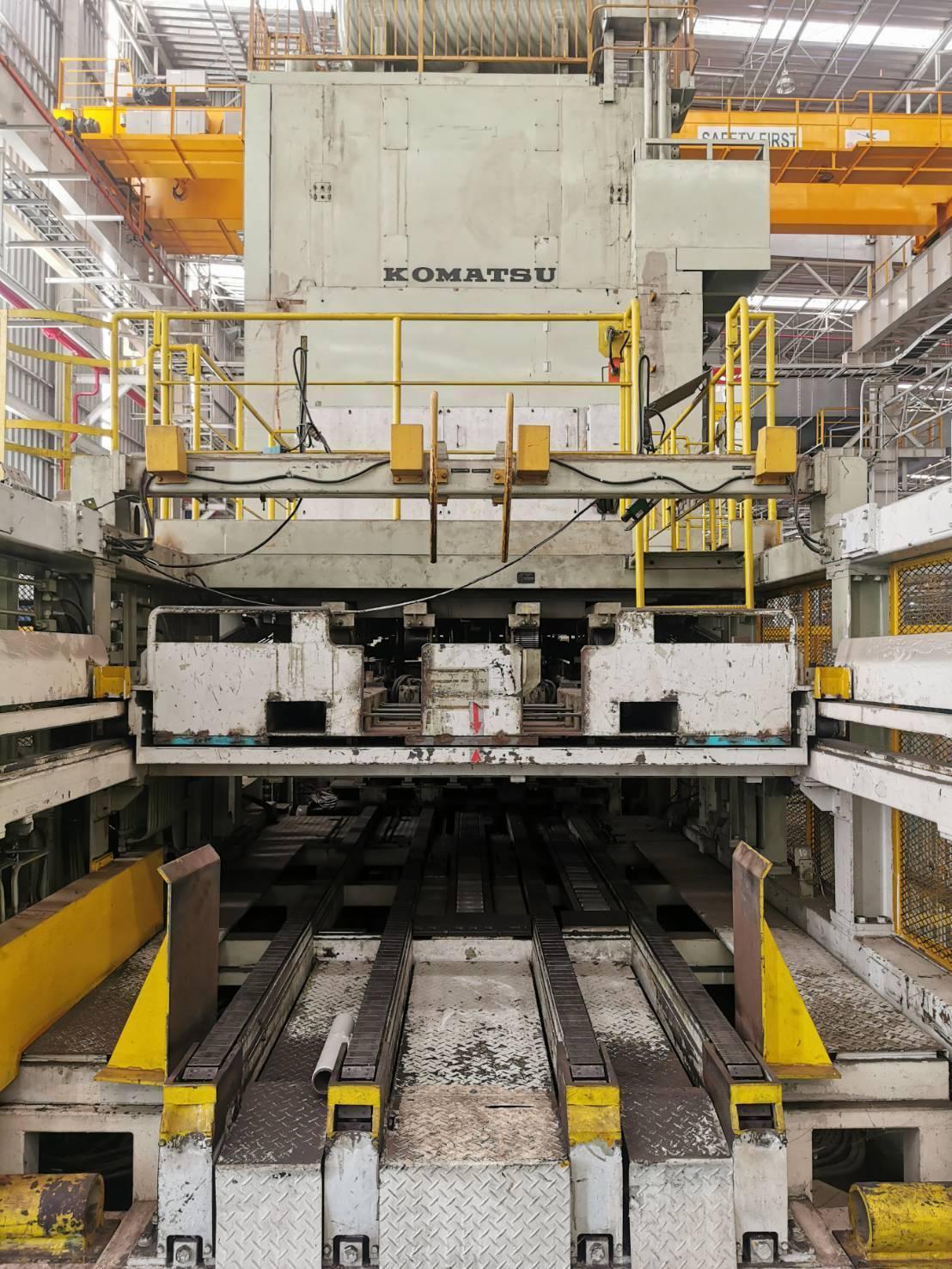

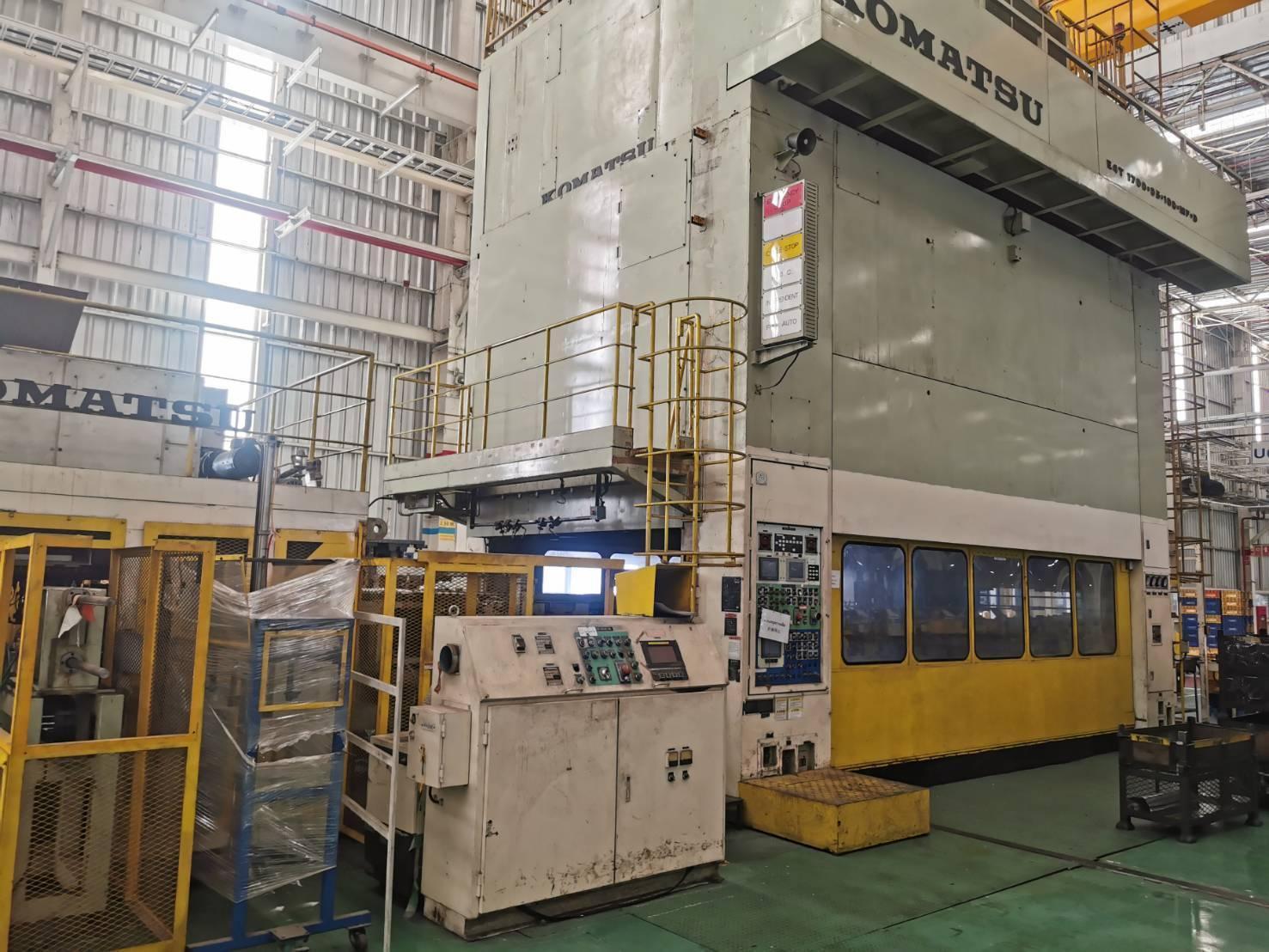

4-Suspension Point Transfer Press

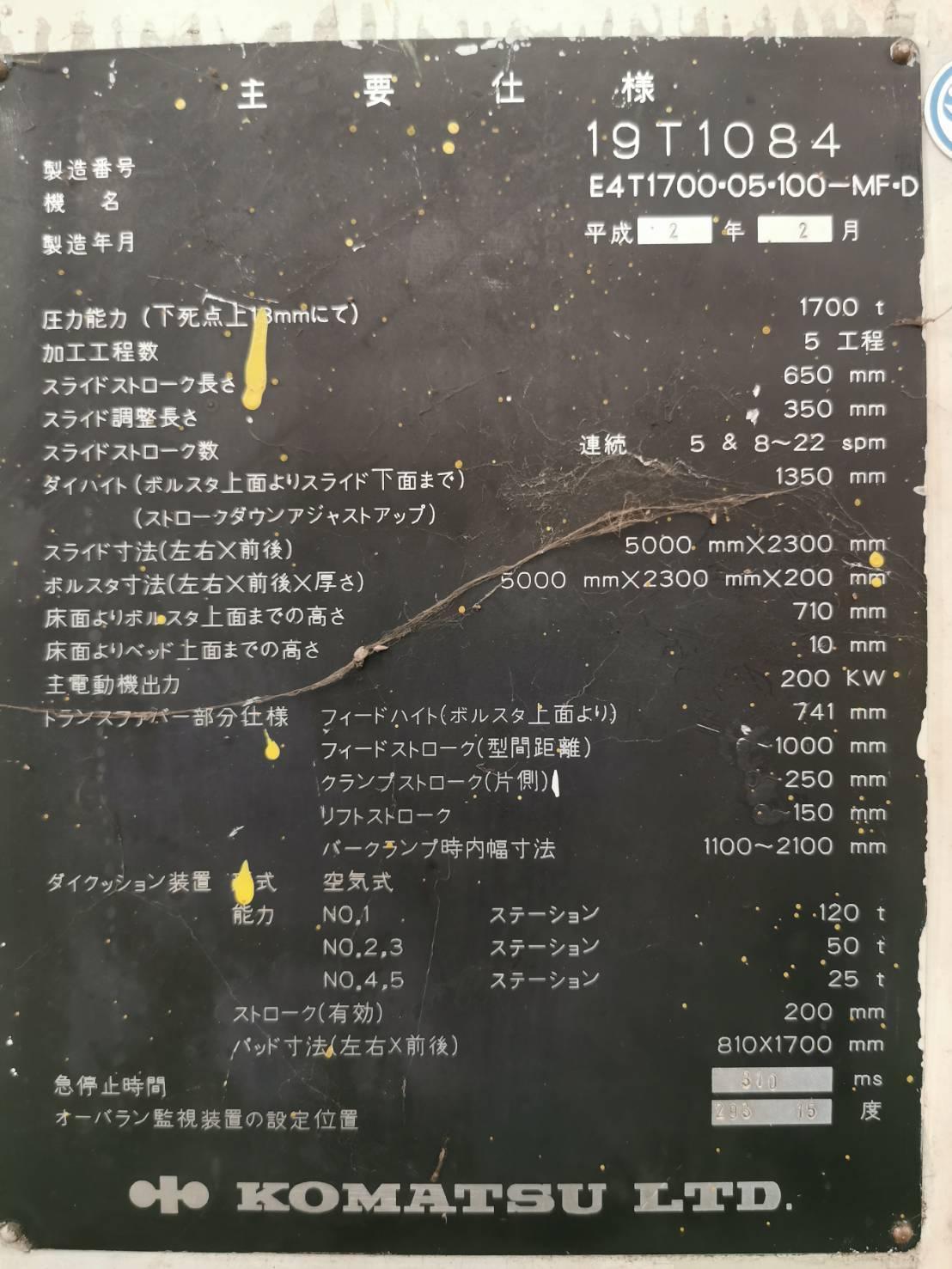

1Mfg Year : Feb, 1990 (Japanese Year Heisei 2 year)
2 Model : E4T-1700
3 Capacity : 1700 ton
4 Stroke : 650 mm
5 Slide Adj : 350 mm
6 SPM : 5 (Micro-inching) & 8-22 (Cont.)
7 Die Height : 1350 mm
8 Slide area : 5000 x 2300 mm
9 Bolster area : 5000 x 2300 x 200 mm
10 Height (FL to Bolster top) : 710 mm
11 Height (FL to Bed) : 10 mm
12 Main Motor : 200 kw
13 Emergency stop : 310 ms
14 Overrrun Monitor & Setting : 293 Deg & 15 Deg
15 Moving bolster : Front-Rear x 2 set
B Transfer Unit Specifications
1 Height : 741 mm (from Bolster top)
2 Feed Stroke : 1000 mm
3 Clamp Stroke : 250 mm (1-side)
4 Lit Stroke : 150 mm
5 Inner distance between Feed Bar : 1100-2100 mm
C Die Cushion specifications
1 No. of stage : 5
2 No. 1 stage : 120 ton
3 No. 2 & 3 stage : 50 ton (each)
4 No. 4 & 5 stage : 25 ton (each)
5 Cushion stroke : 200 mm (Effective)
6 Cushion Pad (LR x FB) : 810 x 1700 mm
