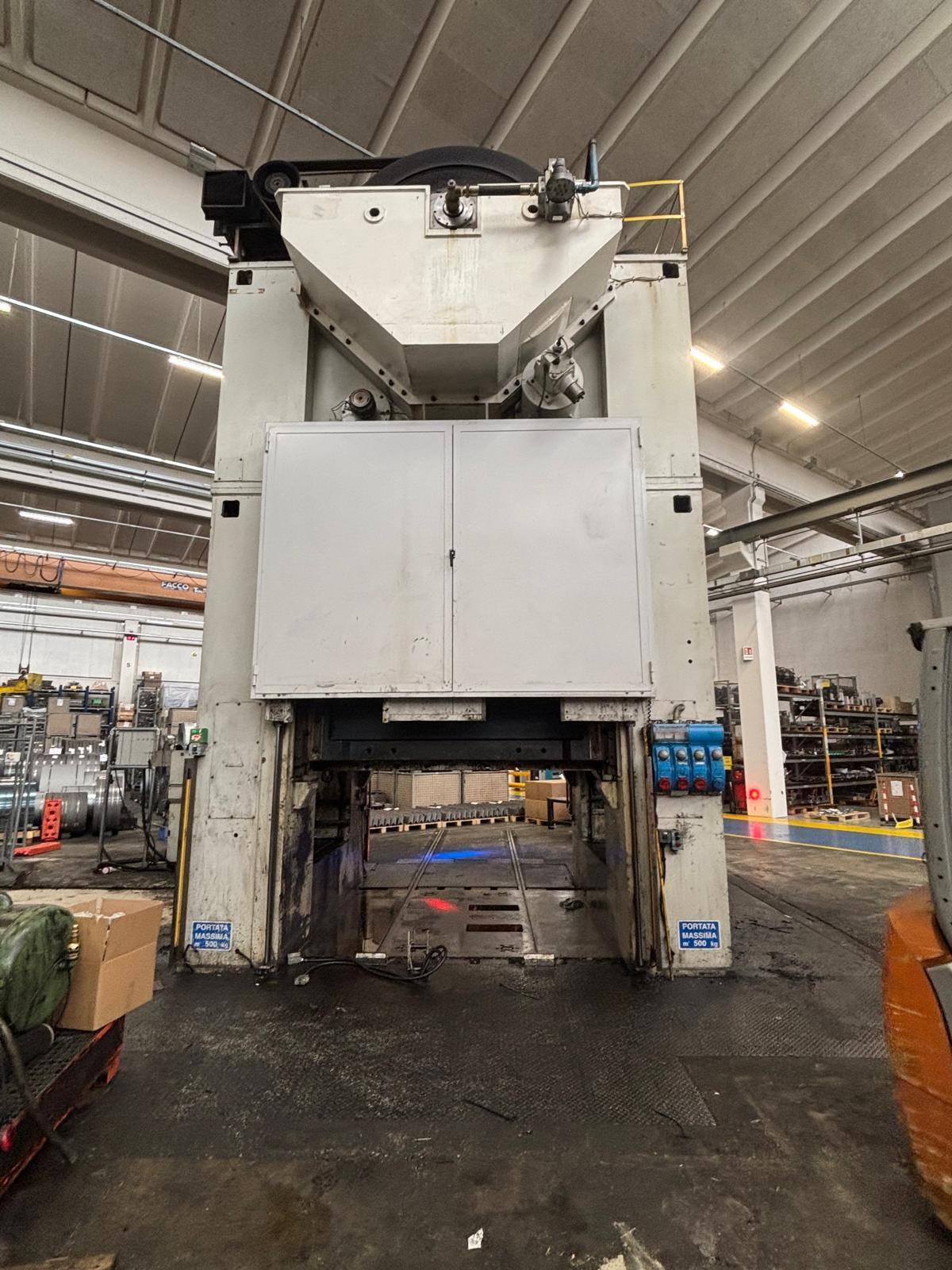

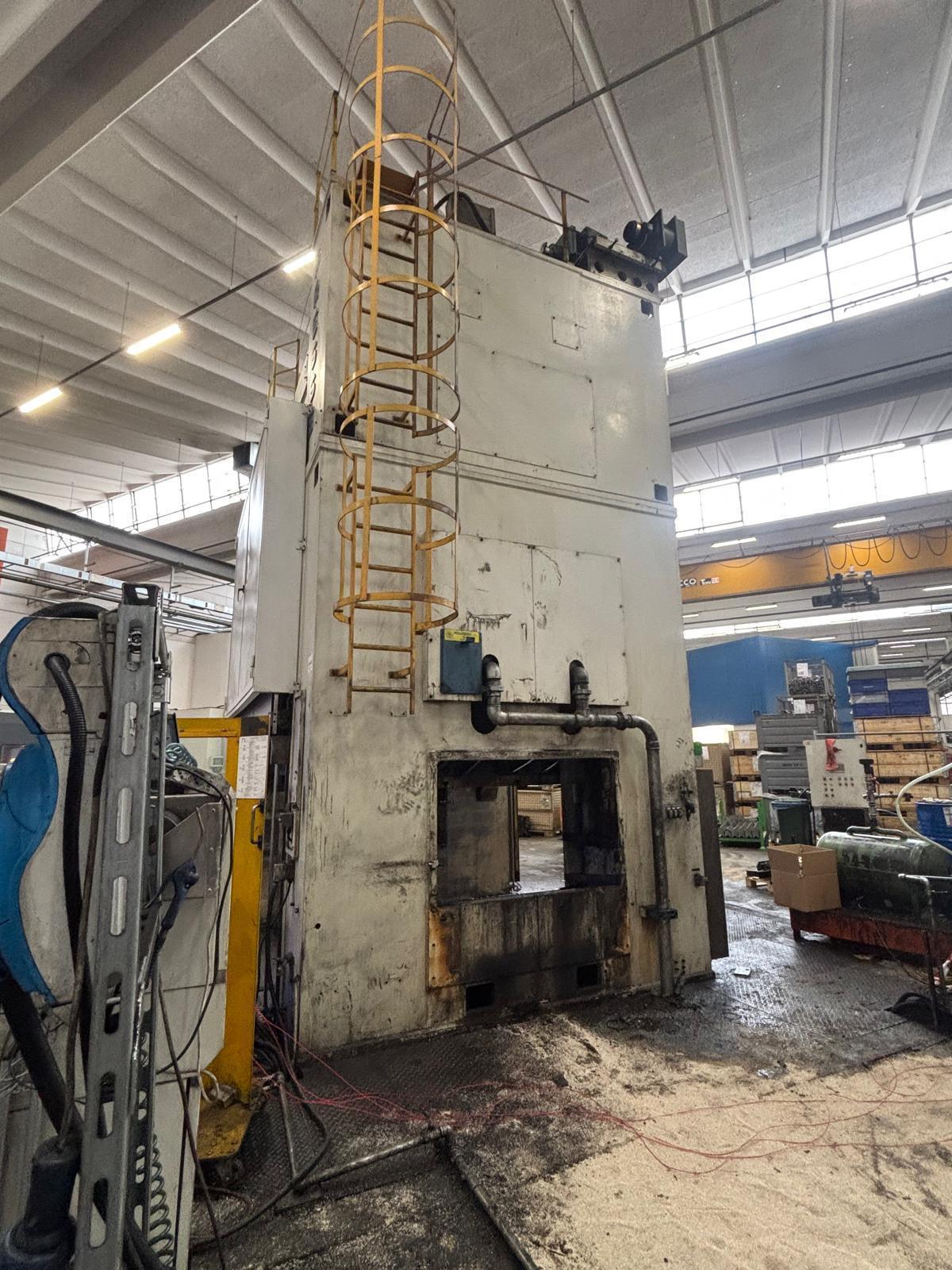

Mechanical Press
Nominal Power : 1,500 ton
4 point
Working Speed: 20–60spm
Slow Speed: 4–10 spm
Fixed Slide Stroke: 160 mm
Motor. Slide Adjst: 160 mm
Shut Height at BDC: 900 mm

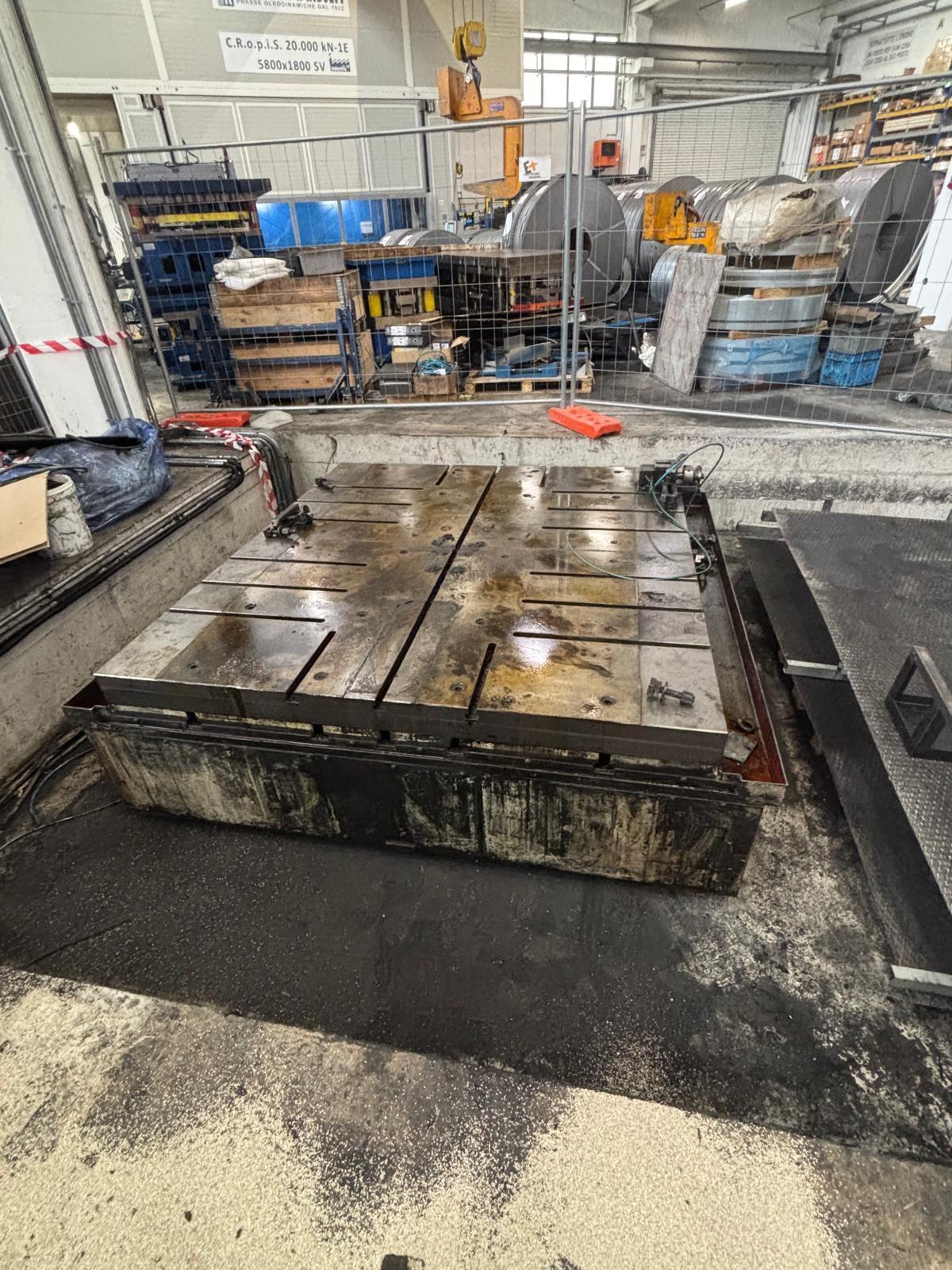

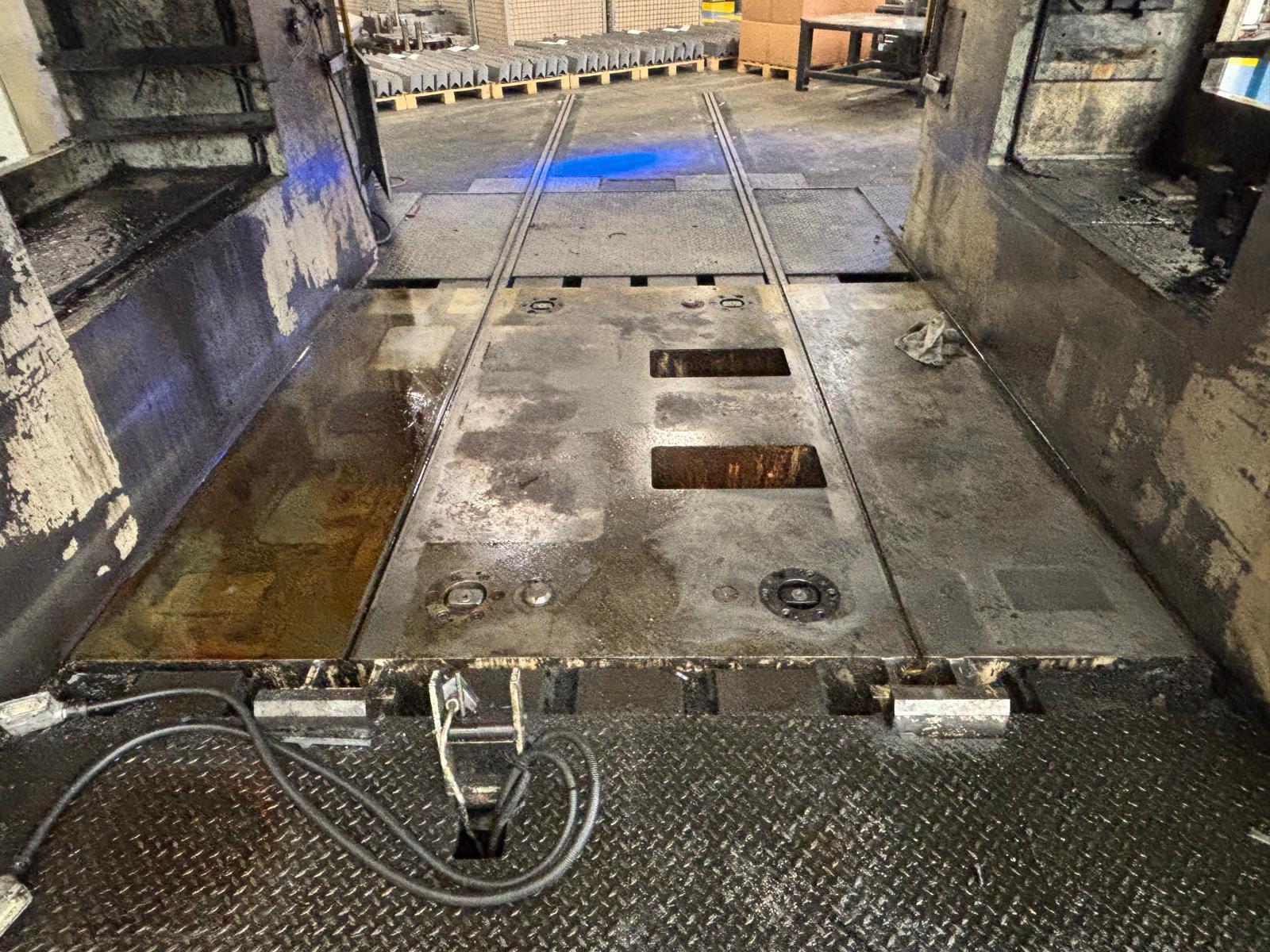

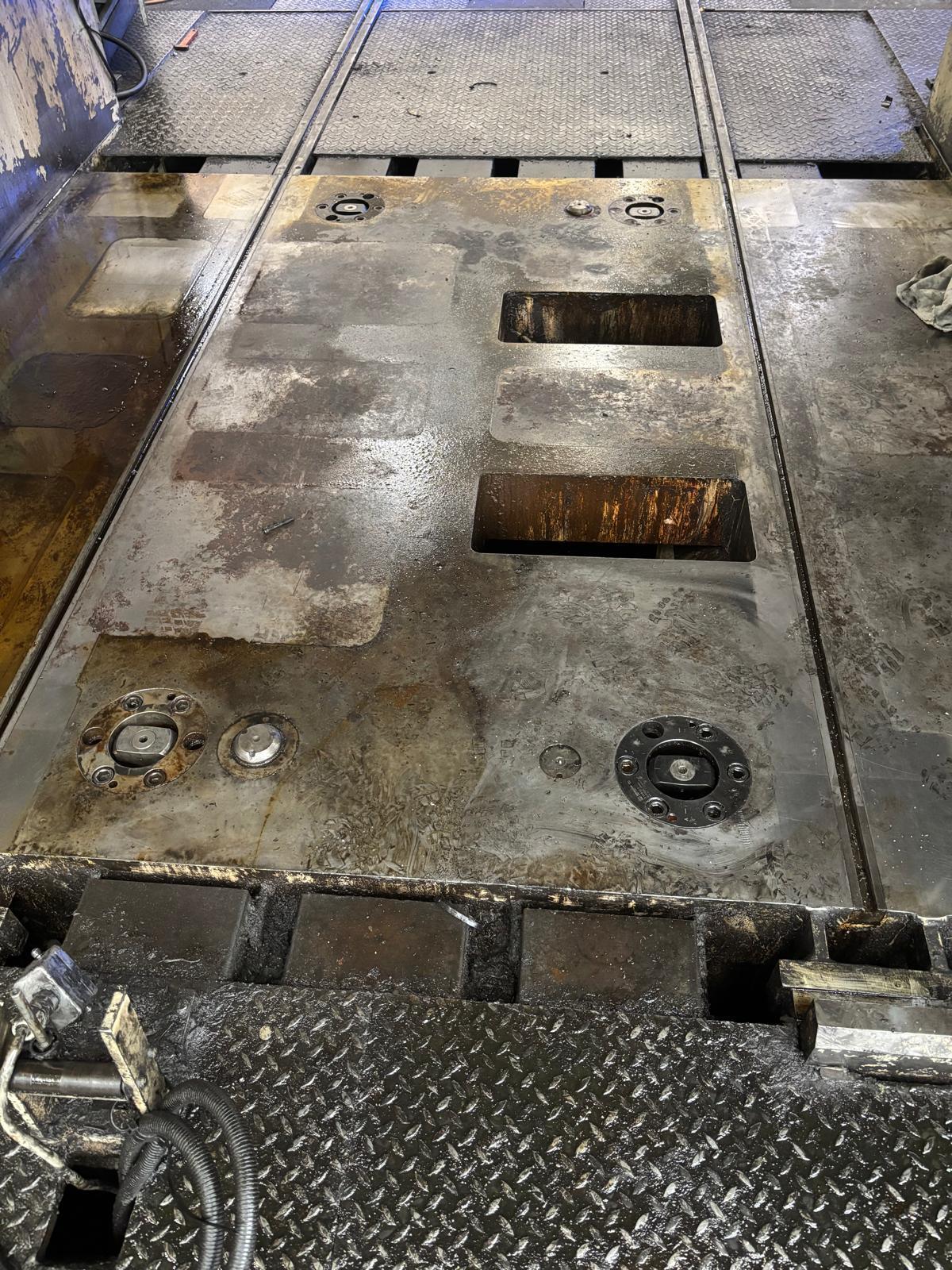

Bolster Dimensions: 2,400 x 2,200 mm

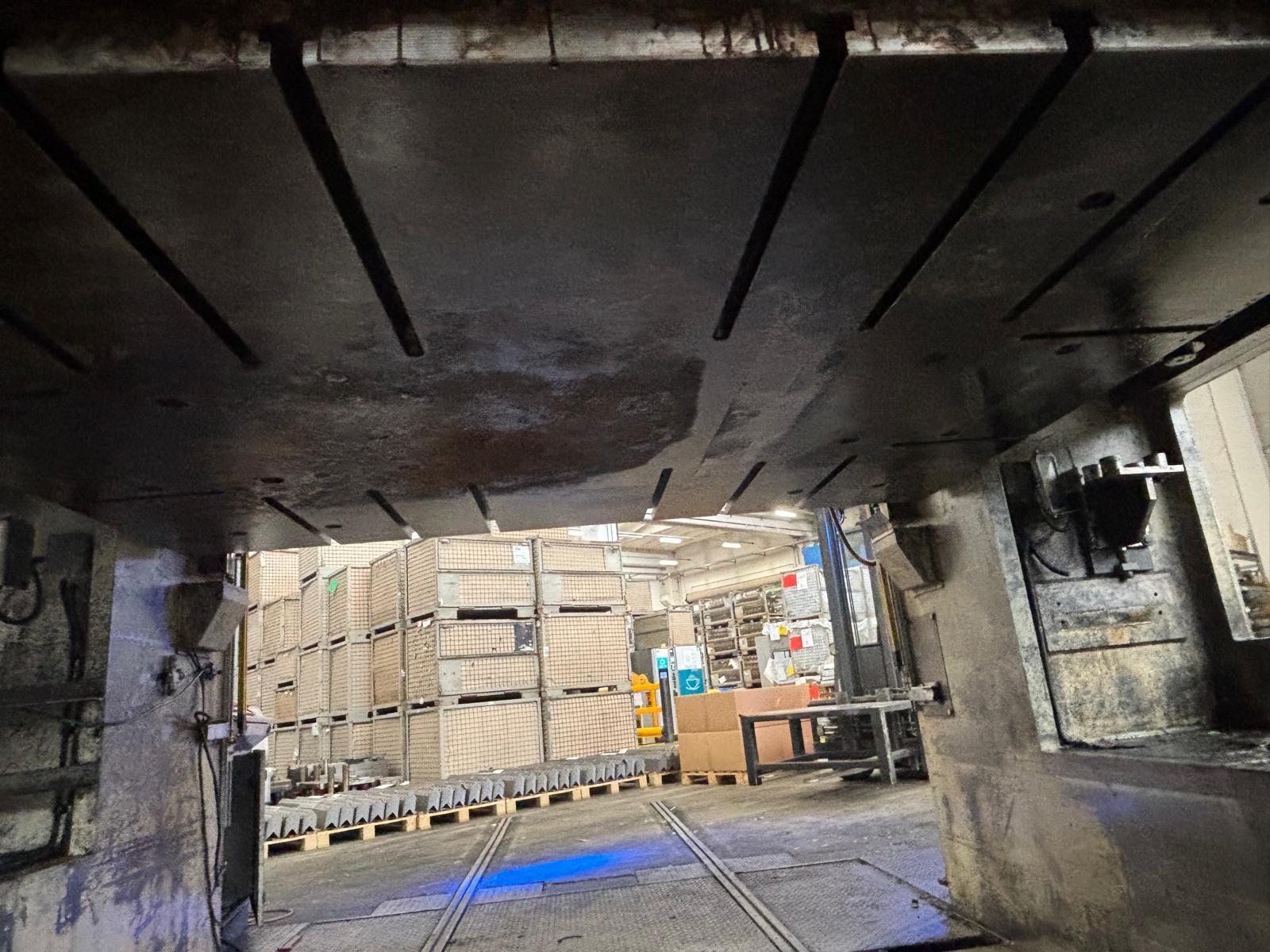

Slide Dimensions: 2,250 x 2,200 mm
Opening Between Frontal Columns: 2,500 mm
Opening Between Trays: 2,250 mm
Between Side Columns: 1,350 mm
Bed Opening: 434 mm
Main Motor Power: 134 kW
Press Weight: 224,000 kg
