Specifications:

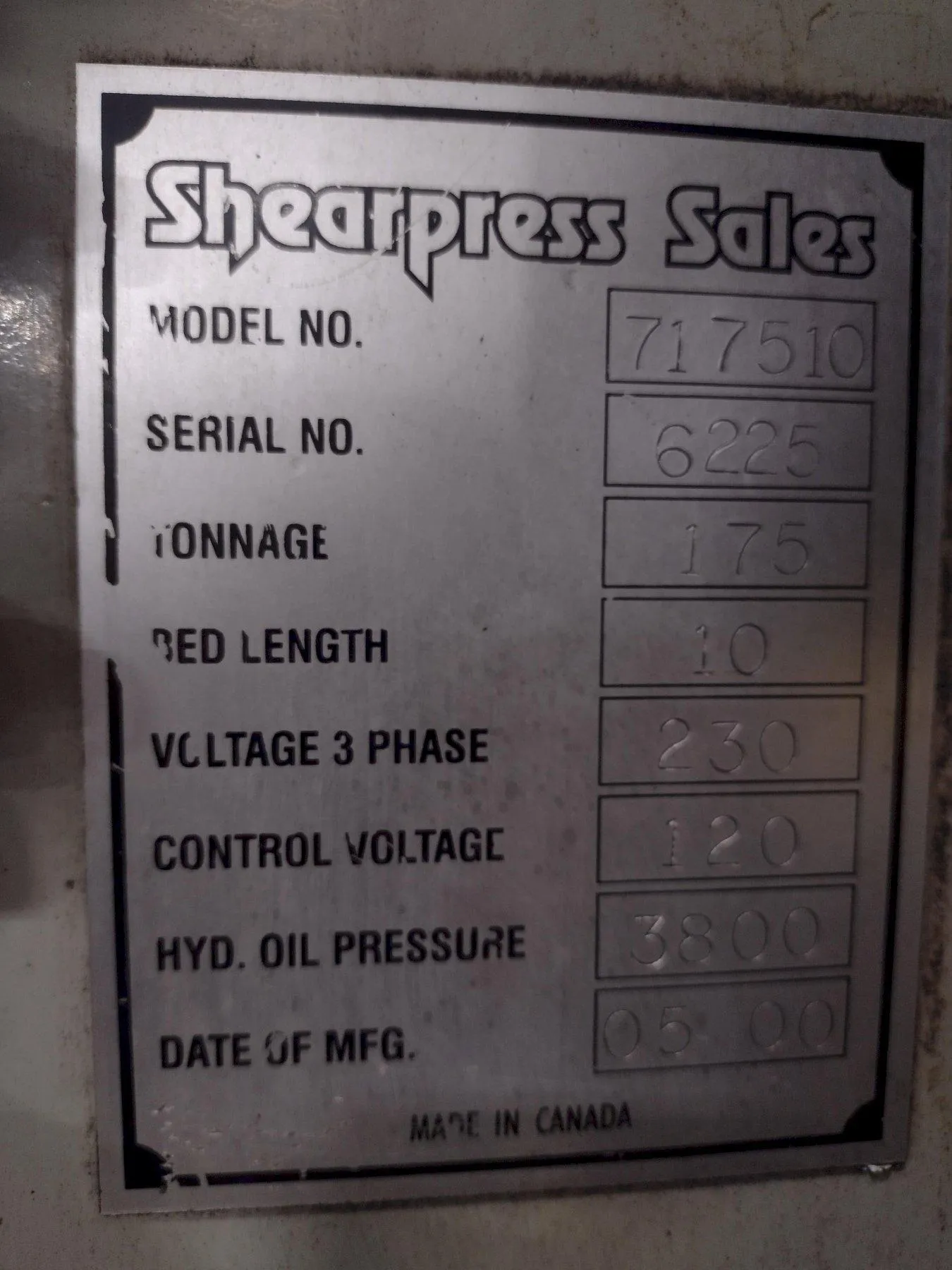

SERIAL .......................................................... 6225
NEW .............................................................. 2000
MODEL ........................................................ 717510
CAPACITY ..................................................... 175 TONS
OVERALL LENGTH OF BED .................... 120"
DISTANCE BETWEEN HOUSINGS ....... 100"
STROKE ......................................................... 8"
DAYLITE ........................................................ 14" OPEN/6" CLOSED
THROAT ........................................................ 10"
WIDTH OF BED ............................................ 6"
RAM SPEED FAST APPROACH .............. 90 IPM
RAM SPEED SLOW BEND ....................... 24 IPM
RAM SPEED FAST RETURN ................... 180 IPM

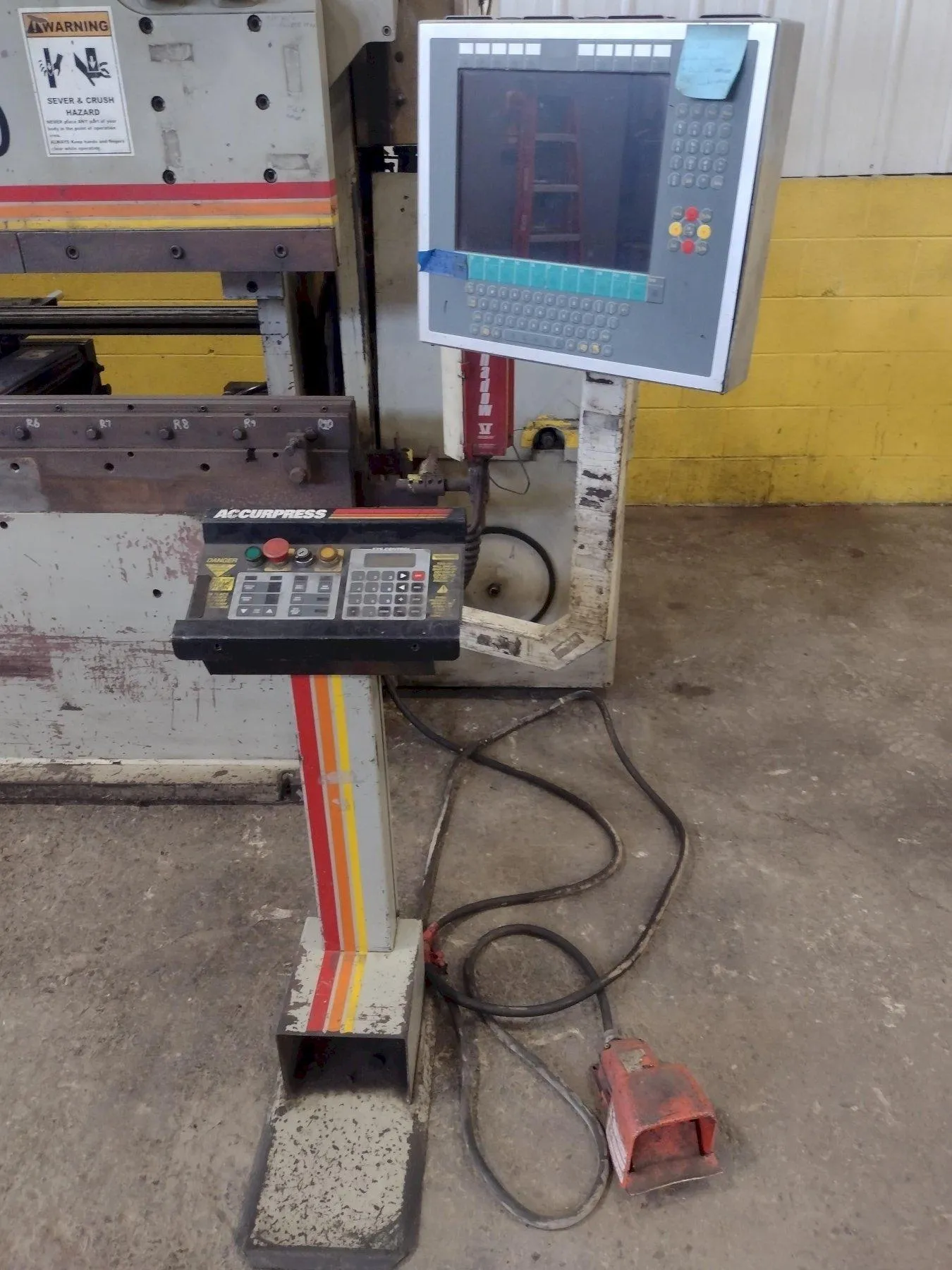

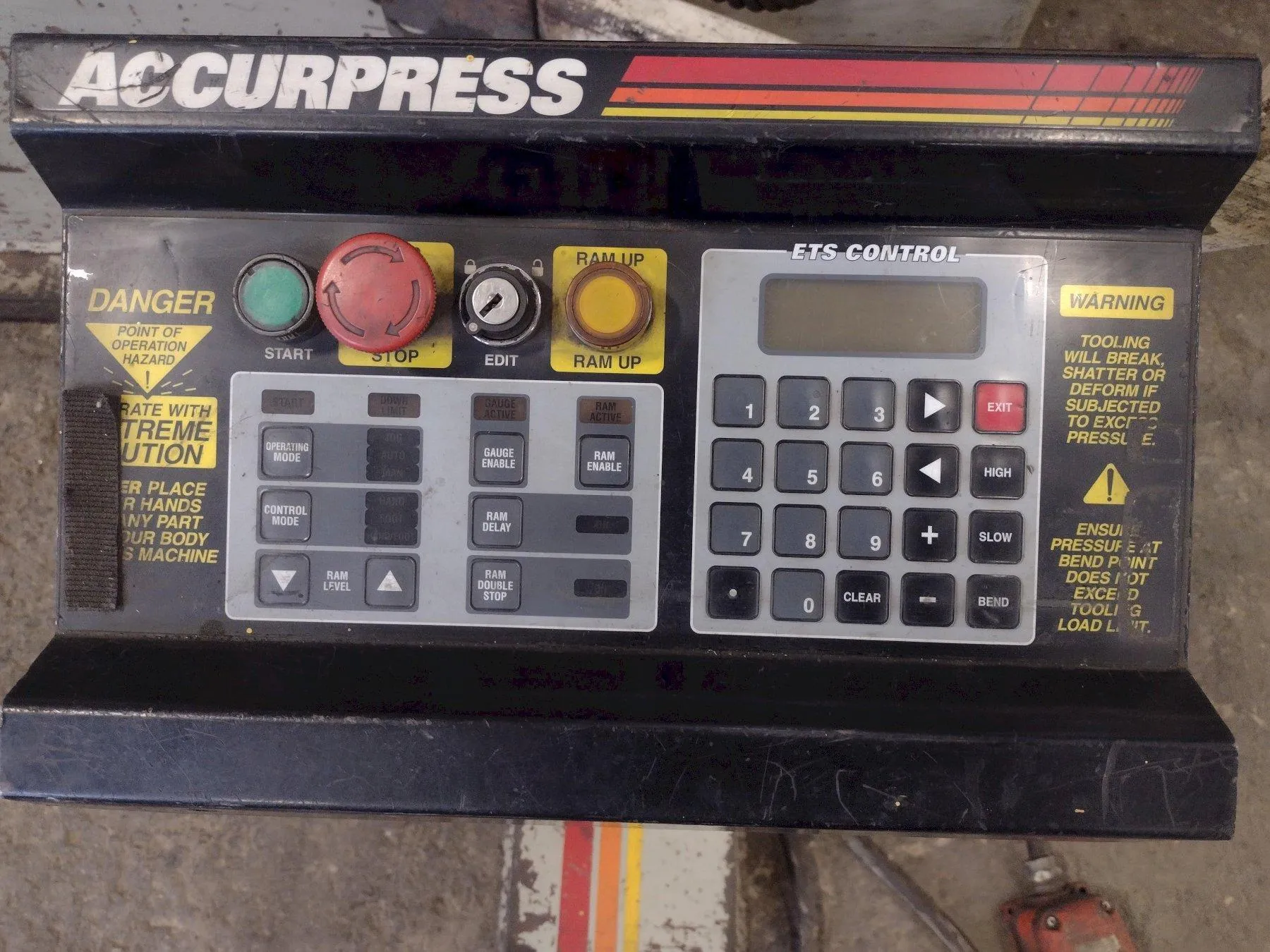

CNC CONTROL ......................................... ETS 3000
LIGHT CURTAINS ....................................... YES
PALM BUTTONS PEDESTAL STAND ..... YES
FLOOR STANDING ..................................... YES
MAIN MOTOR .............................................. 20 HORSEPOWER
