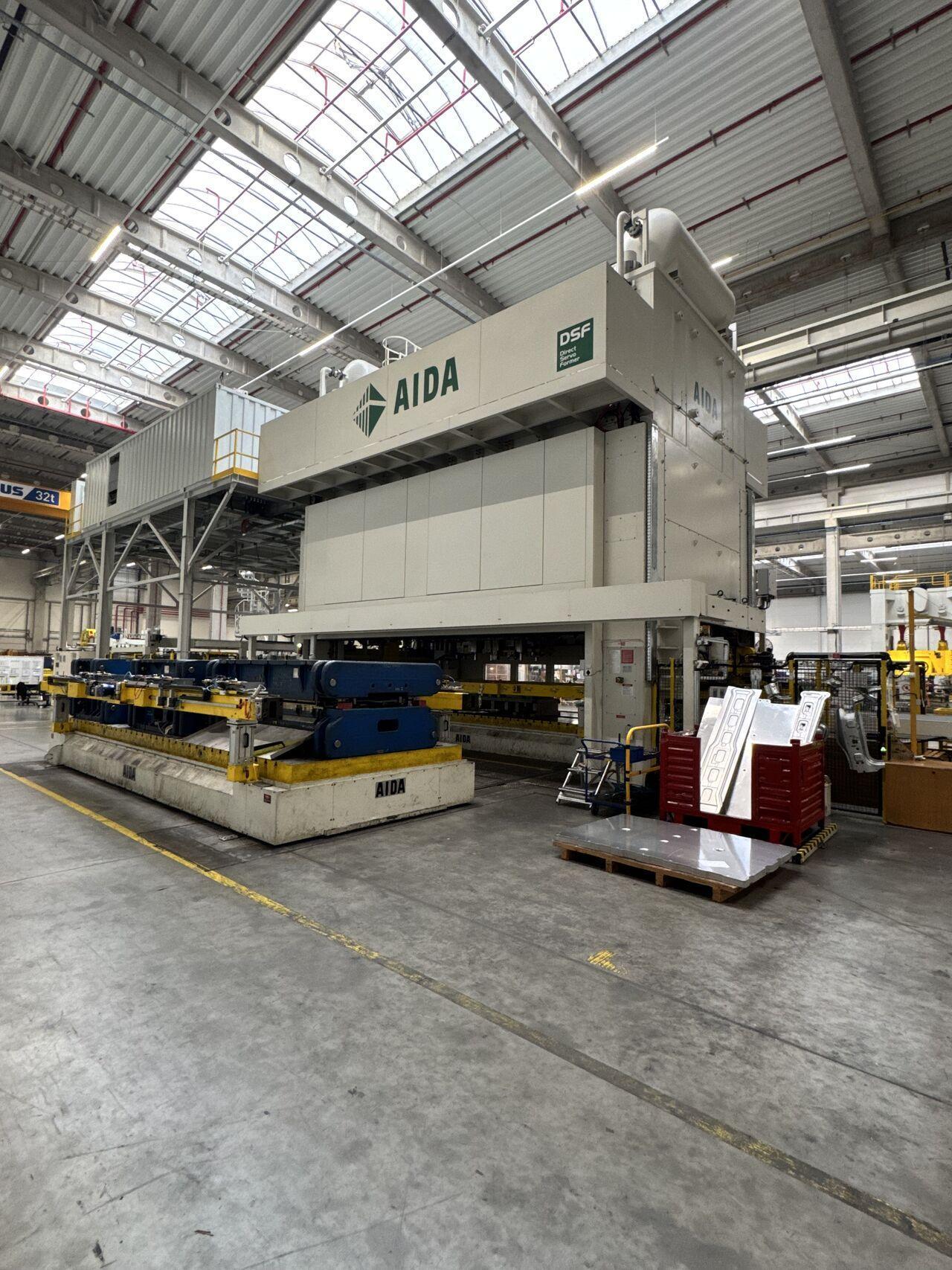

2000 ton AIDA SERVO TRANSFER PRESS DFS-TE4-20000(2) 730-250

AIDA SERVO PRESS SYSTEM – 2,000 TONS

Technical–Commercial Description

The AIDA DFS-TE4-20000 Servo Press System is a state-of-the-art 2,000-ton servo-driven stamping solution, engineered for high-precision, high-speed, and high-flexibility metal forming applications. This recent-generation AIDA servo press combines advanced motion control, large working envelope, and robust structural design, making it ideal for automotive body, structural, and high-strength steel components.

Main Press Characteristics

Manufacturer: AIDA
Model: DFS-TE4-20000(2) 730-250
Nominal Press Force: 2,000 tons
Drive System: Full Servo Drive

The servo drive technology allows programmable slide motion profiles, enabling optimized forming conditions, reduced die wear, improved part quality, and increased productivity across a wide range of materials and part geometries.

Key Technical Specifications:
• Stroke: 800 mm
• Stroke Rate: up to 50 strokes per minute
• Ram Adjustment: 400 mm
• Side Opening: 3,650 mm
• Bolster Area: 7,300 × 2,500 mm
• Ram Area: 7,300 × 2,500 mm

The large bolster and ram areas provide excellent capability for large dies, transfer tooling, and complex progressive or multi-stage operations.

Integrated NORDA Transfer System

The press is equipped with a NORDA high-performance transfer system, designed to ensure precise, synchronized part handling at high production speeds.

Transfer Technical Data:
• Transfer Pitch: 0 – 1,250 mm
• Transfer Opening (min./max.): 700 – 2,740 mm
• Transfer Stroke: 0 – 350 mm

This transfer system supports flexible tooling layouts and ensures reliable part movement between stations, even for large or asymmetrical components.

Millutensil Coil Feeding Line

The press line is complemented by a Millutensil coil processing line, enabling continuous and efficient material feeding directly into the press.

Coil Line Specifications:
• Material Thickness Range: 0.5 – 3.0 mm
• Maximum Material Width: 1,800 mm
• Decoiler Load Capacity: 20 tons

This coil line configuration allows the processing of a wide range of materials, including mild steel, high-strength steel, and advanced automotive grades, ensuring stable feeding and consistent production quality.

Applications & Advantages

• Automotive body and structural components
• High-volume transfer stamping operations
• High-strength and advanced steel forming
• Reduced setup time and increased process control
• Enhanced forming flexibility through servo motion profiles
