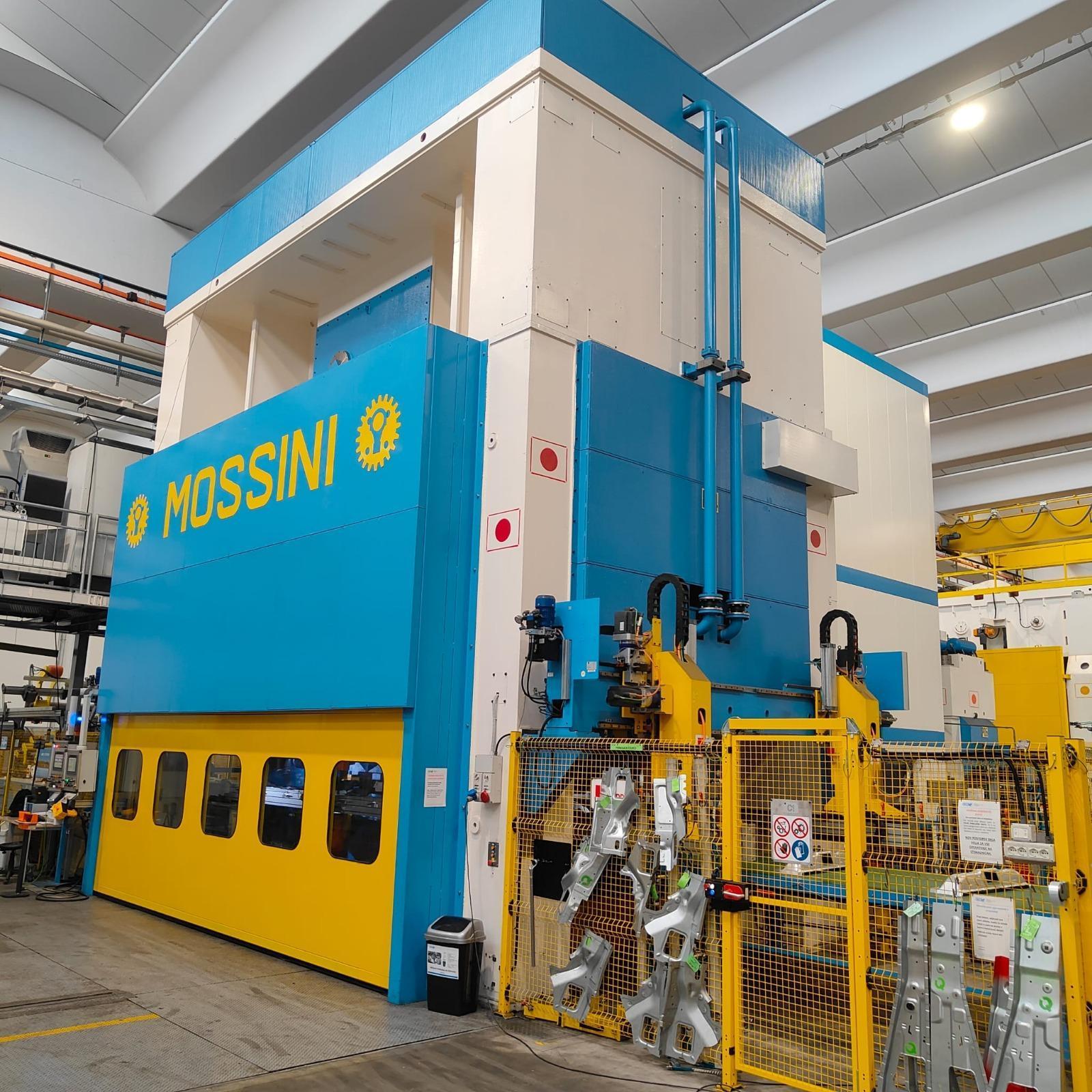

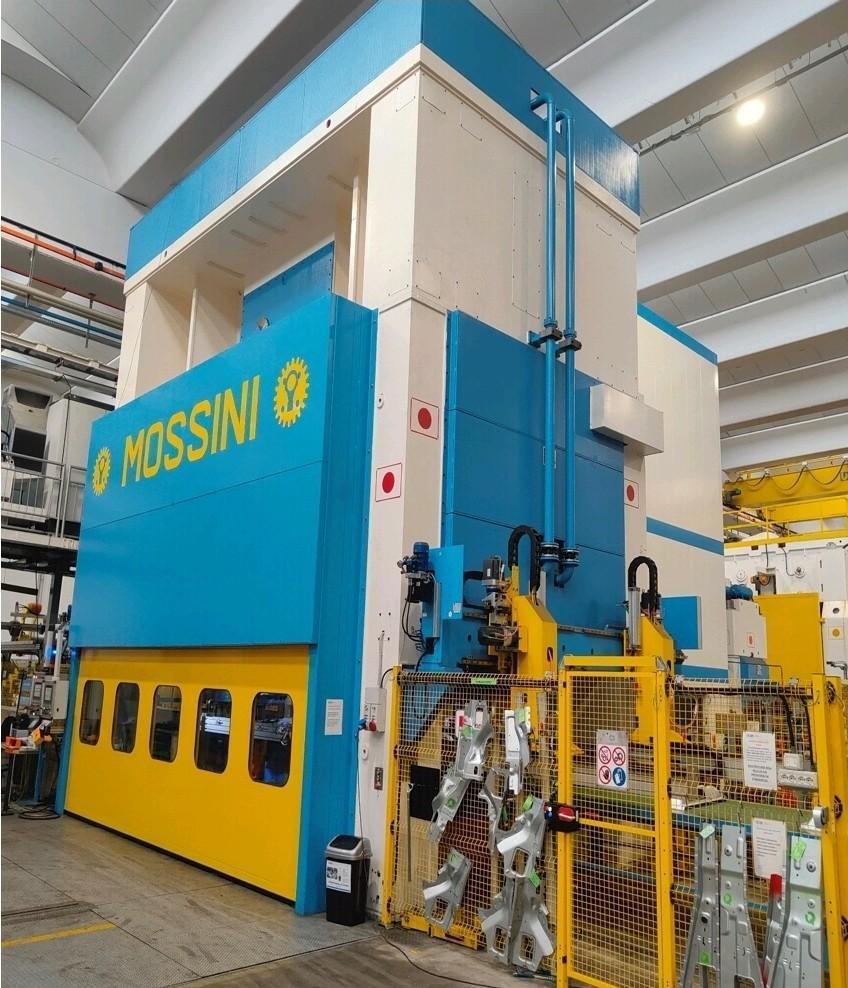

2000 Ton Mossini Double Sided Eccentric Press with 4 Connecting Rods with Link-Drive System
MOSSINI 2000 TON
TYPE: PDM/4B/LD/2000
SERIAL NUMBER: 0965/19
KINEMATICS: LINK DRIVE
RATED CAPACITY AT 13mm: 2000 Tons
NUMBER of connecting rod: 4
SLIDE STROKE: mm 900
SLIDE ADJUSTMENT: mm 400
CONTINUOUS SPEED (variable): spm 10 - 25
SHUT HEIGHT, from top of bolster, SDAU: mm 1270

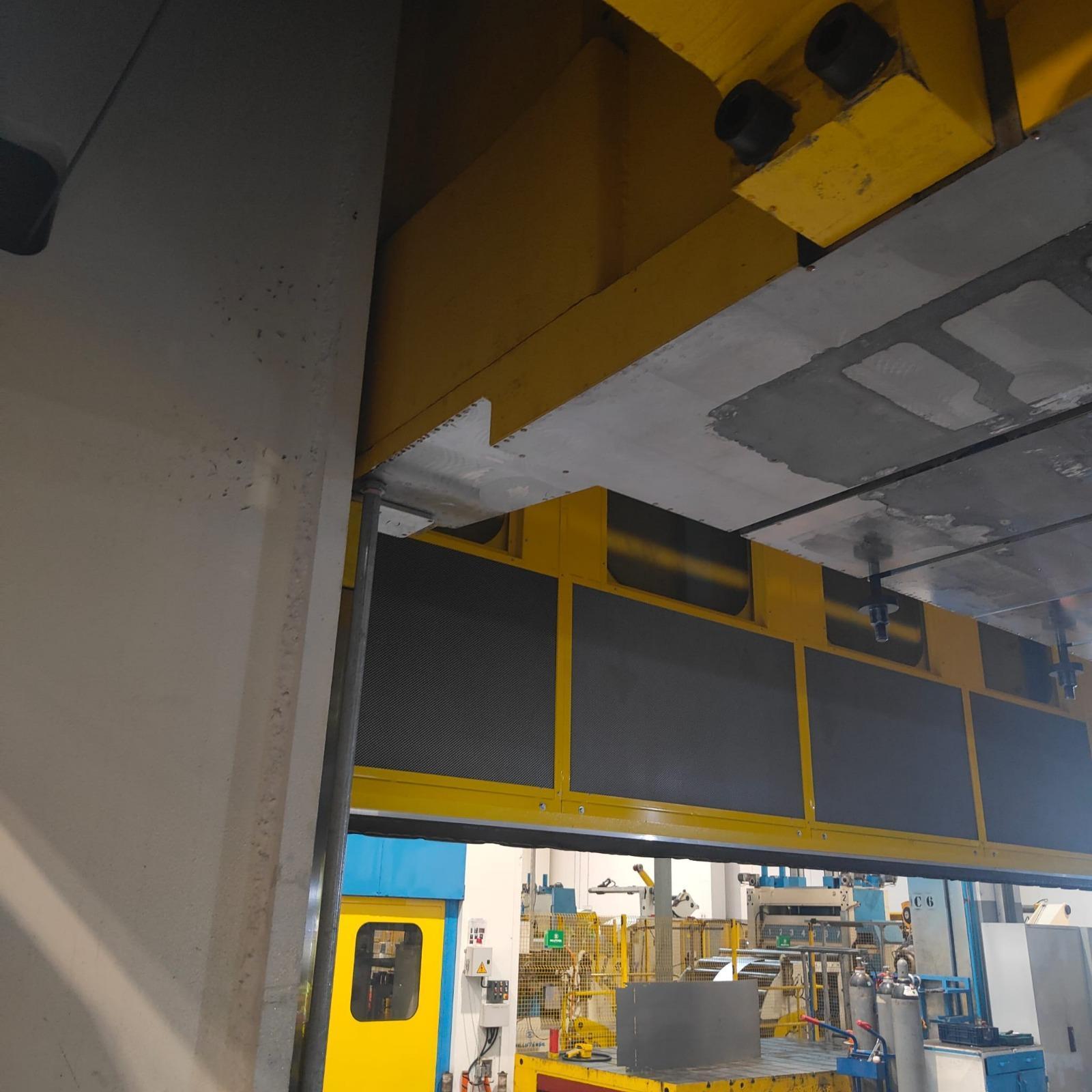

SLIDE DIMENSIONS (L-R x F-B): 6000 X 2500 mm

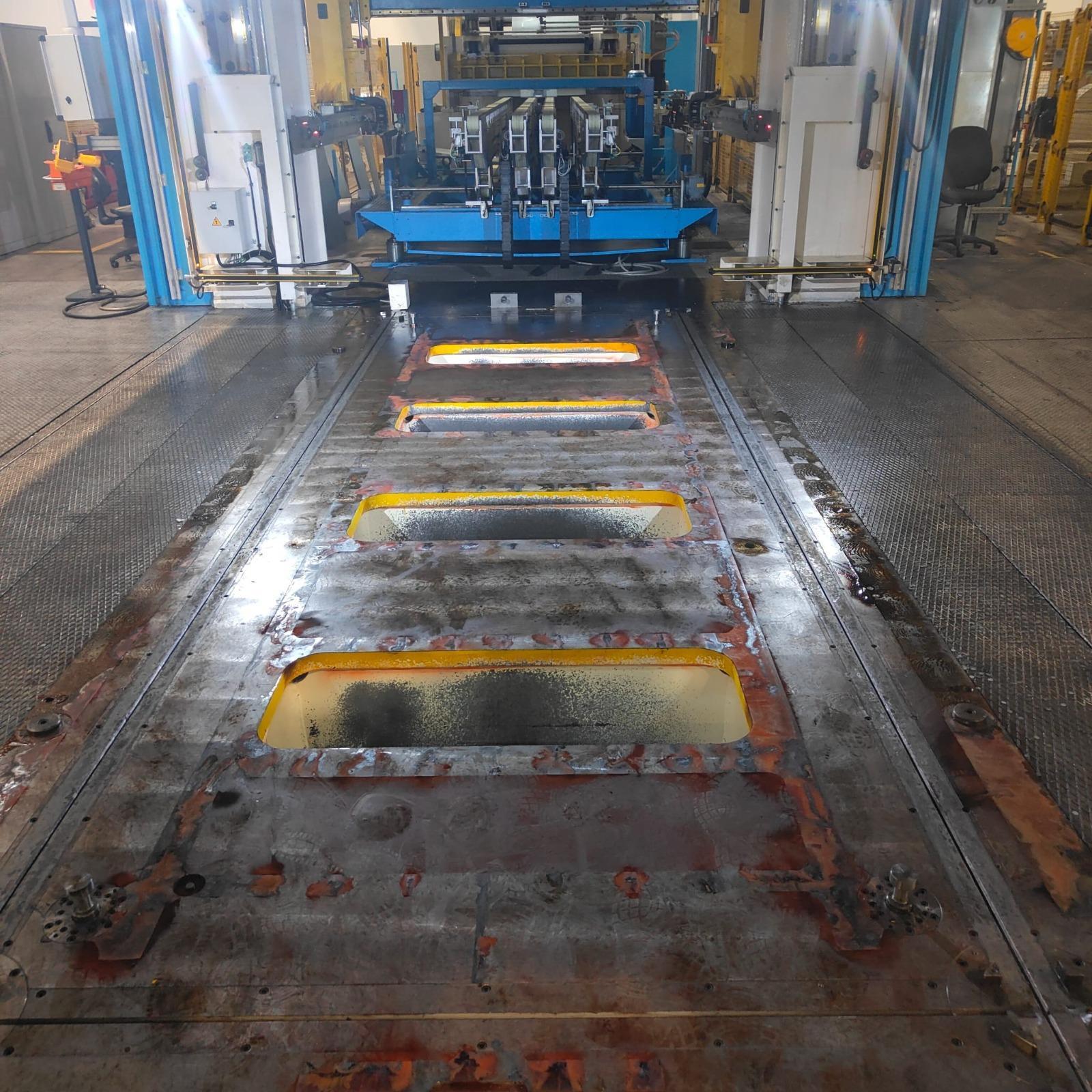

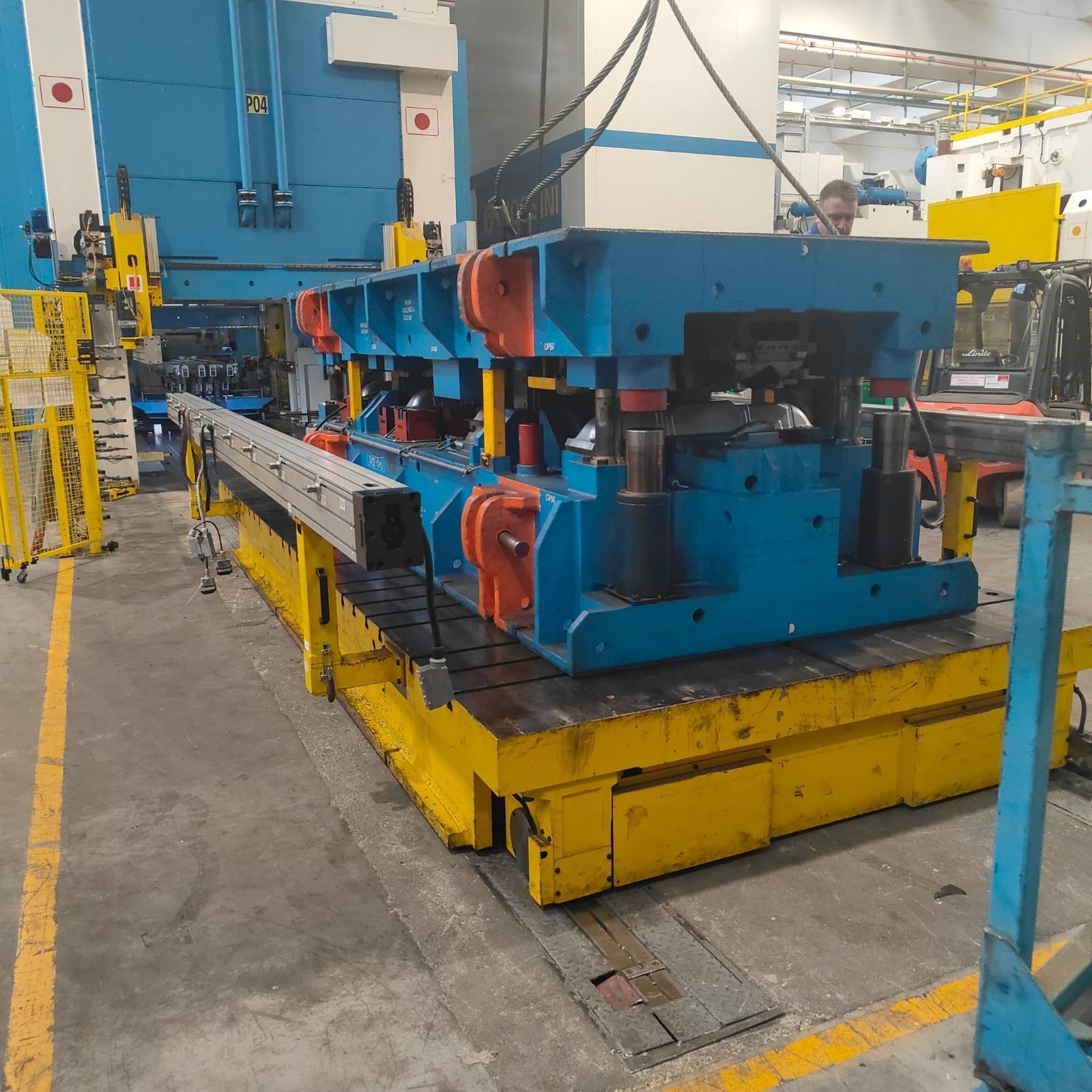

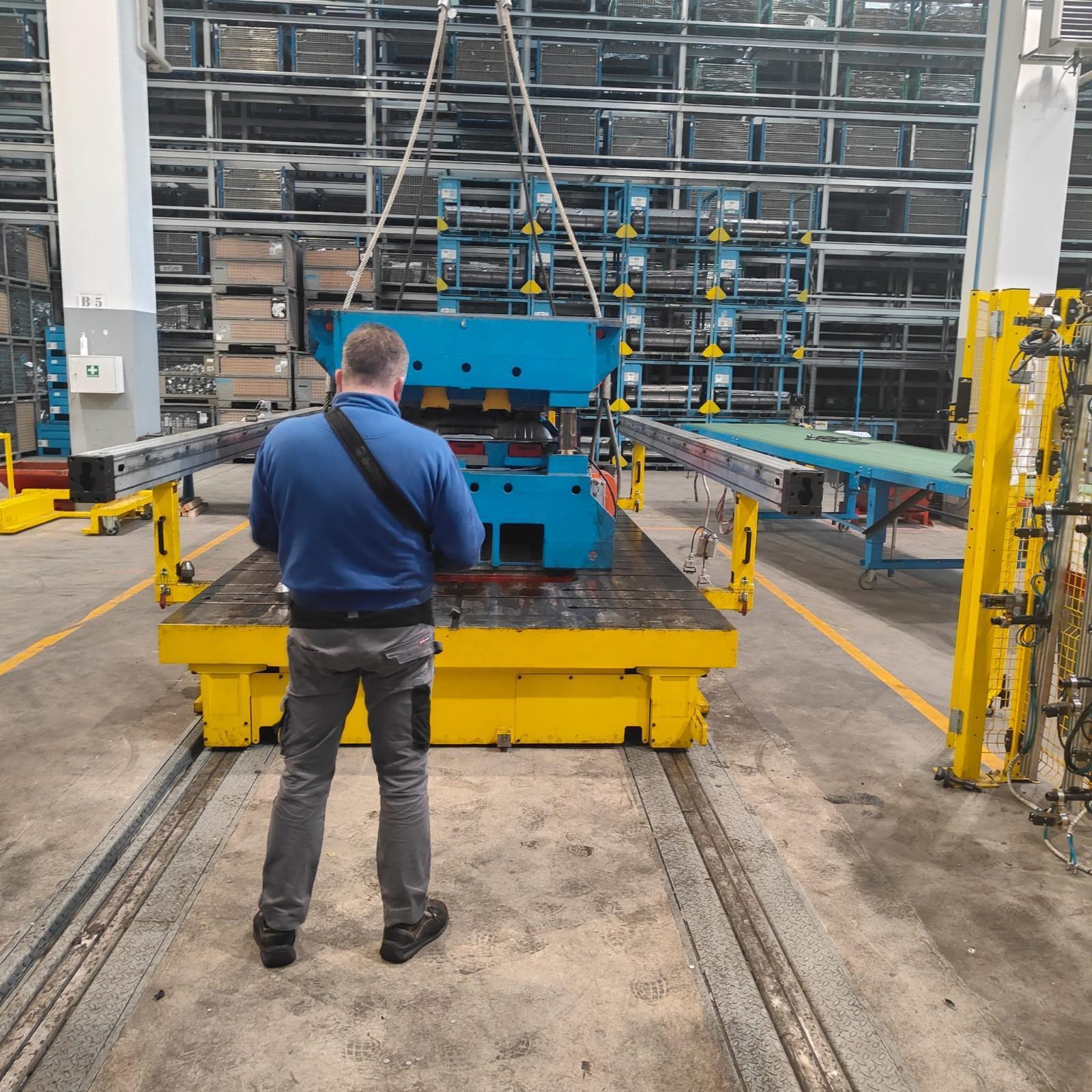

SIDE MOVING BOLSTER DIMENSIONS (L-R x F-B): 6000 X 2500 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 6070 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 3300
MOVING BOLSTER H. : mm 550
WEIGHT OF THE PRESS : Kg.600.000
EQUIPMENT

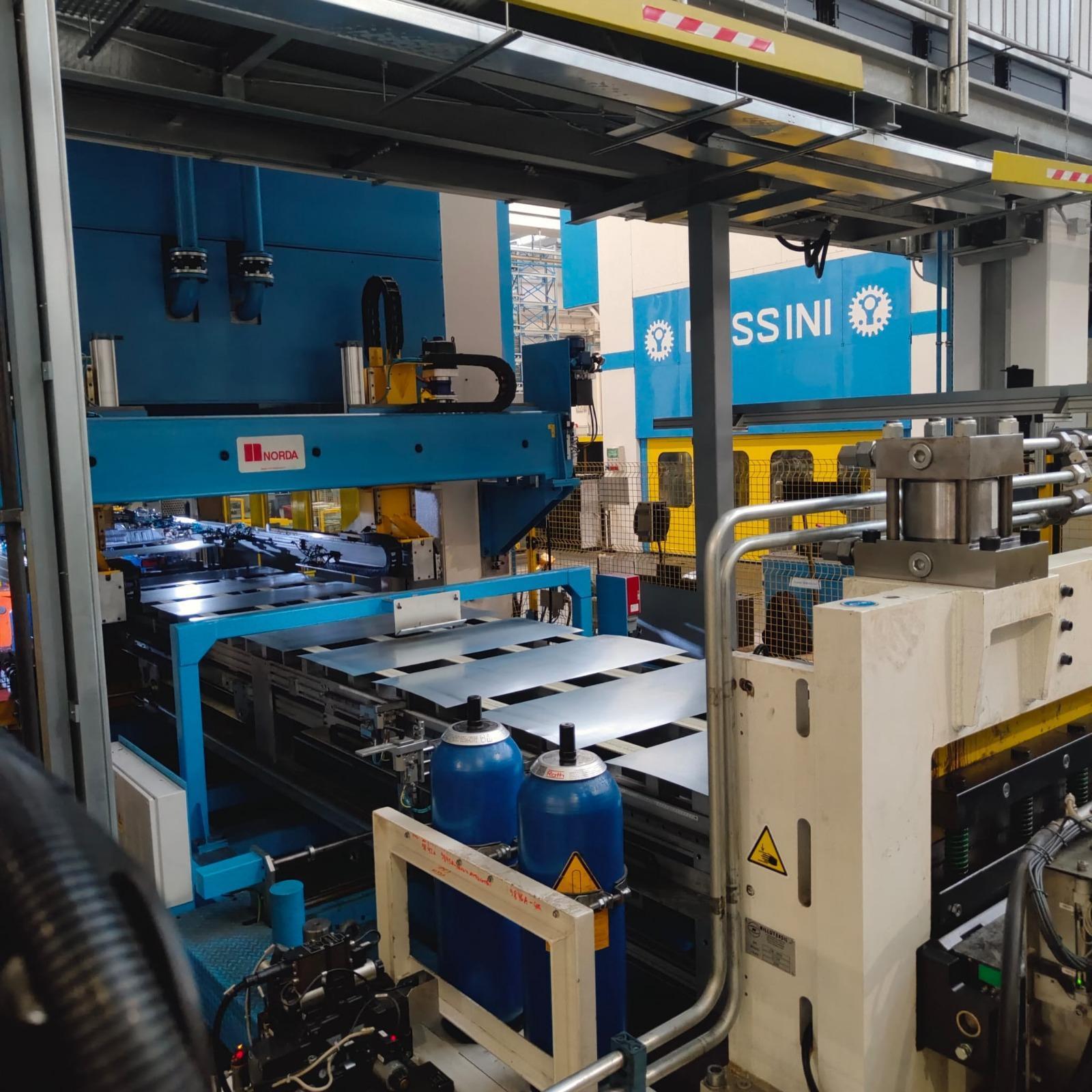

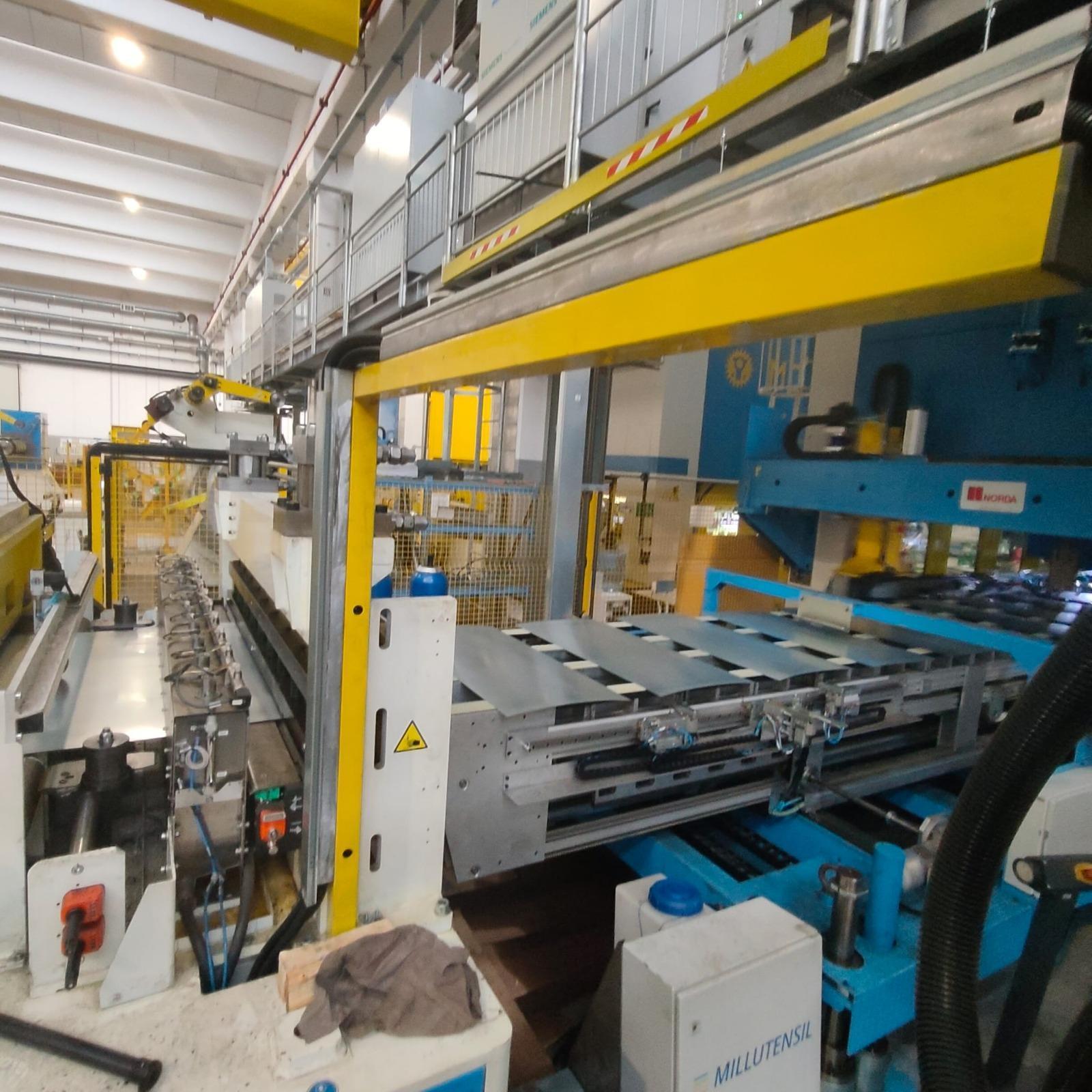

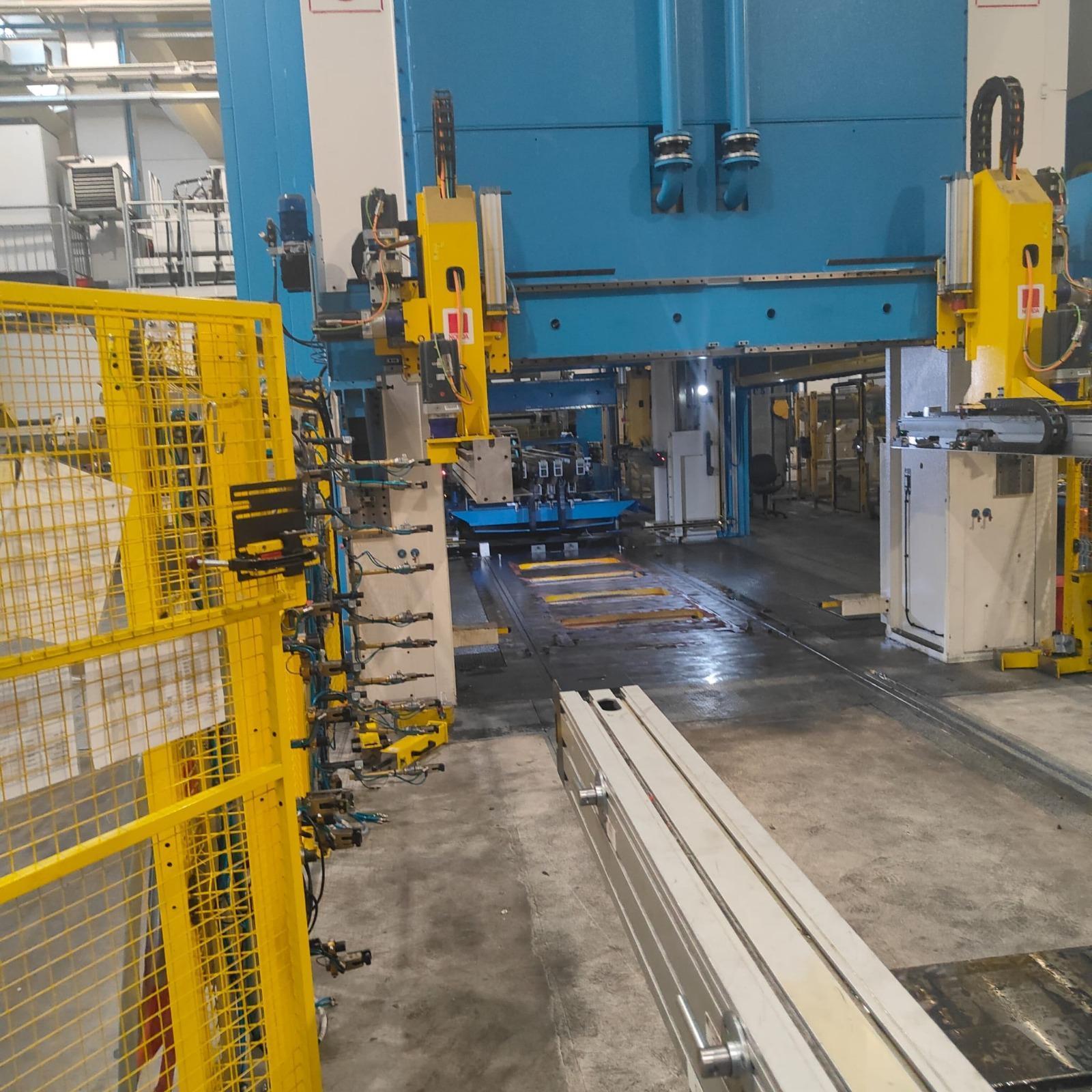

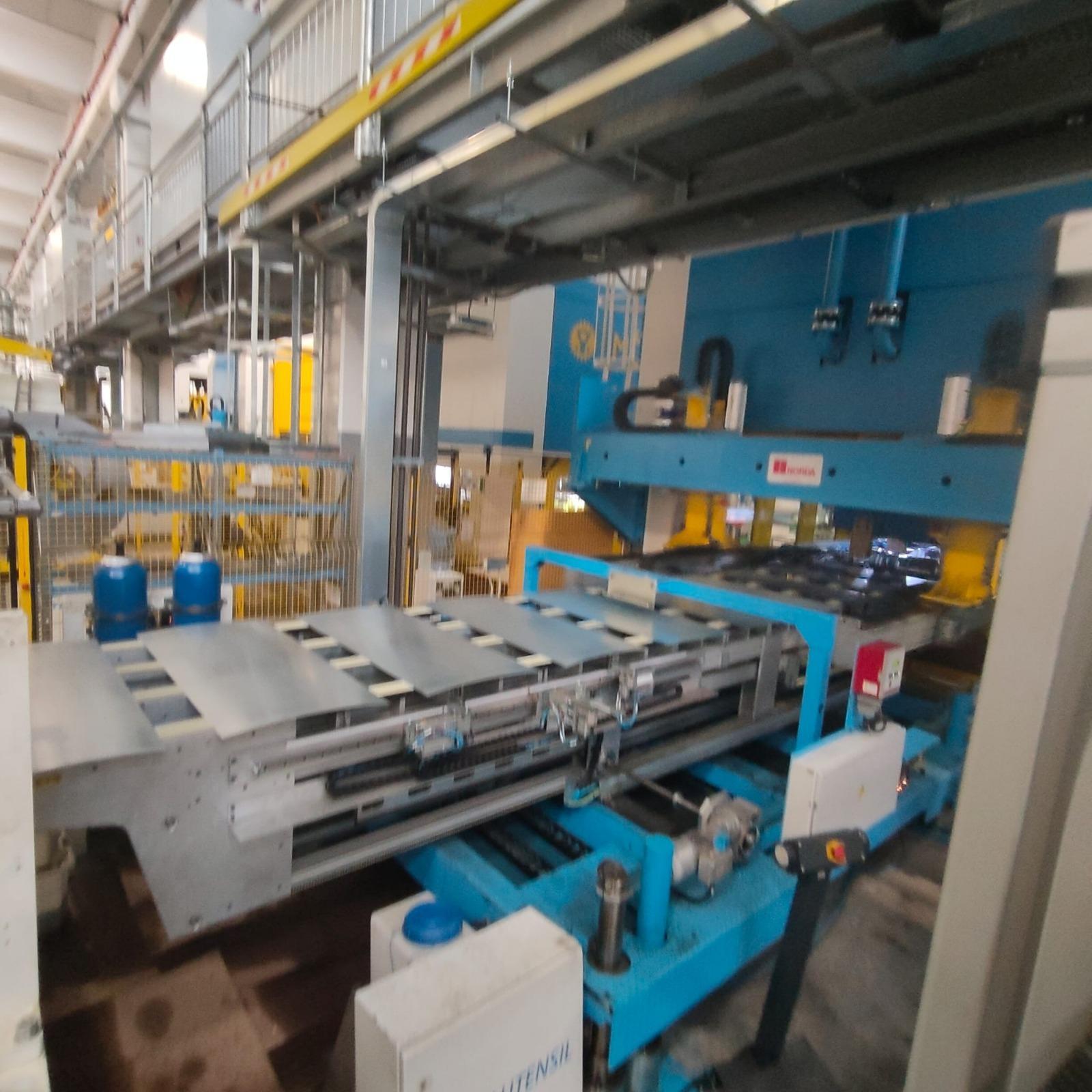

TRANSFER NORDA 3 ASSI - 3 AXIS NORDA TRANSFER SYSTEM 2019
SERIAL NUMBER 5124/25

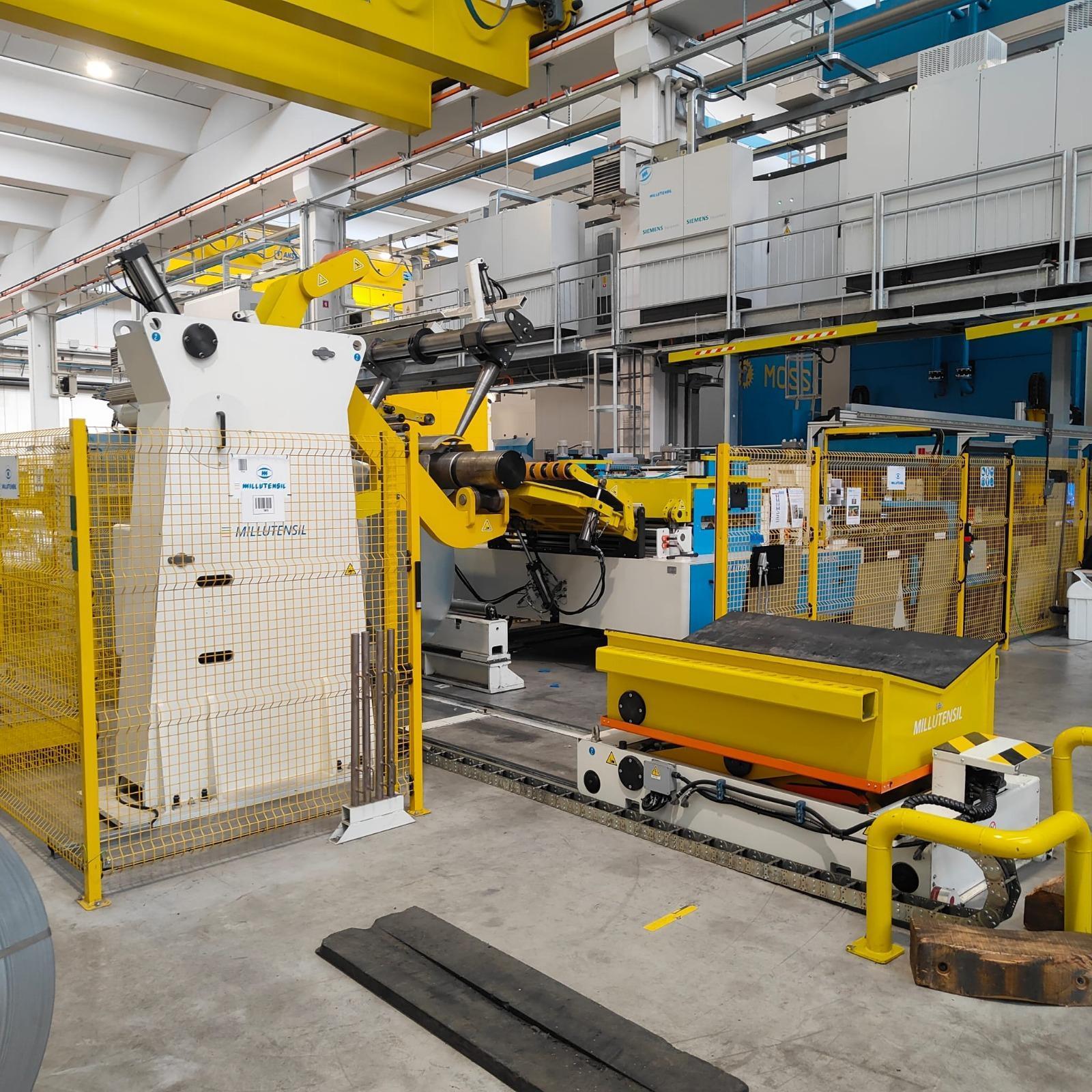

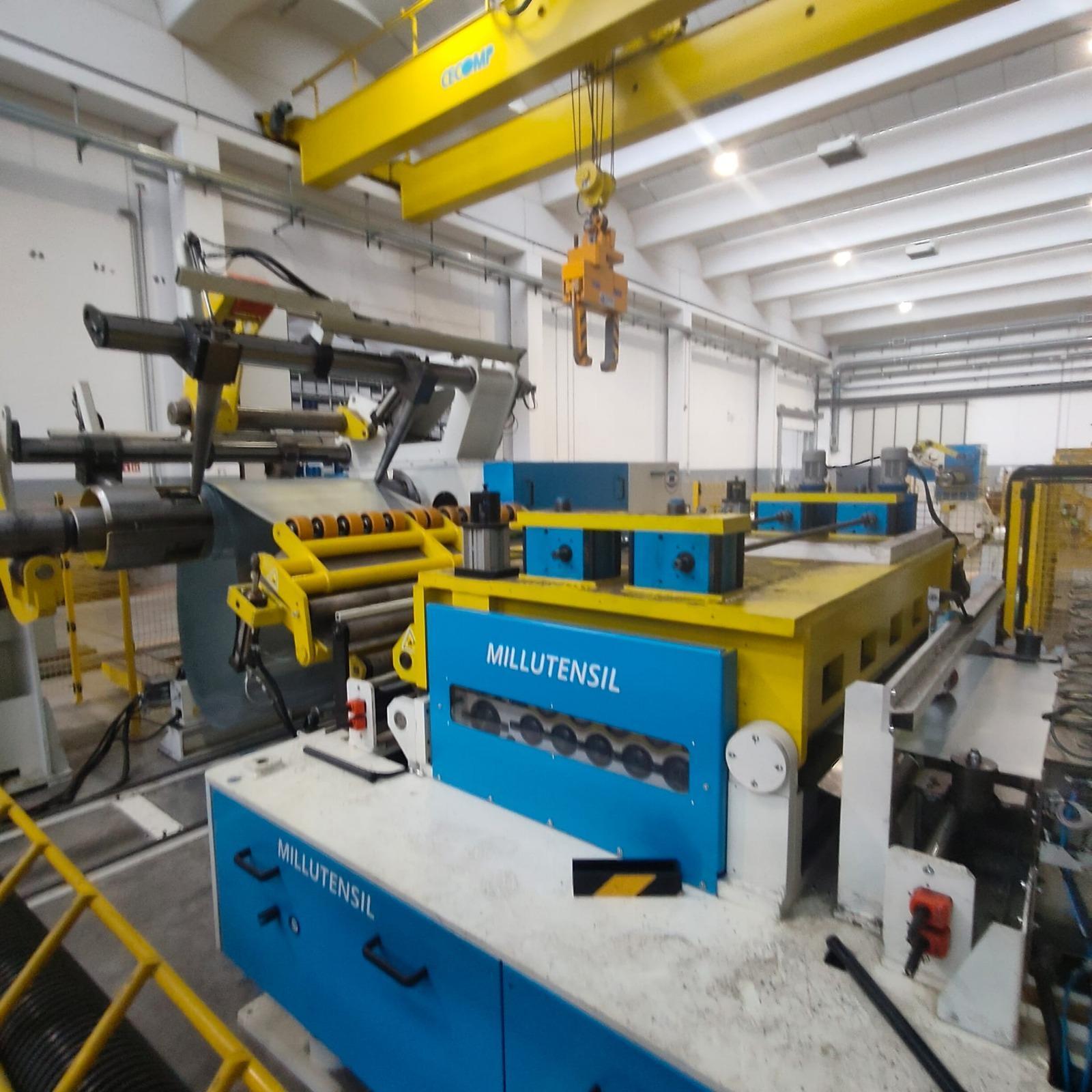

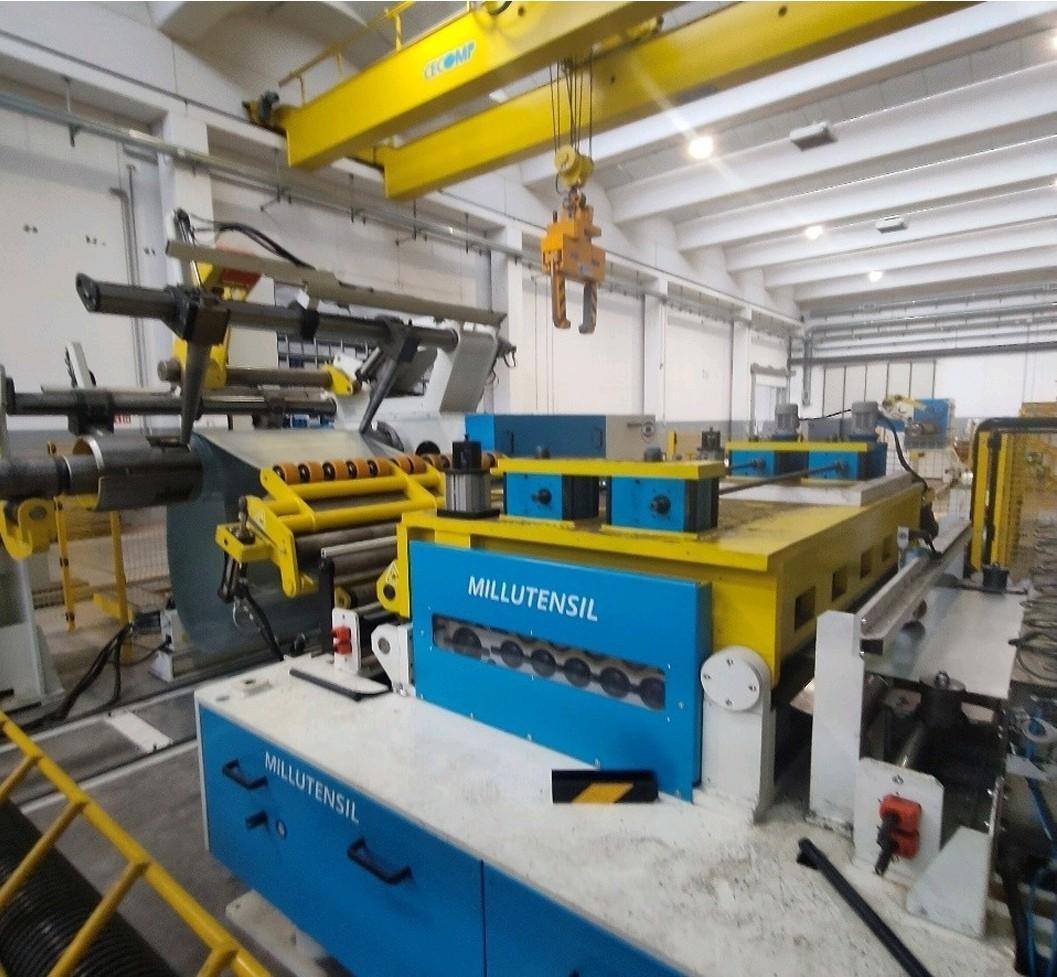

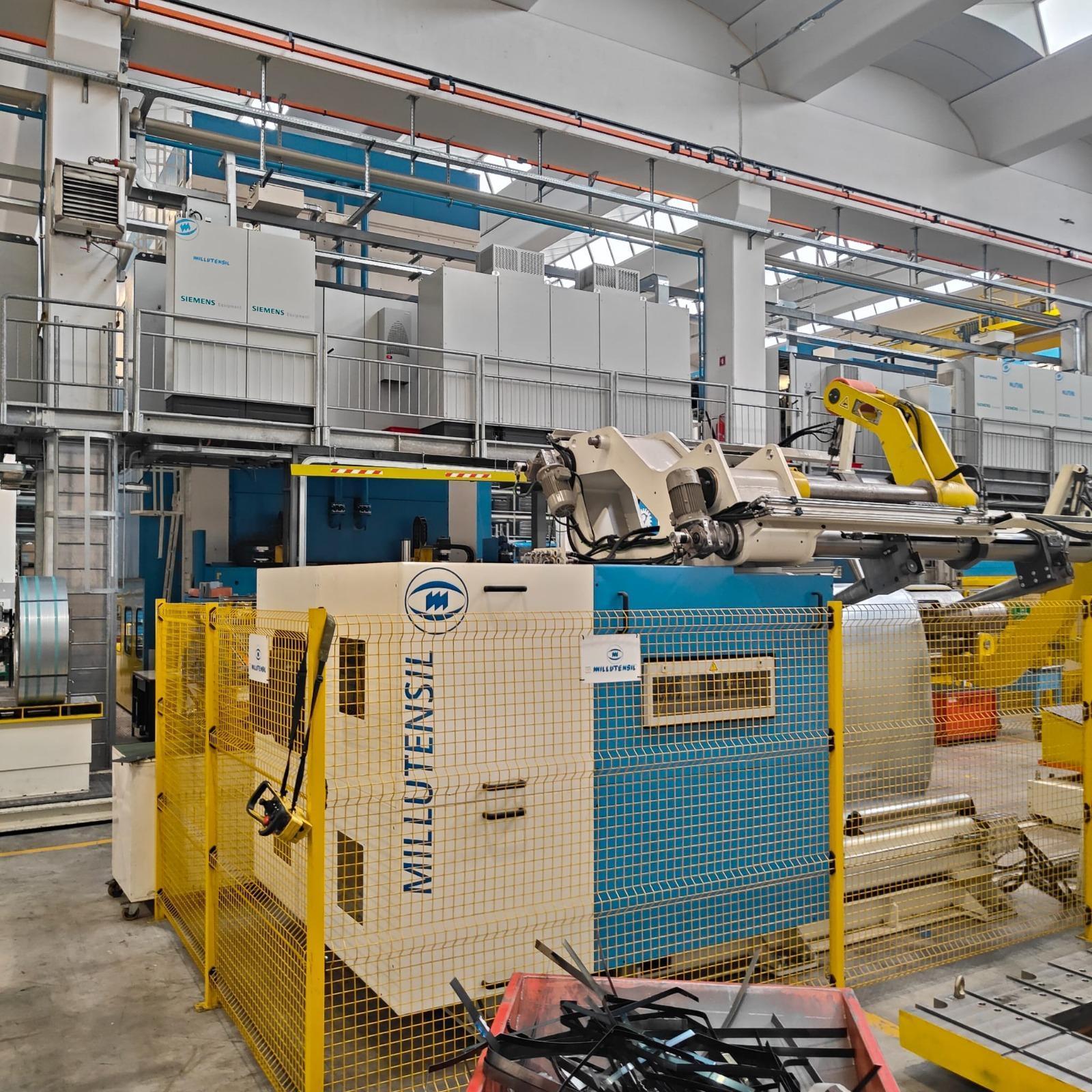

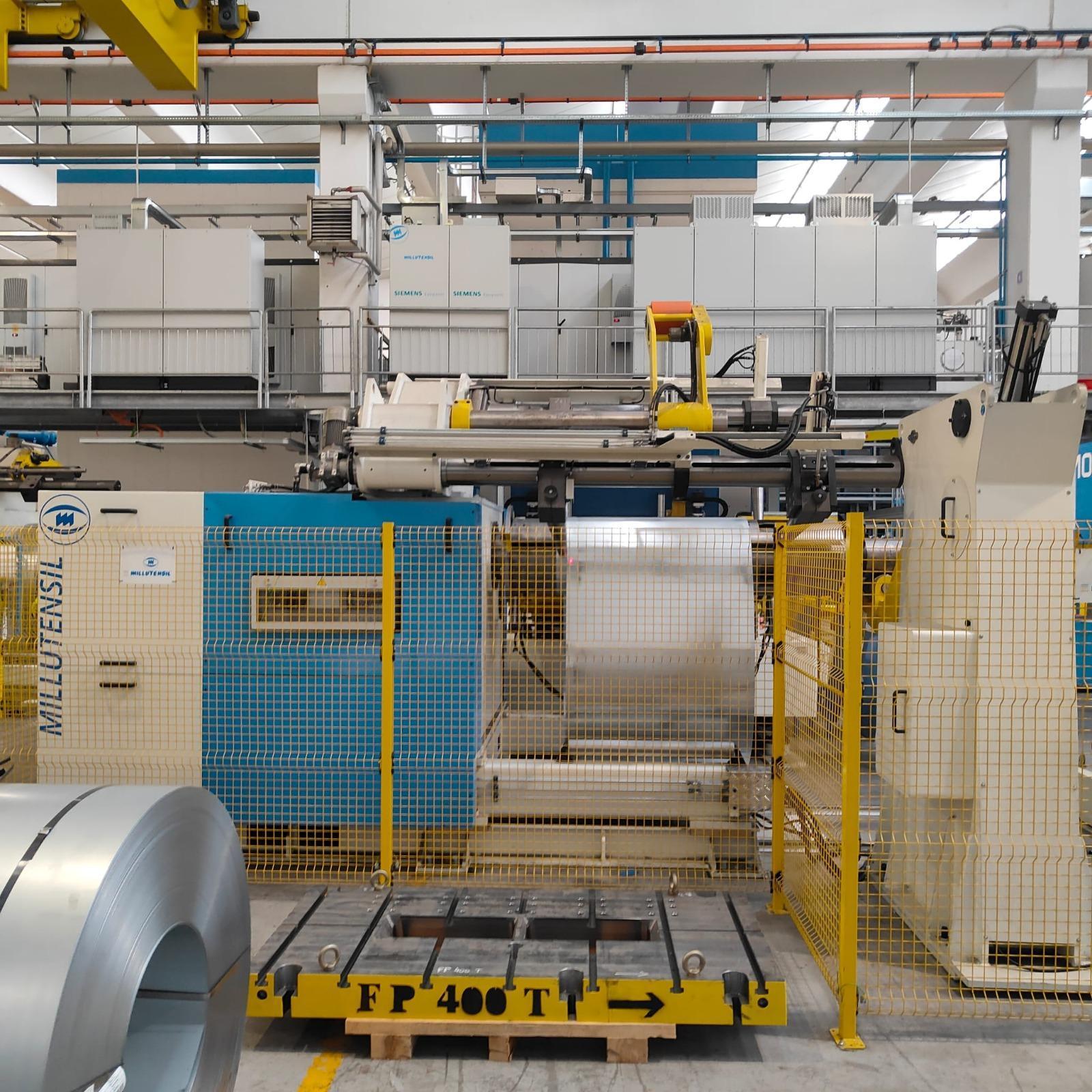

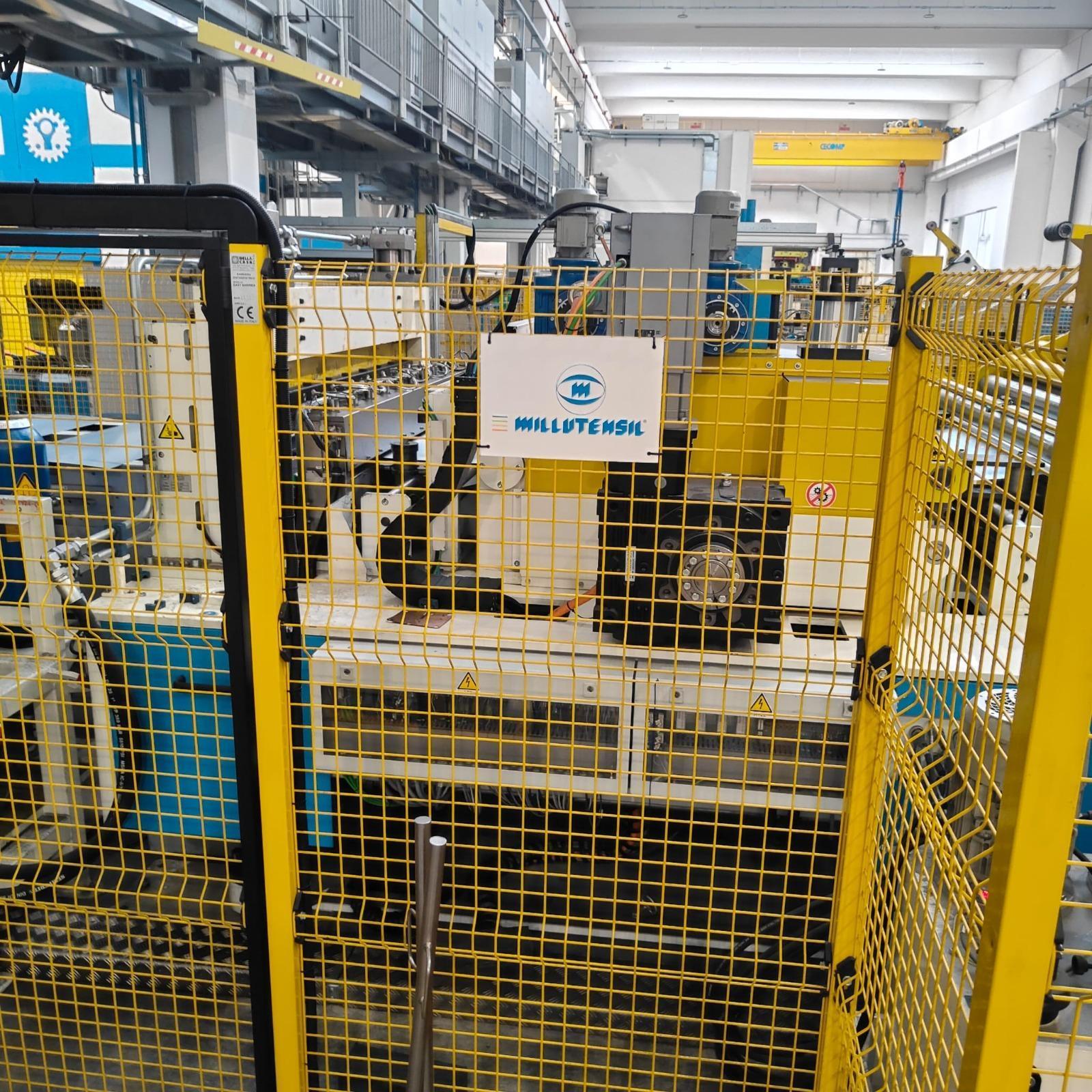

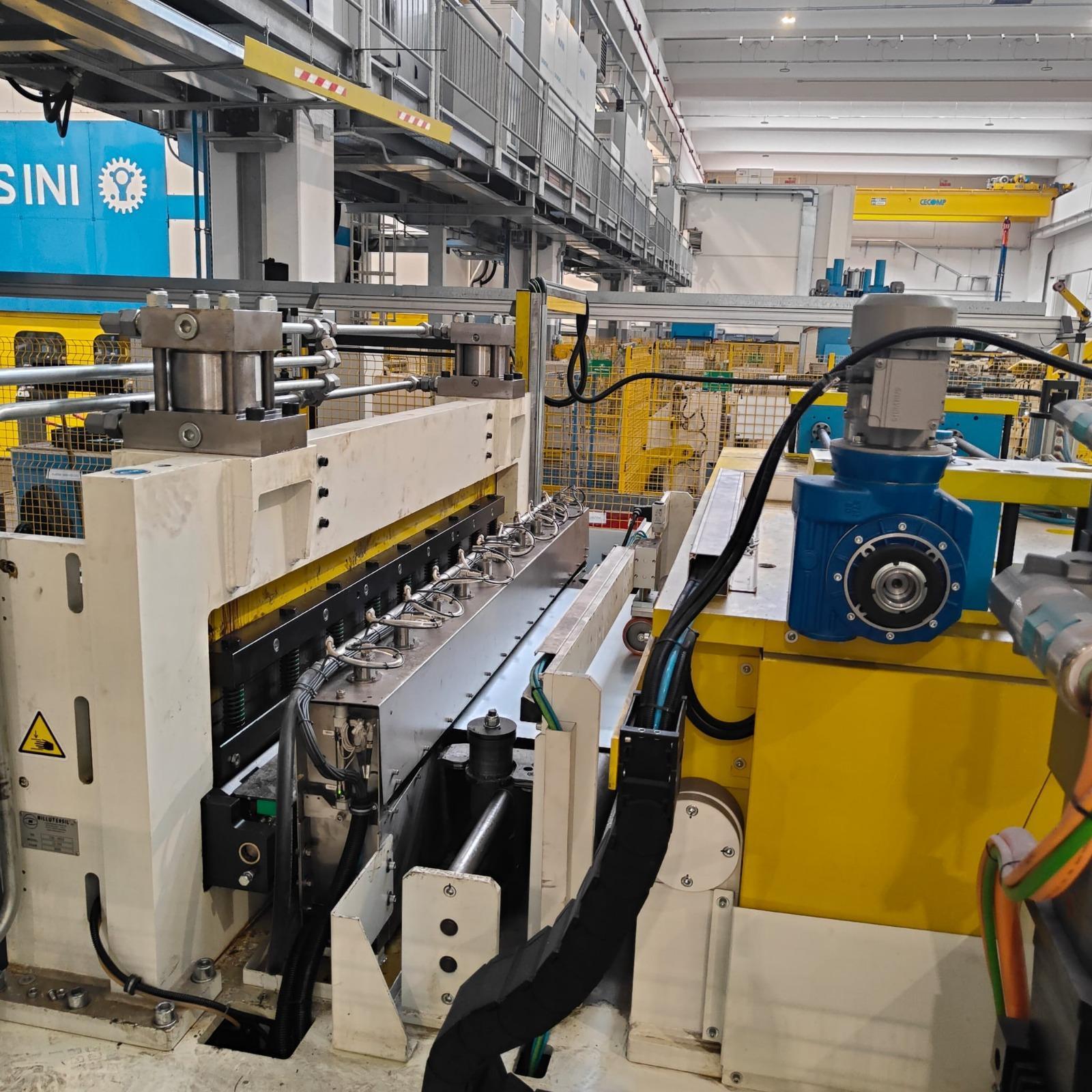

LINEA DI SVOLGITURA E ALIMENTAZIONE LAMIERA MILLUTENSIL 2019
MAX SHEET WIDTH : mm.1850
MAX SHEET THICKNESS : mm.4
COIL WEIGHT CAPACITY : Kg.25.000
