Brand
LITTELL
Model
638D-7PD Powered Straightener
Type
Coil Feed Lines
Stock #
501895
Condition
Not specified
Year
Location
Detroit, Michigan
United States
|

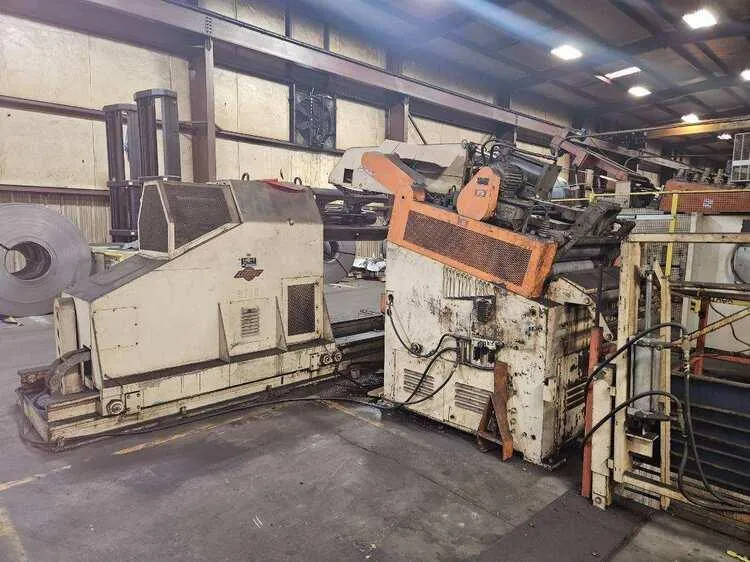

Littell 20,000 lbs x .090” -.250” Coil Reel W/ Car & Straightener 20,000 lbs Max Coil Capacity 36" Max Coil Width .090" Stock Thickness at Full Coil Width .187" Stock Thickness at 18" Coil Width .250” Stock Thickness at 12" Coil Width 66" Coil O.D. 20-24" Coil I.D. Range

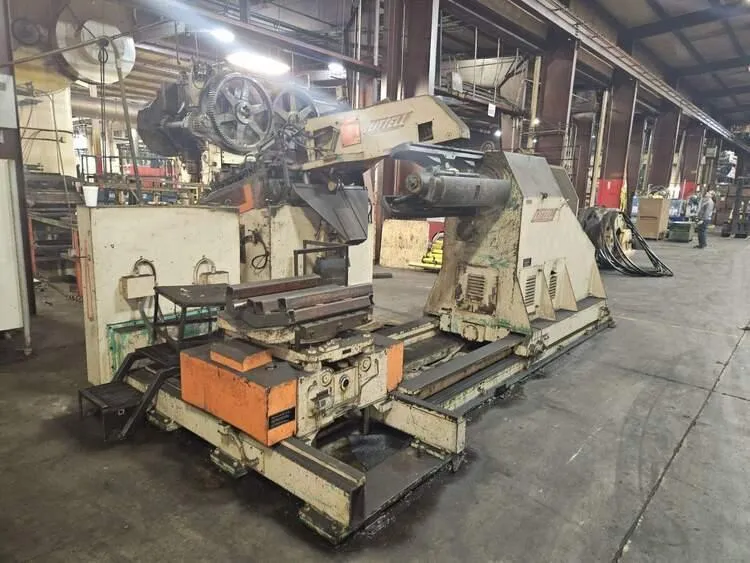

Littell Coil Reel Uncoiler Model No. S200-36, Serial No.: 80223-74-2 Traversing Coil Reel Three leaf mandrel coil reel Hydraulic coil reel mandrel expansion Air brake mounted on main coil reel spindle Adjustable tensioning Threading drive for jog forward and reverse Traveling coil load car Powered lift and travel Powered Left to Right Powered Rotation

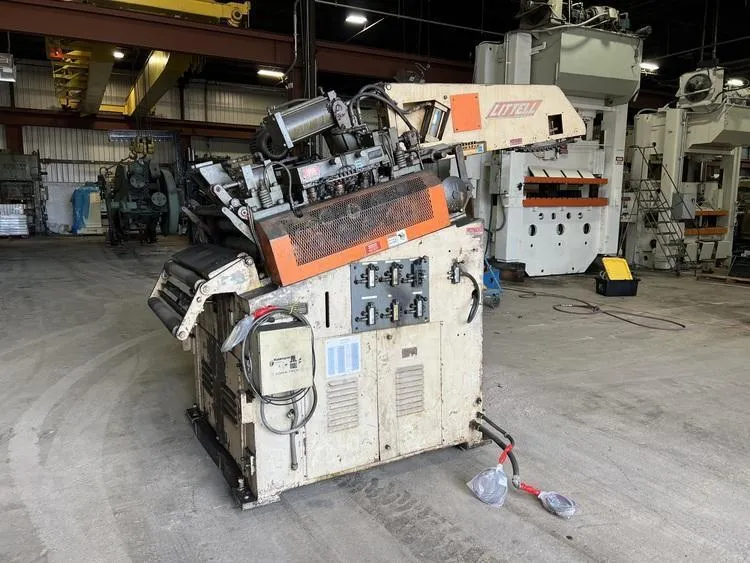

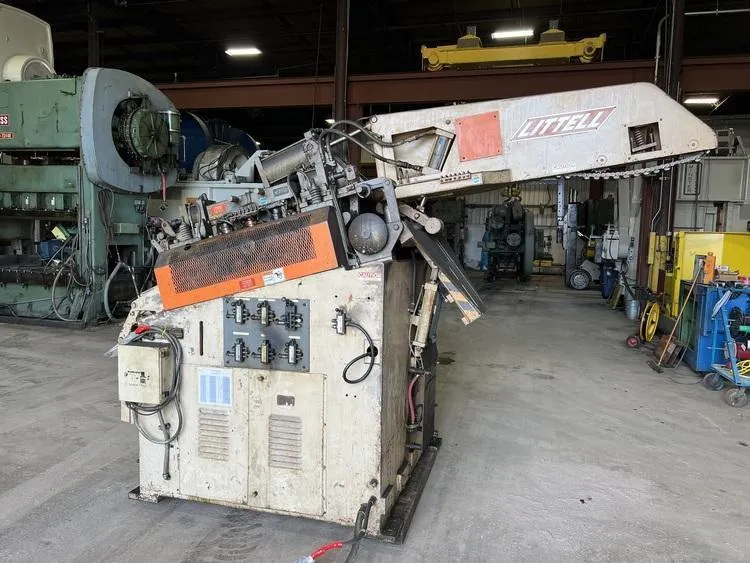

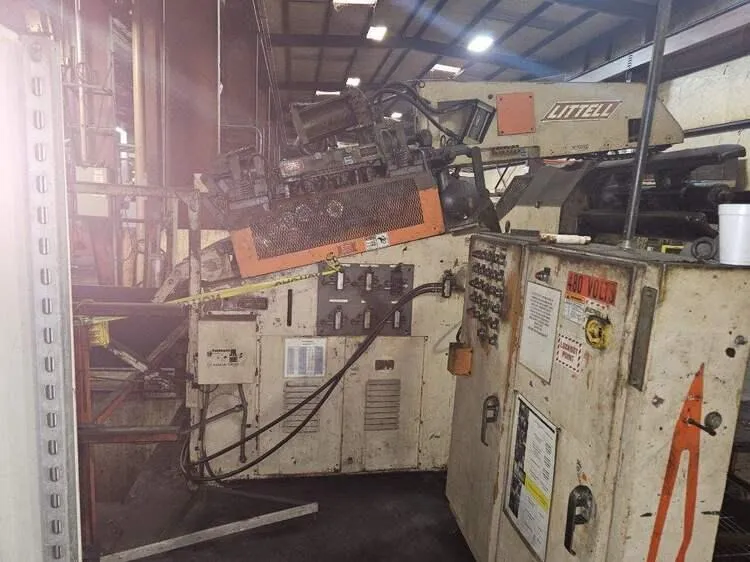

Littell Powered Coil Straightener Model# 638D-7PD Powered Straightener Serial No.: 79452-72 Entry and exit precision powered coil straightener pinch rolls x 6" diameter Air operated precision powered coil straightener pinch roll adjustment Seven coil straightening rolls x 5.25" diameter Powered Bank type upper coil straightening roll adjustments Adjustable stock width edge guides Inclined Straightening Head Coil hold down arm with motorized end wheel Stock peeler table with spade extension Integrated coil end de-bender Variable speed drive Jog forward and reverse Auto/Run cycle Emergency stop 19’ Threading Table
|
