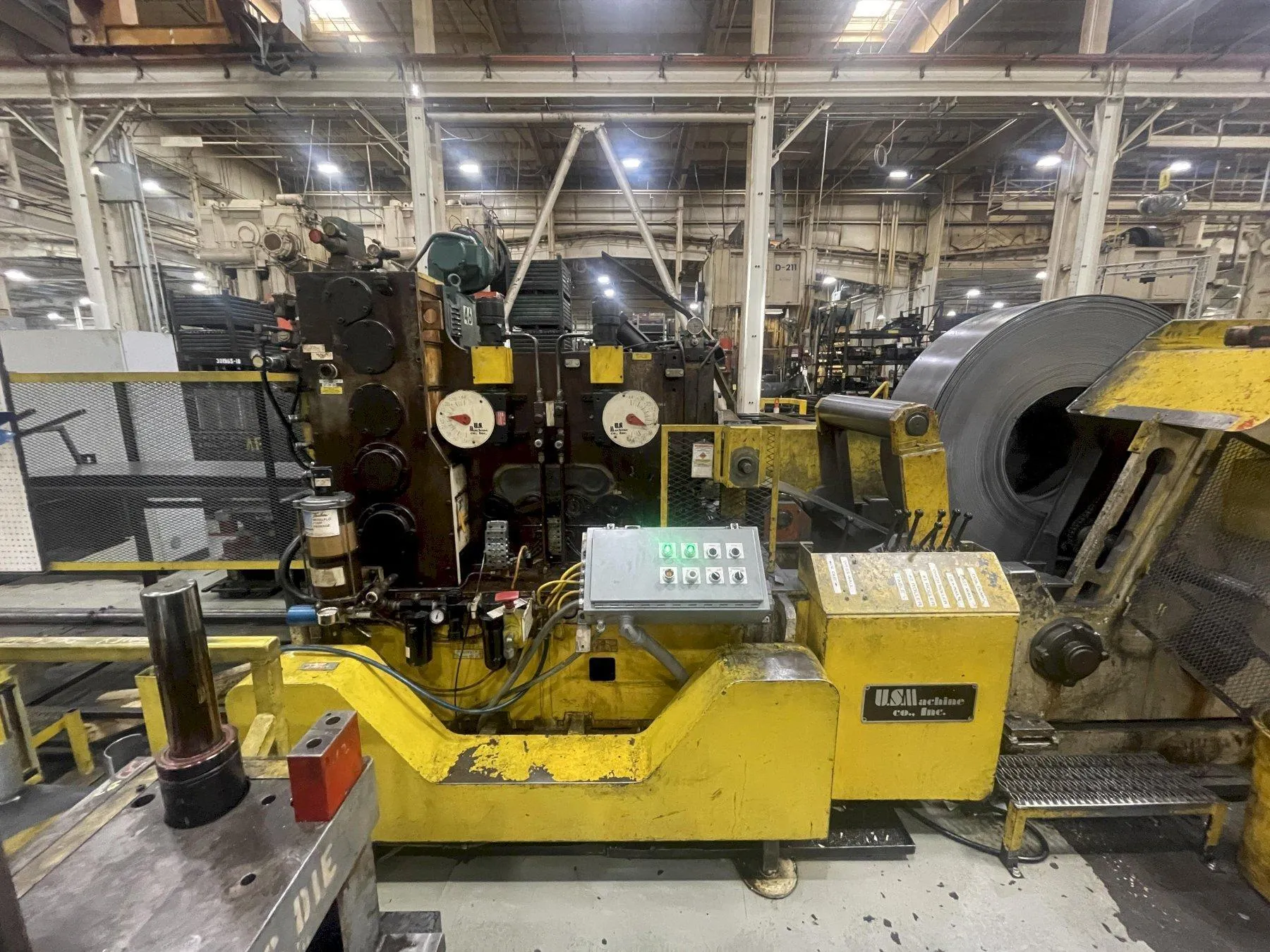

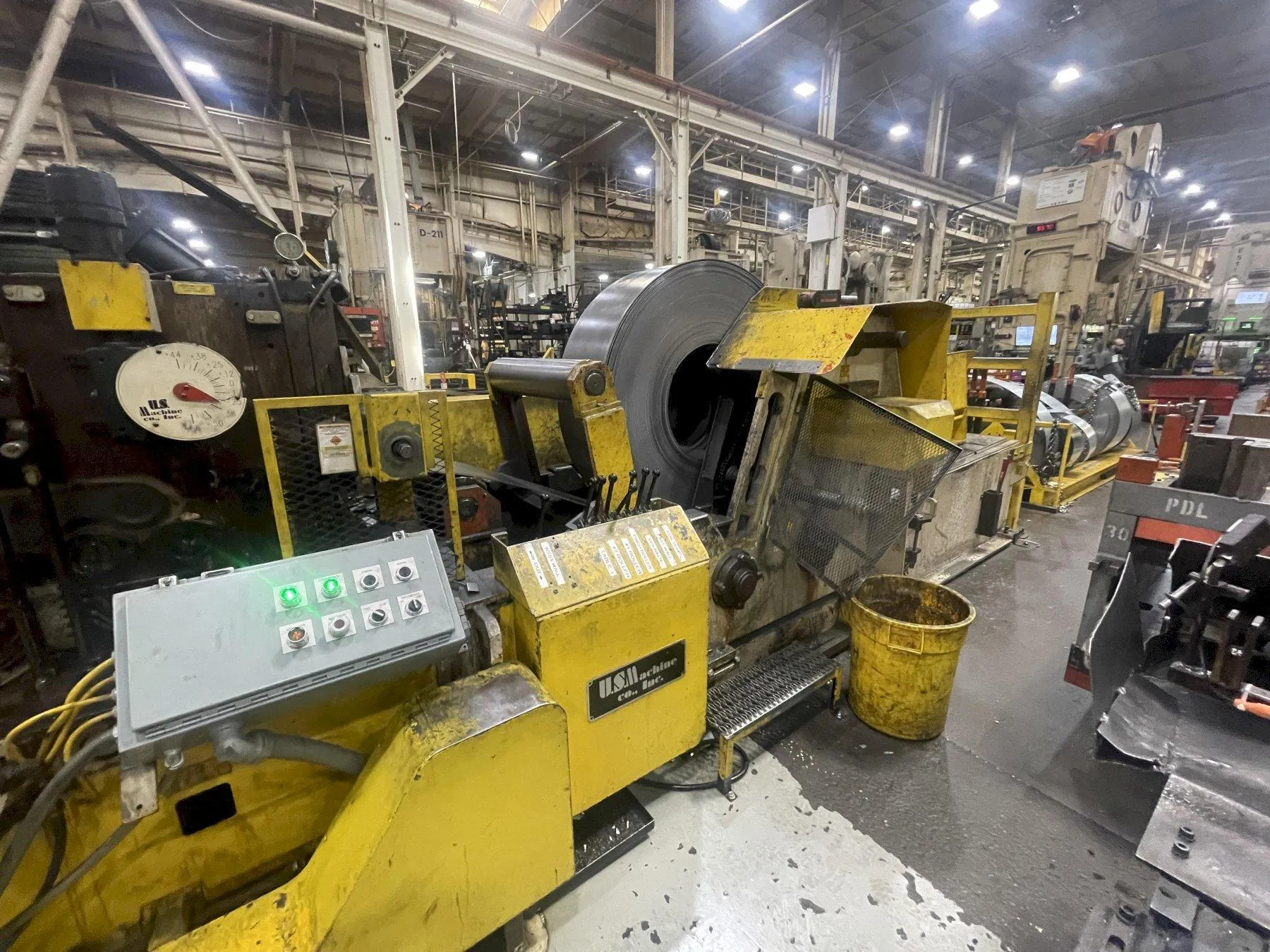

US Machine Heavy Duty Coil Cradle Straightener Combination Specifications:
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .150 @ 30" Wide
Stock thickness capacity: .250" @ 24" Wide
Stock thickness capacity: .300" @ 12" Wide
Max stock thickness capacity: .380" x 10" Wide 45,000 Yield)
Max stock thickness capacity: .380" x 03" Wide 90,000 Yield)
Coil O.D. Capacity: 72"
US Machine Heavy Duty Coil Cradle Straightener Combination Equipment and Features:

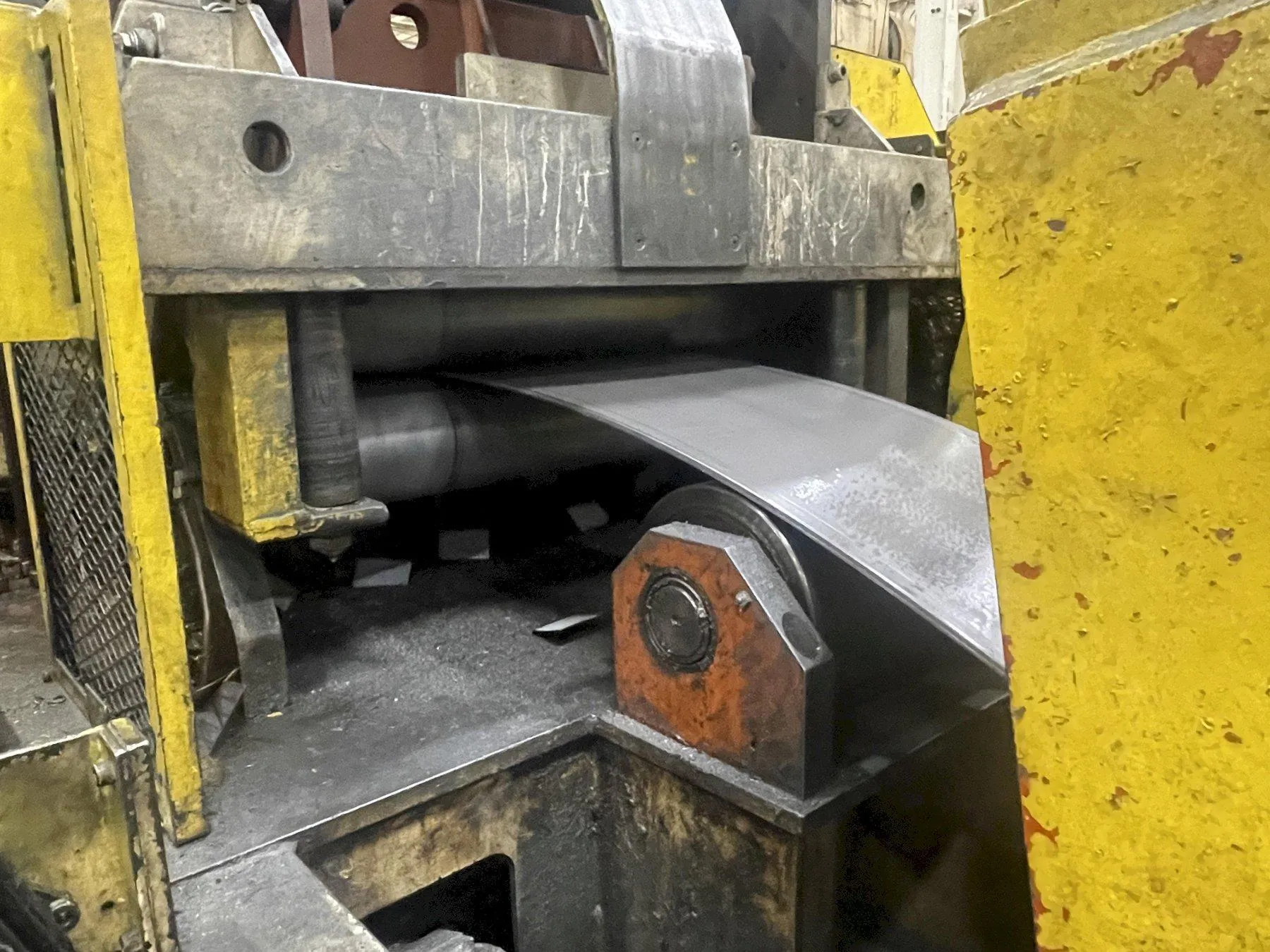

Entry pinch rolls
Air operated entry pinch roll adjustments
Seven straightening rolls

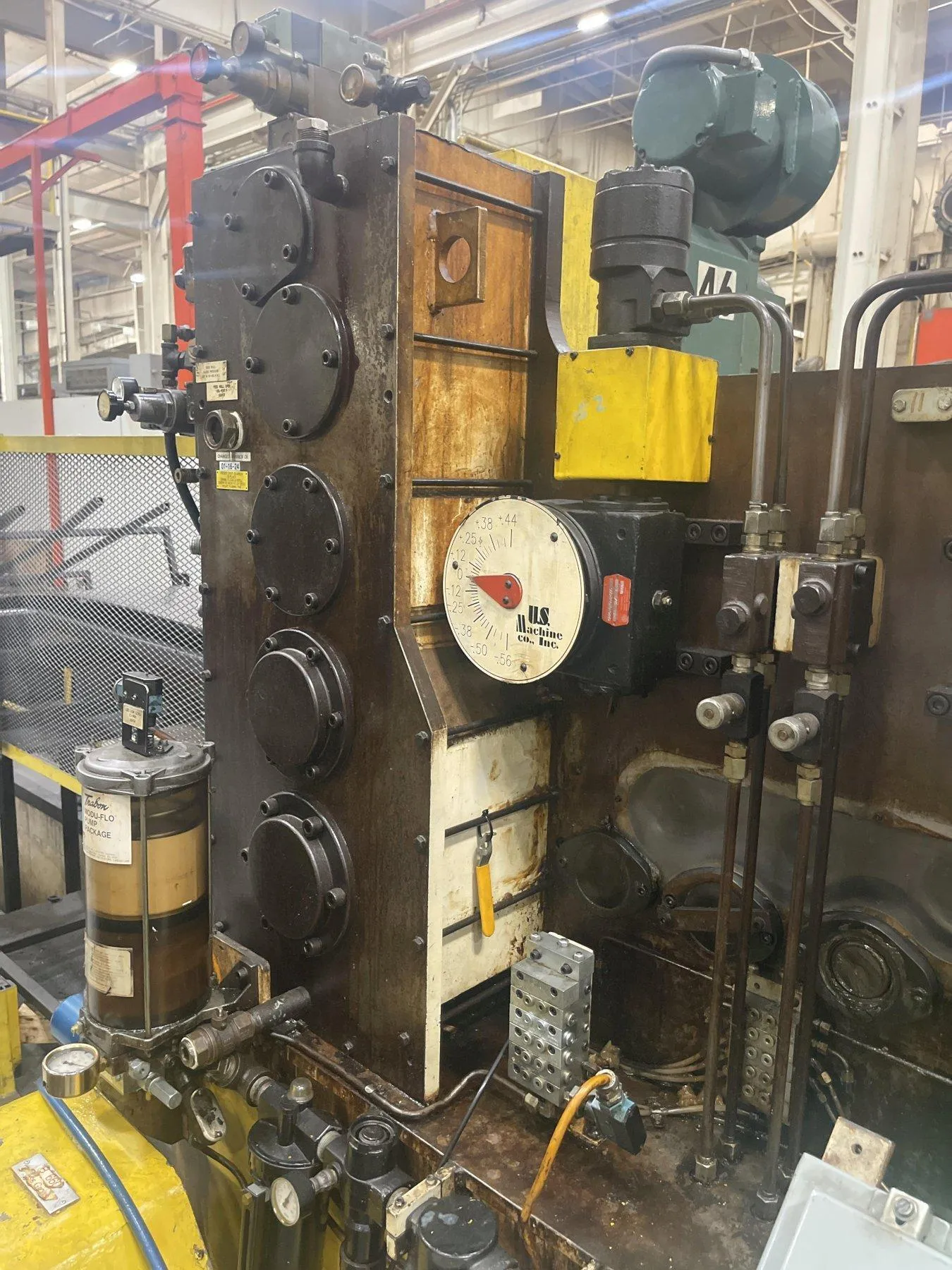

Dial indicators for upper straightening roll position
Motorized upper straightening roll adjustment
Heavy duty stock width edge guides
Powered nest rolls in coil cradle
Coil restrictor side plates
Coil restrictor side plate adjustments
Combination Coil stop peeler threading assist and de-kinker assembly
Coil storage / load ramp
Automatic lubrication system

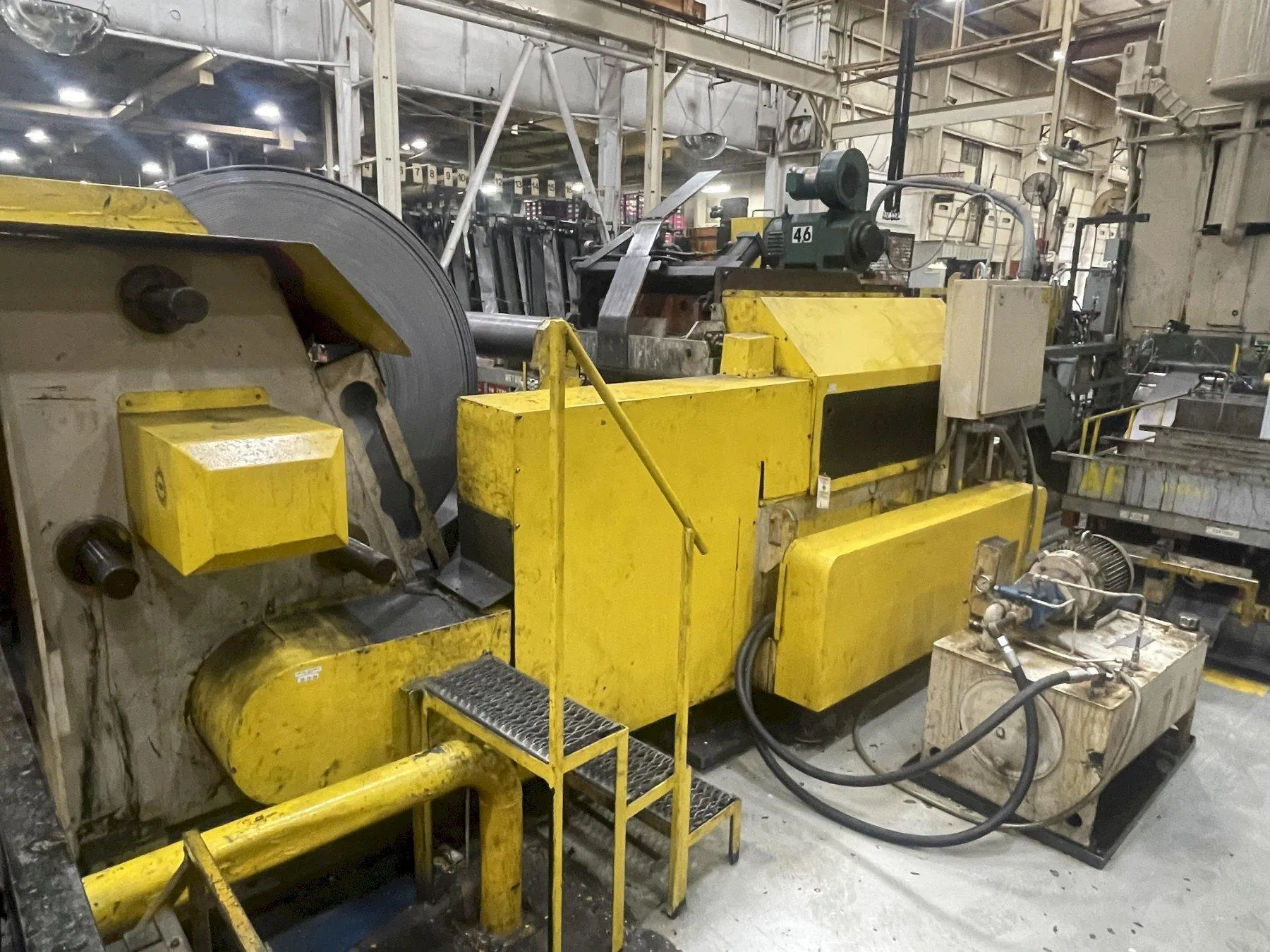

Self contained hydraulic pump unit
Updated AC VFD control system
Laser loop control
Unit offered cleaned and cycling
