Brand
BECHE
Model
Type
Miscellaneous
Stock #
501811
Condition
Not specified
Year
Location
Wayne, Michigan
United States

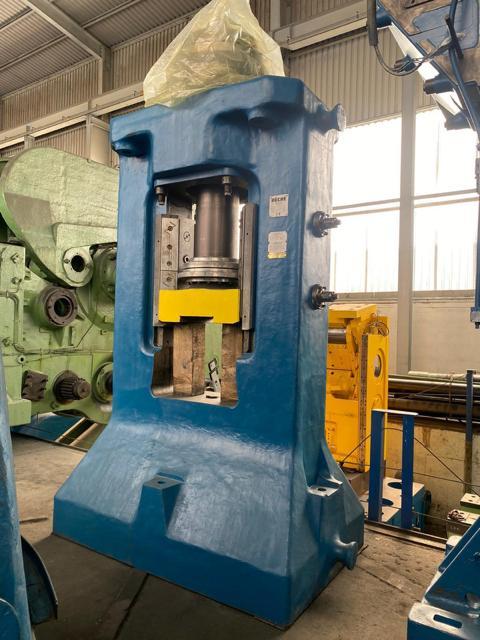

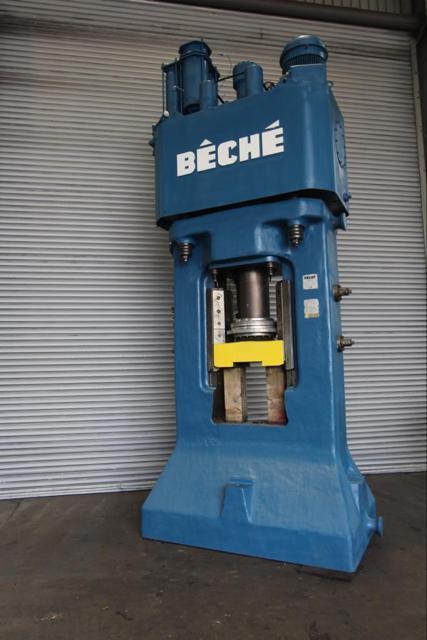

This unit is an electro-hydraulic precision forging hammer, known for its high energy efficiency and accuracy in forging operations.
Total Machine Weight: Approximately 45,000 kg (excluding piping column, electrical cabinet, and soundproof cabin).
Total Dimensions (LxWxH): 2600 x 1500 x 5800 mm.
Anvil (Chabotte) Weight: 35,500 kg (includes adjustable guides, ram support, and die holder).

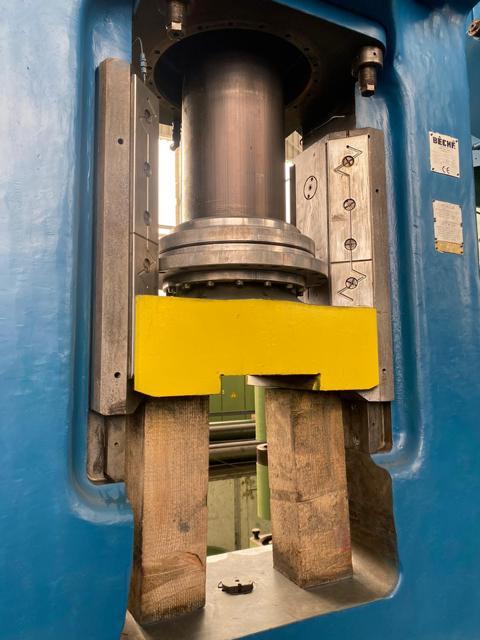

Ram (Masse) Weight: 2,005 kg.

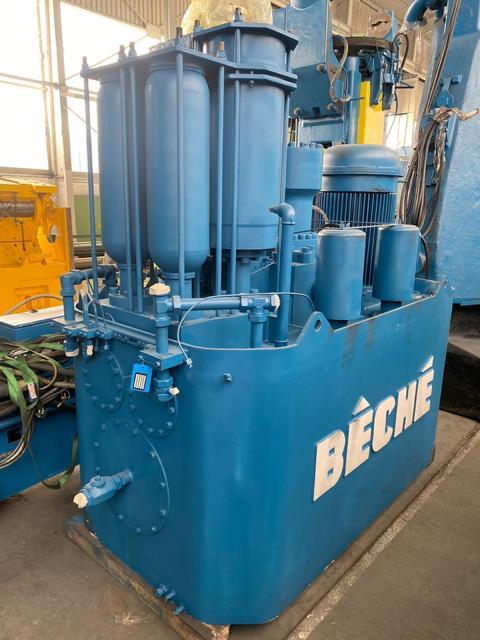

Oil Tank Weight: 6,950 kg (without oil).
Piping Column Weight: 1,260 kg.
Power Supply: 400V, 50Hz.
Electrical Cabinet Dimensions: 1600 x 600 x 2300 mm.
Finish: Structural paint RAL 9010 (Pure White).

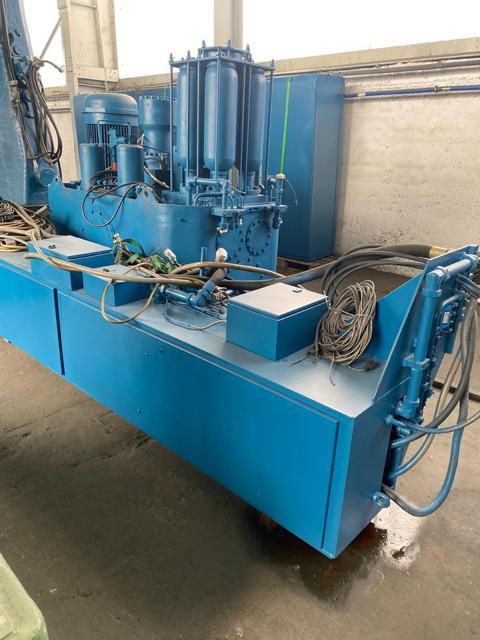

Cooling/Ventilation: Equipped with an integrated ventilation system for the hydraulic unit.
| French / German (Original) | English Translation |
| Marteau à forger de précision | Precision Forging Hammer |
| Machine totale | Total Machine |
| Chabotte | Anvil / Bed |
| Masse | Ram / Hammer Head |
| Poteau de tuyauterie | Piping Column / Support Pillar |
| Armoire électrique | Electrical Cabinet / Control Panel |
| Cabine insonorisante | Soundproof Cabin / Acoustic Enclosure |
| Sous puissance (Under power) | Operational / Connected to power |
Note: This specific model (KGP 20) is highly regarded for its compact footprint and the precision of the electro-hydraulic drive. The ratio of the Anvil (35.5 tons) to the Ram (2 tons) provides excellent stability and energy transfer for high-tolerance forging.
