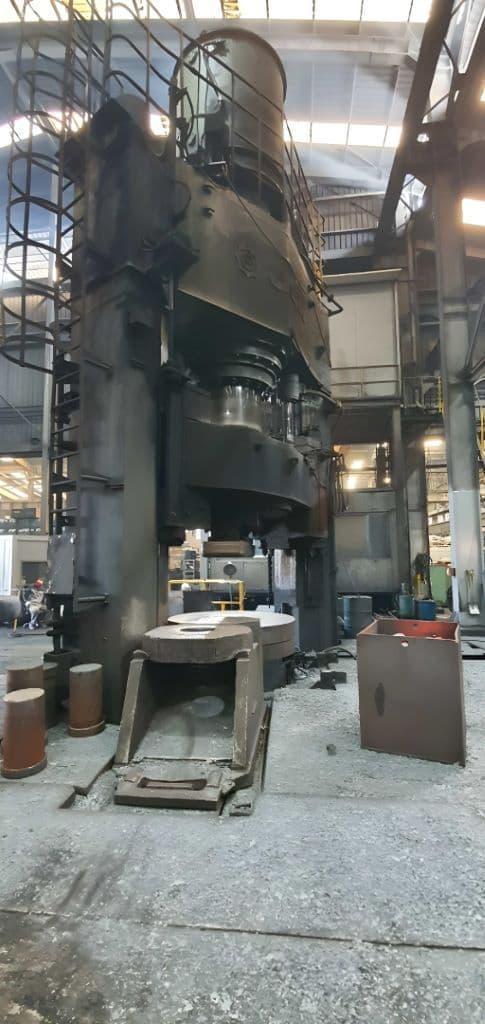

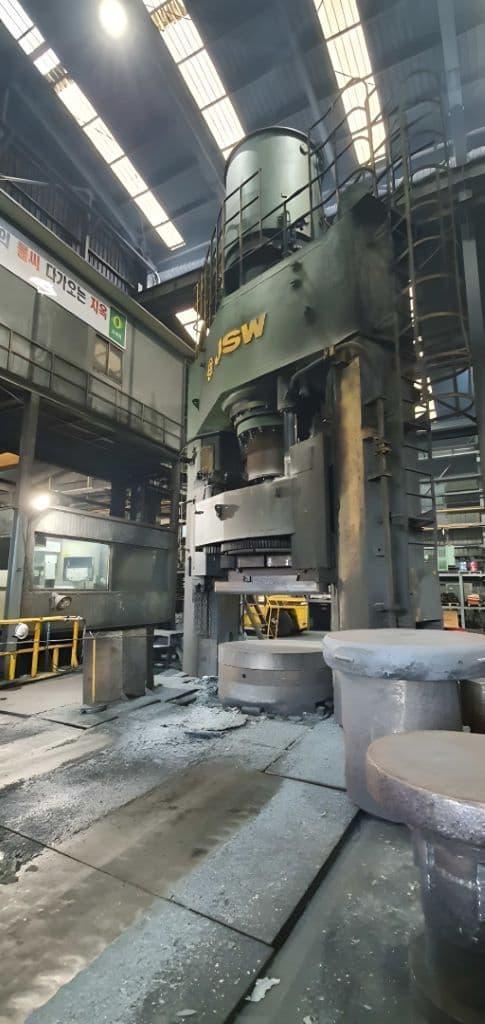

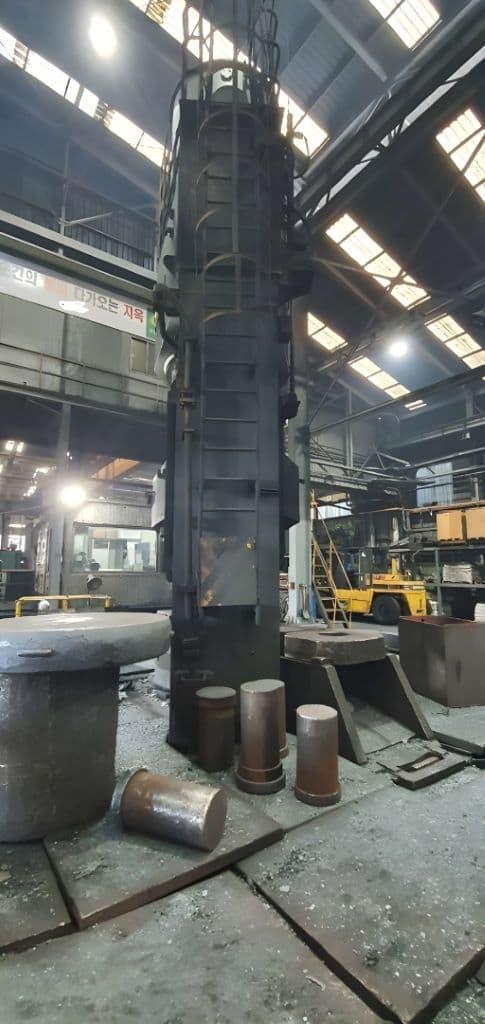

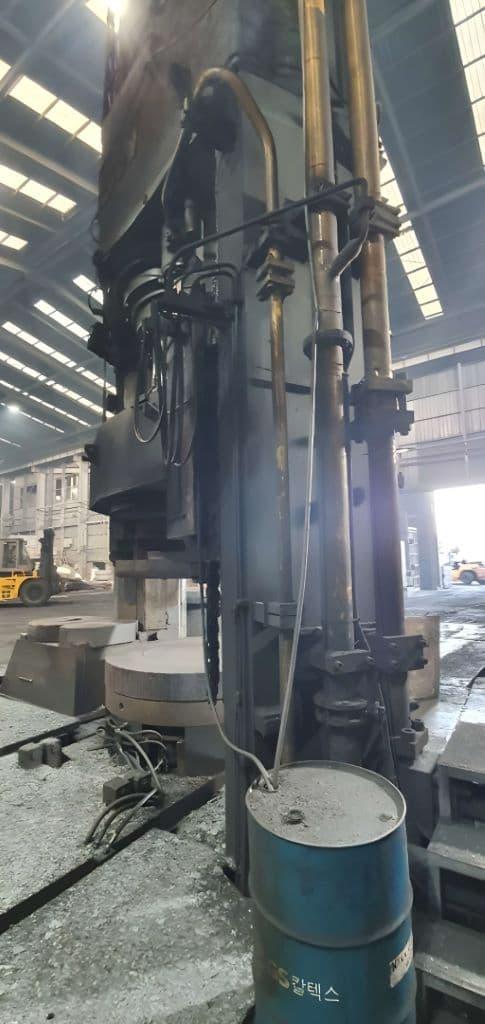

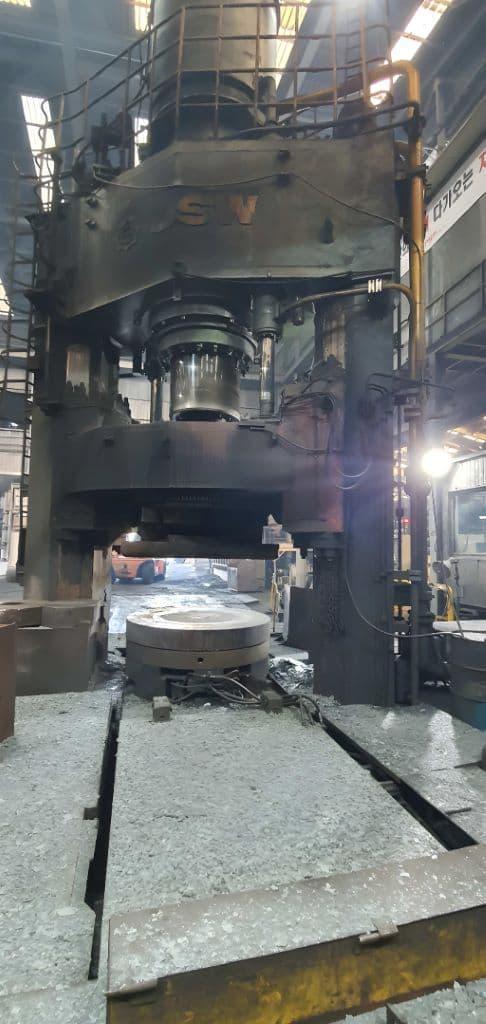

| Type |
Open die forging press |
| Manufacturer |
JSW |
| Model |
2500 MT |
| Year of manufacture |
1987 |
| Overhaul |
1999 |
| Press Specifications |
| Capacity |
2500 tons (300 kg/cm²) |
| Upsetting Force at Static Working Pressure |
25 MN (234 bar) |
| Stroke |
1000 mm |
| Press Daylight |
2489 mm |
| Distance Between Side Flame |
1549 mm |
| Number of Pull Back Cylinder |
1 |
| Allowable Eccentric Load at 25 MN |
200 mm radius |
| Forging Tolerance Measure on Hot Workpiece |
±1 mm |
| Die Table Area (Width x Length x Stroke) |
1400 x 3365 x 1500 mm |
| Press Speeds |
| Forging & Upsetting at 25 MN |
58 mm/sec |
| Advance Speed, Fast/Slow |
250/10 mm/sec |
| Die Table Slide Forward, Fast/Slow |
250/5 mm/sec |
| Press Forces |
| Forging & Upsetting at 234 bar |
25 MN (2500 tons) |
| Return at 234 bar |
3.5 MN (350 tons) |
| Table Shift at 234 bar (Forward) |
0.6 MN (60 tons) |
| Table Shift at 234 bar (Back) |
0.4 MN (40 tons) |

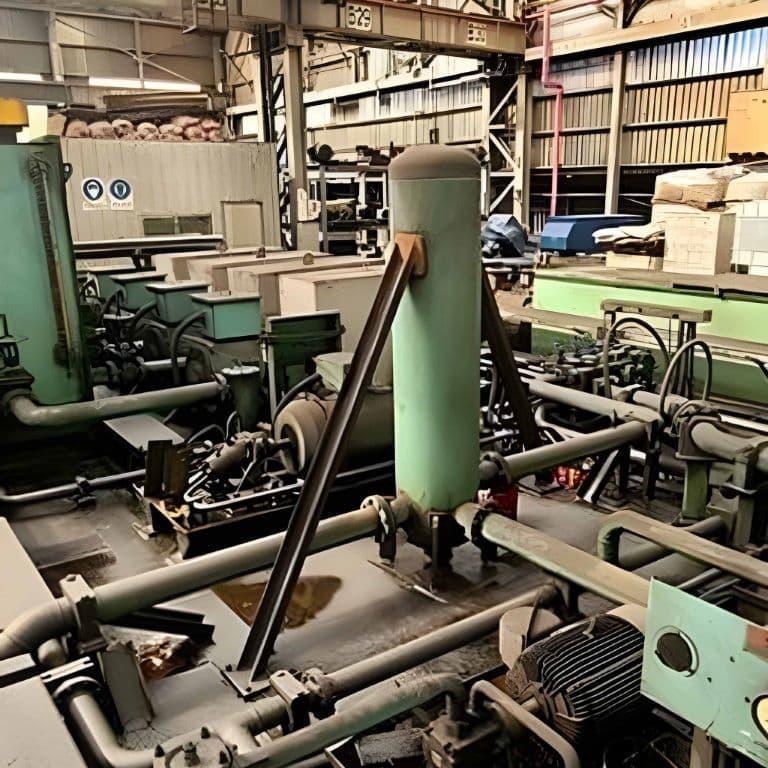

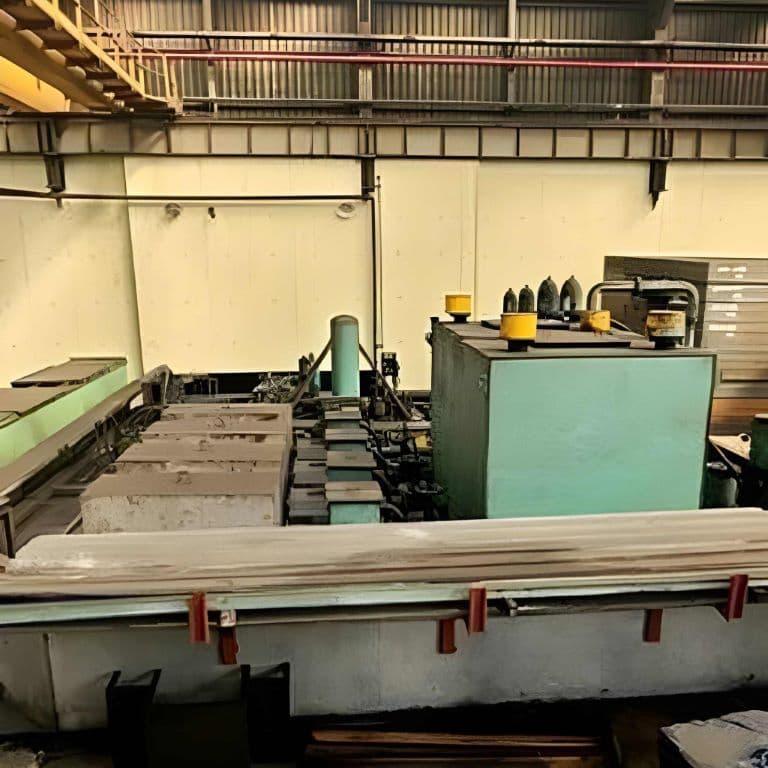

| Hydraulic Pumps (Main) |
| Type |
Axial Piston Pump |
| Quantity |
4 sets |
| Pressure Rate |
400 bar |
| Working Pressure |
350 bar |
| Model |
Rexroth (A2F500, A2F125) |
| Total Flow |
2500 ℓ/min (315 bar) |
| Electric Main Motors |
| 4 sets |
300 KW, 6P, 3300 volt, 60 Hz, IP54, F class, Single end shaft |
| Total Electric Power Supply |
1377 KW |

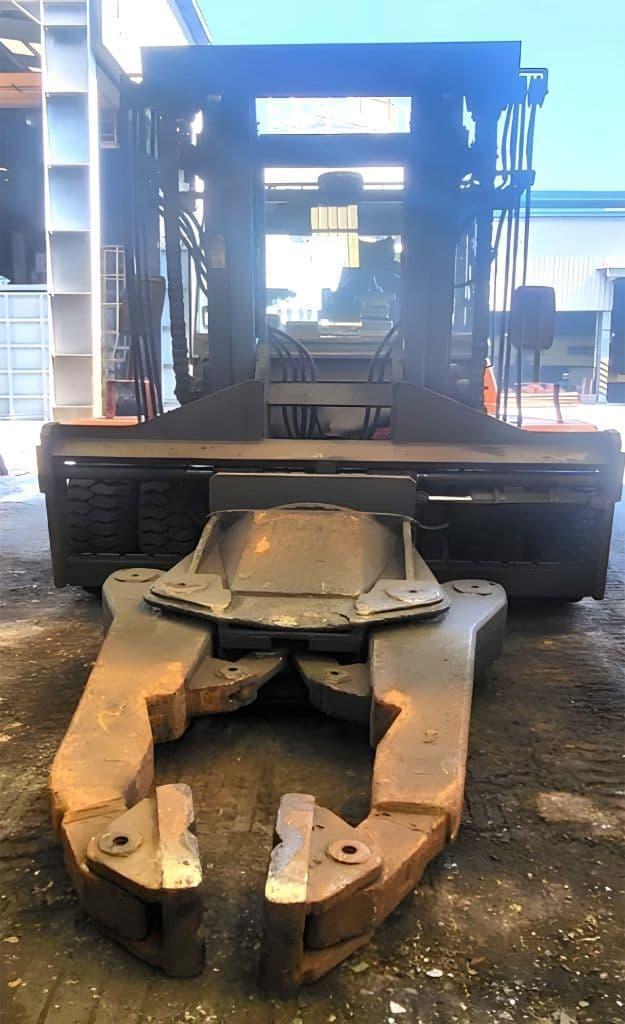

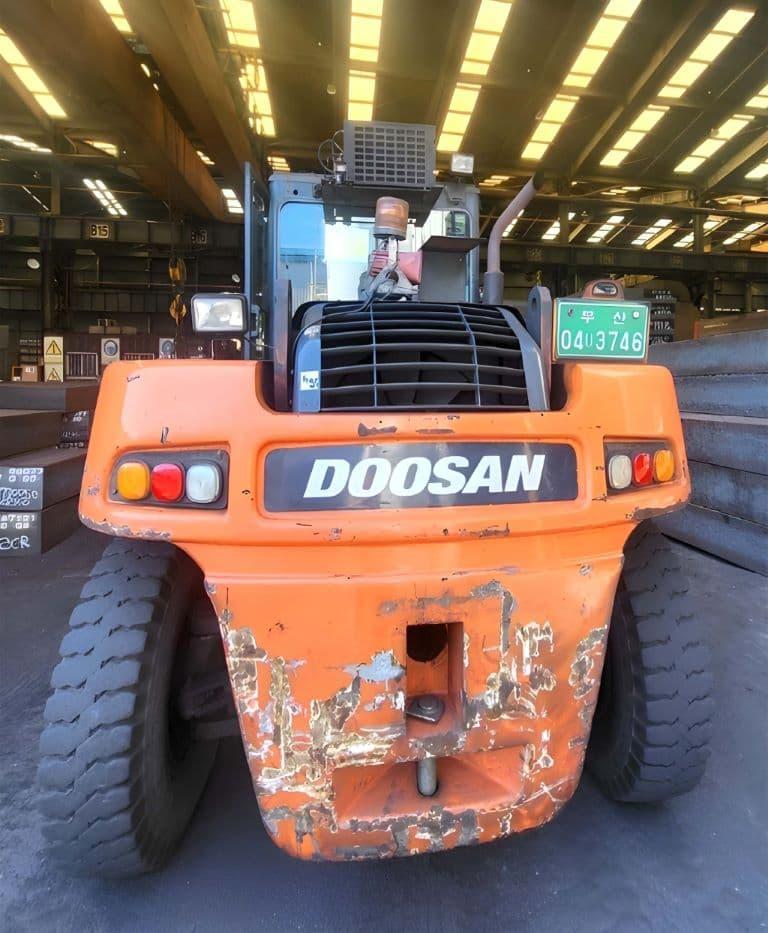

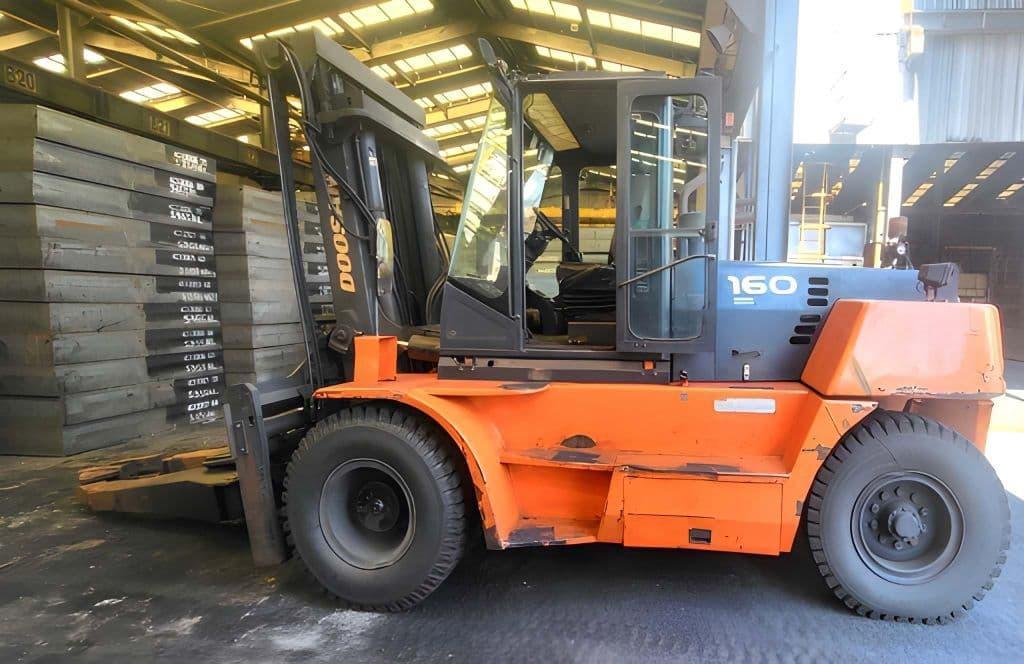

| Forklift Manipulator |
| Type |
Used Doosan or Daewoo 16 (15) Ton Forklift Type Manipulator |
| Model |
D160S-5 |
| Year of Manufacture |
2007 |
| Actual Loading Capacity |
5 Ton |
| Length |
6065 mm |
| Width |
2490 mm |
| Height |
3170 mm |
| Gross Weight |
18.9 tons |
| Driving Type |
Self-propelled (Tire Type) |
| Rated Power |
160/2100 PS/RPM |
| Number of Cylinders |
6 |
| Fuel Type |
Diesel |
