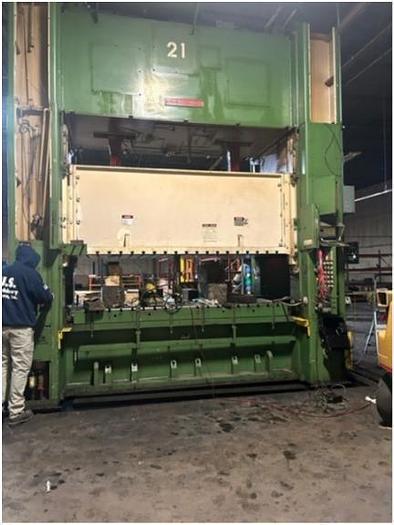

This used 300-ton Bliss Model SE2-300-120-60 straight side press is a robust piece of equipment, serial number H70509, manufactured in 1988. It features a 12-inch stroke length and a shut height of 44 inches, with a motorized adjustment capacity also at 12 inches. The press accommodates a large bed area of 120 inches left to right by 60 inches front to back, and its stroke rate ranges from 20 to 50 strokes per minute. It is currently in a disassembled state.
The press is equipped with advanced features, including an air clutch and brake, air counterbalances, and an 8" T-slotted ram and bolster. It also has an Eddy Current Drive, a 4-channel GEMCO tonnage monitor, and a System 2500 PLS for enhanced performance. Operator safety is ensured with dual palm buttons and Black Max light curtains. A recirculating oil system, tie-rod frame, motorized slide adjustment powered by a 5 HP motor, and 48" windows are part of its design. Additional features include a 19-ton cushion with a 6-inch stroke.
Standing on the floor with dimensions reaching 243 inches in height and weighing approximately 161,000 lbs, the press operates on a 60 HP, 230/3/60 power source. It is sold "as is, where is."
|
