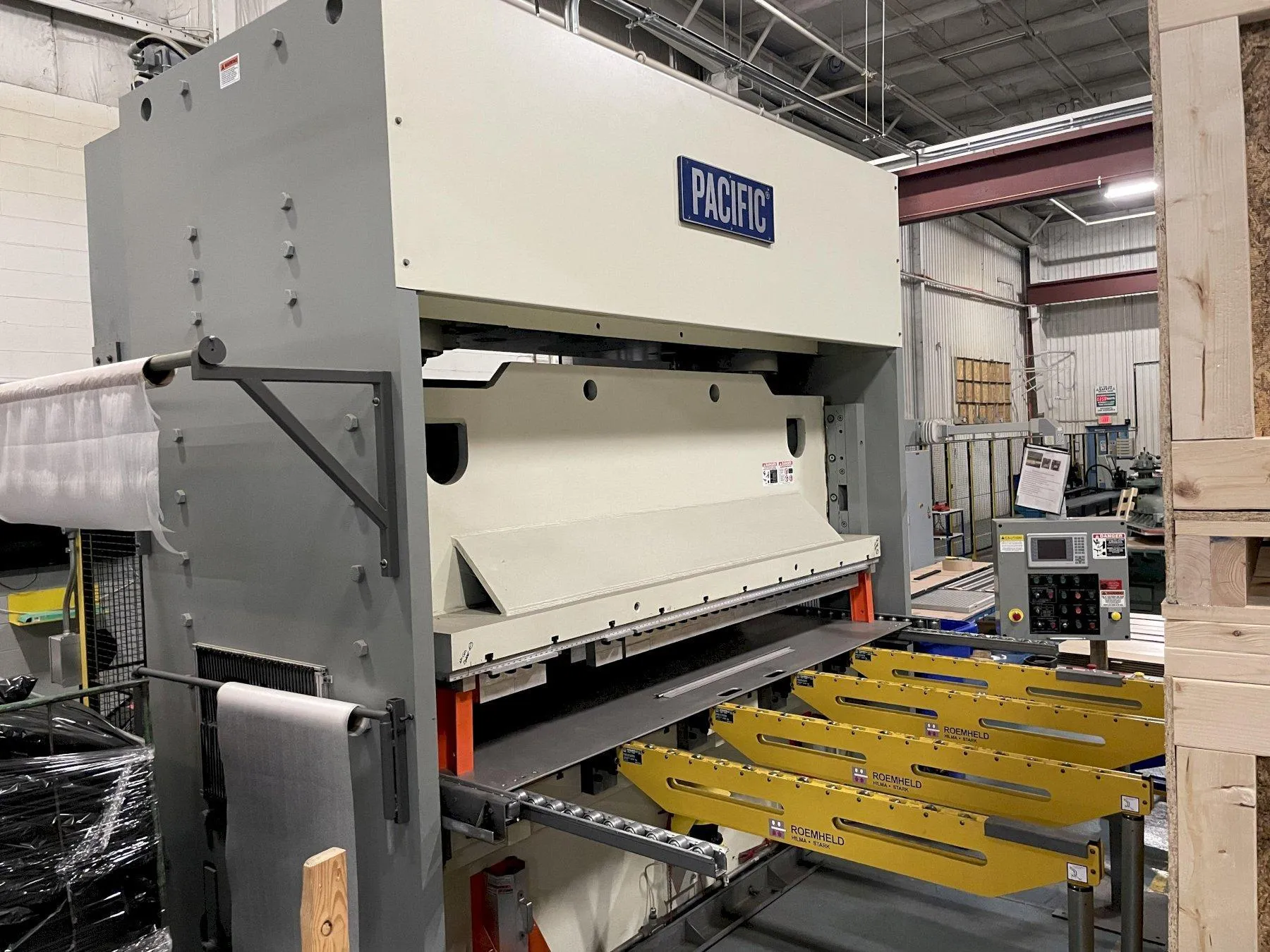

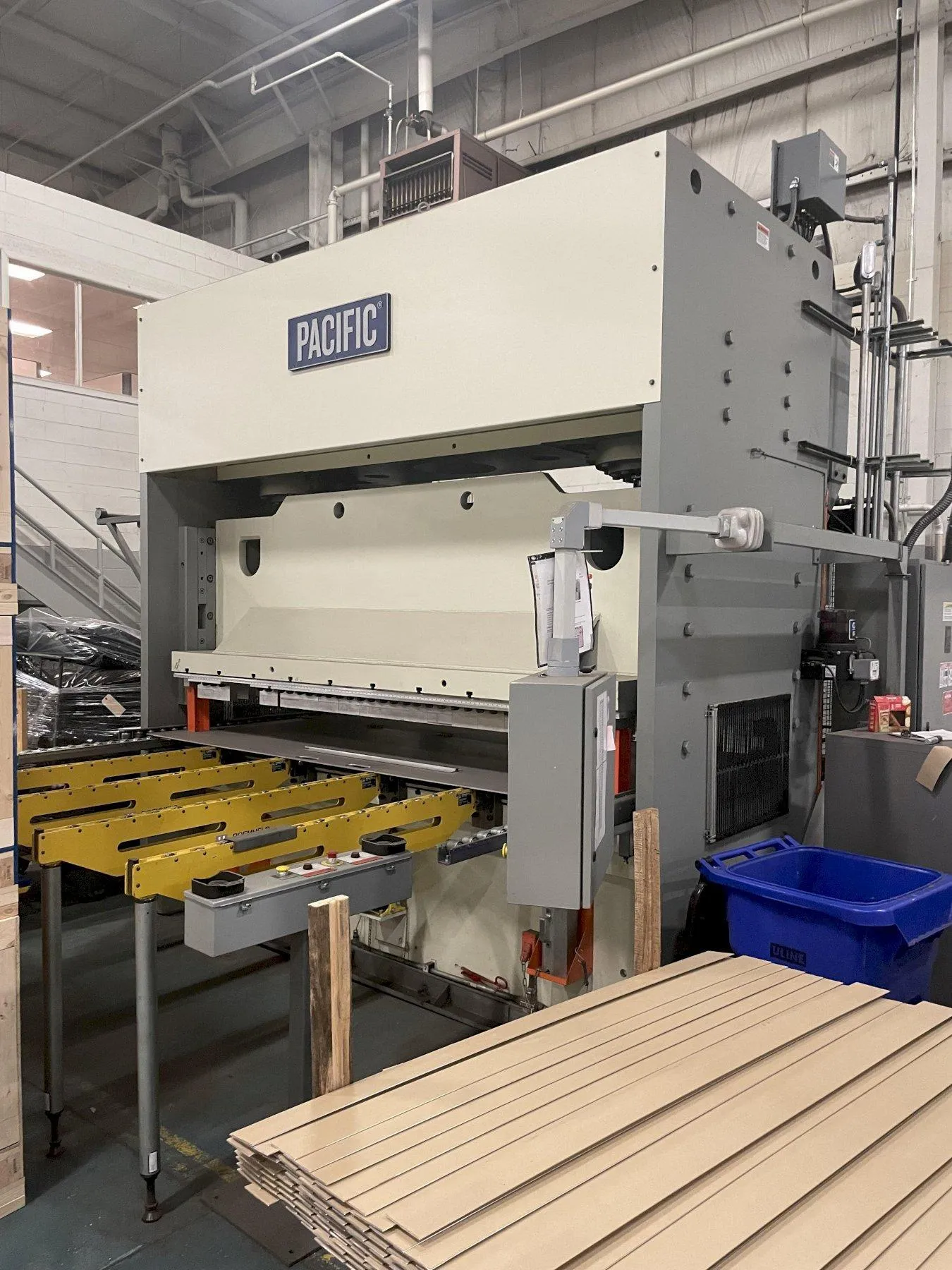

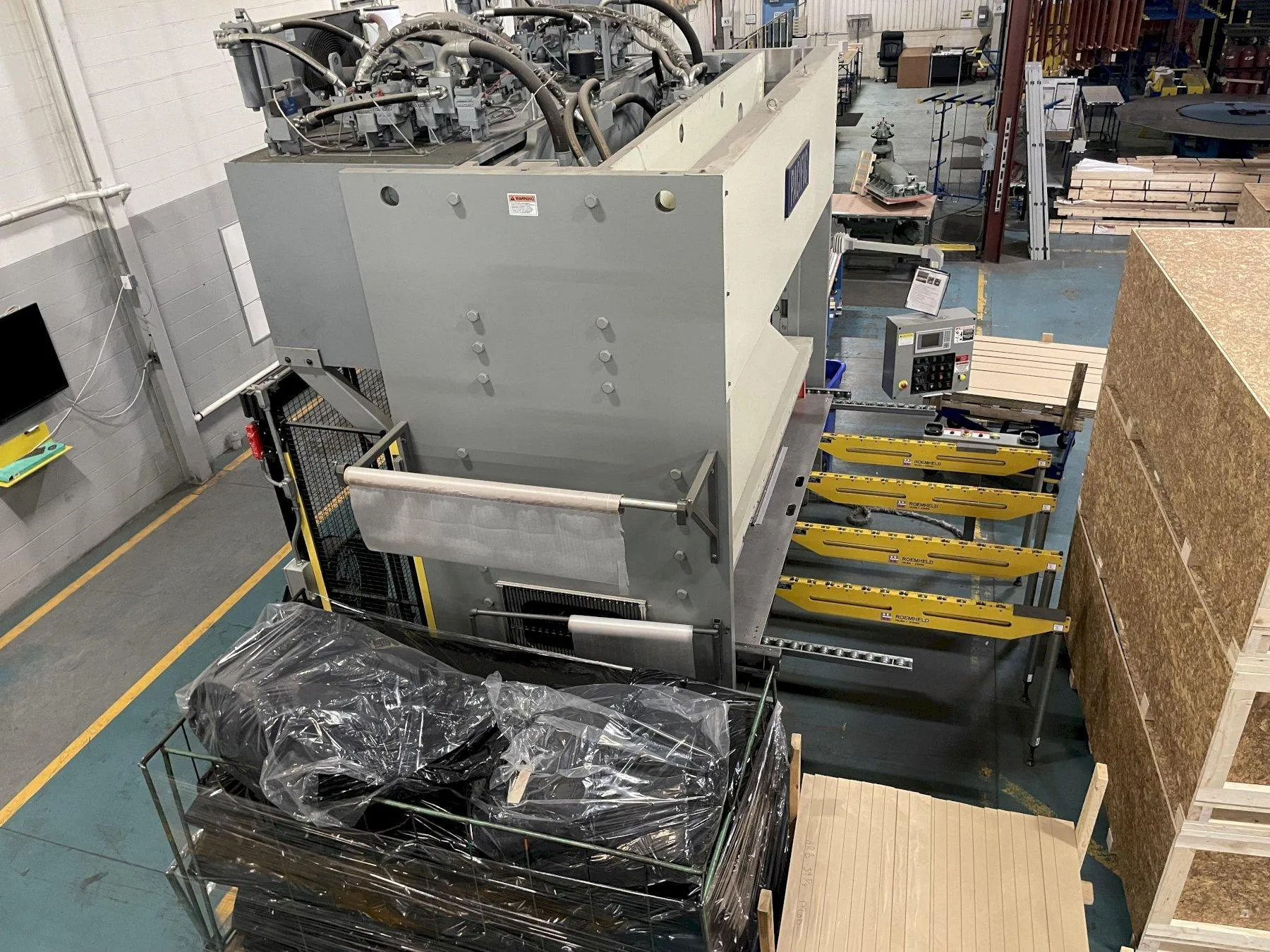

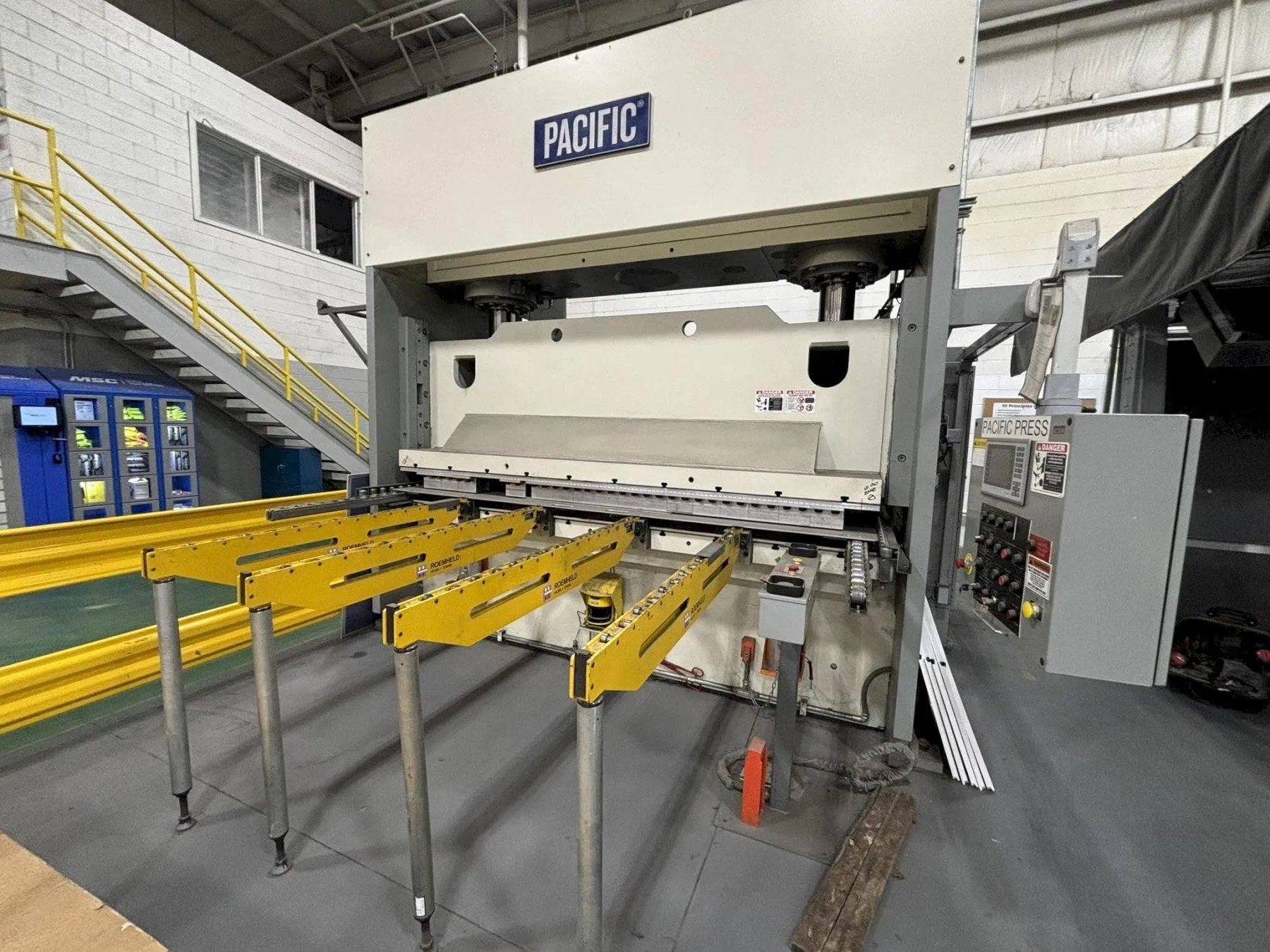

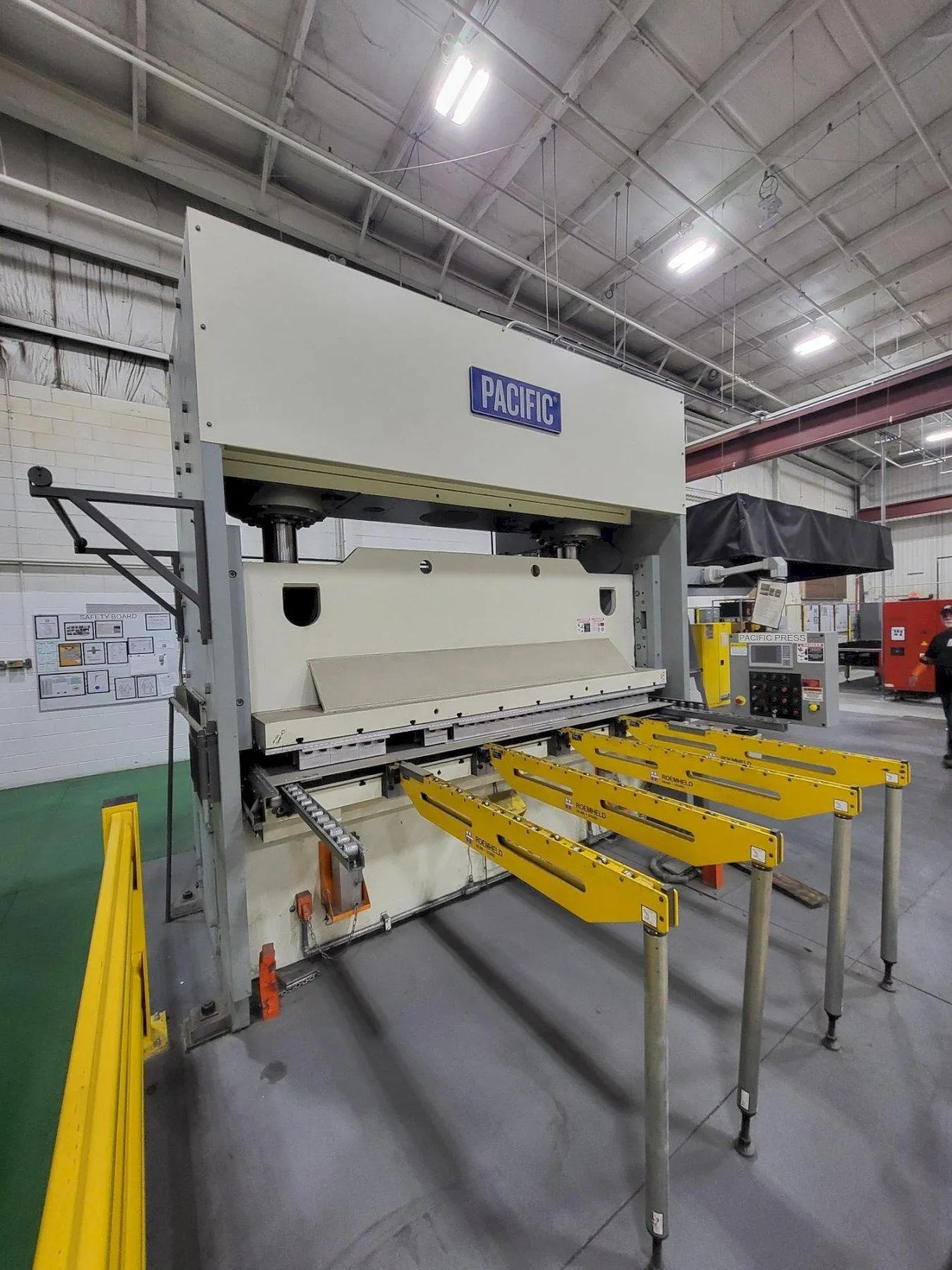

300 TON PACIFIC MODEL #300-OBL-10/60 STRAIGHT SIDE
HYDRAULIC PRESS, 12" STROKE
Specifications:
SERIAL .................................. A1929
NEW ...................................... 2017
MODEL .............................. ...300 OBL 10/60
CAPACITY ......................... ...300 TON
PUNCH CAPACITY ........ ...200 TON
STROKE ............... ..................12"
OPEN HEIGHT ..................... 20"
CLOSED HEIGHT ................. 8"
BED BOLSTER HEIGHT ..... 51"
BED AREA ............................. 60" X 126"
RAM AREA ........................... 60" X 120"
BETWEEN HOUSINGS ..... 130"
WINDOWS .............. ...........14" X 24"
SPEEDS, RAPID ................. 362 IPM
SPEEDS, FAST PRESS ...... 134 IPM AT 80 TON
SPEEDS, PRESS .................. 41 IPM
SPEEDS, FAST RETURN ... 221 IPM
SPEEDS, RETURN ....... .......69 IPM
CONTROLS ............. ............PLC ALLEN BRADLEY
MOTOR ................................ 50 HP
