Equipped With
SPECIFICATIONS:
COIL WEIGHT...........................................: 30,000 LB
COIL O.D...................................................: 30" MIN -72" MAX

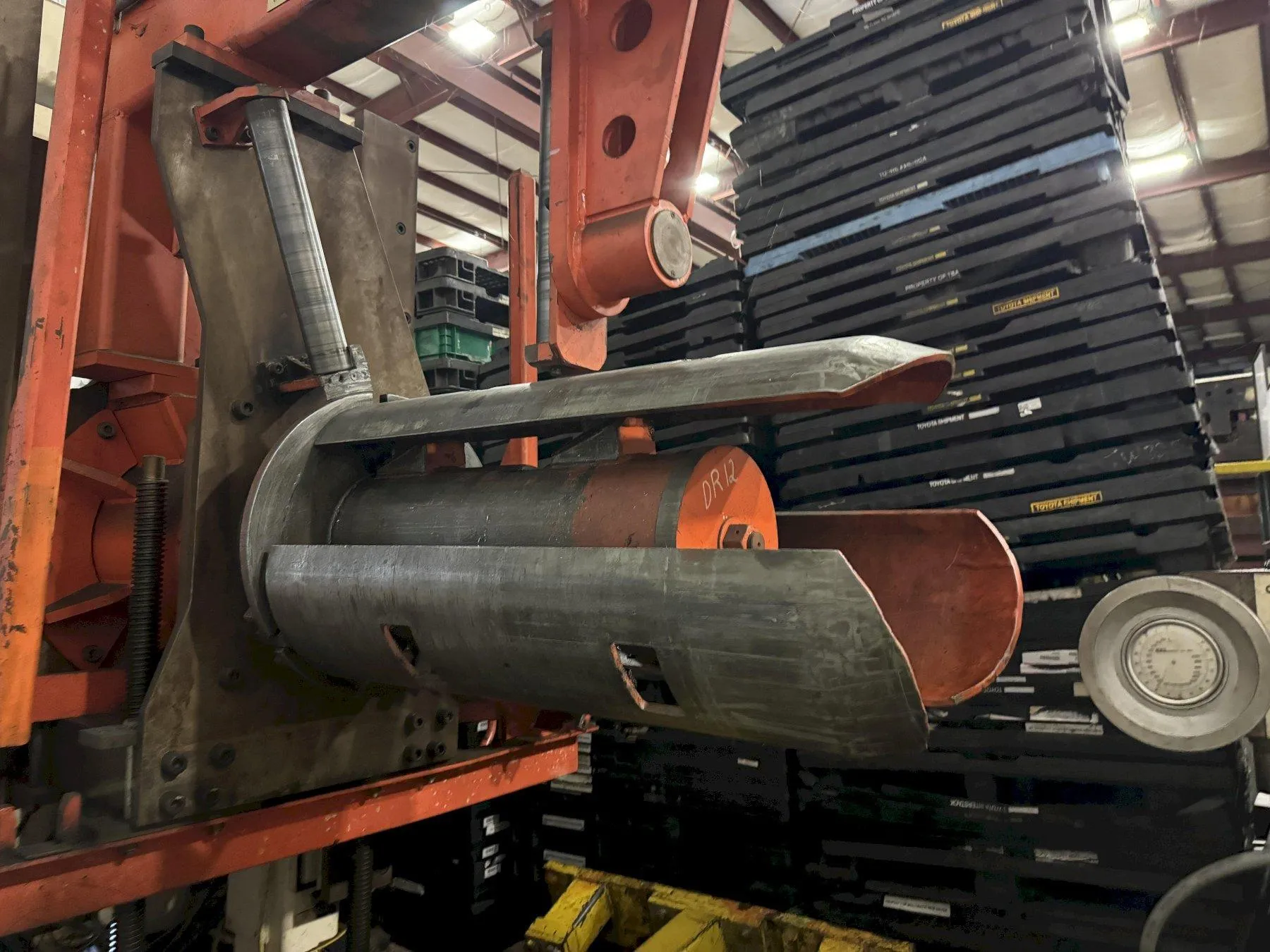

COIL I.D.....................................................: 20" - 24" (EXPANSION 19-1/2" - 24-1/2")
STOCK WIDTH..........................................: 6" MIN - 42" MAX
STOCK THICKNESS:
COLD ROLLED STEEL @ 50,000 YIELD.: .030" - .075" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .075" - .312" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .510" X 18" WIDE
HSLA STEEL @ 70,000 YIELD........:........ .38" X 30" WIDE
ACCURACY................................................: PLUS OR MINUS .010"
# OF ROLLS...............................................: 9(4 OVER 5)

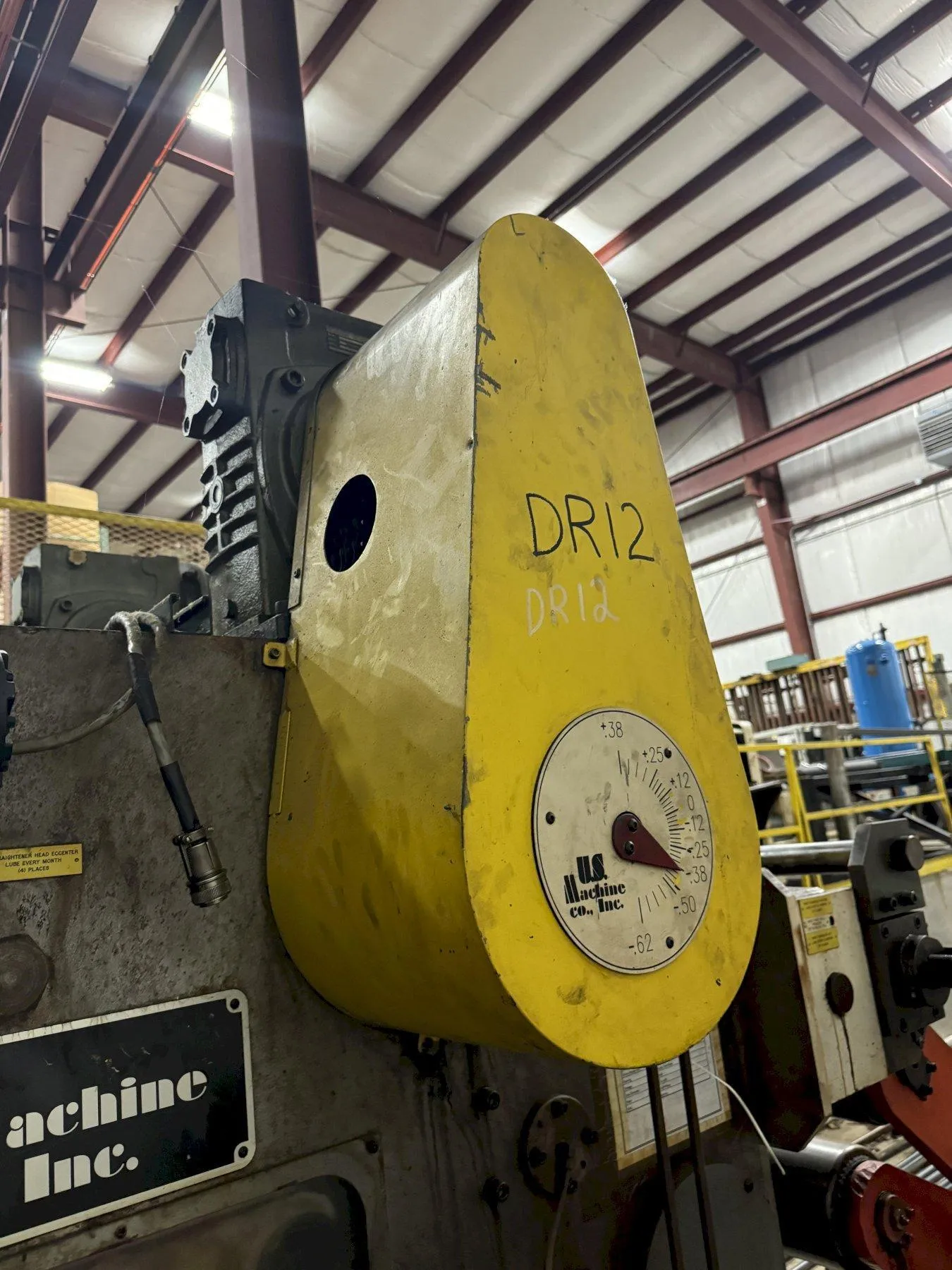

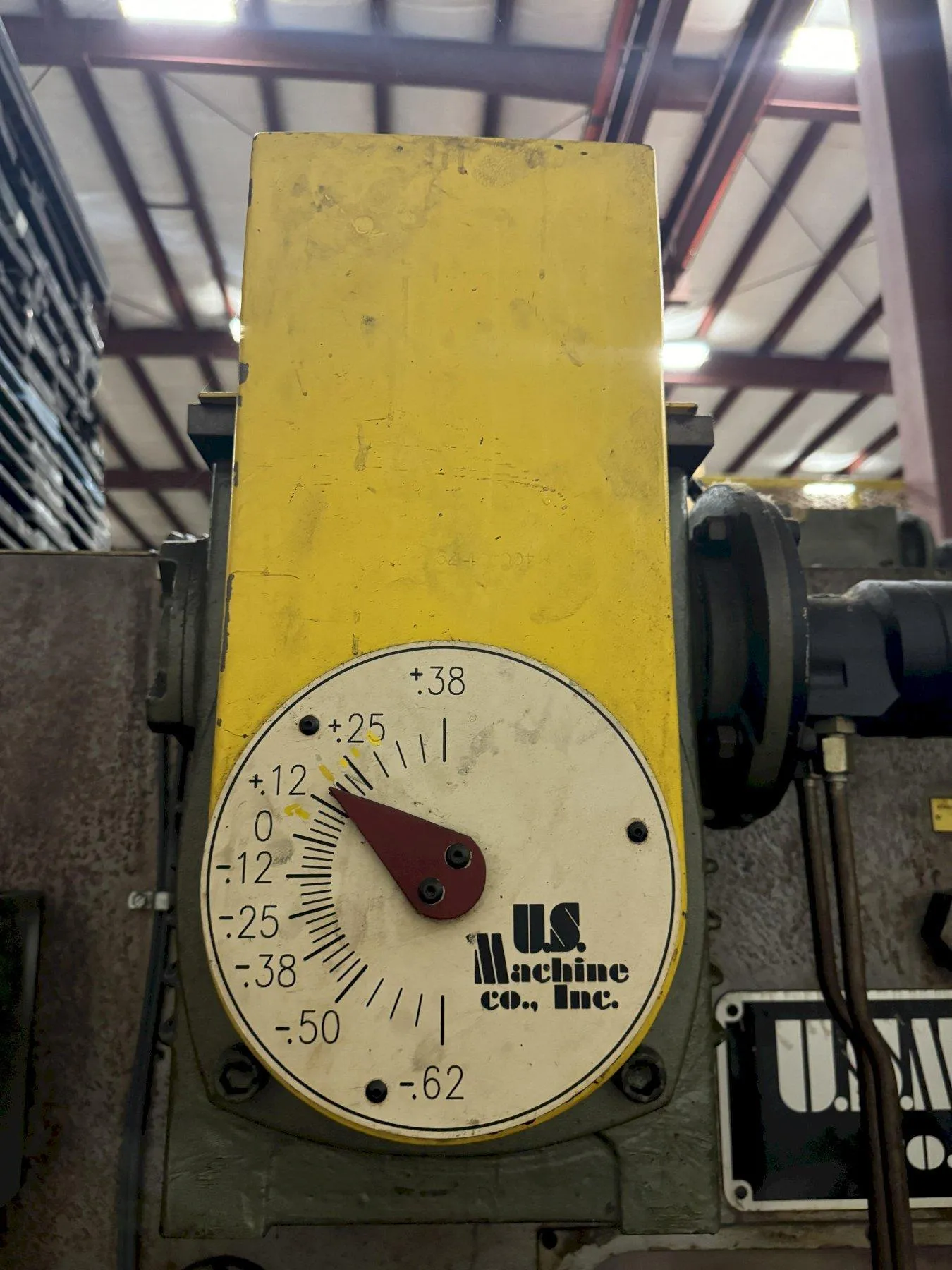

PASSLINE POWER ADJUSTMENT...........: 48" PLUS OR MINUS 4"

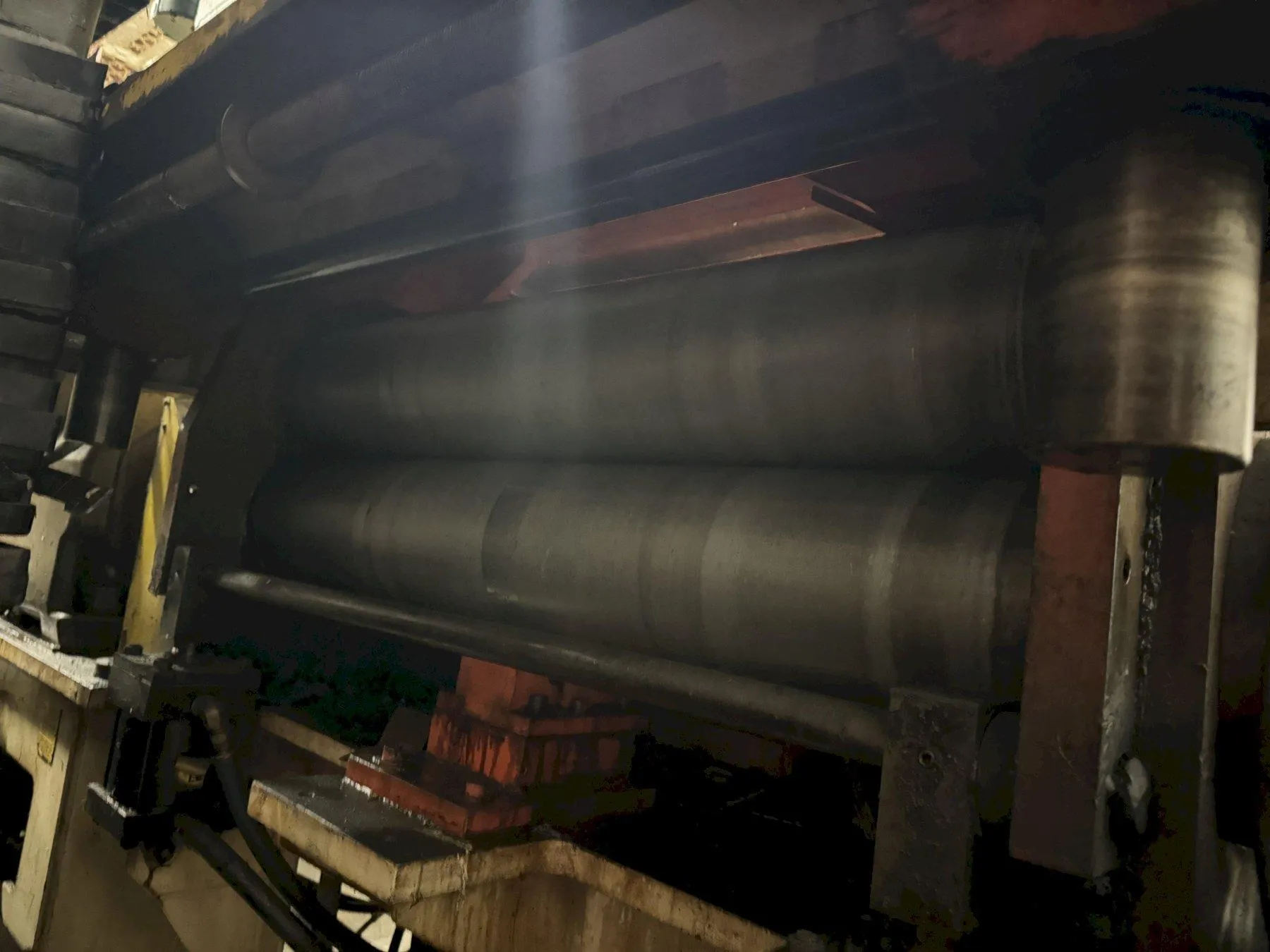

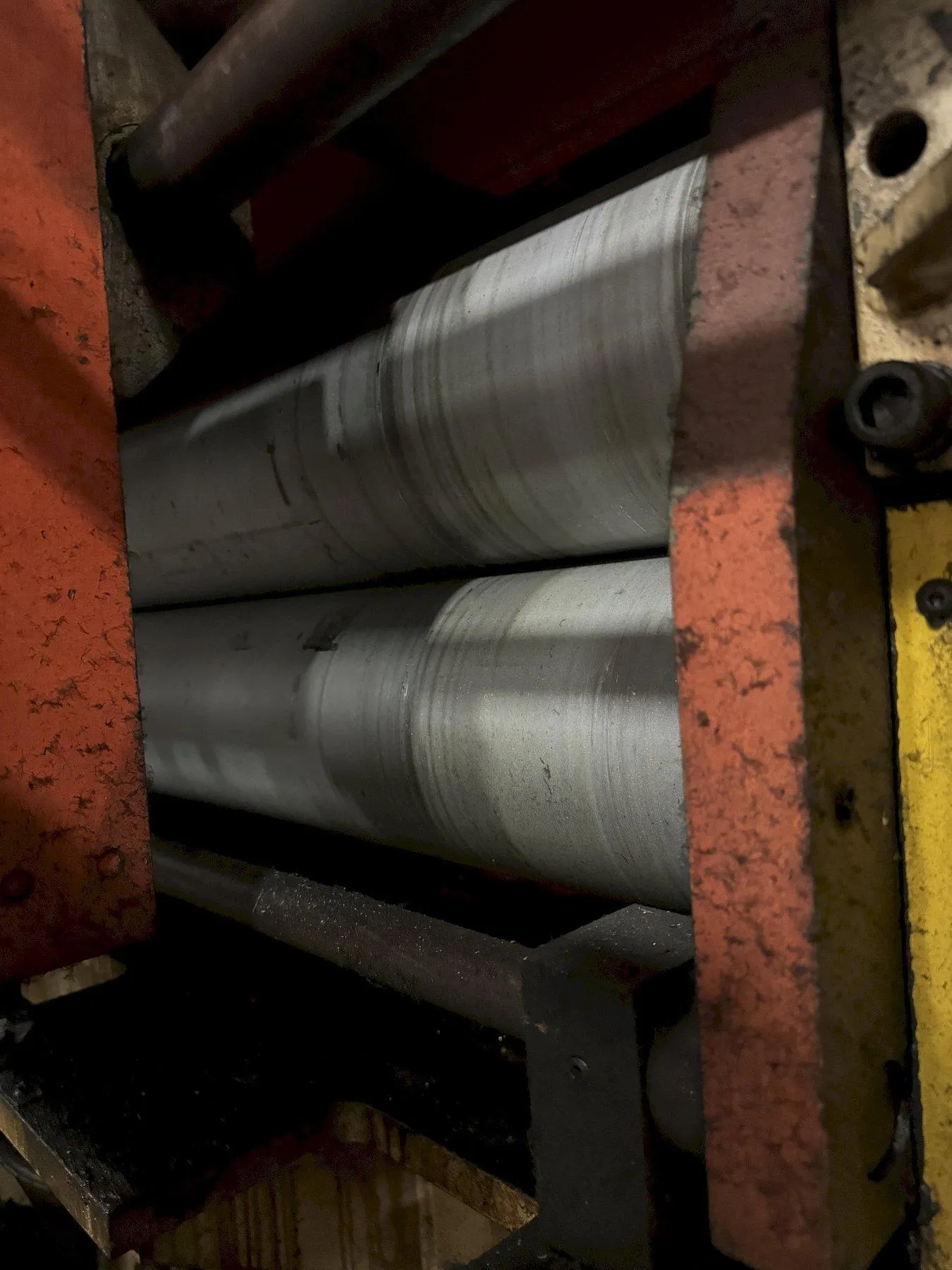

FEED ROLLS.............................................: 8" DIAMETER NOMINAL(SATIN FINISHED) BACKED UP
ENTRY AND EXIT PINCH ROLLS.............: YES

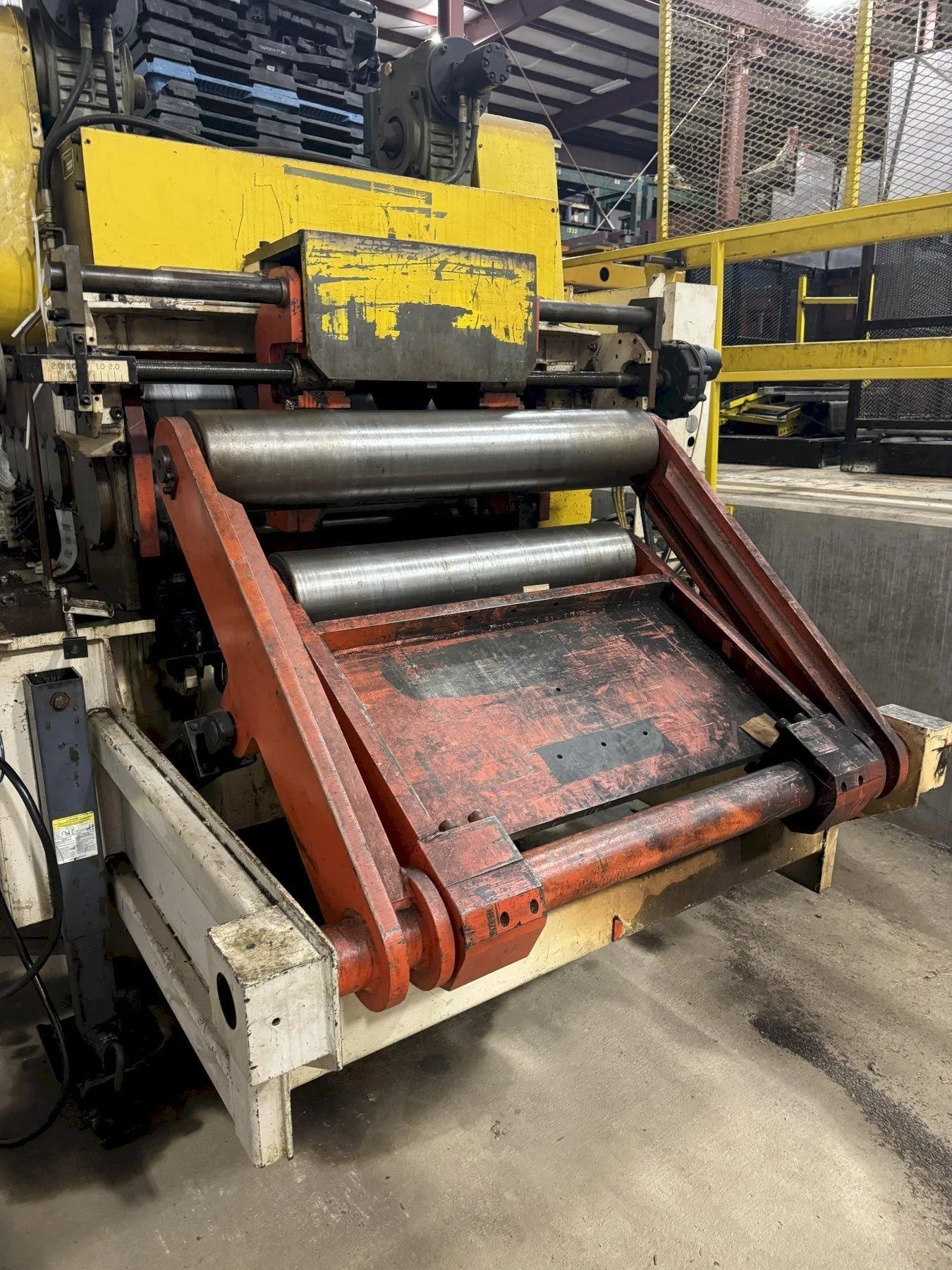

PINCH ROLL DIAMETER..........................: 12"

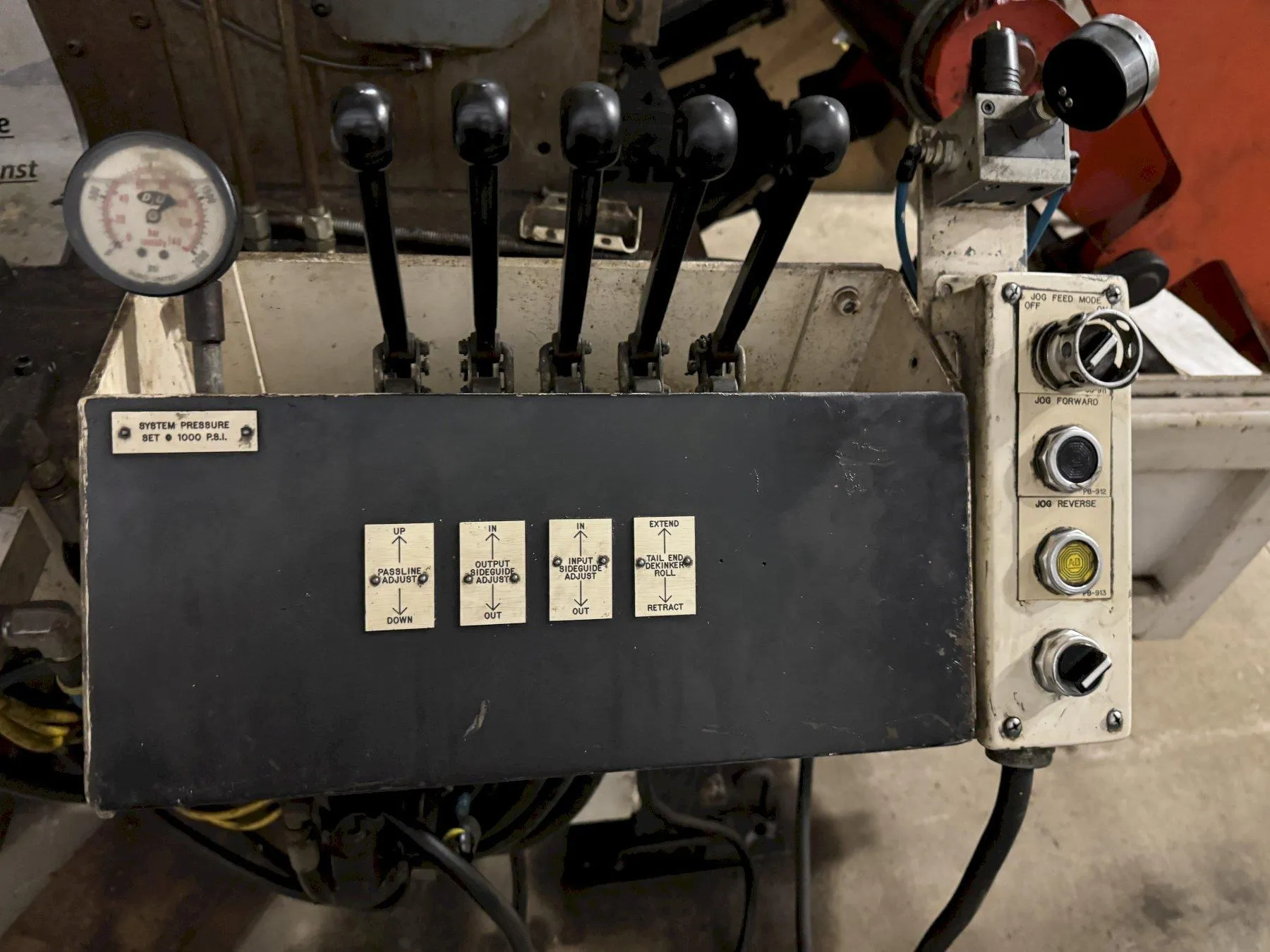

SIDE GUIDE...............................................: HYDRAULIC POWER ADJUSTED
POWER.......................................................: AC VECTOR DRIVE
VOLTAGE....................................................: 440 VOLT, 3 PHASE, 60 HERTZ

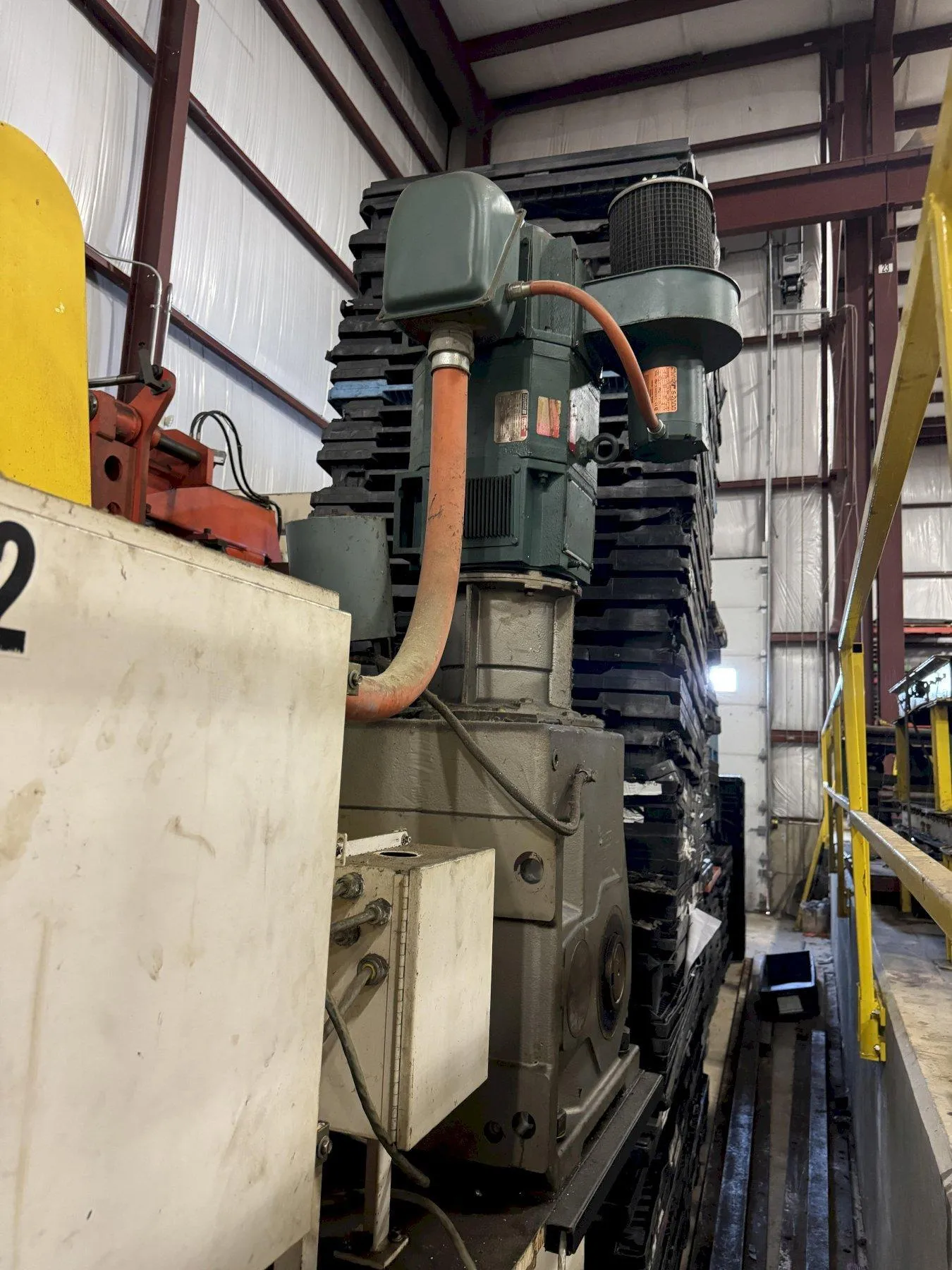

MOTOR.......................................................: 150 HP RELIANCE ELECTRIC
