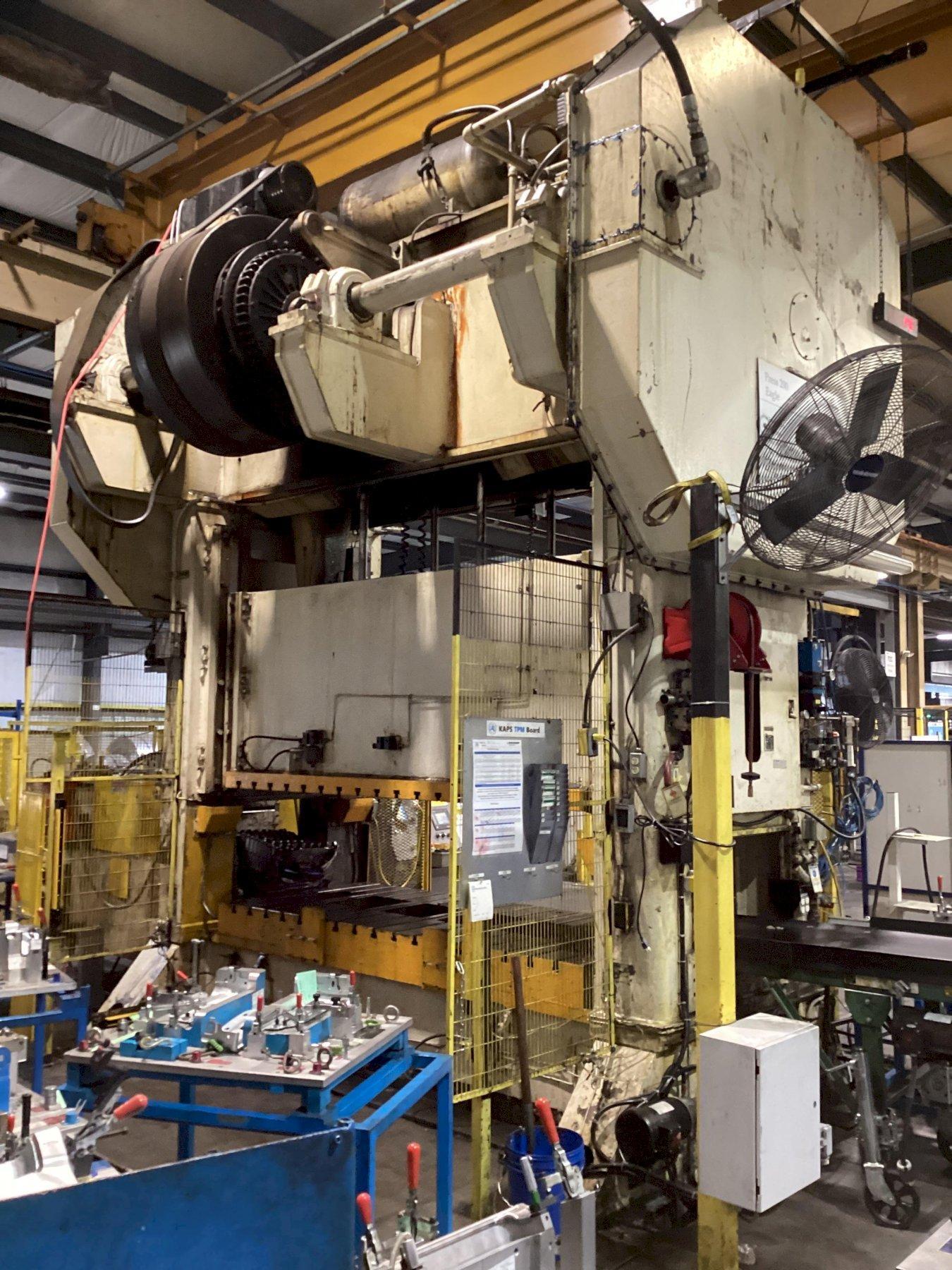

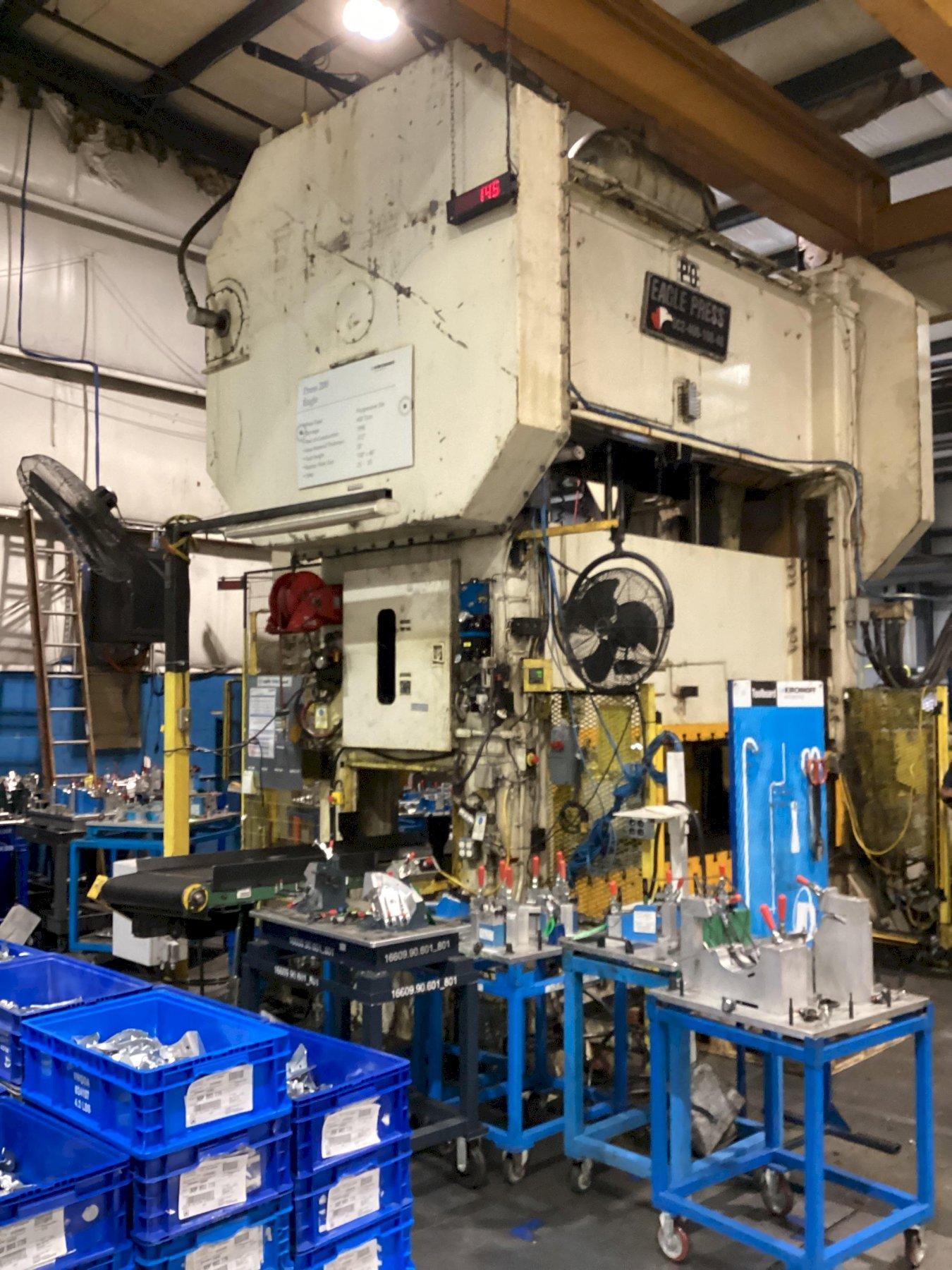

Brand

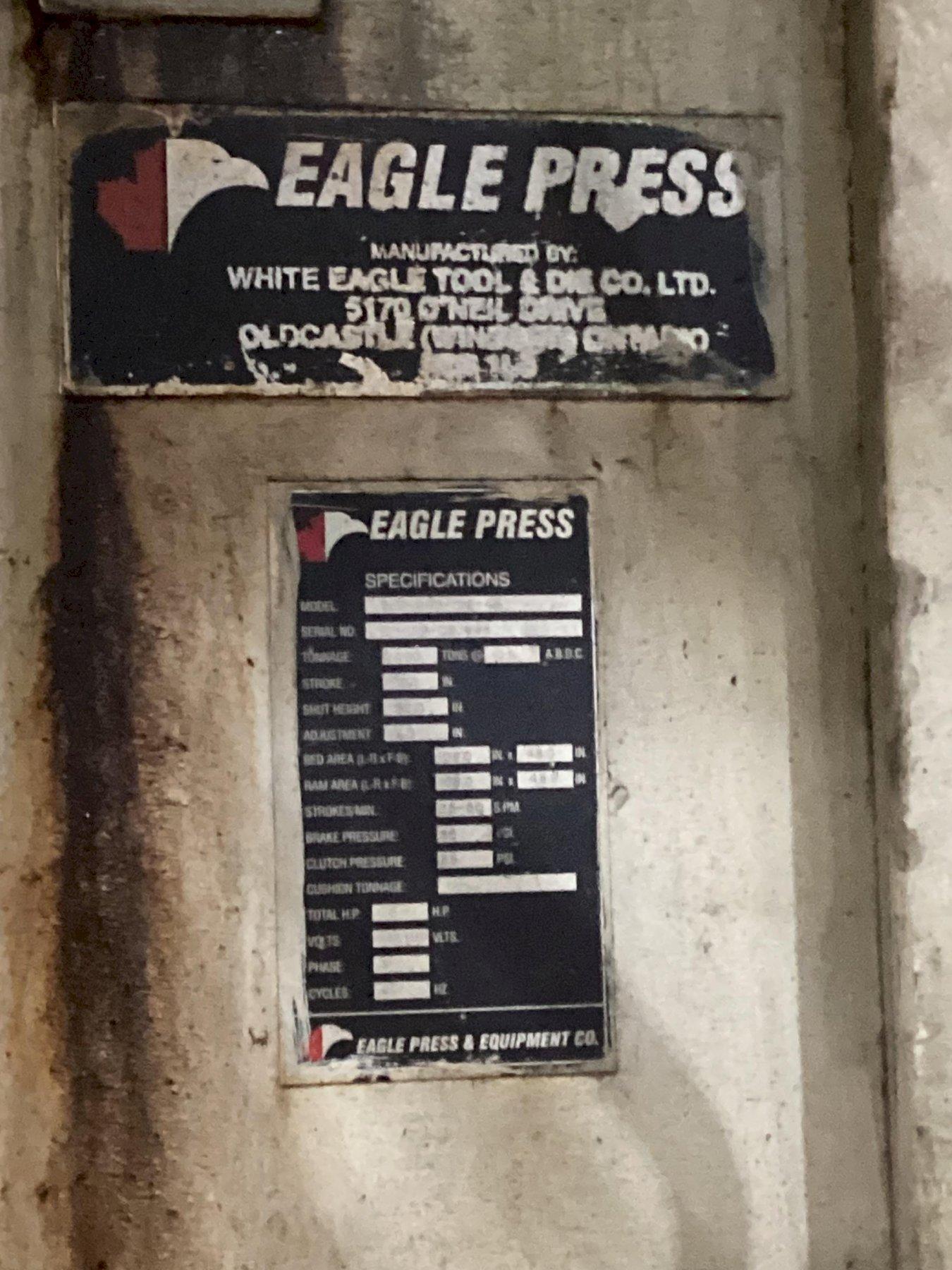

EAGLE PRESS
Model

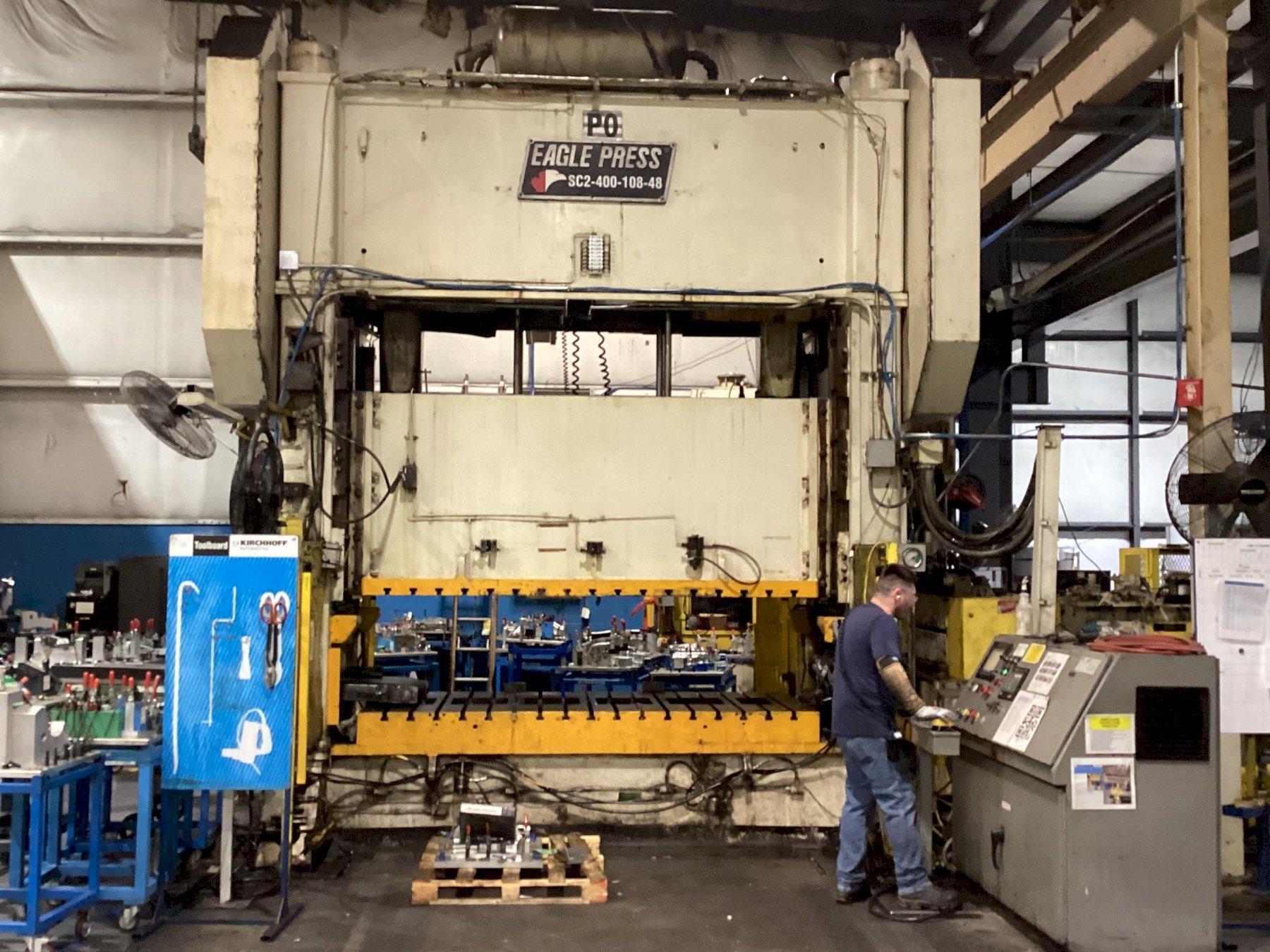

SC2-400-108-48
Stock #
501839
Condition
Used
Year
1998
Location
Wayne, Michigan
United States
| PRESS SPECIFICATION | |||
| TYPE OF PRESS | S2 (STRAIGHT SIDED 2 POINT) | ||
| CAPACITY OF PRESS | 400 TONS @ 1/2 IN A.B.C.D | ||
| BED AREA | 108.00 IN. X 48.00 IN. | ||
| STRUCTURE | 4 PIECE FRAME, WELDED CONSTRUCTION | ||

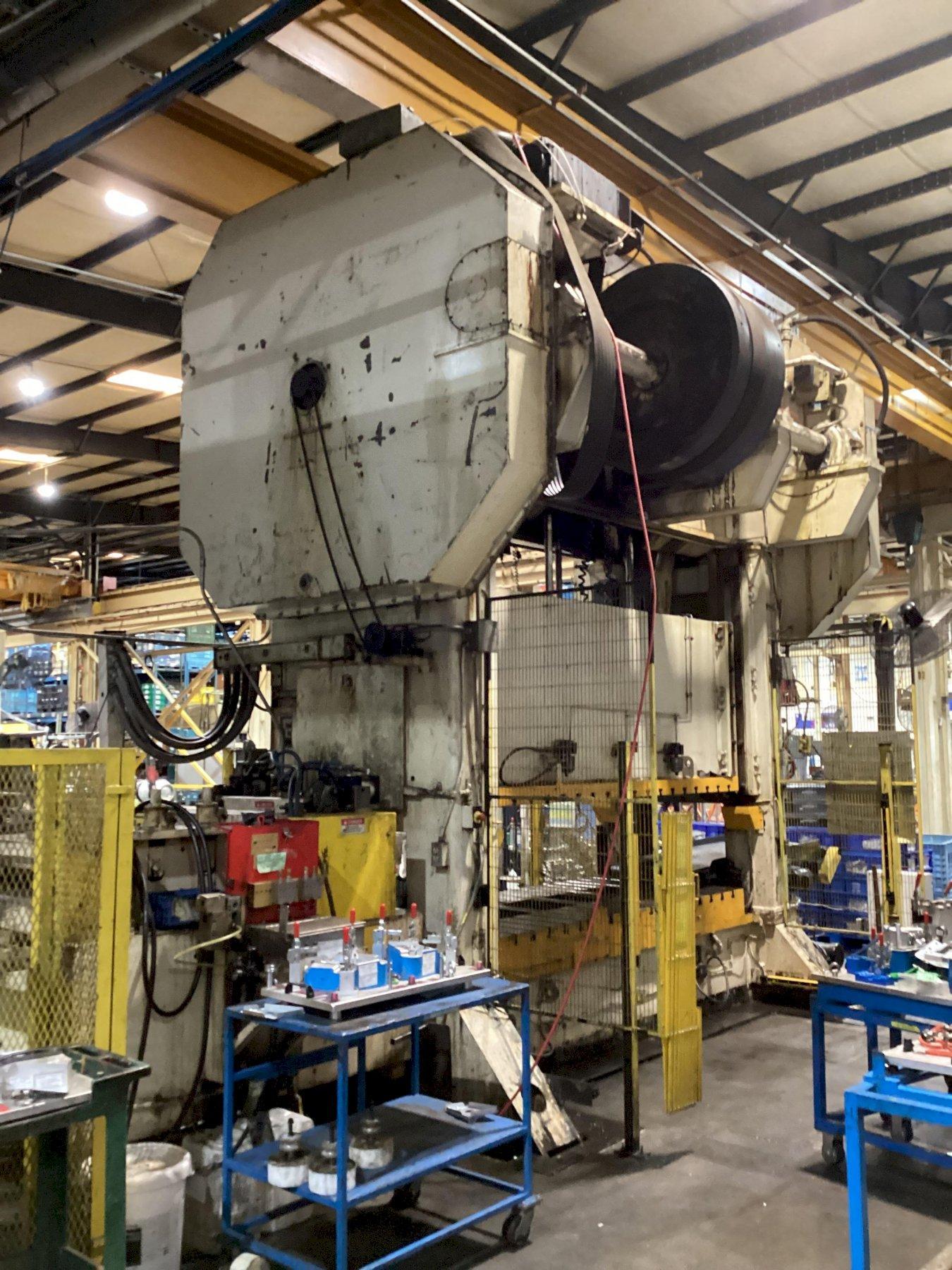

| PRESS DRIVE | SINGLE BACK GEARED, TWIN END DRIVE | ||

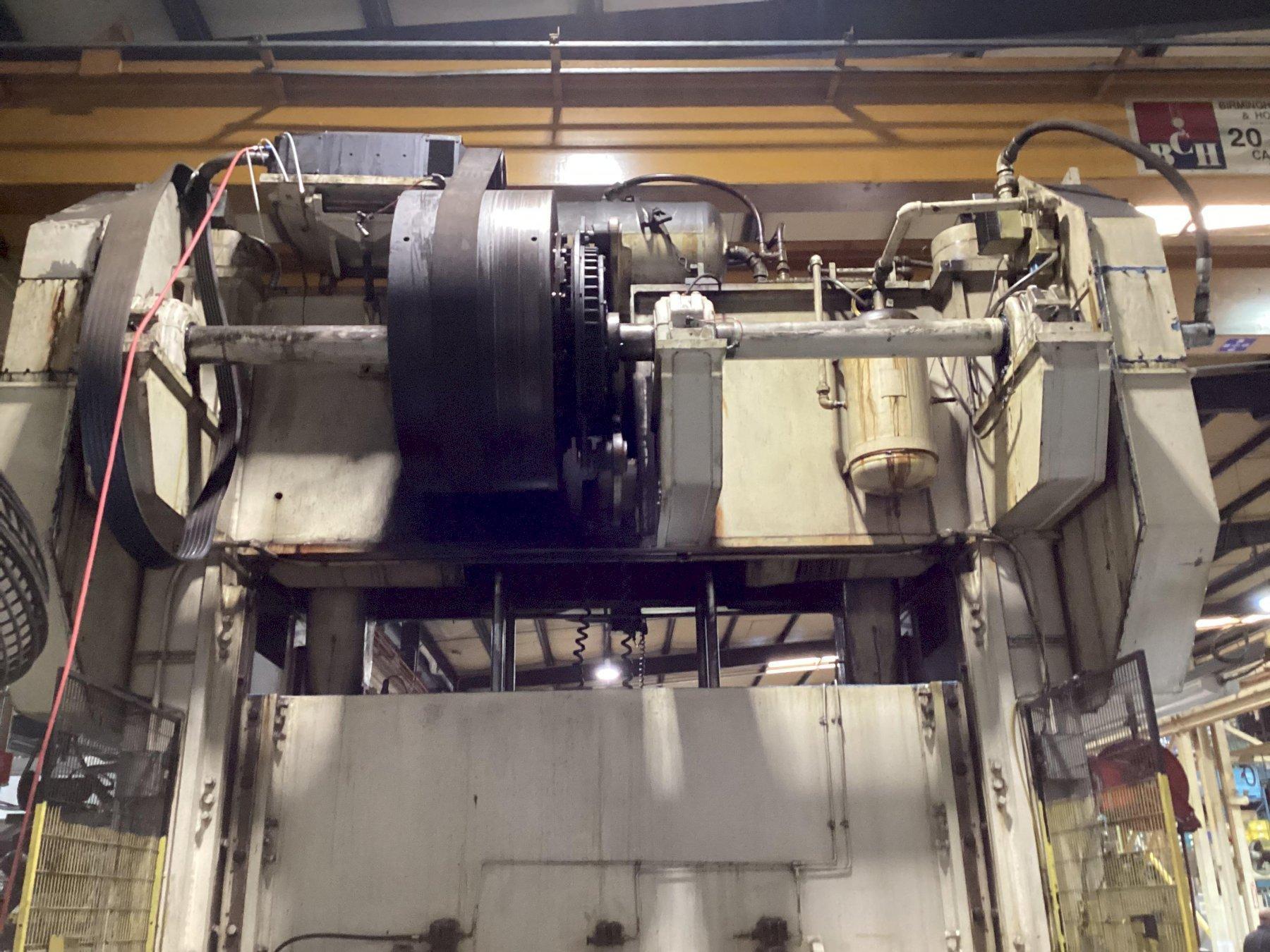

| ENERGY TRANSMISSION | BACKSHAFT & FLYWHEEL DRIVEN BY 75HP ELEC. DC MOTOR-460V | ||
| STROKE OF SLIDE | 12.0 IN | ||
| SLIDE ADJUSTMENT | 6.0 IN MOTORIZED BALL - TYPE PITMAN | ||
| STROKES PER MINUTE | 25 - 50 S.P.M (CONTINUOUS) | ||
| STROKES PER MINUTE | 10 STPM(SINGLE TRIPS PER MIN @ 25 S.P.M SYNCHRONOUS SPEED) | ||

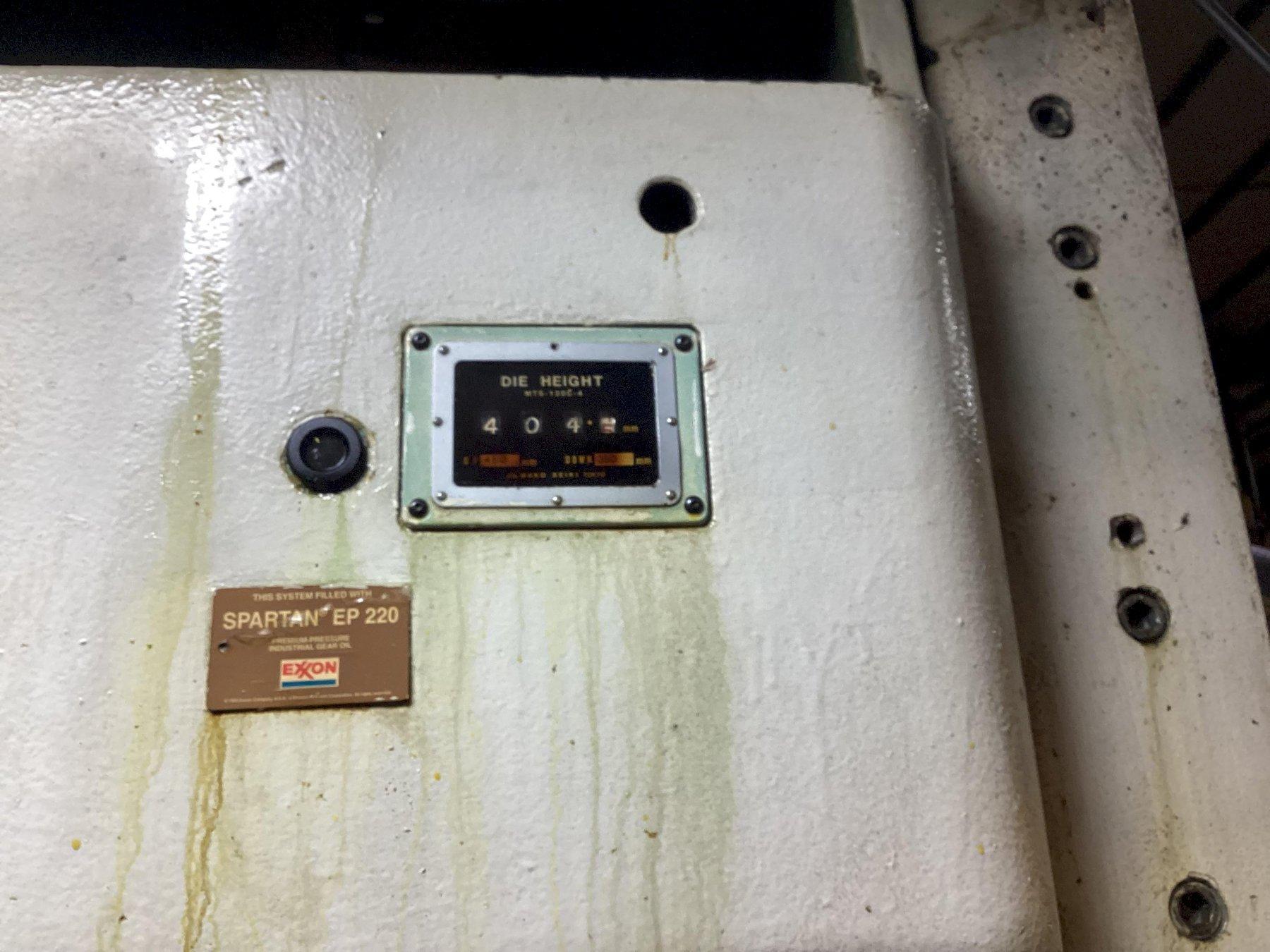

| MAXIMUM SHUT HEIGHT | 32.0 IN. OVER BOLSTER (S.D.A.U) | ||
| CLUTCH | PNEUMATICALLY CONTROLLED FRICTION DISC. | ||
| BRAKE | SPRING SET AIR RELAEASE | ||

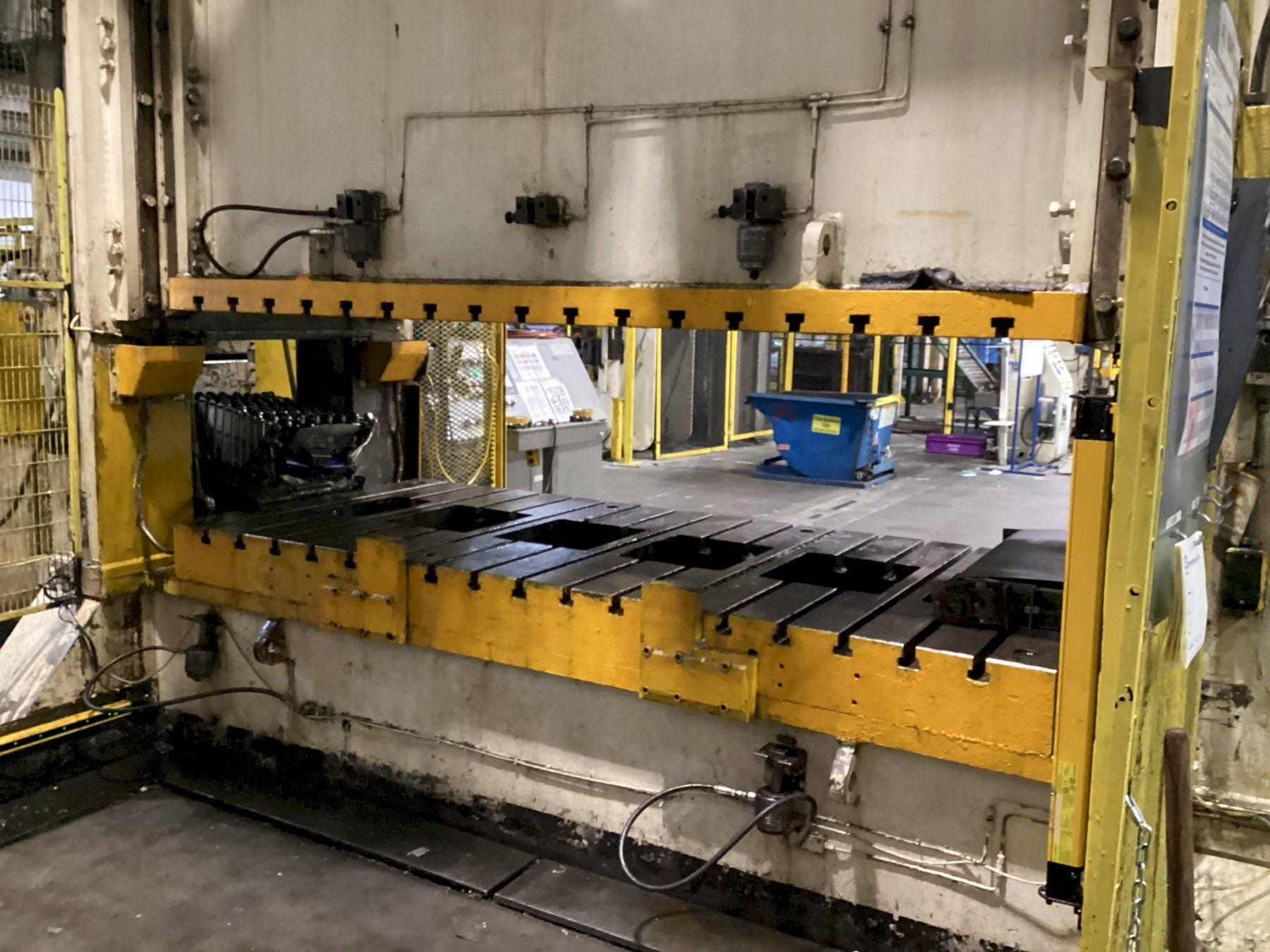

| SLIDE | PNEUMATICALLY COUNTERBALANCED "T" SLOTTED @ 6 IN CENTRES | ||

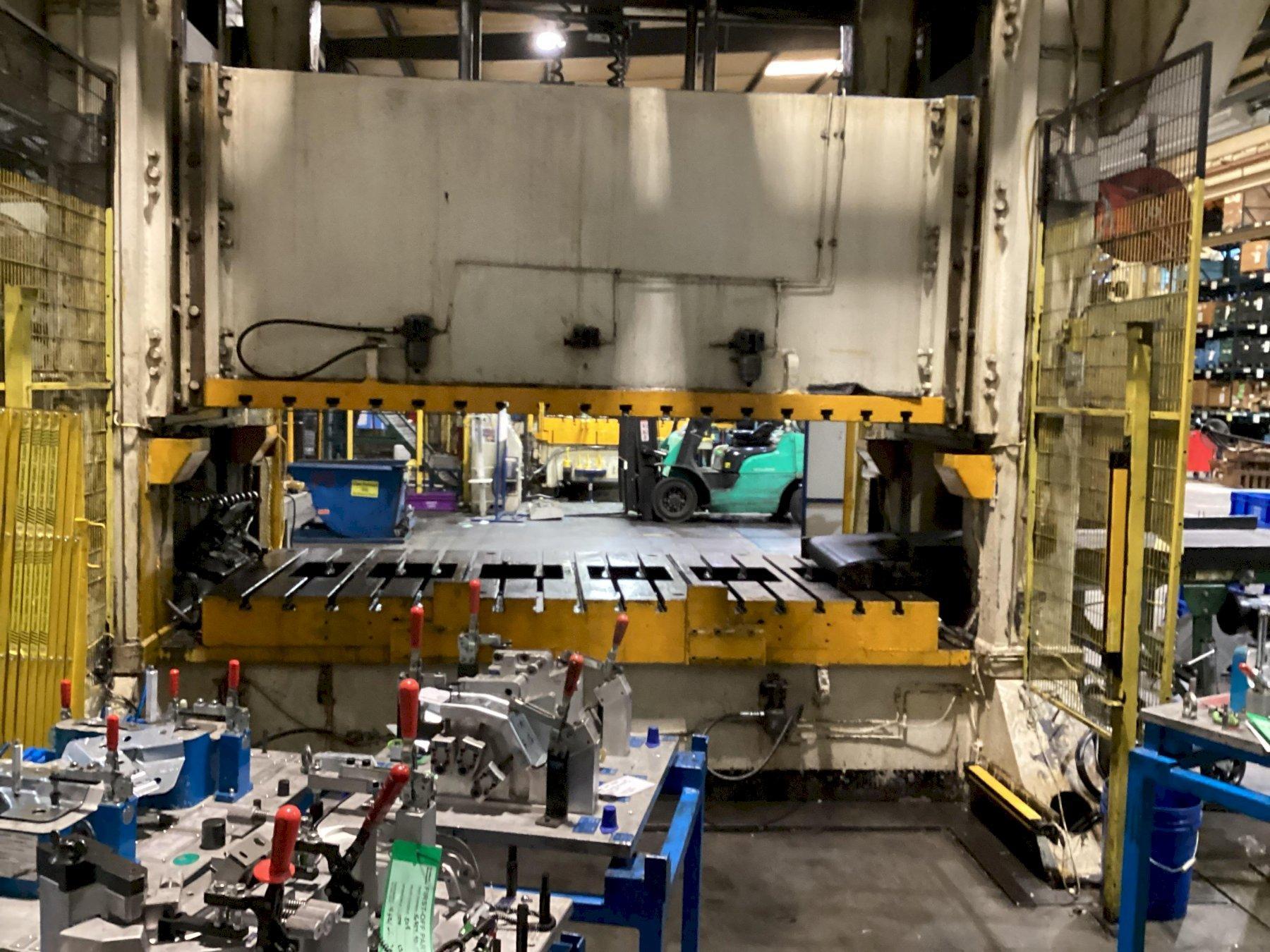

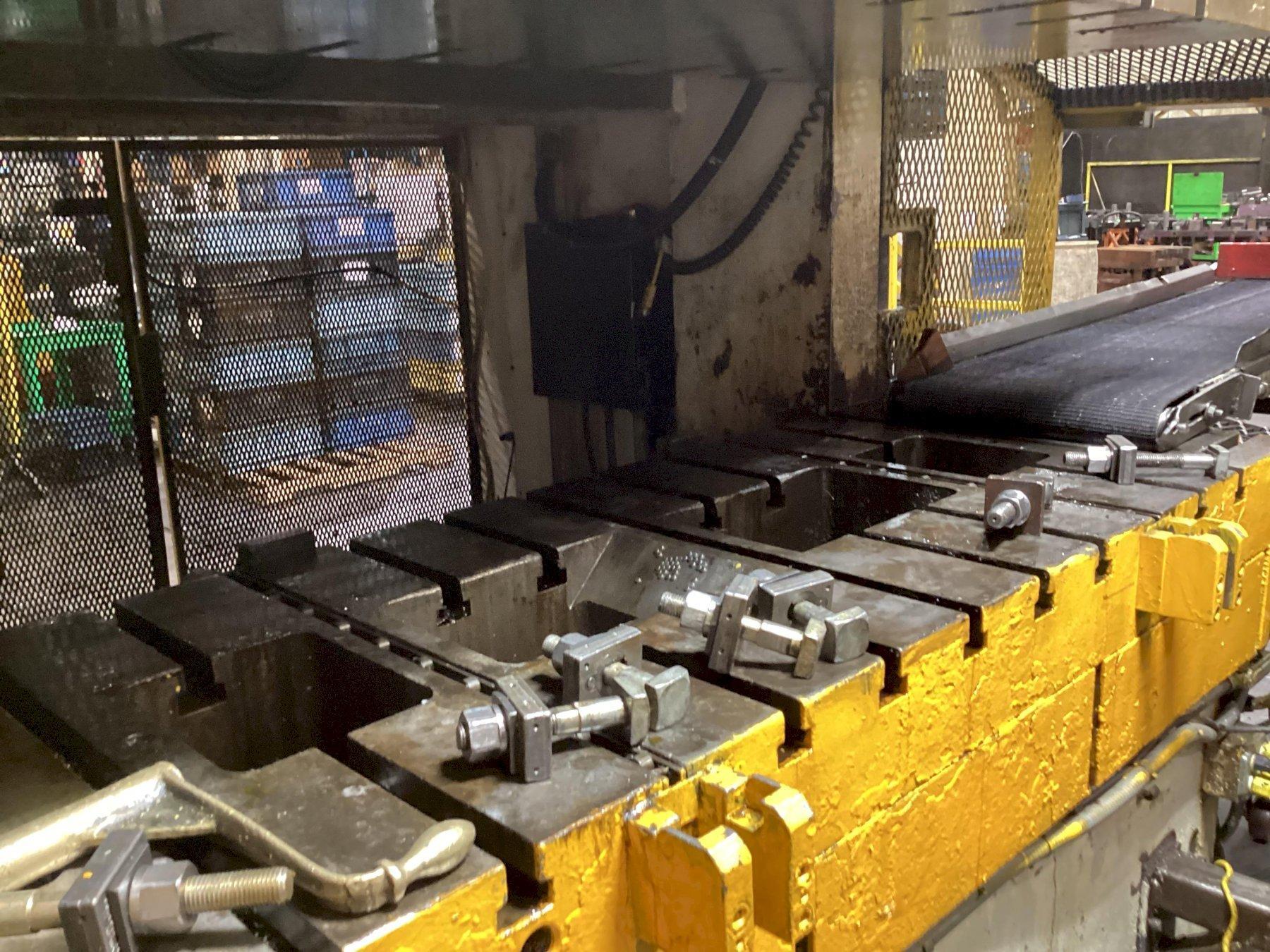

| BOLSTER | 7.0 IN. "T" SLOTTED @ 6 IN. CENTRES | ||
| LUBRICATION | CENTRAL AUTOMATIC CONTINUOUS | ||
| OVERALL DIMENSIONS | H 228" W 180.6" D 120.1" | ||
| ELECTRICAL REQUIREMENTS | |||
| VOLTAGE | 460 | ||
| PHASE | 3 | ||
| CYCLE | 60 | ||
| MAIN MOTOR HP | 75 HP DC ( RELIANCE 1325-DR-B075517) | ||
| SLIDE ADJ MOTOR HP | 1.5 HP | ||
| LUBRICATION MOTOR HP | 0.5 HP | ||
| FEEDLINE : | |||||
| ITEM | MFG | MODEL # | SERIAL # | MAX WIDTH | MAX WEIGHT |

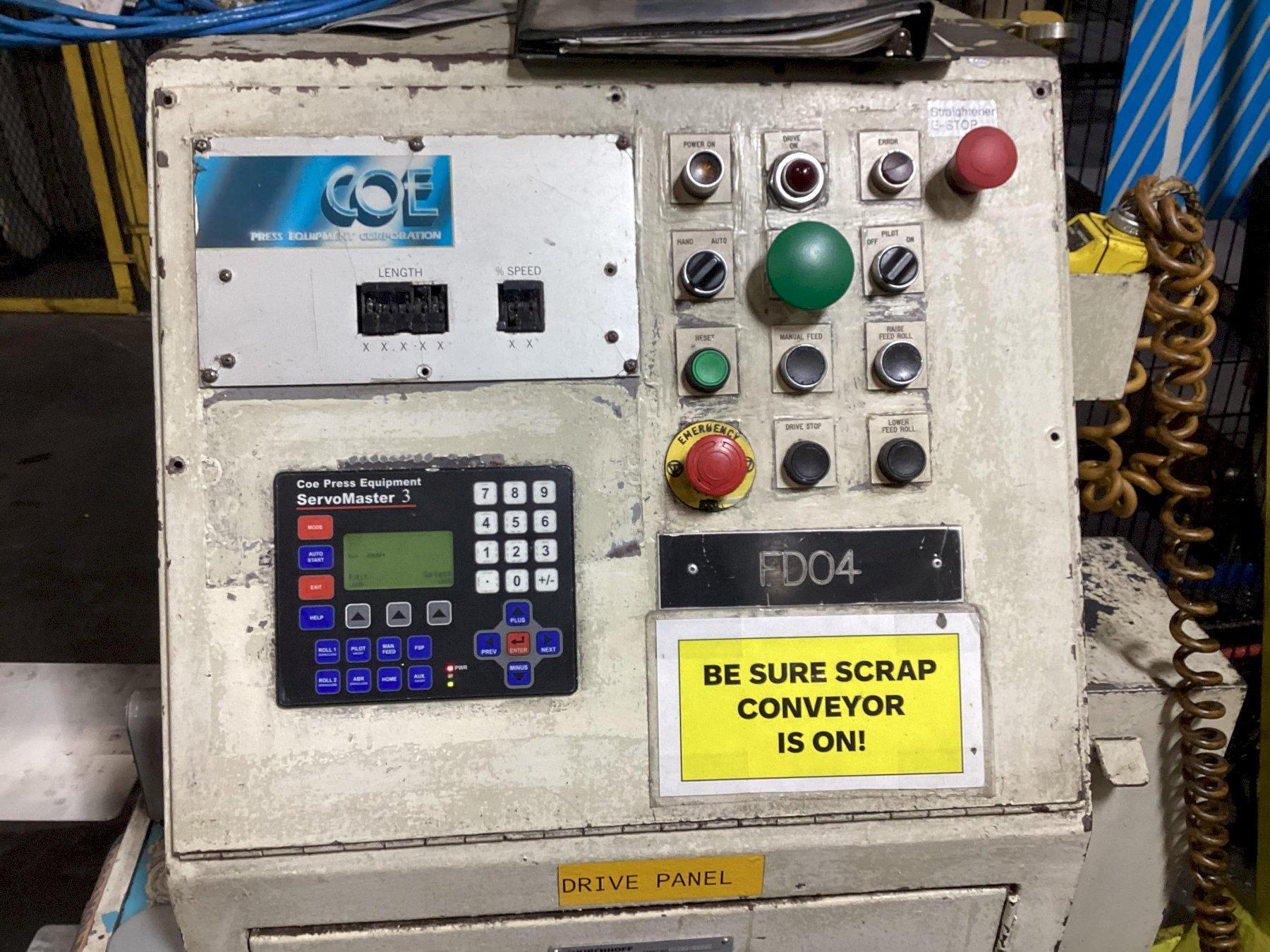

| FEEDER | COE | CPRF-730 | 18634-1 | 30" | |
| UNCOILER | COE | CPR-20030 | 18634-4 | 30" | 20,000 LBS |
| STRAIGHTNER | COE | CPR-20030 | 18634-2 | 30" | |
| TEK SPRAY | A-S MFG |
