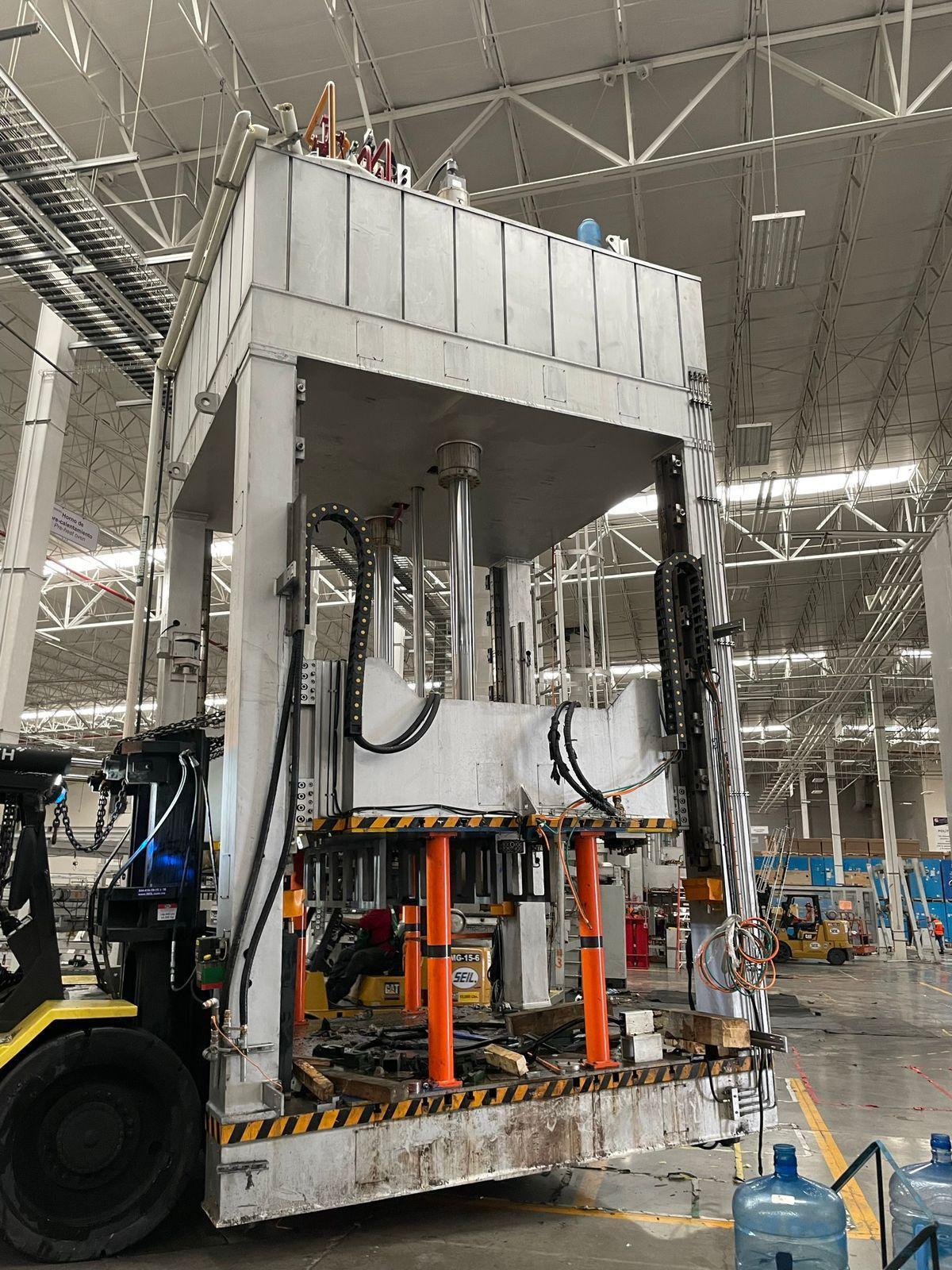

400 Ton Hydraulic press 3600 x 2450 mm

Brand
NANTONG

Model
Model YQK34-400

Type
Presses, Hydraulic

Stock #
501973

Condition
Very Good

Year
2020

Location
Detroit, Michigan
United States

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

Technical Reference Specifications (Approximate)

(Based on manufacturer reference data for model YQK34-400)

YQK34-500 Single-Action Hydraulic Drawing Press

Item	Unit	YQK34-400
Nominal Force	kN	4000
Return Force	kN	1000
Cushion Force	kN	1000
Max. Pressure of Hydraulic System	MPa	25
Stroke – Slide	mm	900
Stroke – Cushion	mm	350
Max. Daylight	mm	1500

Slide Speeds

Function	Unit	YQK34-400
Descent	mm/s	140
Pressing	mm/s	5–15
Return	mm/s	70

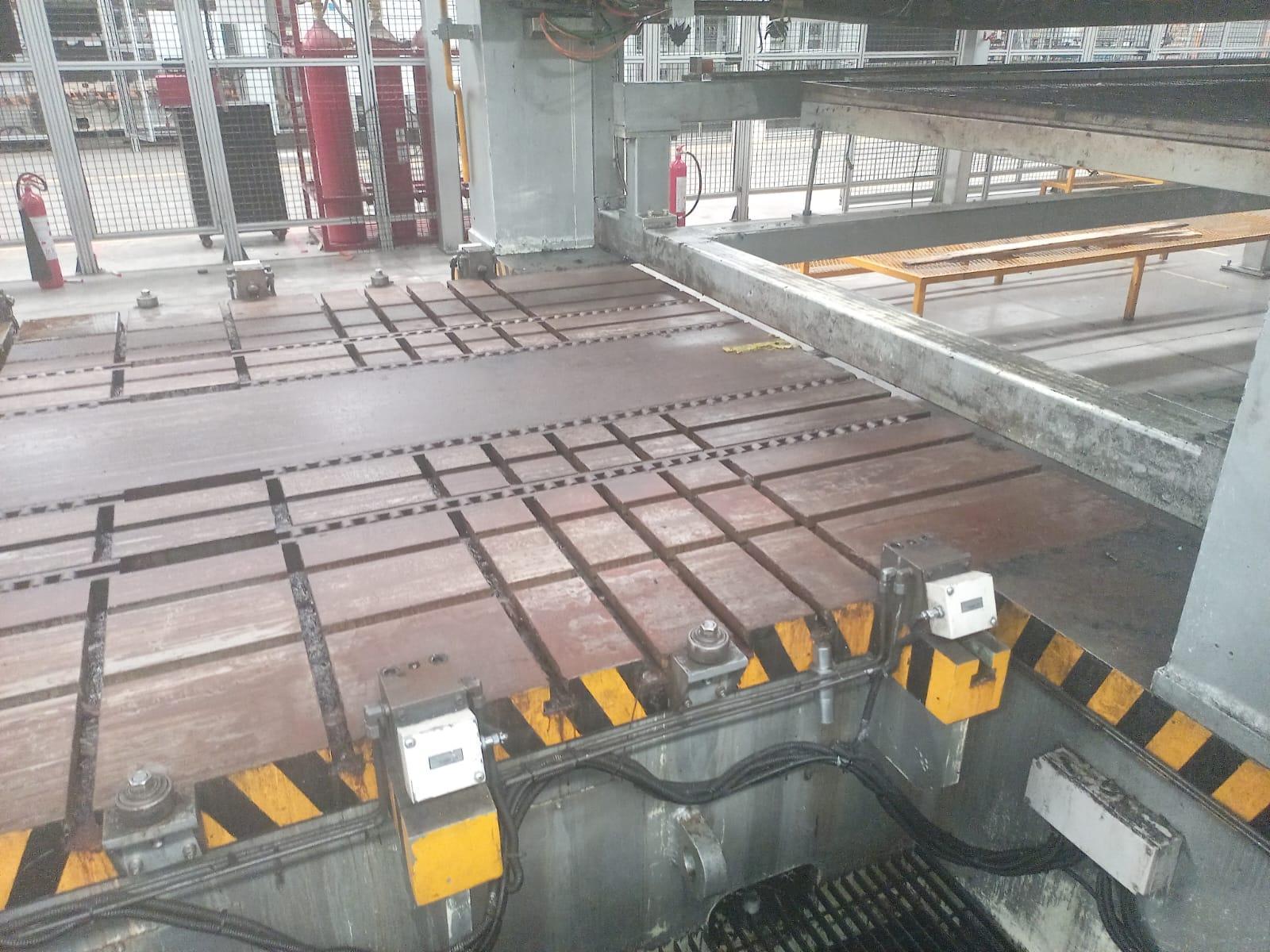

Table Dimensions

Dimension	Unit	YQK34-400
L–R	mm	3600
F–B	mm	2450

Cushion Dimensions

Dimension	Unit	YQK34-400
L–R	mm	2200
F–B	mm	1500

Other Specifications

Item	Unit	YQK34-400
Height of Table Above Floor	mm	500
Total Power	kW	45
Total Weight	kg	49,500

Overall Dimensions

Dimension	Unit	YQK34-400
L–R	mm	4120
F–B	mm	3600
Height Above Floor	mm	8100

Frame Type

Four-Column

PLC & Controls:

Siemens

Hydraulic System – Estimated Specifications
Item	Estimated Specification
Manifold design	Integrated block‑type manifold for high‑pressure hydraulic systems.
Hydraulic pipes	Seamless precision steel tubing rated for high‑pressure applications.
		U‑packing & O‑ring	High‑durability NBR or PU seals suitable for heavy‑duty hydraulic operation.
Main solenoid valve	High‑flow, fast‑response hydraulic solenoid valve (Chinese OEM equivalent).
		Main hydraulic pump	Axial‑piston or vane pump sized for 300‑ton press operation.
Main motor	Approx. 30–45 kW depending on pump displacement and required flow rate.

Note:
The technical specifications listed above are based on information from similar models manufactured by Nantong Metalforming and are provided for reference purposes only.
Actual details may vary slightly depending on the specific configuration of the press offered.
Final confirmation of specifications should be verified by the buyer prior to purchase.
All details are offered in good faith but are subject to confirmation by the buyer prior to purchase.
