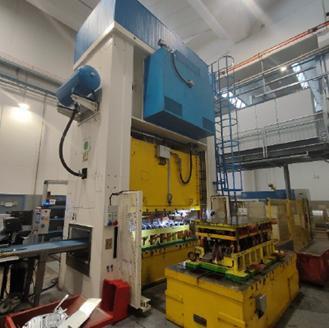

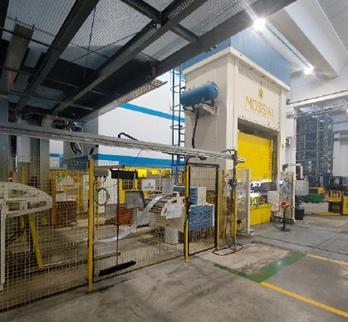

MOSSINI 400 TON
TYPE: PDM/2B/LD400
SERIAL NUMBER: 0964/19
YEAR: 2019
KINEMATICS: LINK DRIVE
RATED CAPACITY AT 10 mm: 400 Tons
NUMBER of connecting rod: 2
SLIDE STROKE: mm 250
SLIDE ADJUSTMENT: mm 350
CONTINUOUS SPEED (variable): spm 26 - 82
SHUT HEIGHT, from top of bolster, SDAU: mm 900
SLIDE DIMENSIONS (L-R x F-B): 2850 X 1300 mm
FRONT MOVING BOLSTER DIMENSIONS : 2850 X 1300 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 2870 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 950
MOVING BOLSTER H. : mm 750
WEIGHT OF THE PRESS : Kg.32.000
EQUIPMENT

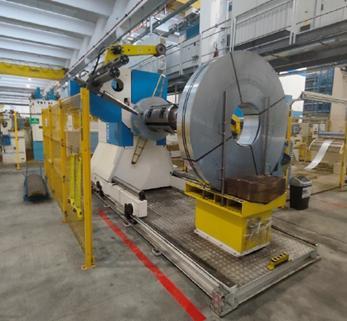

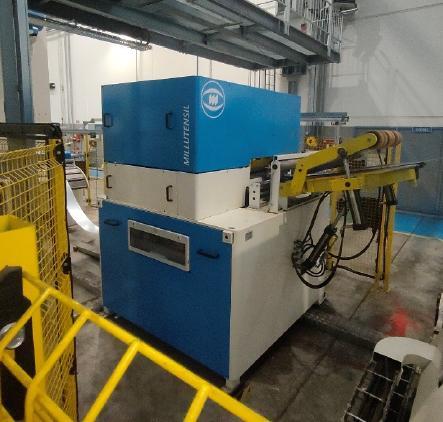

LINEA DI SVOLGITURA- ALIMENTAZIONE LAMIERA MILLUTENSIL
ANNO COSTRUZIONE2019
MAX SHEET WIDTH : mm.800
MAX SHEET THICKNESS : mm.4
COIL WEIGHT CAPACITY : Kg.10.000
