48" x 50,000# AFCO Coil Feed Line

Brand
Not Specified

Model
504872-48"

Stock #
501542

Condition
Used

Year

Location
Wayne, Michigan
United States

Max Weight of Coil 50000 pounds
Max Coil Width Capacity 48 inches
Max Stock Thickness Capacity At Full Width .125 inches
Max Dia. of Coil 72 inches

Equipped With

Model:  504872
Year:  2000

Coil Weight Capacity:  50,000#
Max. Width Capacity:  48"
Coil O.D.:  72"
Min. Width Capacity:  10"
Max. Thickness at 48":  0.125"
Thickness at 24":  0.177"
Min. Thickness at 48":  0.020"
Feeding Length:  2" - 36"
Yield: 25,000 PSI - 60,000 PSI

Material of Coil: Cold Rolled Steel, HD Galvanized, Electro Galvanized
Expansion Range: 22"-26"
Feeding Length: 2"-36"
SPM: 60
Line Speed: 100 feet per minute
Feeding Angle: Adjustable
Passline Height: ± 5 inches
Feeding Direction: Right to Left
Control: Drive system - Unico
PLC - Allen Bradley
Operator interface - IBM, Wonderware

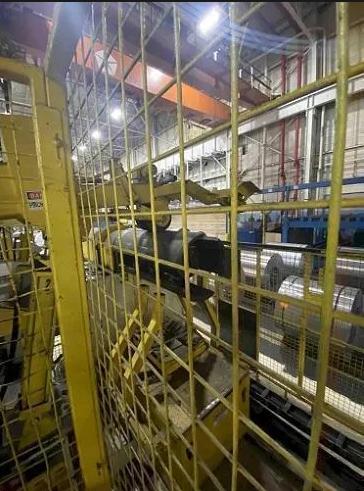

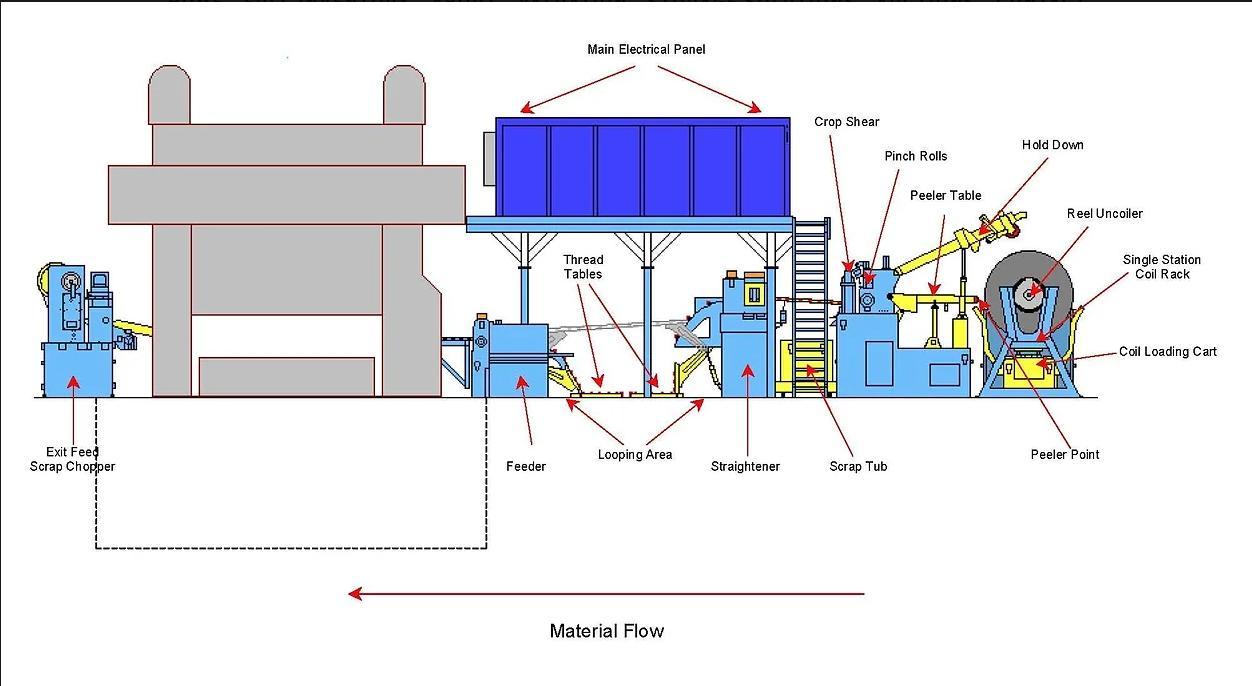

Line includes:

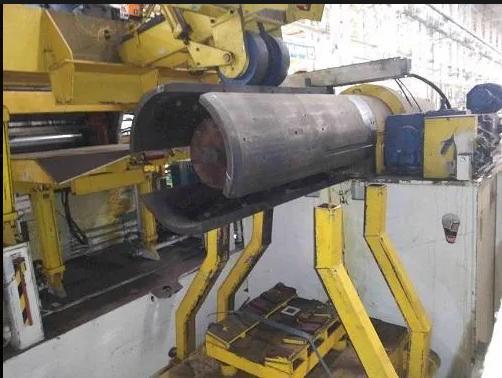

• Servo driven reel
• Entry pinch roll crop shear

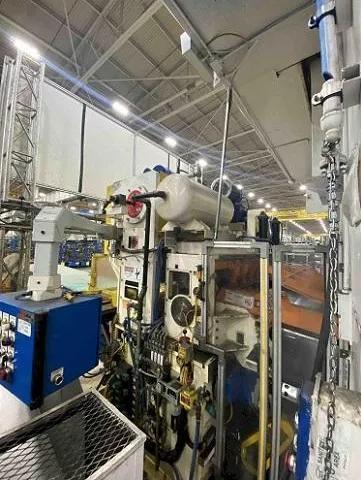

• Six (6) high straightener servo driven
• AC servo feeder with powered programmable pass line height adjustment
• Powered and programmable stock guides
• AC servo exit feed with scrap chopper

All features certainly not on a normal 48” feed line.
