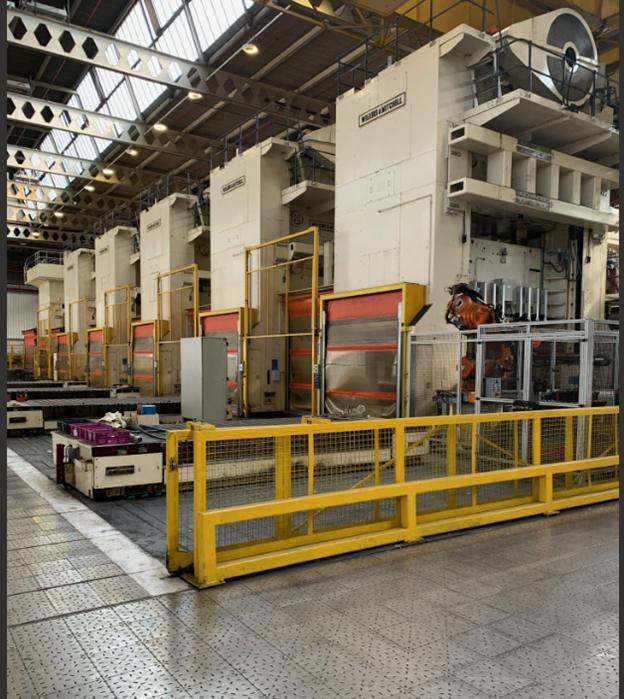

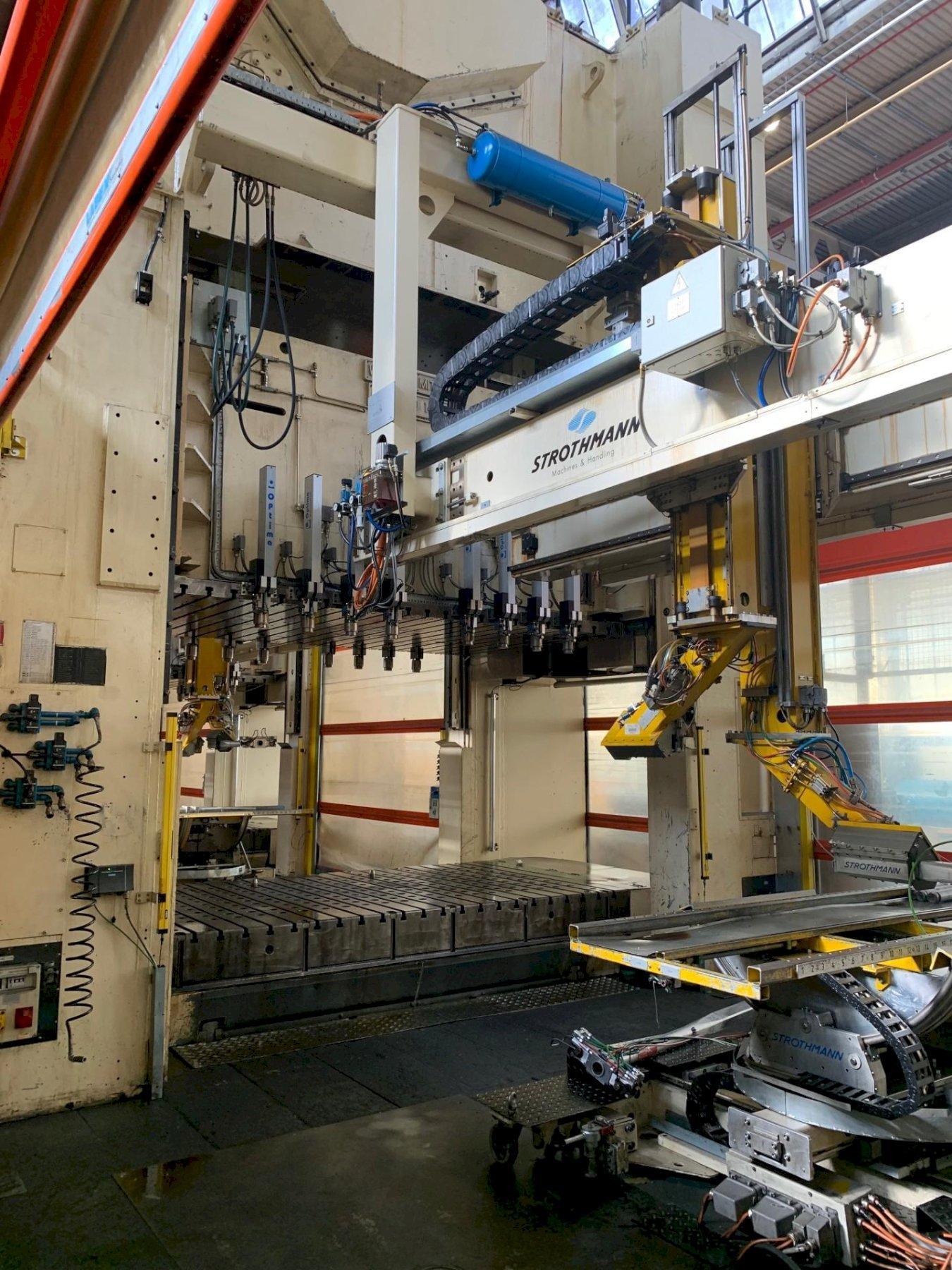

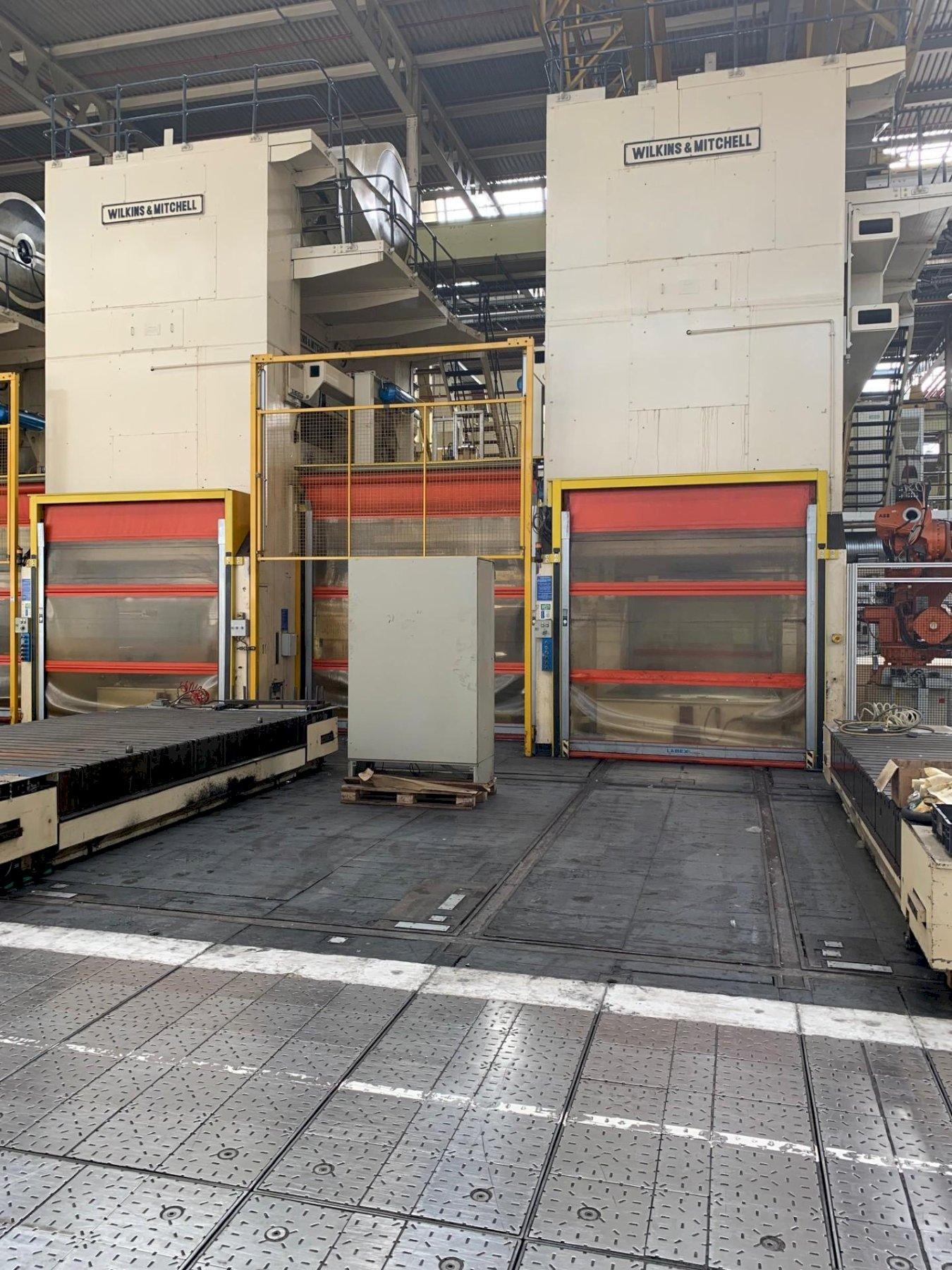

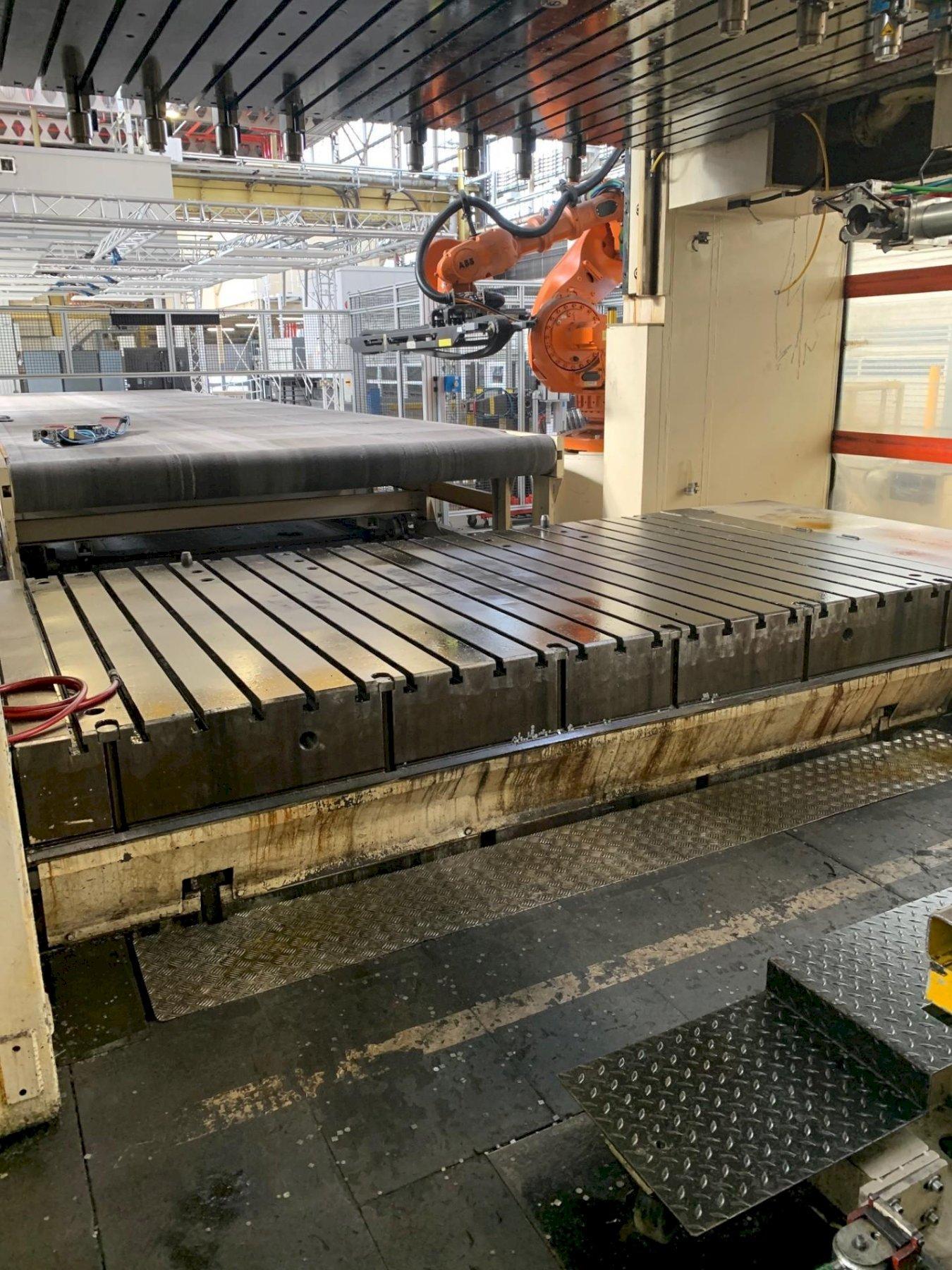

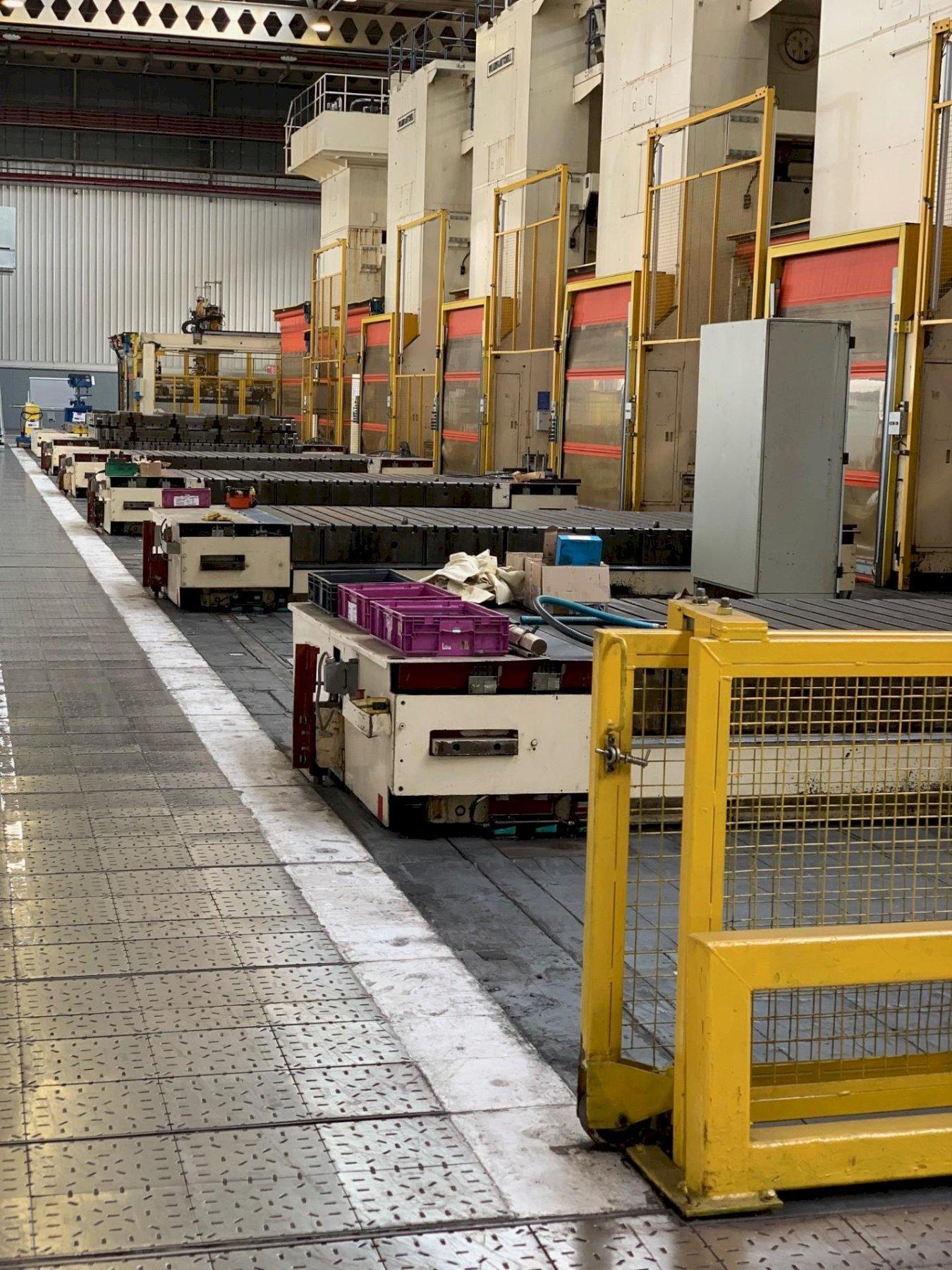

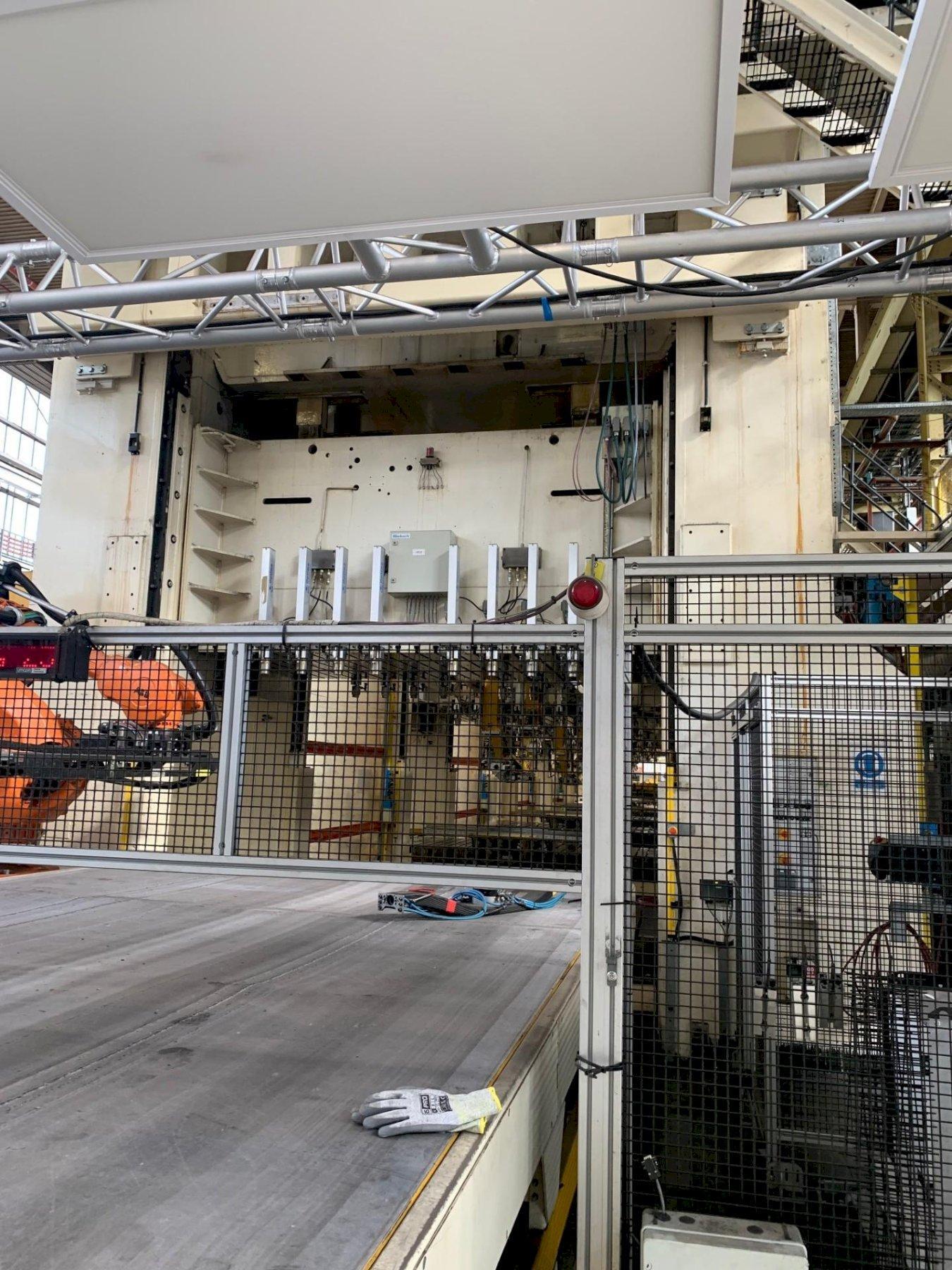

Complete Press Line, Two Moving Bolsters Each Press Lateral Moving, De-Stacker System-Two
Loading Tables, Robot At The Head Of The Line, Pick & Place Units, Robot At The End of Line &

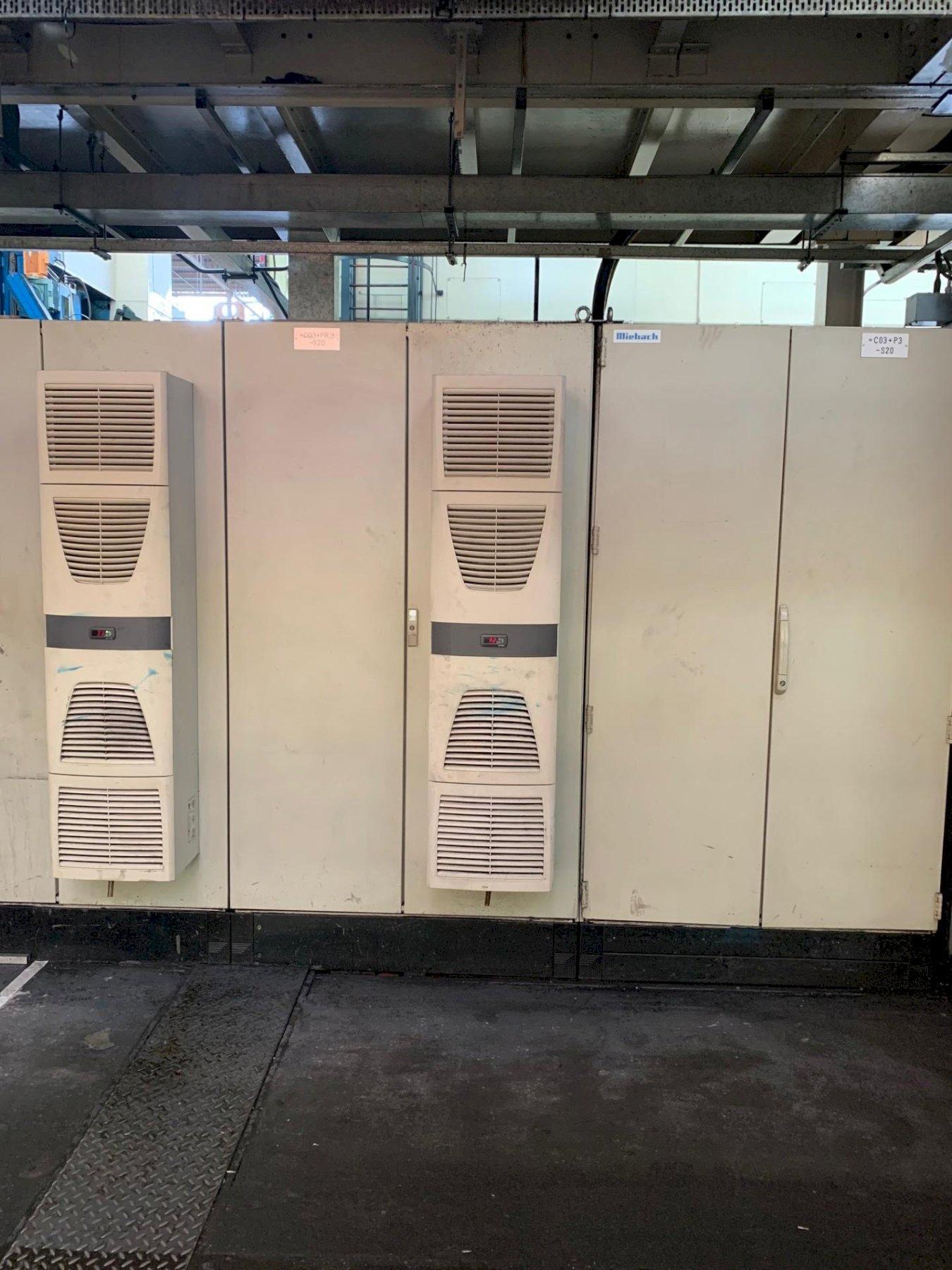

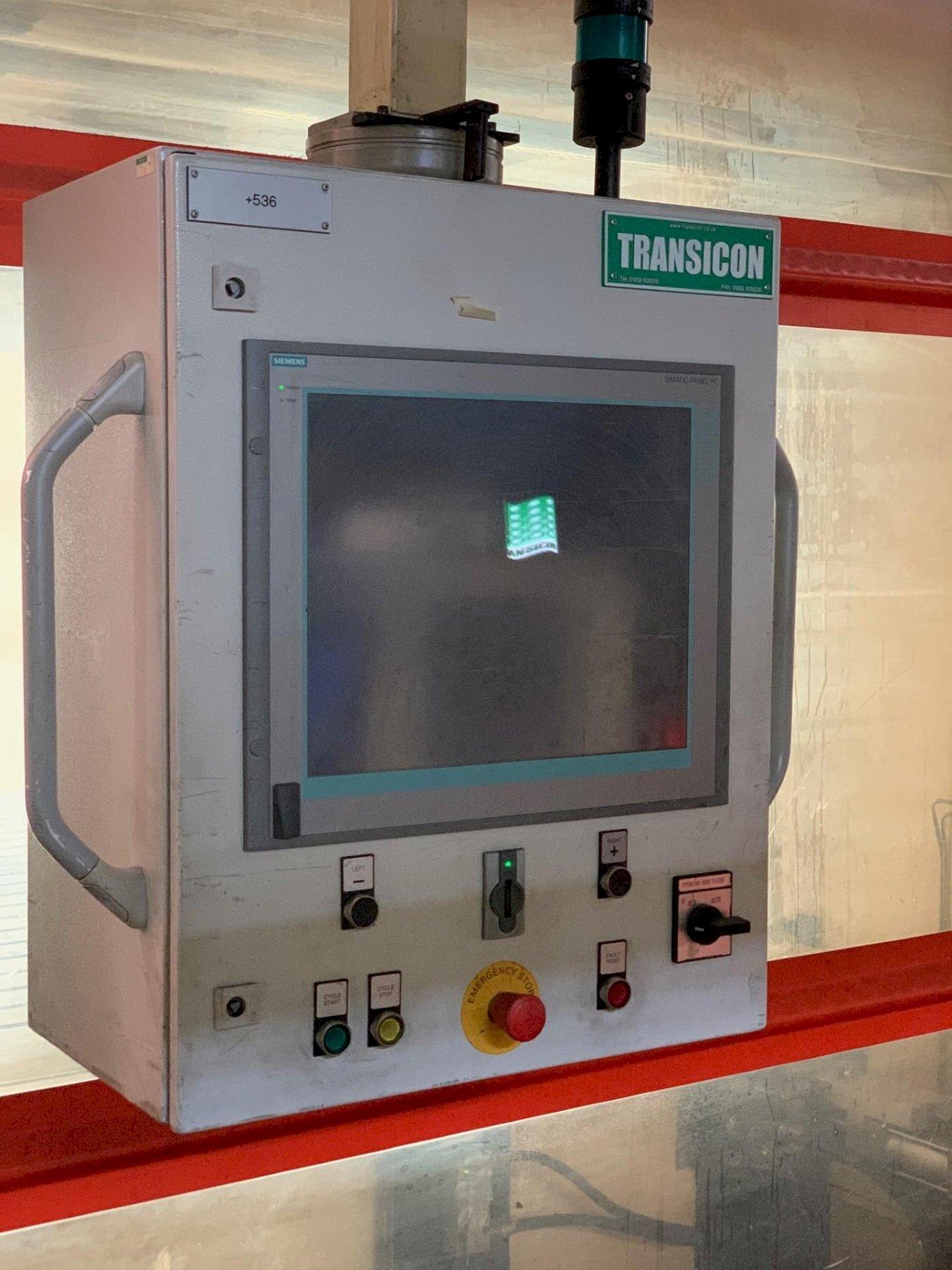

Main Parts Conveyor, Siemens S7 control System
STACKING UNIT:
2 Stacks
Dimension: 2000 x 3500 mm
Turnable: ± 180°
Maximum stack height:
Adjustable speed (same drive as telescopic
conveyor)
Width adjustable
400 mm
TELESCOPIC CONVEYOR:
Adjustable length:
til middle press: 100 - 2000 mm
Speed adjustable: 40 - 140 m/min
Number of belts: 4
Width adjustable:
SWINGING SHEAR:
Coil Width: 500 - 2000 mm
Material thickness: 0,6 - 1,2 mm
Feed pitch: 150 - 3500 mm
Turn angle + and - is continuously
adjustable from (step 1°): 0 - 30° Max.
turn angle at material width 500 - 1800
mm: + and - 30°. Max. turn
angle at material width > 1800 - 2000
mm: + and - 15°
