Brand
CLEARING
Model
Type
Blanking Lines
Stock #
501838
Condition
Remanufactured
Year
Location
Wayne, Michigan
United States
|
Capacity |
500 tons |
Equipped With
General Specifications:
Coil Width Range: 16”-72”
Max Coil Weight: 75,000#
Coil ID: 20”-24”
Thickness Range: .024”-.110”
Blank Length Range: 7”-120”
Max Stack Weight: 20,000#
Max Stack Height with Pallet: 18”

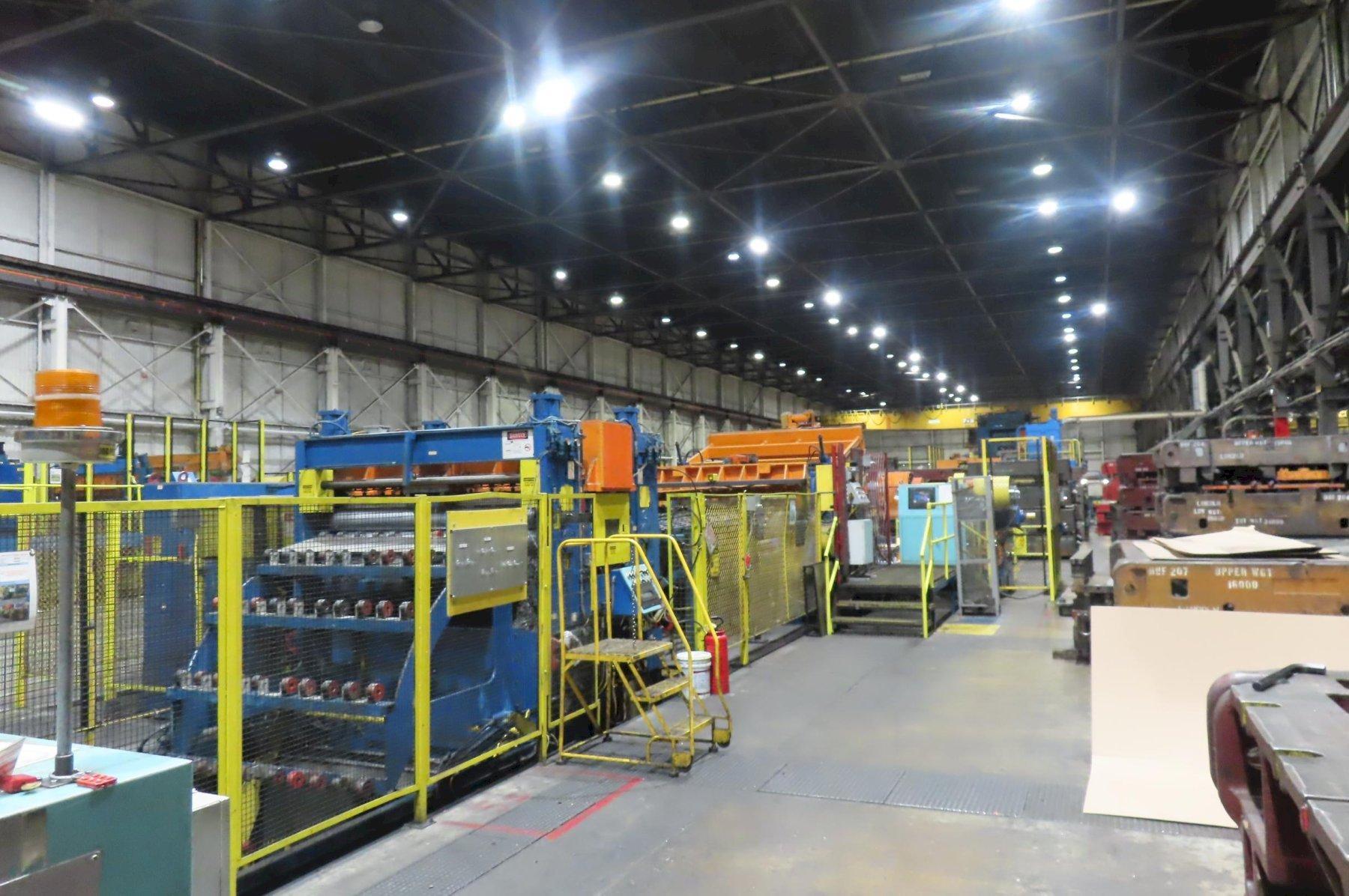

Complete with the Following Components:
Coil Holder
Pit Type Coil Car
Dual Mandrel Uncoiler
Peeler with Hold Down Roll
Pinch Rolls
Entry Crop Shear with Scrap Conveyor
6HI Leveler
Servo Feeder

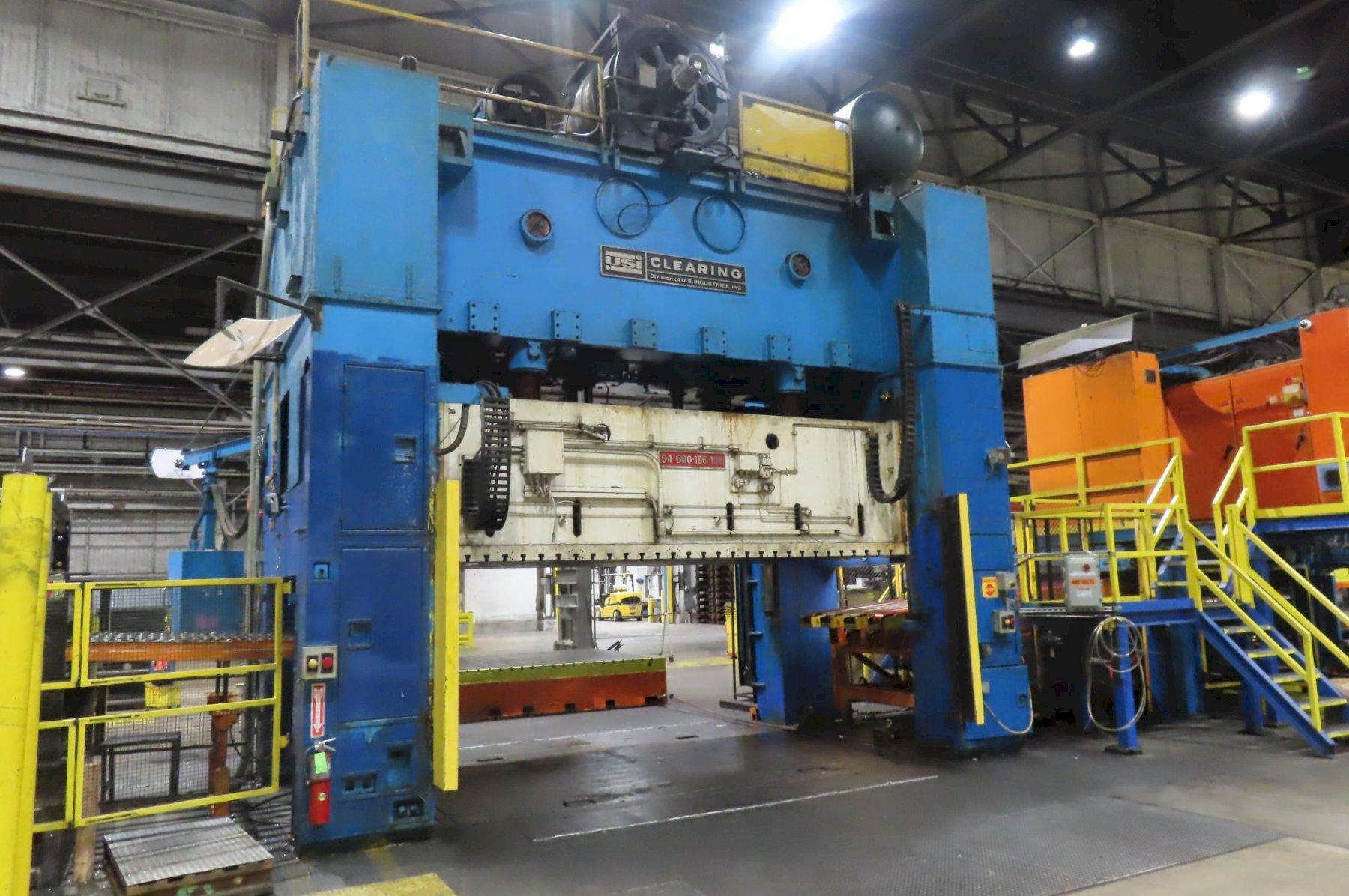

500 Ton Clearing Press
Model: S4-500-186-108
Stroke: 12”
SPM: 10-50
One Rolling Bolster
Shut Height: 48’’
Adjustment: 20’’
Atlas Magnetic Stacker
Drives on Feed Line upgraded in 2013
