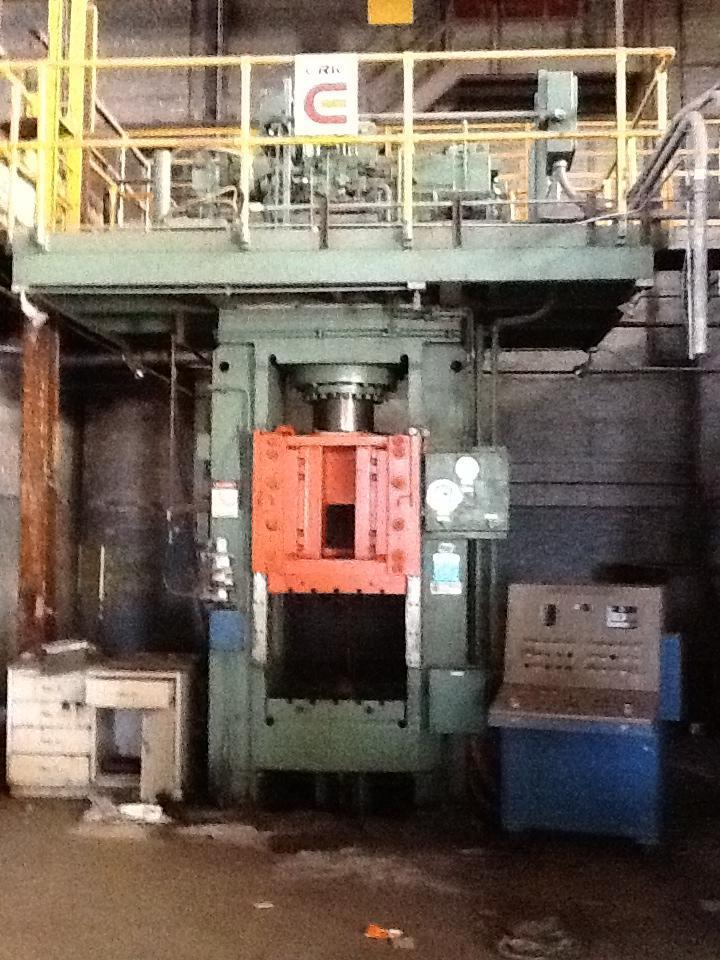

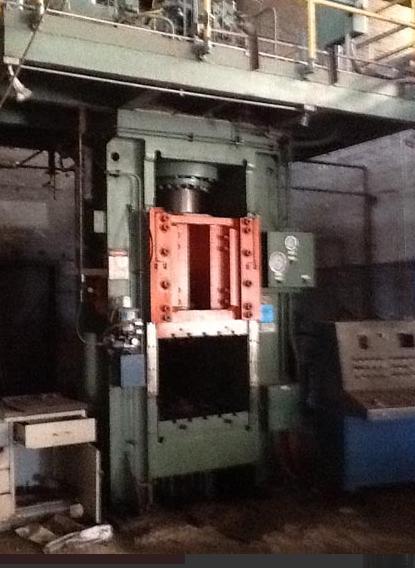

500 Ton Erie Hydraulic Press

Brand
ERIE

Model

Stock #

Condition
Not specified

Year

Location
Wayne, Michigan
United States

Tonnage 500 tons
Bed Size 36'' x 36''

Equipped With

Year: 1993
Pressing Force Main Side:
500T Full Tonnage Pressing
100T Low Tonnage Pressing
55" Ton Return Capacity @ 3500 P.S.I.

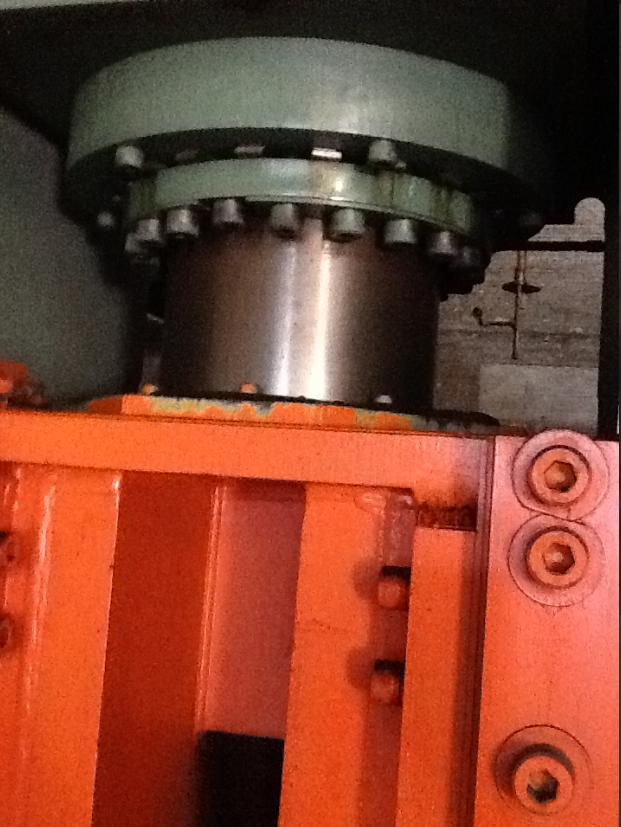

17" Diameter Main Ram Diameter (single action)
6-4" closing & return rams (double acting)*

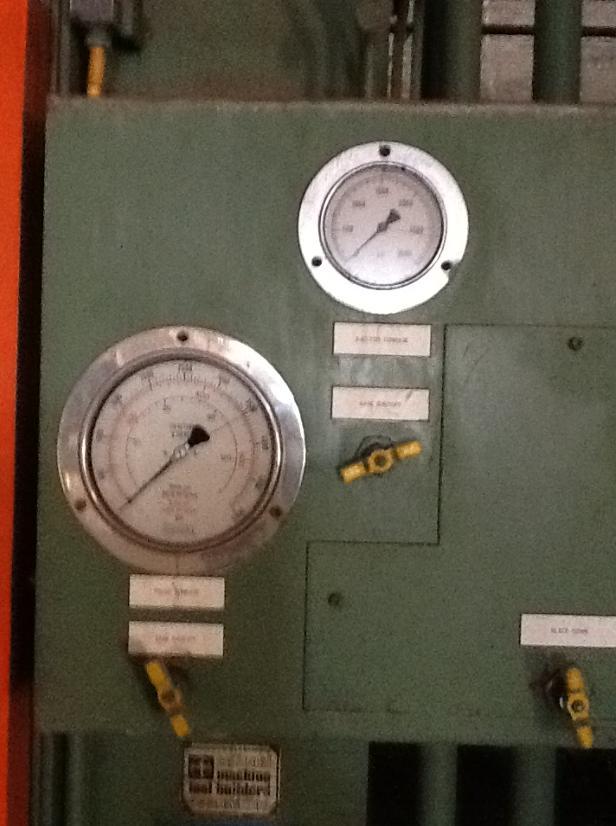

3537 PSI System Pressure
**BY SELECTOR SWITCH SETTING CLOSING RAMS ONLY USING LOW PRESSING

Pressing Force Top & Bottom Ejectors:
50 Ton Bottom Ejector Capacity (up acting)
50 Ton Top Ejector Capacity (MACHINING PROVISIONS ONLY)
2000 P.S.I. SYSTEM PRESSURE
8-3-1/2" Diameter Top & Bottom Ejector Ramds (DOUBLE ACTING)

Working Dims:
Bed: 36" x 36" x 5"
Slide: 36" x 36" x 5"
Shut Height: 30"
Stroke Max: 24"
Shut Height: 6"
Top Ejector Stroke: 2"
Bottom Ejector Stroke: 6"
Floor to top of Bolster: 30"

Operating Speeds:
Rapid Advance: 315"/MIN.
Low tonnage pressing to 100 Ton: 315"/MIN.
Full Tonnage Pressing to 500T: 63"/MIN.
50"/MIN. BREAKAWAY STRIPPING
700"/MIN. RETURN AFTER BREAKAWAY
100"/MIN. BOTTOM EJECTOR (UP ACTING)
