Brand
MORI
Model
FB 500
Stock #
501983
Condition
Not specified
Year
Location
Detroit, Michigan
United States

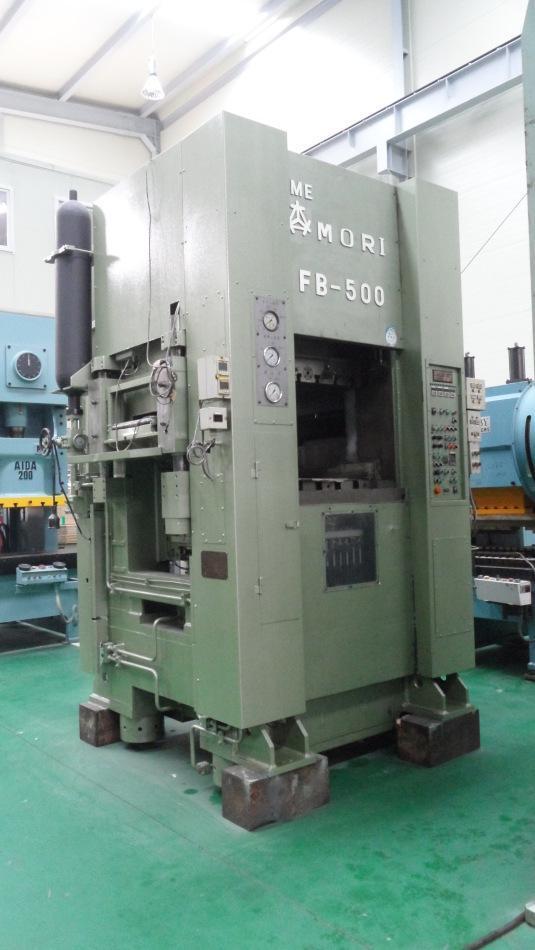

Manufacturer: MORI (Japan)
Year of Manufacture: 1985
Press Type: Hydraulic Fine Blanking Press
Reliable MORI fine blanking technology
Designed for high-precision blanking applications
Robust hydraulic system with independent force control
Suitable for automotive and precision metal components
Proven long-term durability

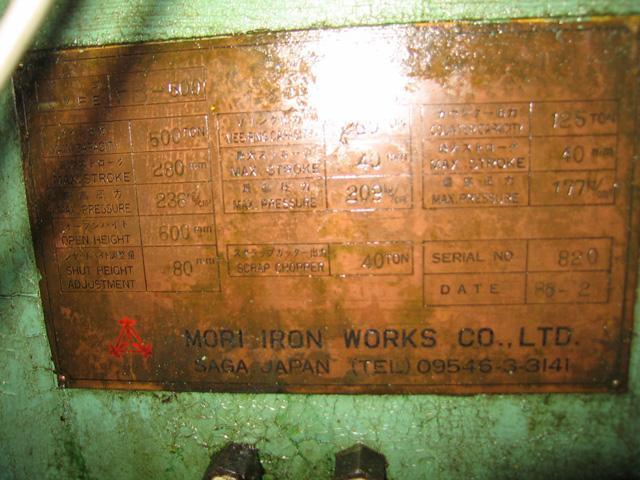

| Function | Capacity |
|---|---|
| Total Press Force | 500 tons |
| V-Ring Force | 250 tons (max.) |
| Counter Pressure | 125 tons (max.) |
| Stripping Force | 60 tons |
| Knock-Out Force | 30 tons |
Strokes per Minute (unloaded): 40 SPM
Working Stroke: 30 – 100 mm
Maximum Slide Stroke: 280 mm
V-Ring Stroke: 40 mm
Counter Stroke: 40 mm (max.)
Speeds
Cutting speed: 3 – 45 mm/s
Fast approach: 10 – 180 mm/s
Return speed: up to 40 mm/s
Tool Clamping Area: 900 × 1100 mm (max.)
Upper Insert Ring: Ø400 × 80 mm
Shut Height:
Max: 400 mm
Min: 320 mm
Adjustment range: 0 – 20 mm
V-Ring Diameter: Ø300 mm
Counter Die Diameter: Ø300 mm
Center Support Diameter: Ø50 mm
Scrap Cutter Capacity:
Cutting force: 40 tons
Push capacity: 150 tons
Feeder Force: 15 tons
Strip Width: up to 300 mm
Strip Thickness: up to 8.0 mm
Feed Pitch: 0 – 400 mm

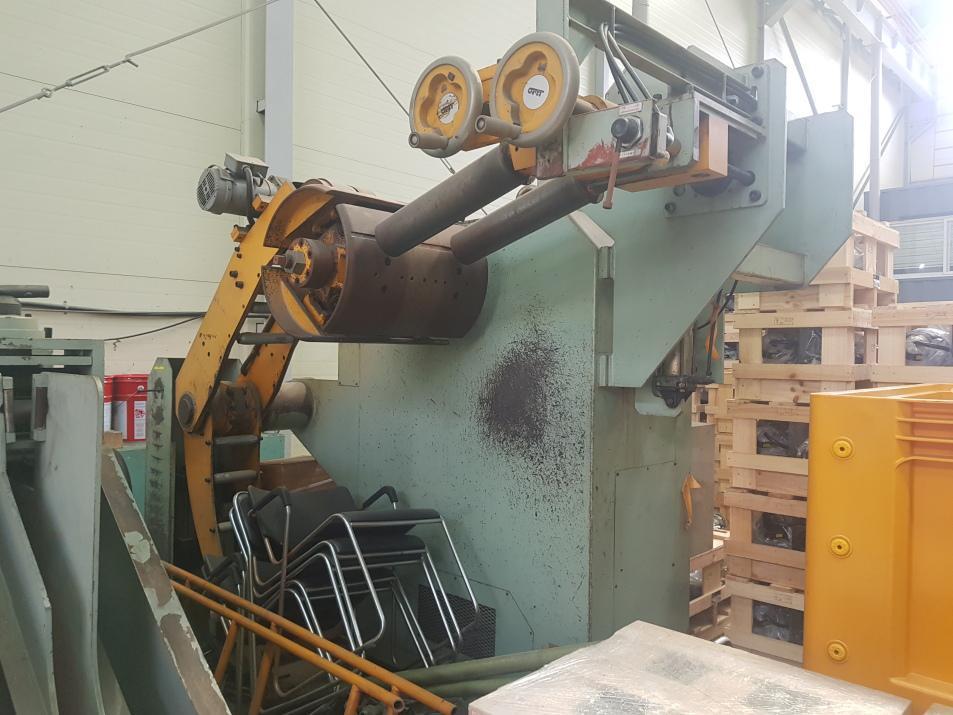

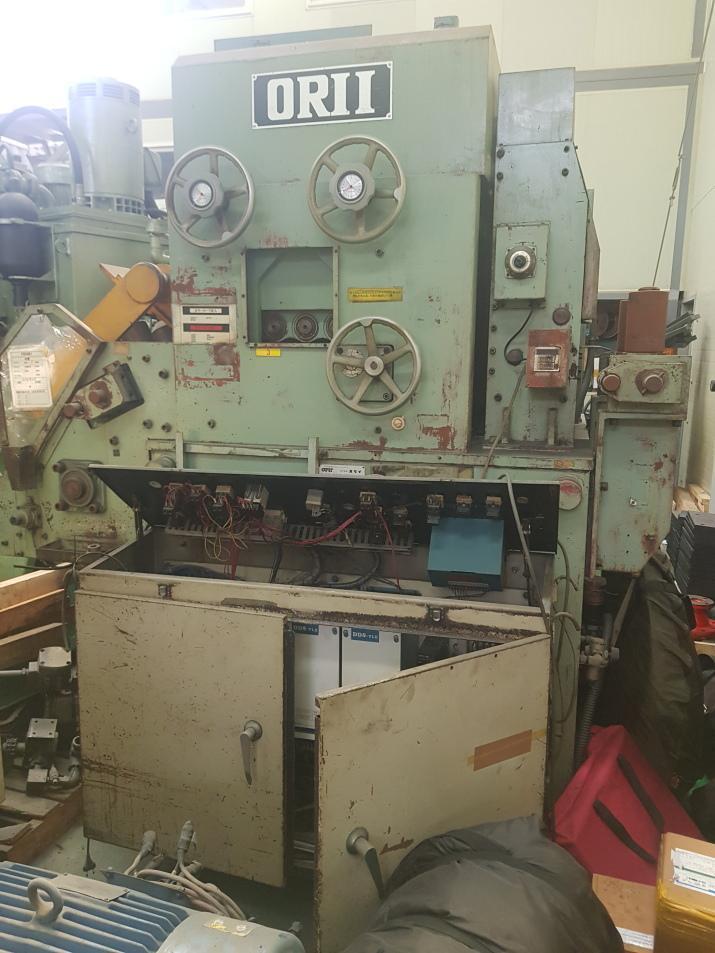

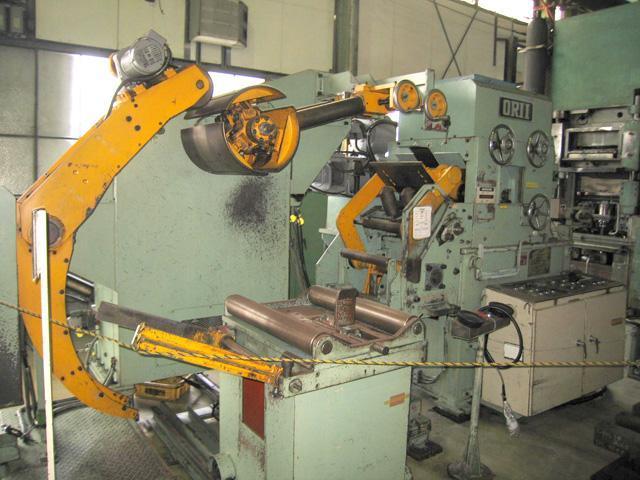

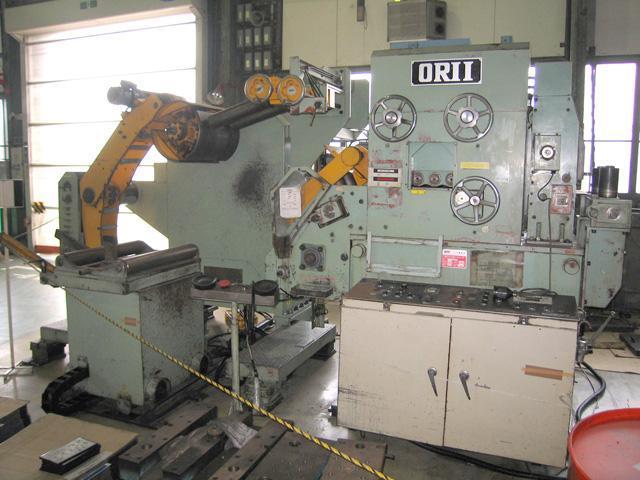

Coil Straightener Feed: 6.0 × 300 mm
Main Motor Power: 90 HP
Voltage: 220 V
