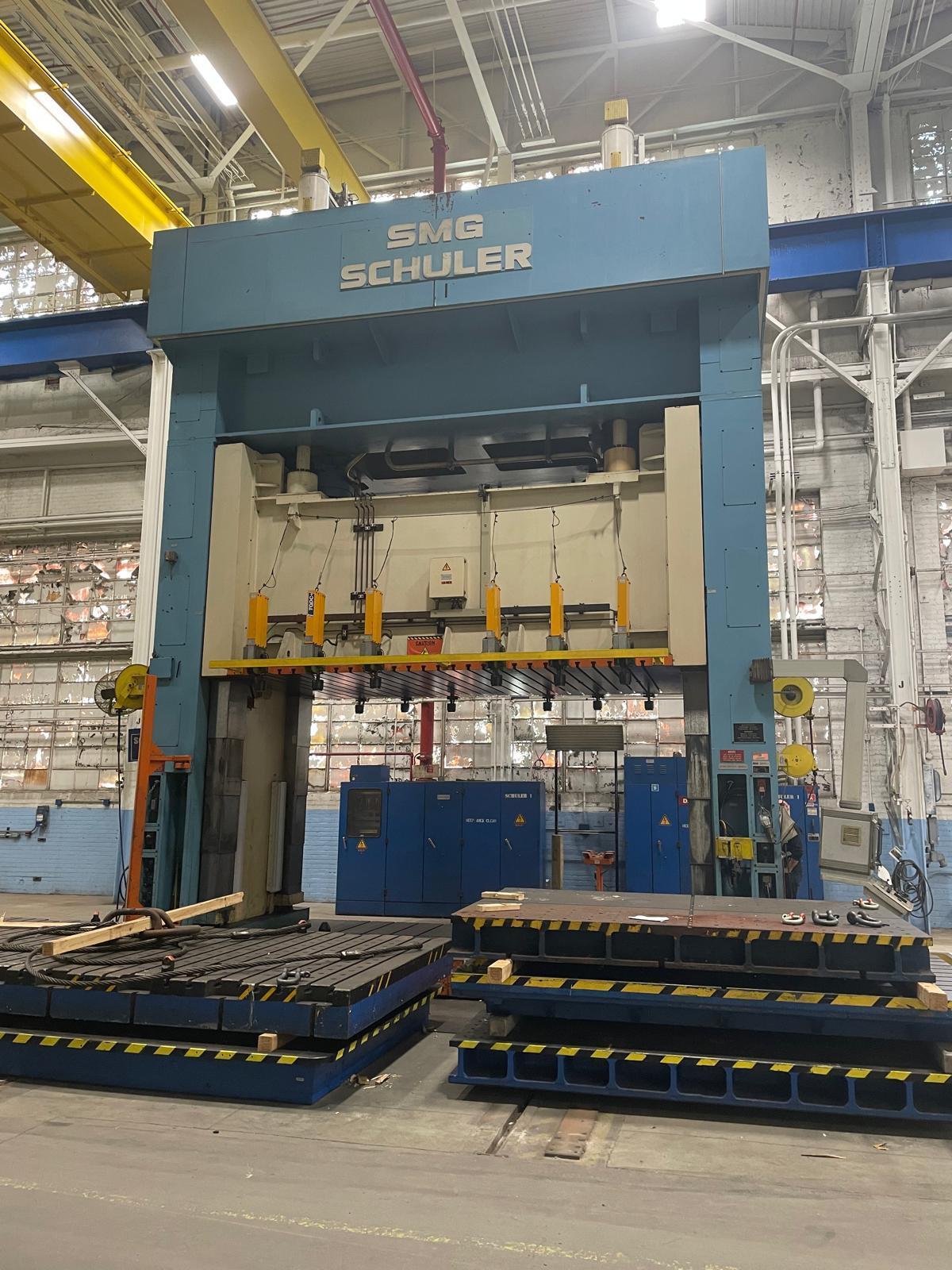

Brand
SCHULER
Model
HPU 500 US Tons - 180/96
Stock #
501651
Condition
Used
Year
Location
Detroit, Michigan
United States
| Model | HPU 500 US Tons - 180/96 |
| Tonnage | 500 tons |
| Bed Size | 4600 x 2450 |
Bed Size: 4600 x 2450
Stroke: 1590 mm
Distance bolster - slide top: 2700 mm
Distance bolster - slide bottom: 1110 mm
Bolster Height above floor: 326.35 mm
Uprights clearances - form right to left: 4620 x 2700 mm
Rapid approach speed: 381 mm/seconds
Max. working speed: 43 mm/seconds
Working speed at nominal force: 30 mm/seconds
Retraction speed: 212 mm/seconds
Drive power: 200 HP
Motor Speed: 1200 Rpm
Pump power up to 146 bar: 560/min
Pump power up to 200 bar: 395/min
