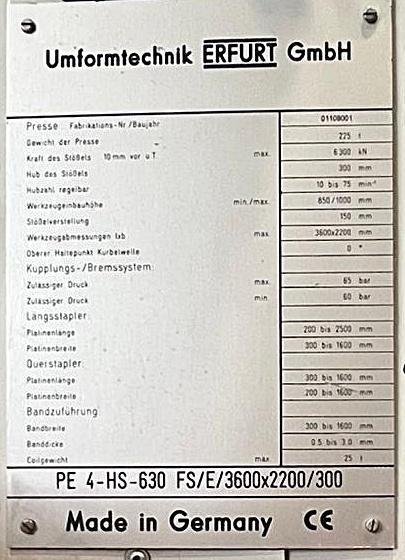

Pressure 630 t
Stroke 300 mm
No. of strokes 10- 75 Stk/min
Table-size 3600 x 2200 mm
Passage width 4000 mm
Ram surface 3600 x 2200 mm
Column travel -side 2000 mm
Ram adjustment 150 mm
Shut height (stroke down, adjustm. up) 1000 mm
Voltage 400 V
Height over floor 7600 mm
Depth of Press under floor 2500 mm
Total power requirement 160 kW
Weight of the machine ca. 225 t
Dimensions of the machine ca. 750 m²

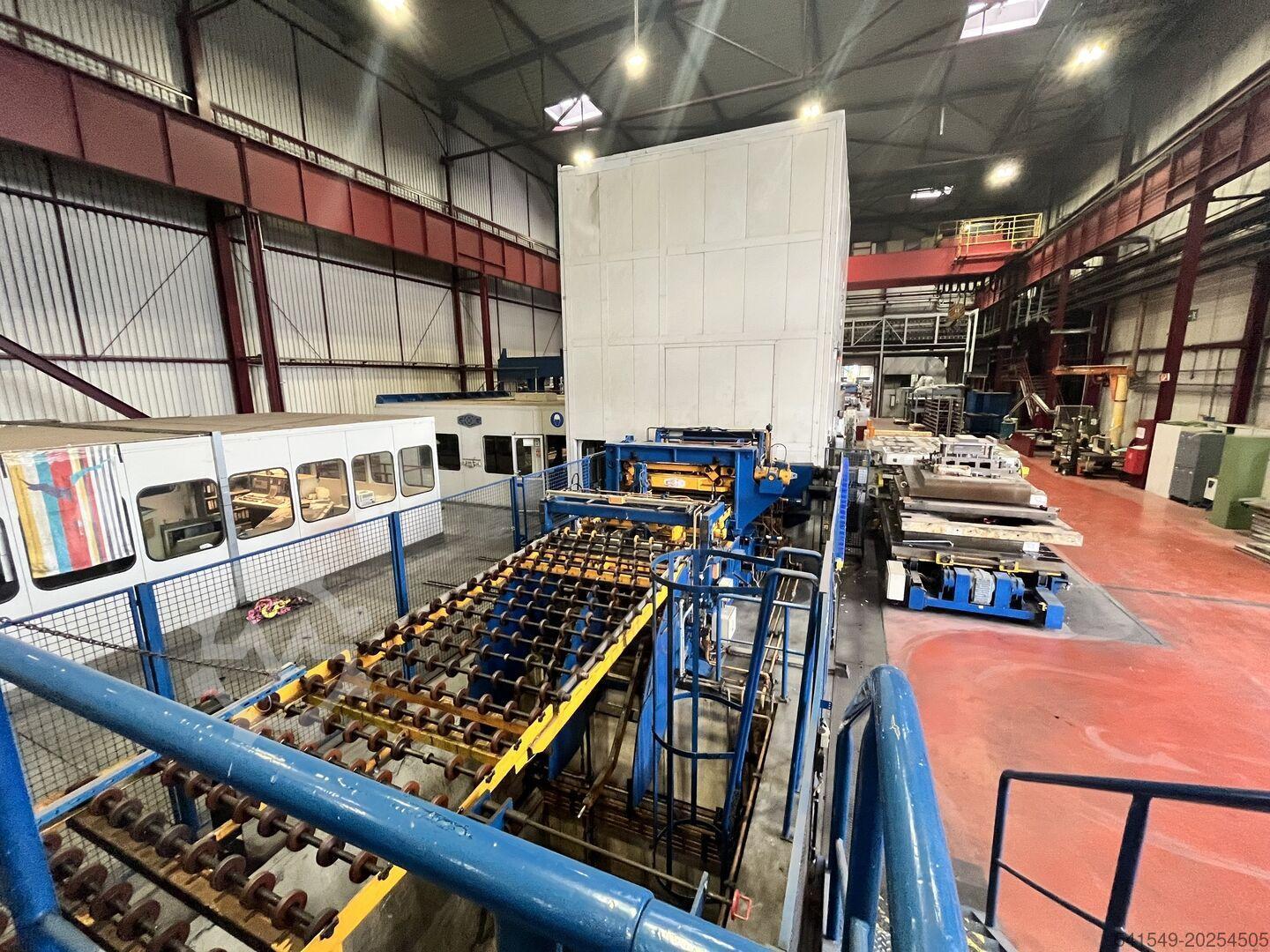

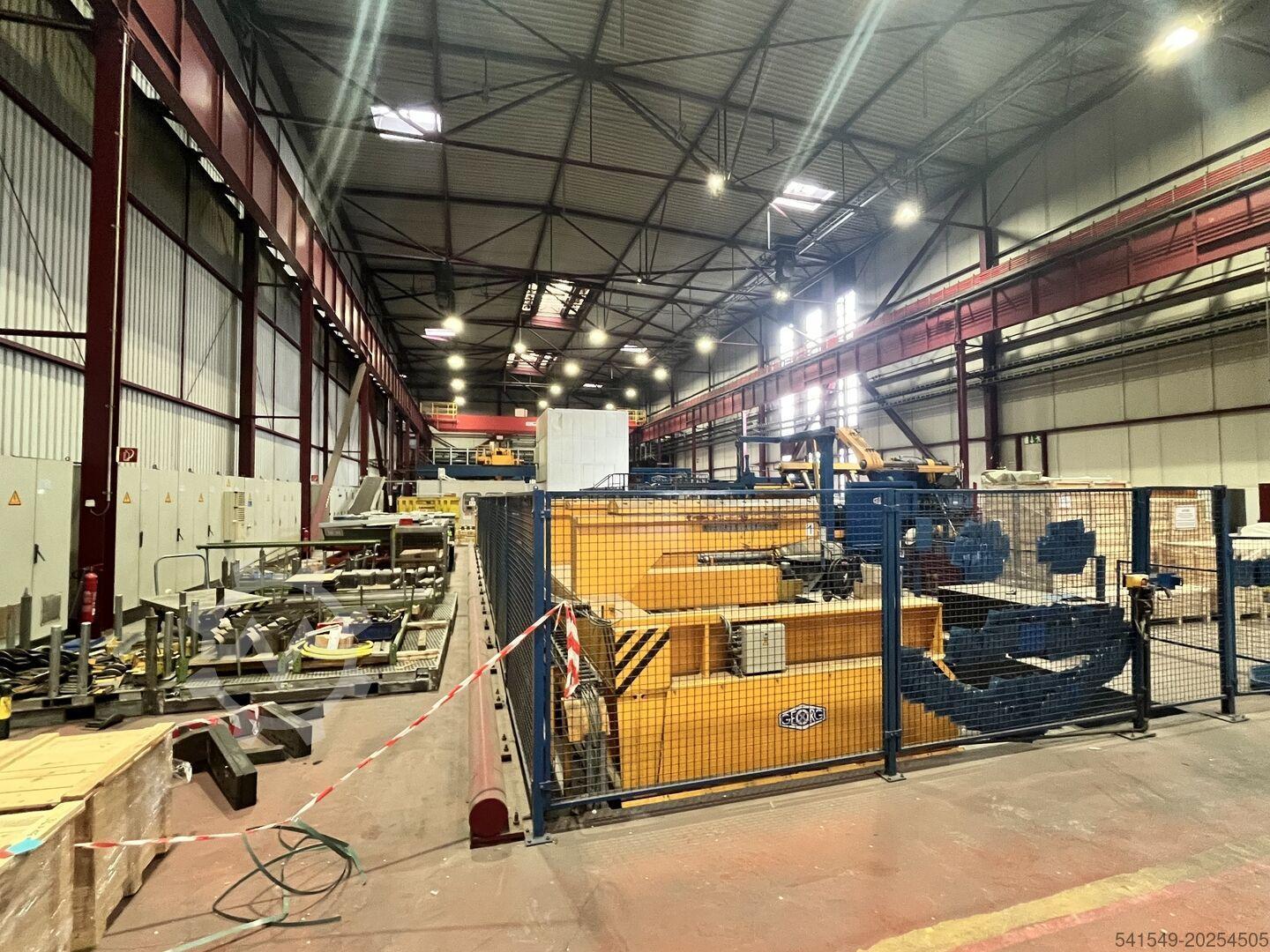

Complete feeding line comes with the press. It works on a material width of

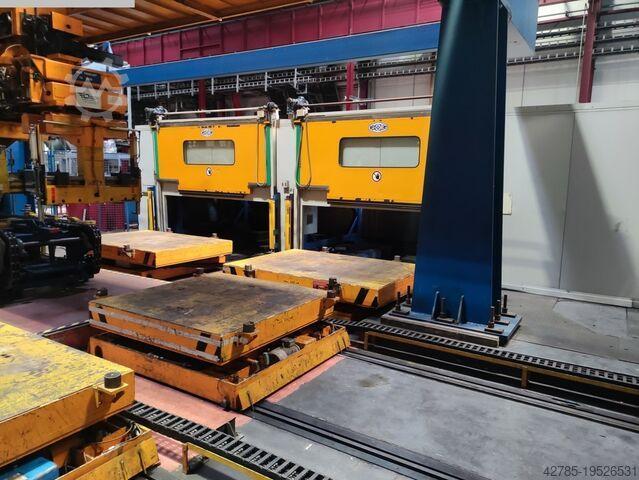

300- 1600 mm and a thickness of 0,5- 3 mm. The press has two working tables which

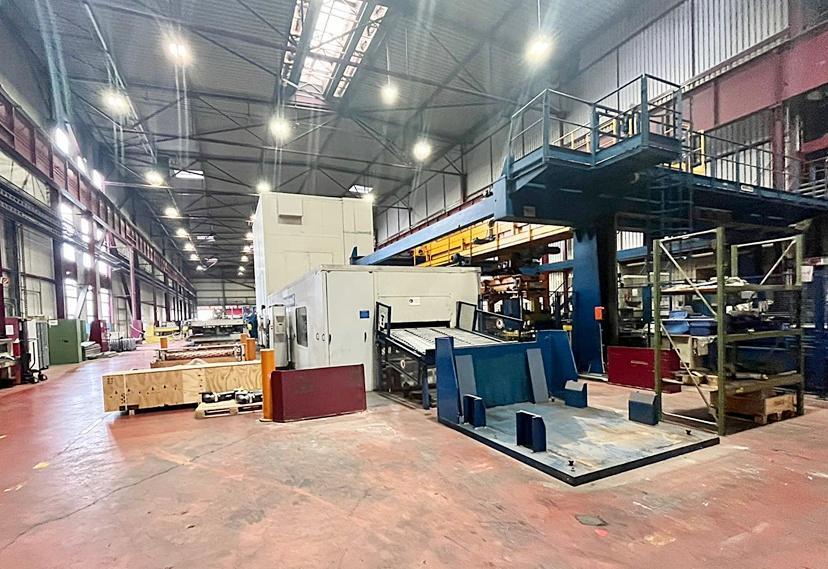

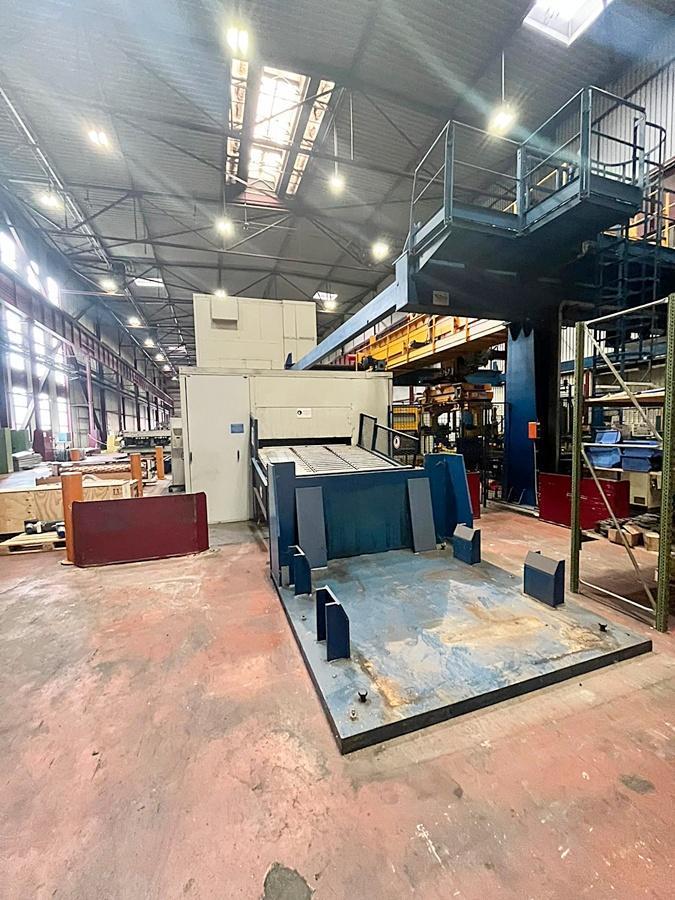

move in and out to the front. To the side the press has a stacking device with
two pallets. It also has two stacking pallets to the backside. The press has a

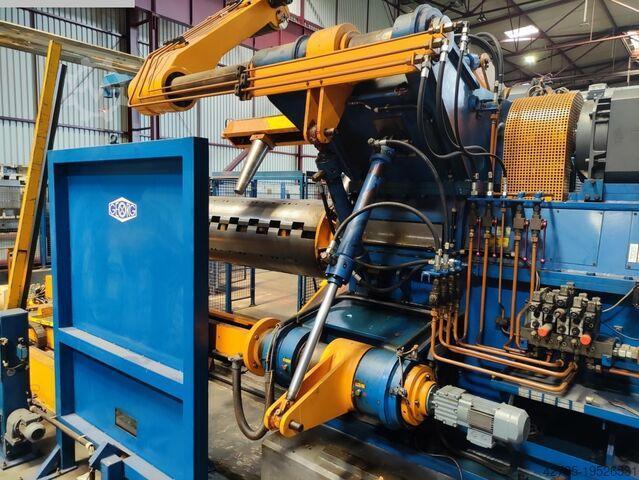

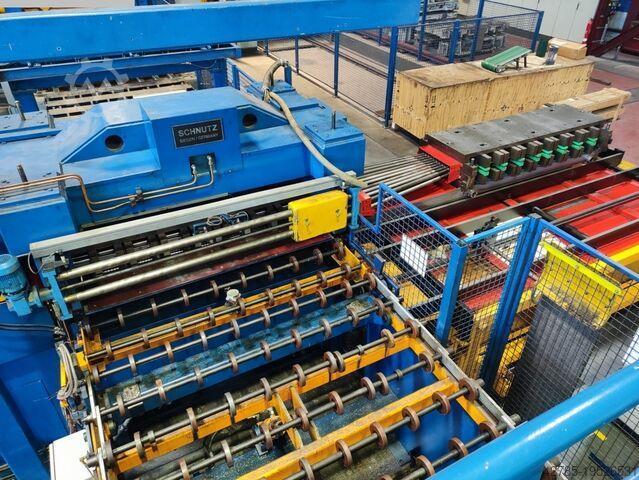

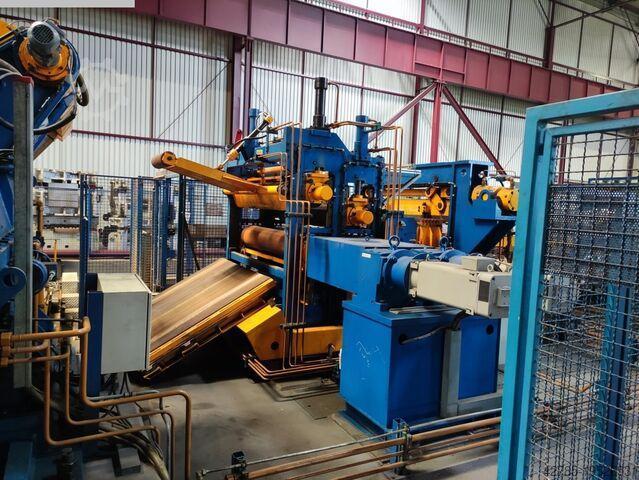

Coil charging device of 3 Coils with 25 t, a decoiler Schnutz, a material
feeder, a straightening machine and a roll feeder.
