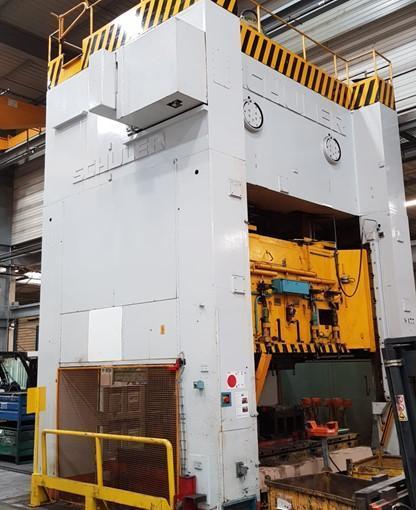

600 Ton Schuler 3350 x 2130 mm

H FRAME MECHANICAL PRESS - Single Action

SCHULER   600 TON

 TYPE                                                                  : ES4-600-3,35-0.6

YEAR of CONSTRUCTION                                : 1969

DRIVE KINEMATICS                                                       : eccentric

RATED CAPACITY                                                         : 600 Tons A 12.5mm

NUMBER of connecting rod                                         : 4

SLIDE STROKE                                                                : mm 600

SHUT HEIGHT, from top of bolster, SDAU                     : mm 1100

SLIDE ADJUSTMENT                                                       : mm 400

SLIDE DIMENSIONS (L-R x F-B)                                        : 3350 x 2130 mm

BOLSTER DIMENSIONS (L-R x F-B)                                   : 3350 x 2130 mm

NUMBER of MOVING BOLSTERS                                    : 1

MOVING BOLSTER EXIT                                                 :  FRONT-BACK

CONTINUOUS SPEED (variable)                     : spm 10 - 20

MAIN MOTOR POWER                                                  : 75KW

MAIN DIMENSIONS

MAXIMUM HEIGHT from FLOOR LEVEL                          : 8000 mm

CLEARANCE BETWEEN UPRIGHTS (L-R)                         : 3700 mm

CLEARANCE BETWEEN UPRIGHTS (F-B)                         : 2200 mm

MAXIMUM PRESS WEIGHT                                             : 200.000 KG approx.
