SCHULER 600 TON
TYPE: ES4-600-4.5-0.4
SERIAL NUMBER: 83086-81
YEAR: RE- NEW in 2013
KINEMATICS: ECCENTRIC
RATED CAPACITY AT 25 mm: 600 Tons
NUMBER of connecting rod: 4
SLIDE STROKE: mm 406
SLIDE ADJUSTMENT: mm 254
CONTINUOUS SPEED (variable): spm 10 - 40
SHUT HEIGHT, from top of bolster, SDAU: mm 1470
SLIDE DIMENSIONS (L-R x F-B): 4500 X 2250 mm
FRONT MOVING BOLSTER DIMENSIONS : 4500 X 2250 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 4600 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 2150
MOVING BOLSTER H. : mm 510
WEIGHT OF THE PRESS : Kg.170.000

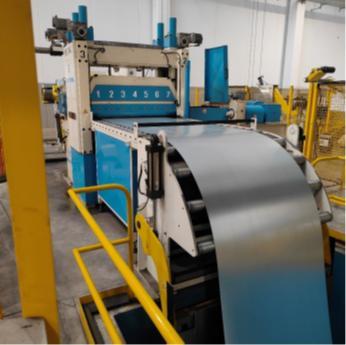

FEEDLINE EQUIPMENT

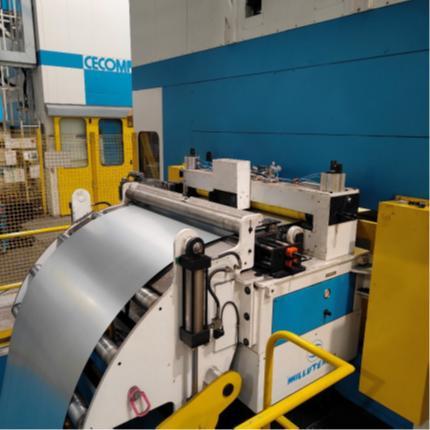

LINEA DI SVOLGITURA-SPIANATRICE E ALIMENTAZIONE LAMIERA MILLUTENSIL 2013
ANNO COSTRUZIONE2013
MAX SHEET WIDTH : mm.1500
MAX SHEET THICKNESS : mm.2.5

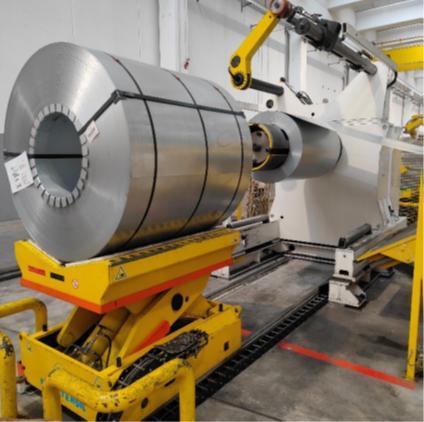

COIL WEIGHT CAPACITY : Kg.20.000
