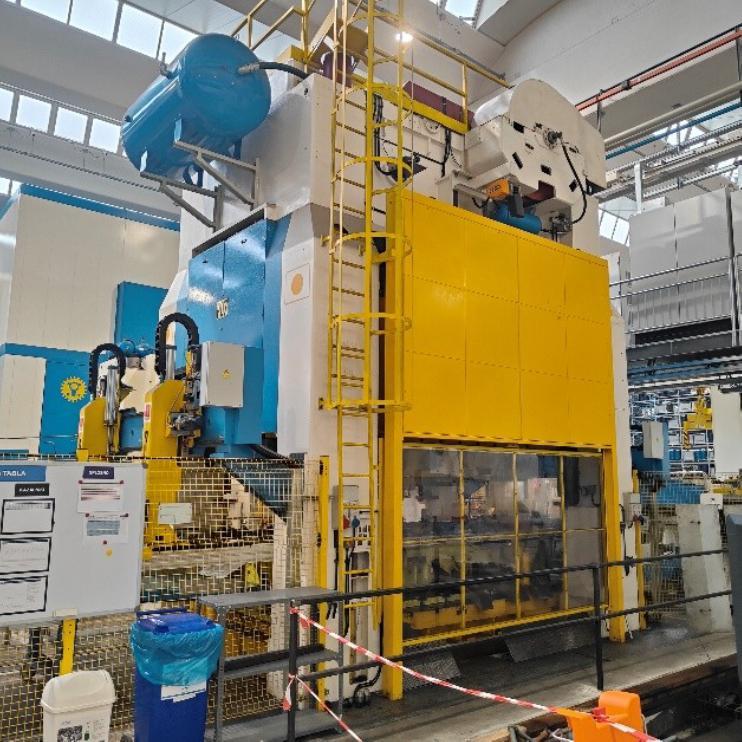

AGOSTINO COLOMBO 630 TON
TYPE: 445B630
SERIAL NUMBER:
YEAR: RE-NEW2018
KINEMATICS: ECCENTRIC
RATED CAPACITY: 630 Tons
NUMBER of connecting rod: 4
SLIDE STROKE: mm 610
SLIDE ADJUSTMENT: mm 500
CONTINUOUS SPEED (variable): spm 10 - 25
SHUT HEIGHT, from top of bolster, SDAU: mm 1650
SLIDE DIMENSIONS (L-R x F-B): 4500 X 2450 mm
SIDE MOVING BOLSTER DIMENSIONS : 4500 X 2450 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 3300 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 2490
MOVING BOLSTER H. : mm 460
WEIGHT OF THE PRESS : Kg.155.000
EQUIPMENT

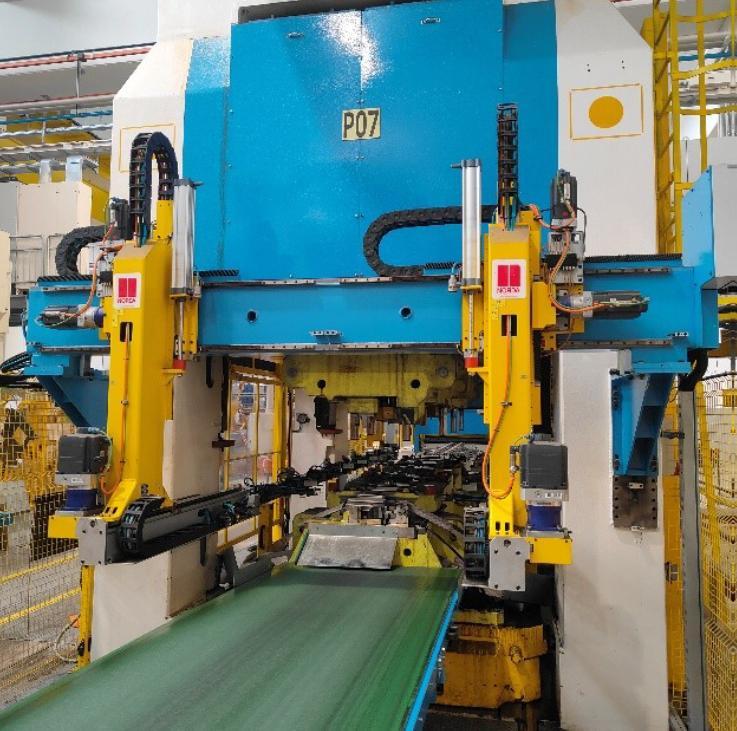

TRANSFER NORDA 3 ASSI – MOD.TRF 30/3
SEIAL NUMBER 5123 - YEAR 2019

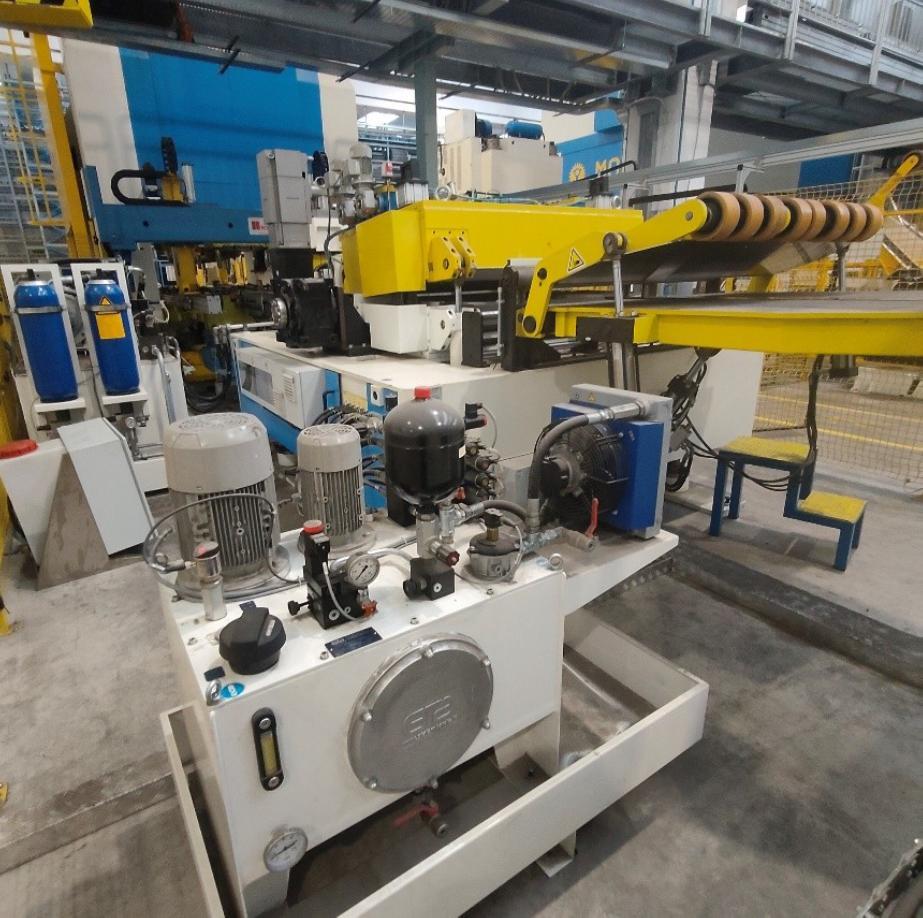

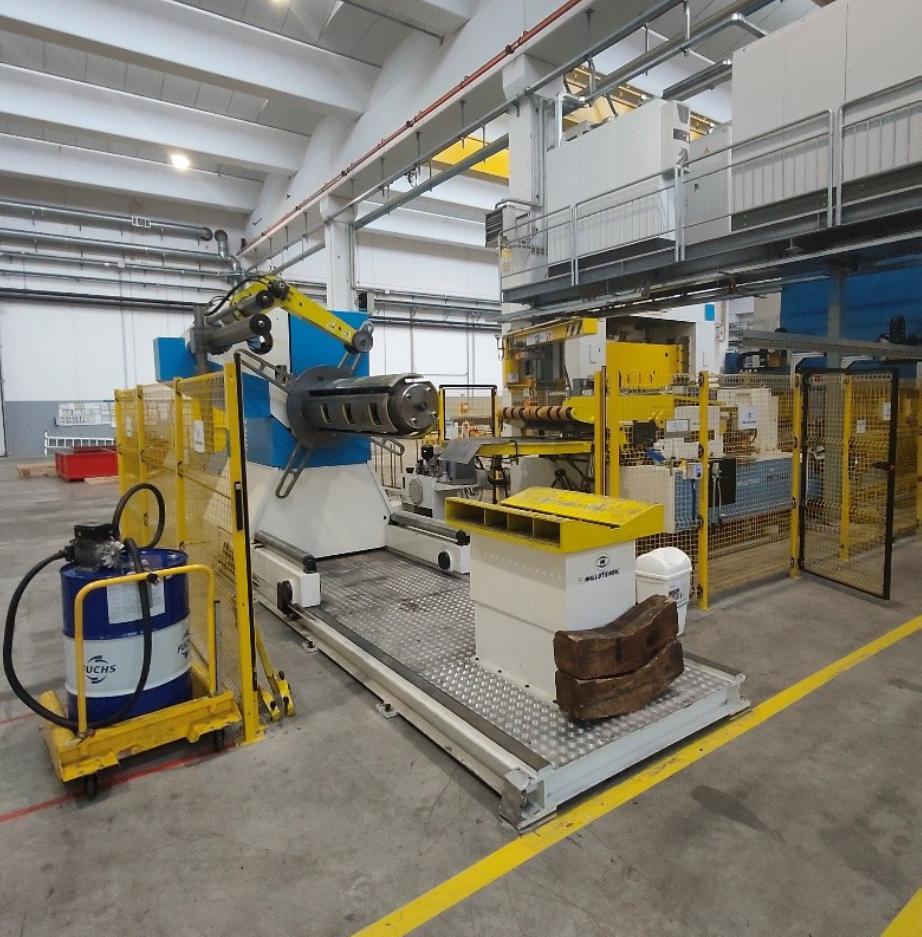

LINEA DI SVOLGITURA- ALIMENTAZIONE LAMIERA MILLUTENSIL
YEAR2019
MAX SHEET WIDTH : mm.1350
MAX SHEET THICKNESS : mm.4
COIL WEIGHT CAPACITY : Kg.12.000
