MOSSINI 630 TON
TYPE: PDM/2B/LD630
SERIAL NUMBER: 0928/16
YEAR: 2016
KINEMATICS: LINK DRIVE
RATED CAPACITY AT 13 mm: 630 Tons
NUMBER of connecting rod: 2
SLIDE STROKE: mm 400
SLIDE ADJUSTMENT: mm 500
CONTINUOUS SPEED (variable): spm 24 - 53
SHUT HEIGHT, from top of bolster, SDAU: mm 1200
SLIDE DIMENSIONS (L-R x F-B): 3200 X 1200 mm
SIDE MOVING BOLSTER DIMENSIONS : 3200 X 1200 mm
MAIN DIMENSIONS
CLEARANCE BETWEEN UPRIGHTS (L-R): 3300 mm
CLEARANCE BETWEEN UPRIGHTS (F-B): mm 1700
MOVING BOLSTER H. : mm 500
WEIGHT OF THE PRESS : Kg.155.000
EQUIPMENT

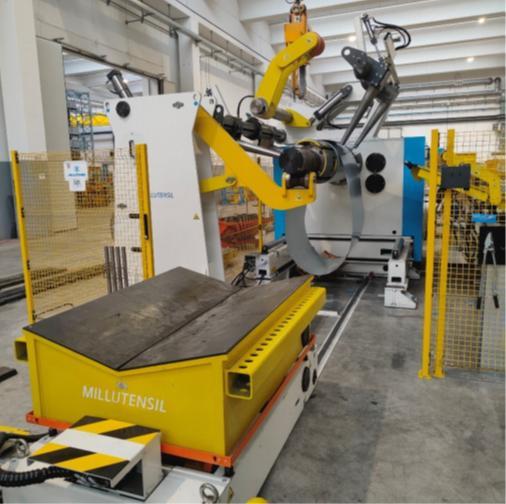

LINEA DI SVOLGITURA- ALIMENTAZIONE LAMIERA MILLUTENSIL (FEEDLINE)
ANNO COSTRUZIONE2016
MAX SHEET WIDTH : mm.1300
MAX SHEET THICKNESS : mm.5
COIL WEIGHT CAPACITY : Kg.10.000
