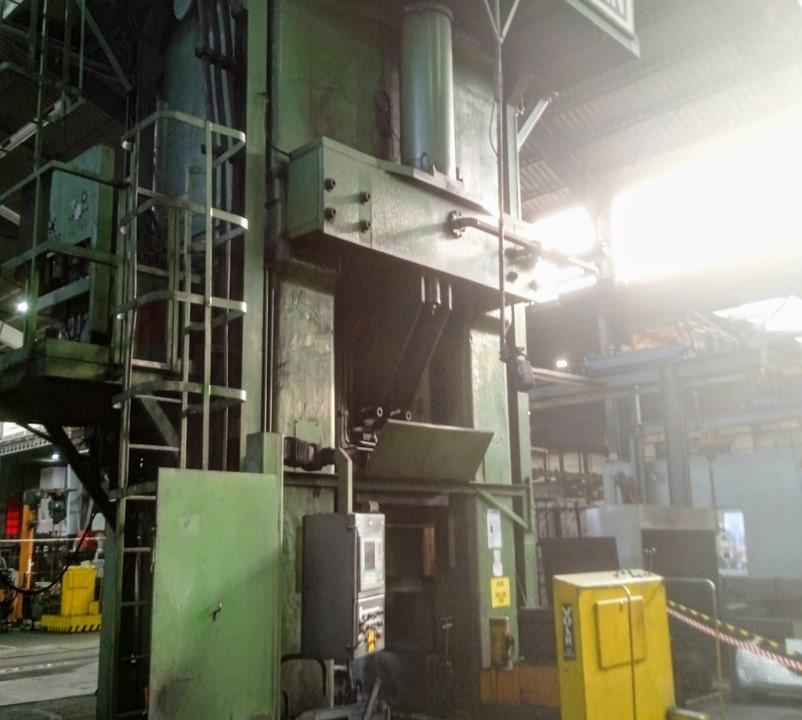

Main Screw Press Specifications
•Maximum allowable continuous forging force…………………………53,000 kN
•Peak force………………………………………………………………………………..63,000 kN
•Gross energy at approximately 500 mm stroke………………………..630 kN.m
•Diameter of screw……………………………………………………………………560 mm
•Maximum stroke length…………………………………………………………..23.6” (600 mm)
•Minimum stroke length…………………………………………………………...9.80” (250 mm)
•Cycle time at maximum kW……………………………………………………..3.5 sec
•Effective speed…………………………………………………………………........35 strokes/minute
•Distance from Table to Ram:
•Bottom of stroke height……………………………………………………........49.2” (1250 mm)
•Top of stroke height………………………………………………………….........72.8” (1850 mm)
•Clearance between guides………………………………………………..........59.0” (1500 mm)
•Table and Ram specifications:
•Width………………………………………………………………………………..........51.2” (1300 mm)
•Depth………………………………………………………………………………...........55.1” (1400 mm)
•Usable table width………………………………………………………….............63.0” (1600 mm)
•Press height from the ground………………………………………….............24.6 Ft. (7500 mm)
•Below ground press base height……………………………………..............10.1 Ft. (3065 mm)
•Floor dimensions (front-back x left-right)…....................................6.6 x 12.8 Ft.
(2000 mm x 3900 mm)
•Total press weight……………………………………………………………………....230 M Tons

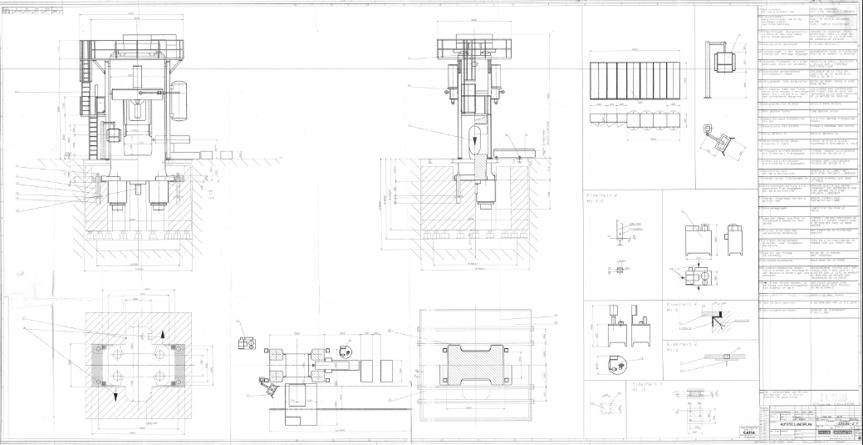

The Press Center includes Support Equipment and Spares ( With full manufacturer technical manuals and drawings):
- Fröhlich billet hopper & conveyor with spiral-lift vibro-feeder.
- VOLK die changer: Transfer cart and quick clamping bolsters.
- Gerb vibration isolation spring-and-dashpot base plates.
