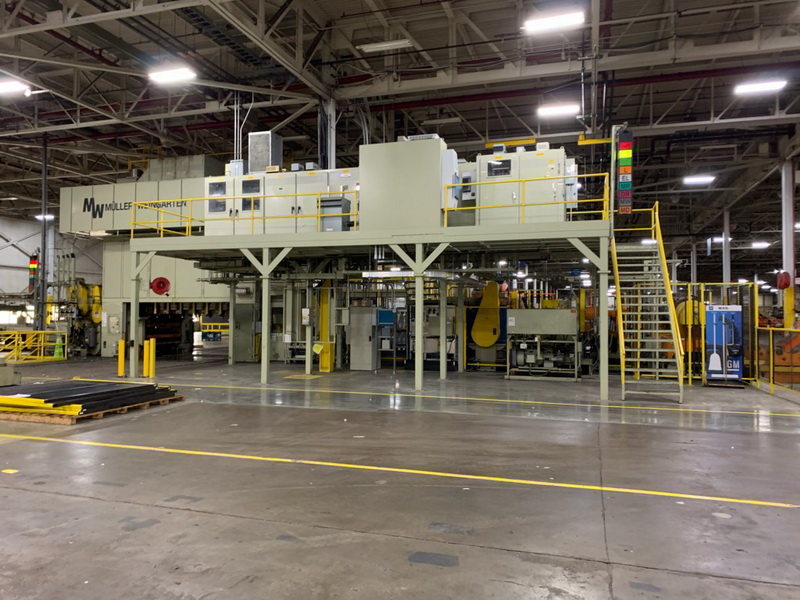

76'' x 35MT AFCO Feedline FOL/EOL

Model

Stock #
501266

Condition
Used

Year

Location
City Not Specified, State Not Specified

Equipped With

Coil Line Specifications:

Coil Weight: 35 MT
Coil O.D.: 750-2000 mm
Coil I.D.: 610 mm-630 mm
Feed Length: 0-458 mm
Feed Angle: Variable, 90-300 degrees, die dependent
Strokes Per Minute: Variable, 10-40 SPM
Pass Line Height: 1350 mm, optional 102 mm adjustment
Control System -
Drive System: Unico
PLC: Allen Bradley
Operator Interface: IBM, Wonderware
Line Speed: 98 fpm (30 mpm)
Line direction: left to right

Front of Line Consists of:
  • Manufacturer: AFCO
  • Coil Shuttle: 35 MT x 2000 mm  wide
  • Uncoiler: 35 MT x 2000 mm wide
    • Double Stub Mandrel
  • Peeler
  • Entry Pinch Roll
  • Crop Shear #1
  • HSS 50 MM LEVELER
    • 13 Roll Leveler
    • 6 High Backups
  • Loop Thread Table
  • Roll Feed
  • Crop Shear #2
  • Scrap Chopper
  • Die Thread Table
  • Exit Pull Rolls
  • Hydraulic System
  • Line Time
End of Line Consists of:
Mild & High Strength Steel Either with Mill Oil, Pre-lube, Electroplated, or Hot Dipped Zinc Coatings.
  • Thickness of Material: 0.5 mm - 3.0 mm
  • Progression: Max. 610 mm
  • Draw: Max. 90 mm
  • Panel Depth: 125 mm
  • SPM: 10-40
  • Conveyor Speed (Bolster, Exit Conveyor): 12 m/min. - 61 m/min
  • Coneyor Speed (Distribution Conveyor): 6 m/min-30.5 m/min.
  • Stacking Conveyor Height: 458 mm-839 mm
  • Turntable (Top) Length: 2,895 mm
  • Turntable (Top) Deep: 2,108 mm
  • Turntable Height: 355-712 mm
  • Turntable Tilt: Max. 35 degrees
  • Controls- Electrical Component AB PLC 5/80 with ControlNet; AB 1305 Force Field Drives
