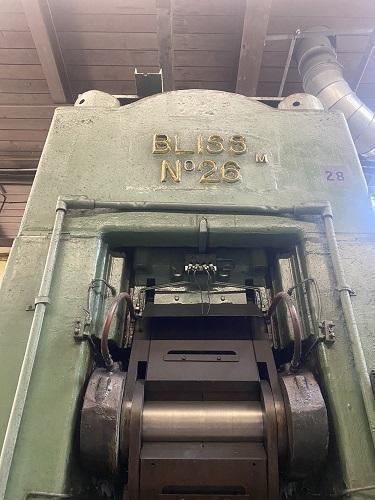

Model: 26
Year: 1954
TIE ROD FRAME CONSTRUCTION
SINGLE BACK GEARED
STROKE OF SLIDE: 2 1/2"
SHUTHEIGHT 16"
ADJUSTMENT 1/2" BY WEDGE
BED AREA 32" F-B X 27" L-R
SLIDE AREA 16" F-B X 20 1/2" L-R
BOLSTER 5"
MACHINE IS EQUIPPED WITH AIR FRICTION CLUTCH AND 15 HP AC 220/440 MOTOR AND
CONTROLS
12' H x 6'8" LR x 7'10" FB
(3) 4" diameter holes in bed running LR
