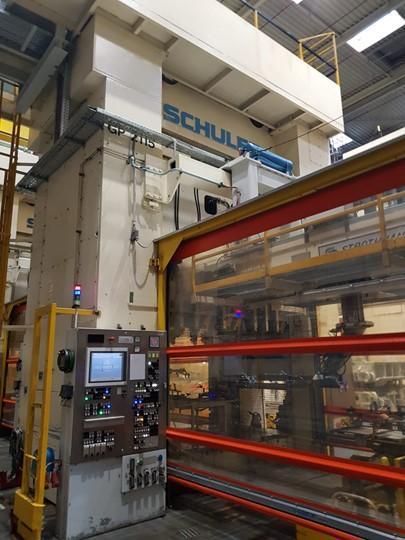

800 Ton SCHULER 3100 x 1900 LINK DRIVE press
  • 800 Ton SCHULER 3100 x 1900 LINK DRIVE press

800 Ton SCHULER 3100 x 1900 LINK DRIVE press

Brand
SCHULER

Model
EB4-800-3,1-700

Type
Presses, Straight Side, Double Crank (Single Action)

Stock #
501889

Condition
Not specified

Year

Location
Detroit, Michigan
United States

Request a Quote

Equipped With

H FRAME MECHANICAL PRESS - Single Action

SCHULER   800 TON LINK DRIVE





 TYPE                                                           : EB4-800-3,1-700

 LINK DRIVE KINEMATICS                                          : eccentric

RATED CAPACITY                                                      : 800 Tons A 25mm

NUMBER of connecting rod                                     : 4

SLIDE STROKE                                                               : mm 700

SHUT HEIGHT, from top of bolster, SDAU                   : mm 1200

SLIDE ADJUSTMENT                                                       : mm 400

SLIDE DIMENSIONS (L-R x F-B)                                       : 3100 x 1900 mm

BOLSTER DIMENSIONS (L-R x F-B)                                  : 3100 x 1900 mm

 BOLSTER HEIGHT                                                          :  300   mm

CONTINUOUS SPEED (variable)                    : spm 8 - 25

MAIN MOTOR POWER                                                  : 132KW





















DIMENSIONI PRINCIPALI-MAIN DIMENSIONS



APERTURA tra I MONTANTI frontale (dx-sx)

CLEARANCE BETWEEN UPRIGHTS (L-R)                         : 3400 mm



APERTURA tra I MONTANTI LATERALE (fronte-retro)

CLEARANCE BETWEEN UPRIGHTS (F-B)                         : mm 1250
