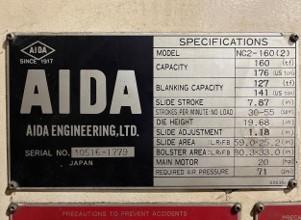

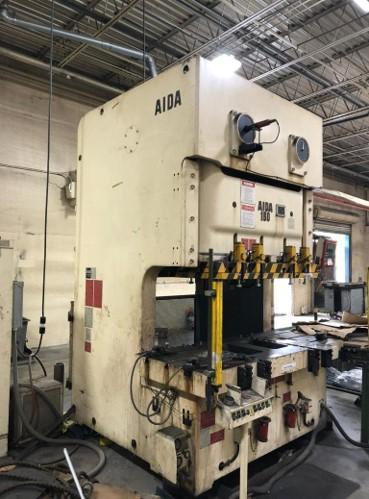

Brand: AIDA
Model: NC2-160(2)
Serial #: 10516-1779
Capacity: 160 Metric Tons of Force
Blanking Capacity: 127 Metric Tons of Force
Slide Stroke: 200mm
Strokes per Minute: 30-55 SPM
Die Height: 500mm
Slide Adjustment: 30mm
Slide Area : 1498.6x640.1mm
Bolster Area: 2040x640.1mm
Required Air Pressure: 71 psi
Main Motor: 20hp
Power Supply Voltage: 460 V Phase: 3
Frequency: 60Hz
Control Voltage: 110 V
Total Load Current: 27.3 A
Total Load Current of Primary Motor: 23 A
Primary Breaker: 50 A
