Manufacturer: AUTOMATIC FEED
Model: 50,000# x 48" x 0.125"
Used - Good

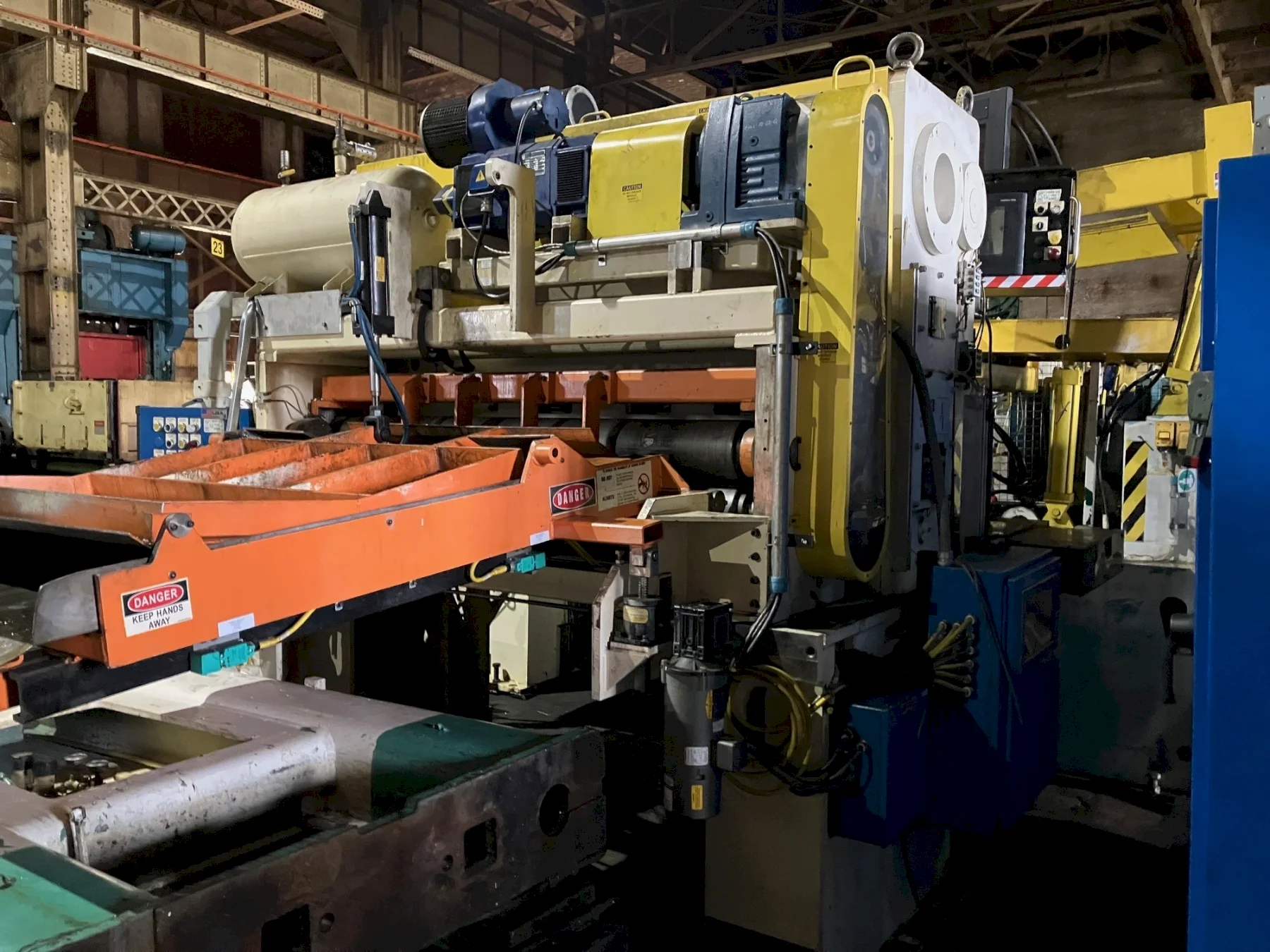

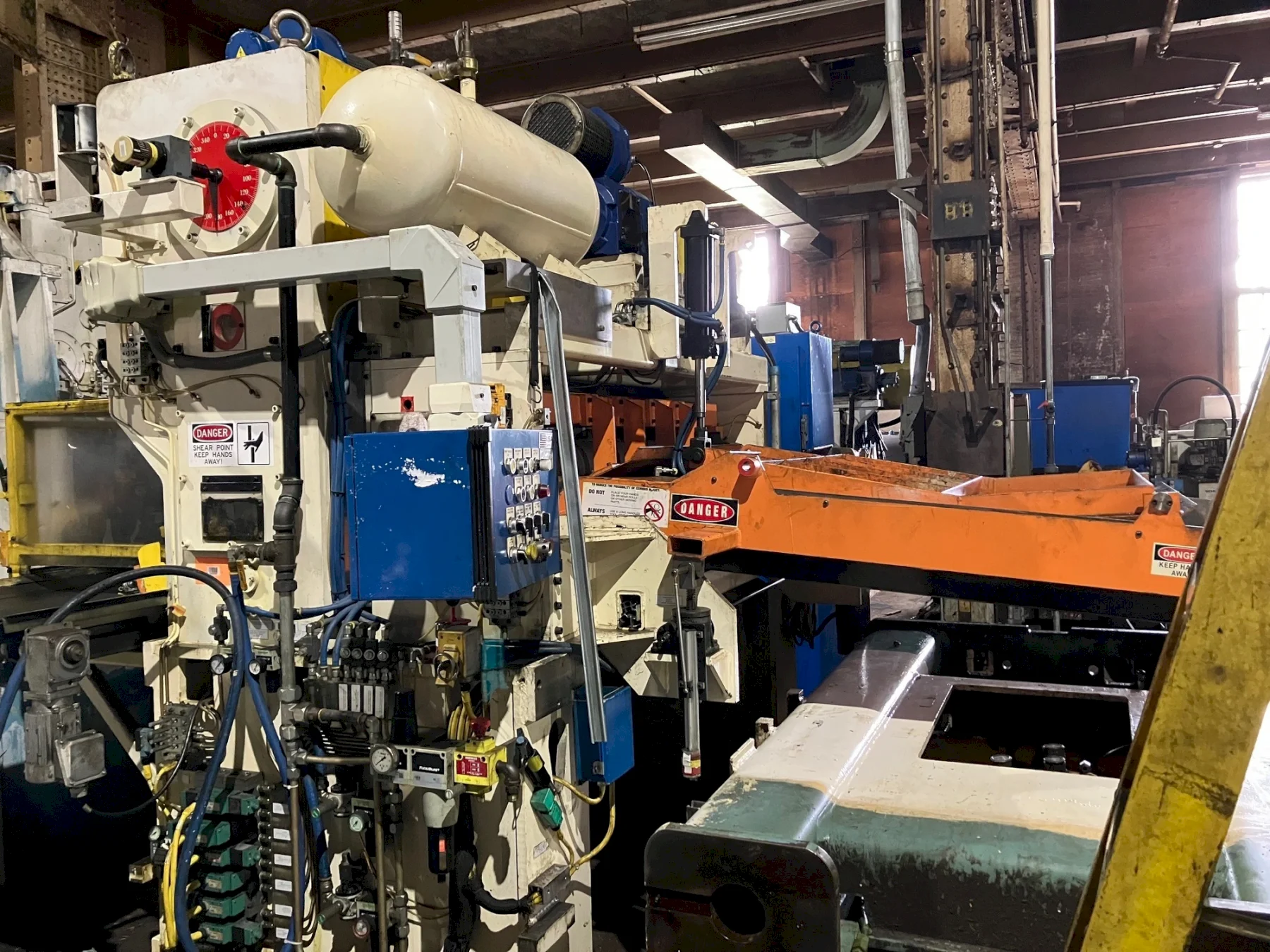

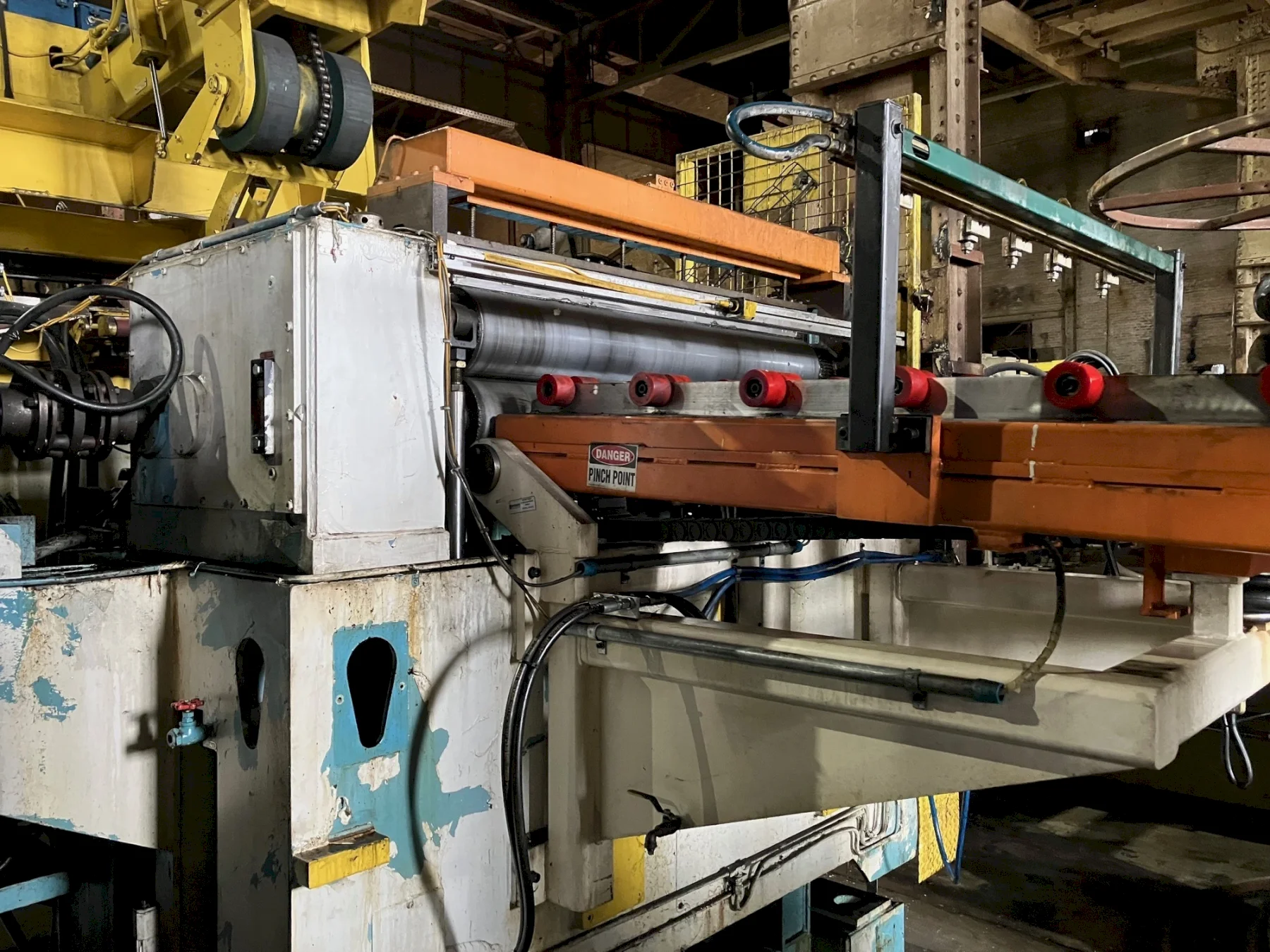

AUTOMATIC 48" x 50,000# x 0.125" FEED LINE
Model: 504872
Year: 2000
Coil Weight Capacity: 50,000#
Max. Width Capacity: 48"
Coil O.D.: 72"
Min. Width Capacity: 10"
Max. Thickness at 48": 0.125"
Thickness at 24": 0.177"
Min. Thickness at 48": 0.020"
Feeding Length: 2" - 36"
Press Speed: 60 SPM
100 Feet per/min
Feeding Angle Adjustable
Right to Left Feed Direction
Controls - Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F
Material: CRS, HD Galvanized, Electro Galvanized

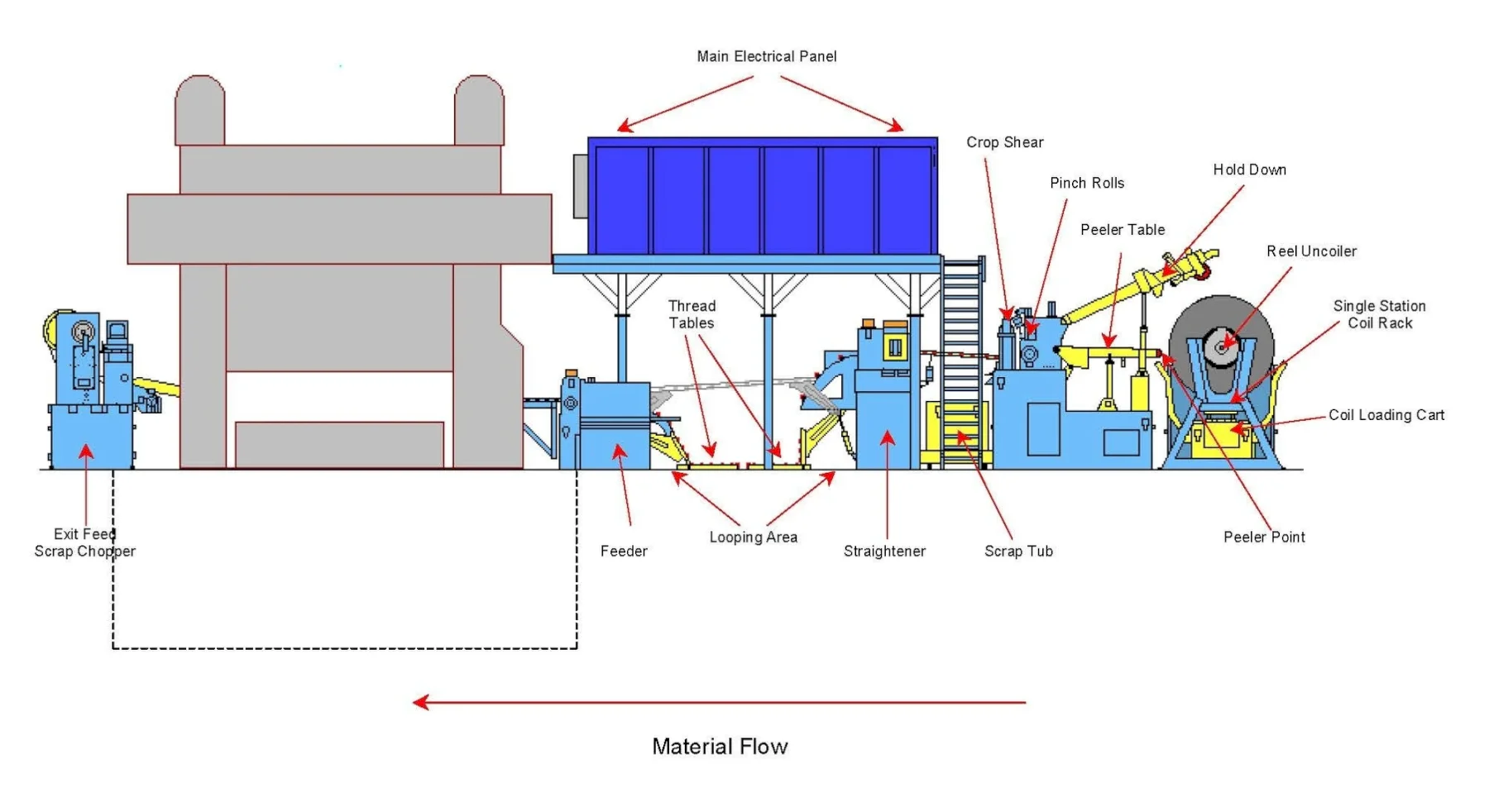

Line Consists of the Following Components:

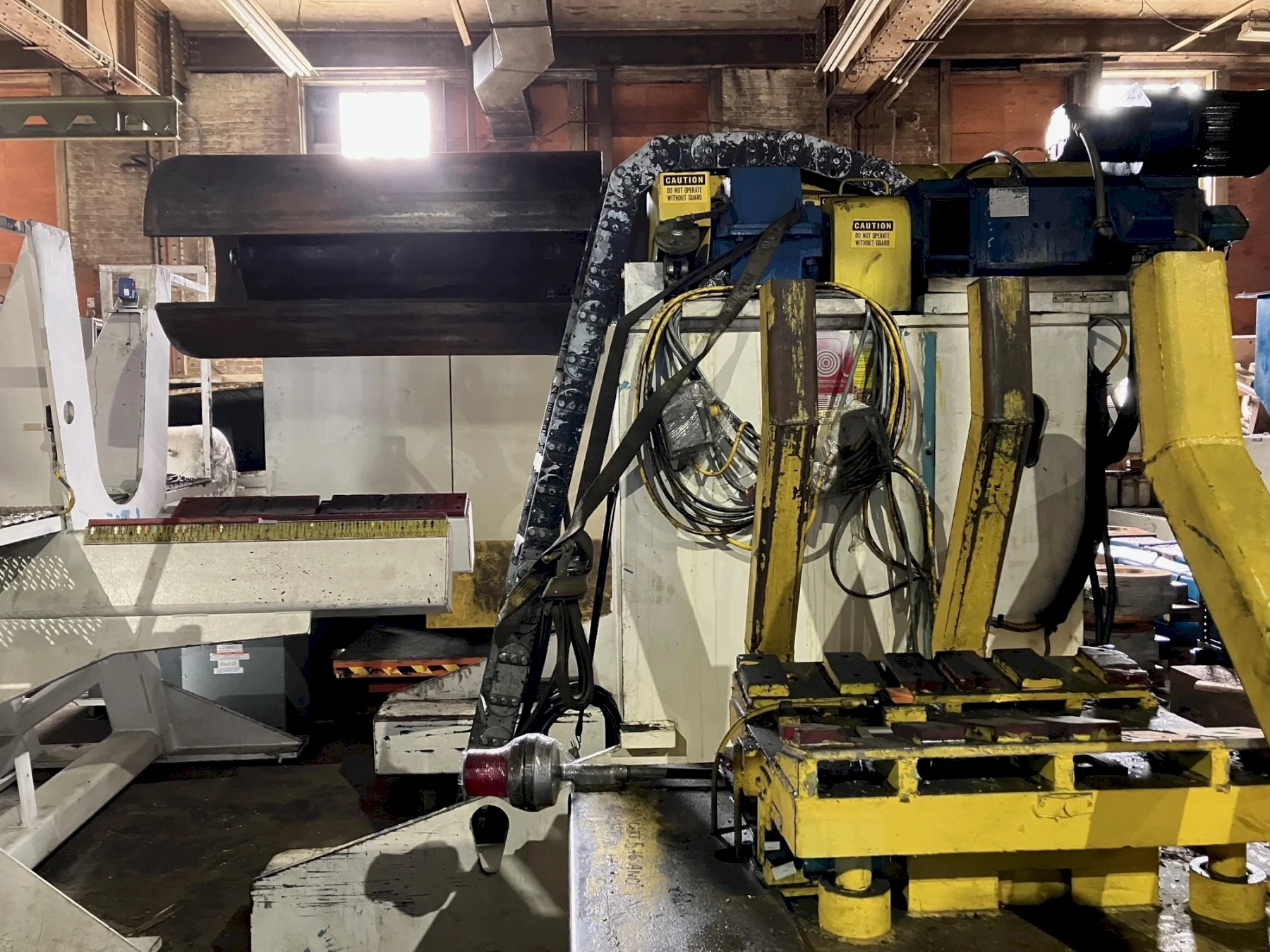

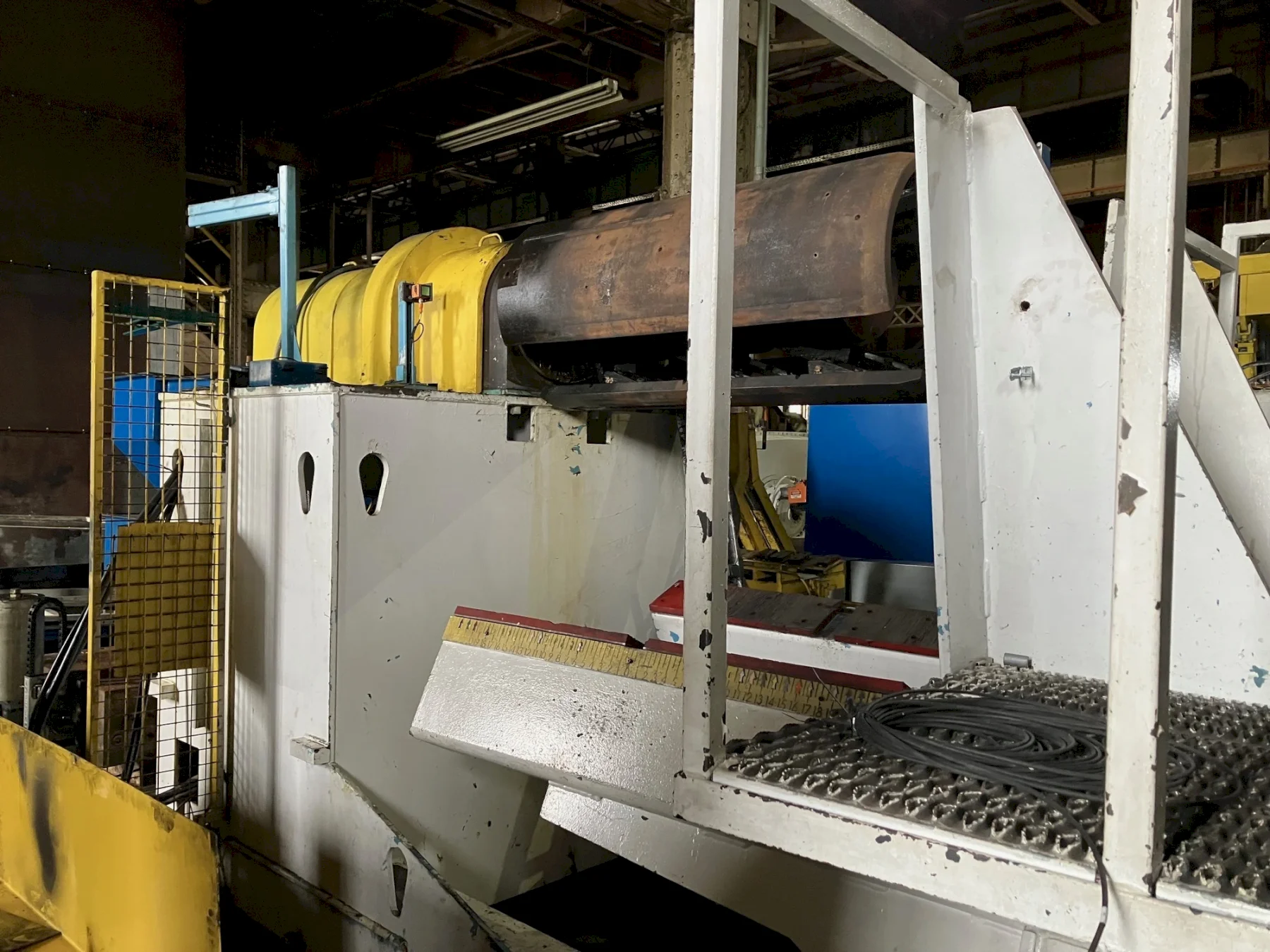

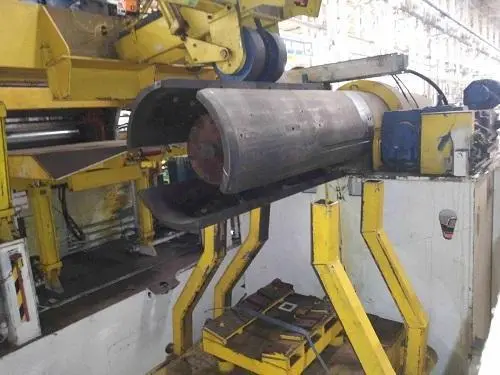

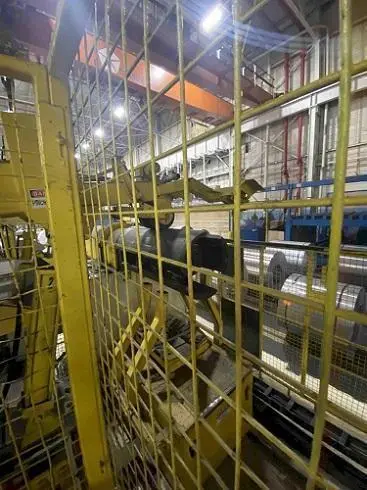

Reel Uncoiler & Coil Car
SPECIFICATIONS:
MAX WEIGHT OF COIL 50,000 lb
MAX WIDTH OF COIL 48"
MAX DIA. OF COIL 72"
MAX THICKNESS 0.177"
