PRODUCT DESCRIPTION
Type: Coil Feed Line
Manufacturer: COE
Model: COMPACT COIL LINE 20,000# x 40"
Year: 2004
Used - Good

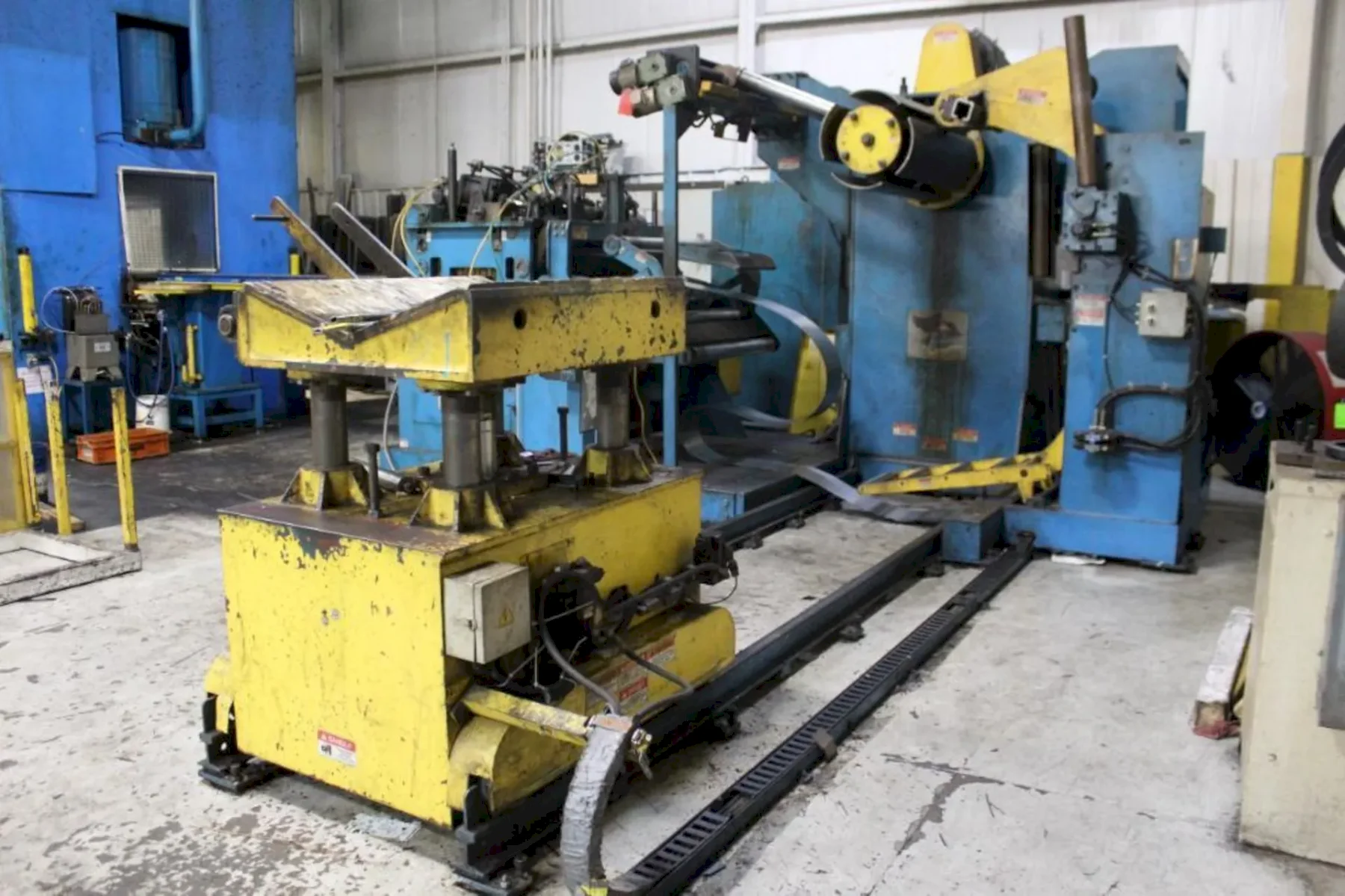

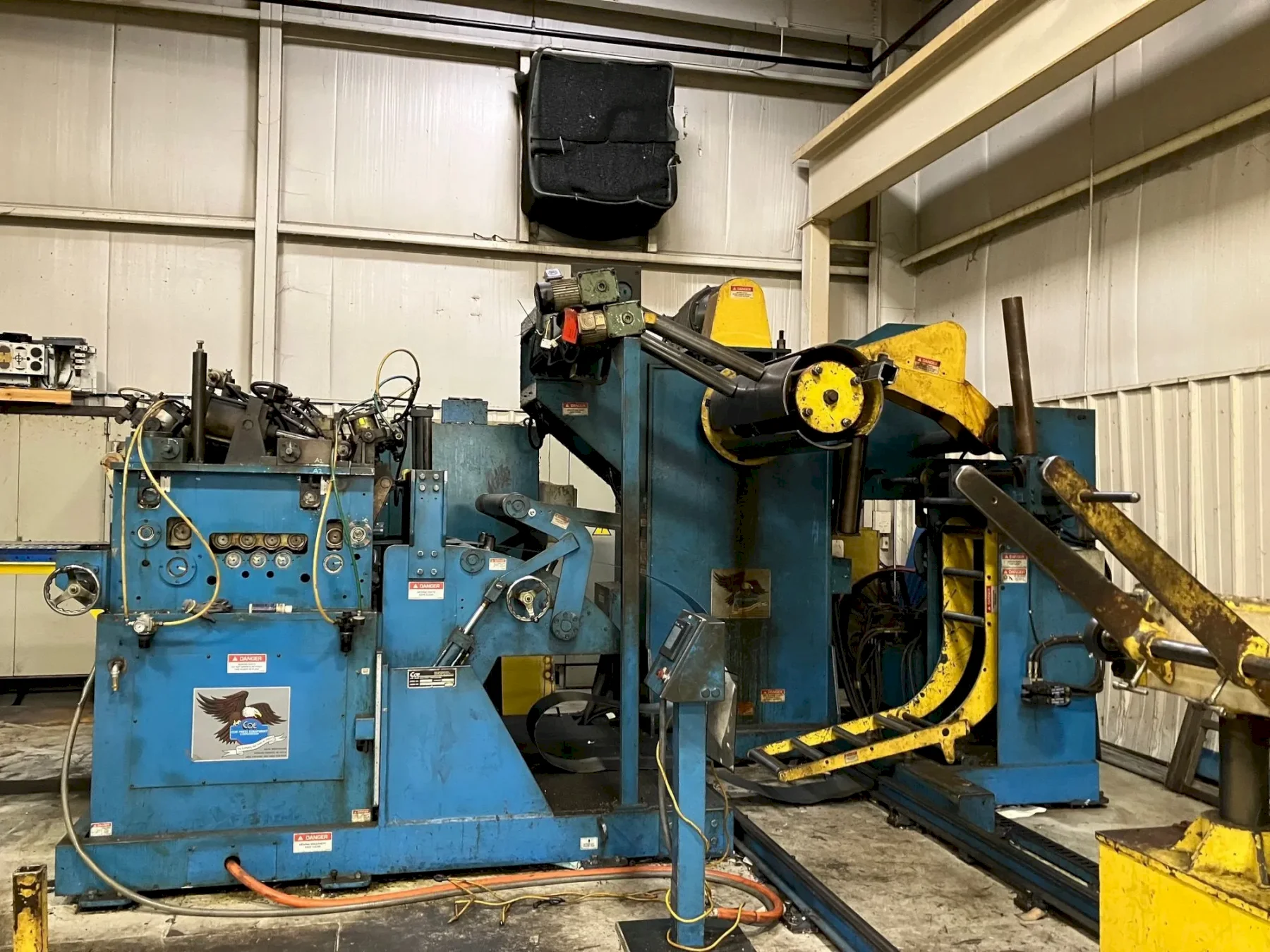

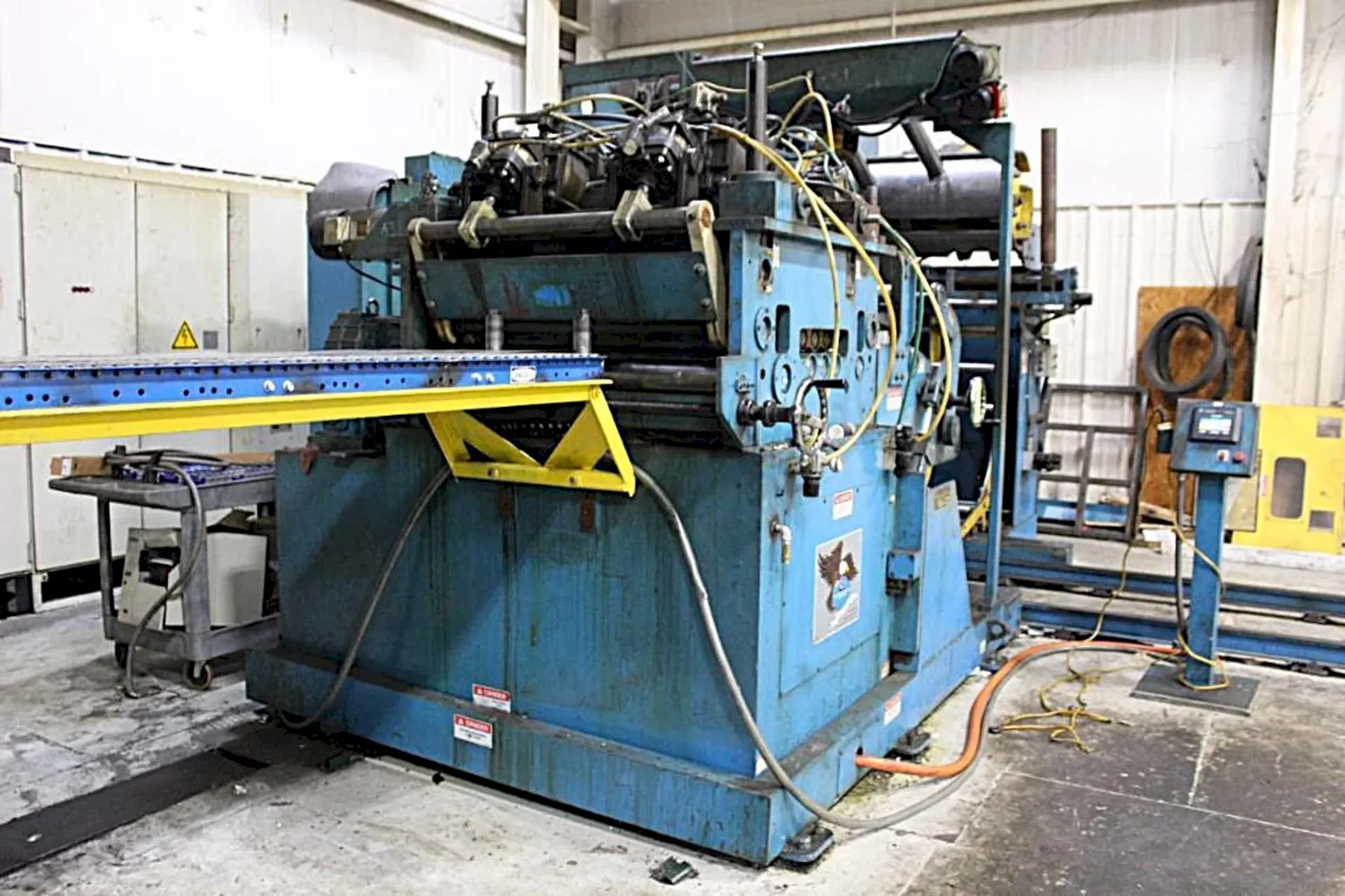

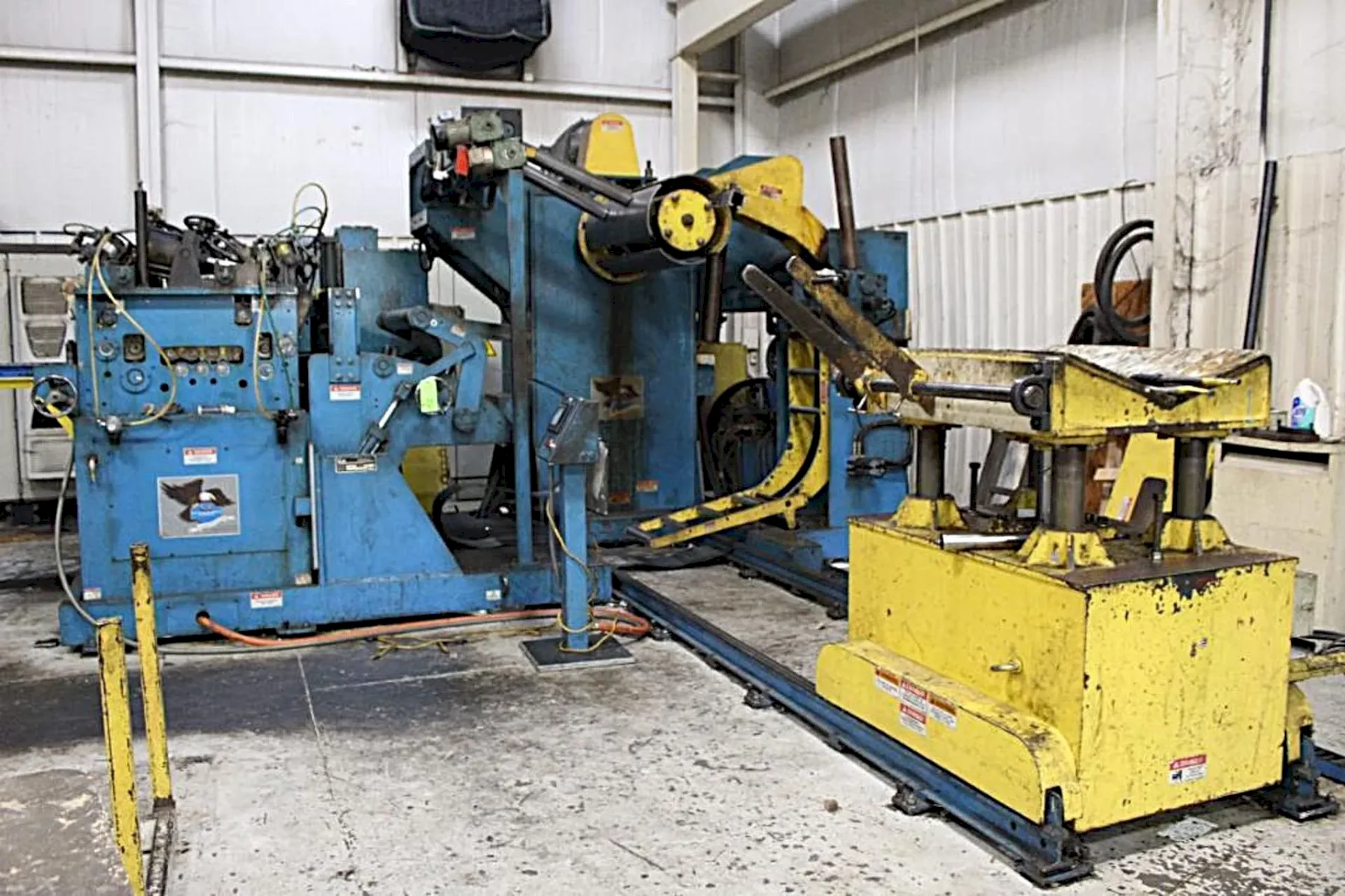

COE 20,000# X 40" COMPACT COIL LINE INCLUDING LEWCO CONVEYOR

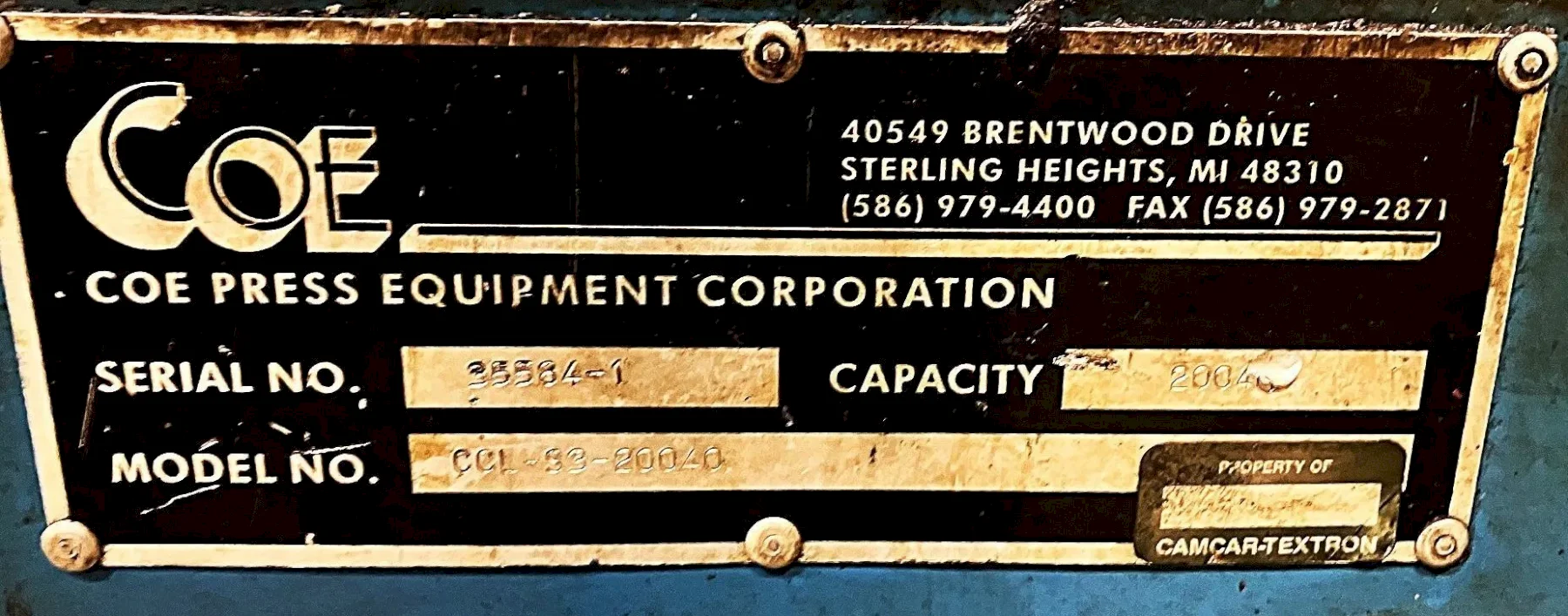

Model: NCHF-40
SN: 35584-1
YOM: 2004
SPECIFICATIONS
Coil Weight Capacity: 20,000#
Coil I.D.: 20" - 24"
Coil O.D.: 72" Max

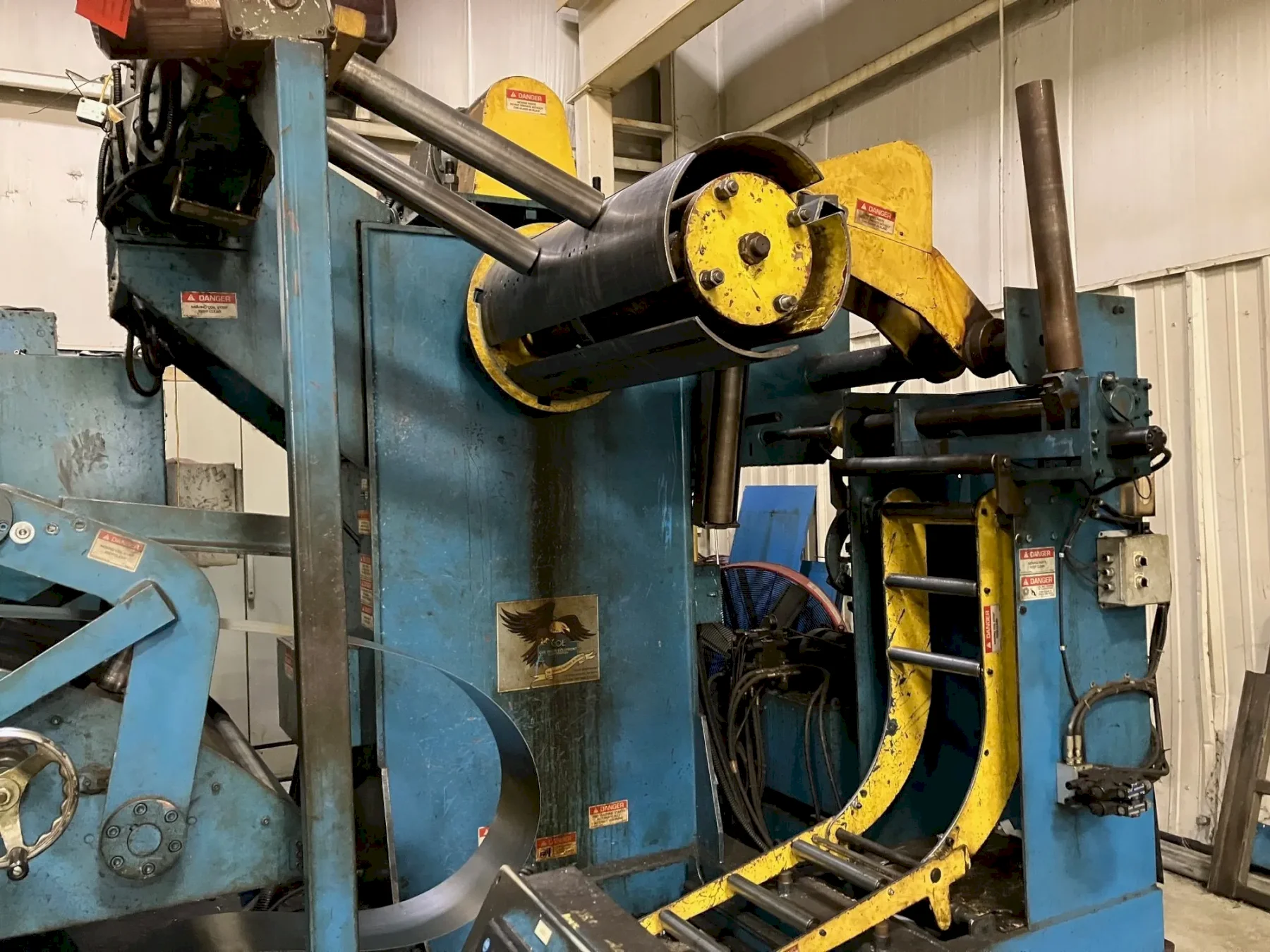

Expansion Type: Wedge Type Hydraulic Cylinder

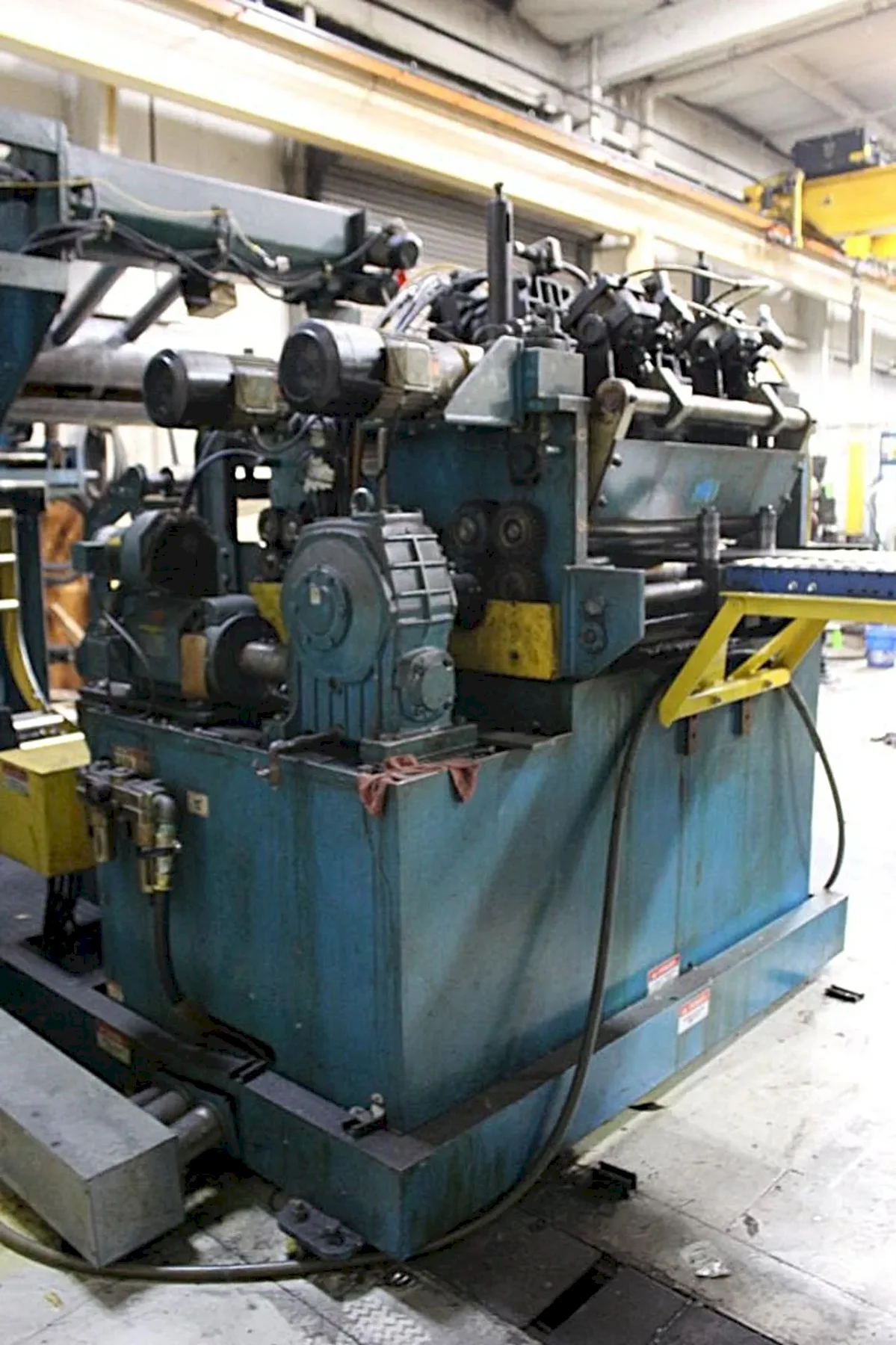

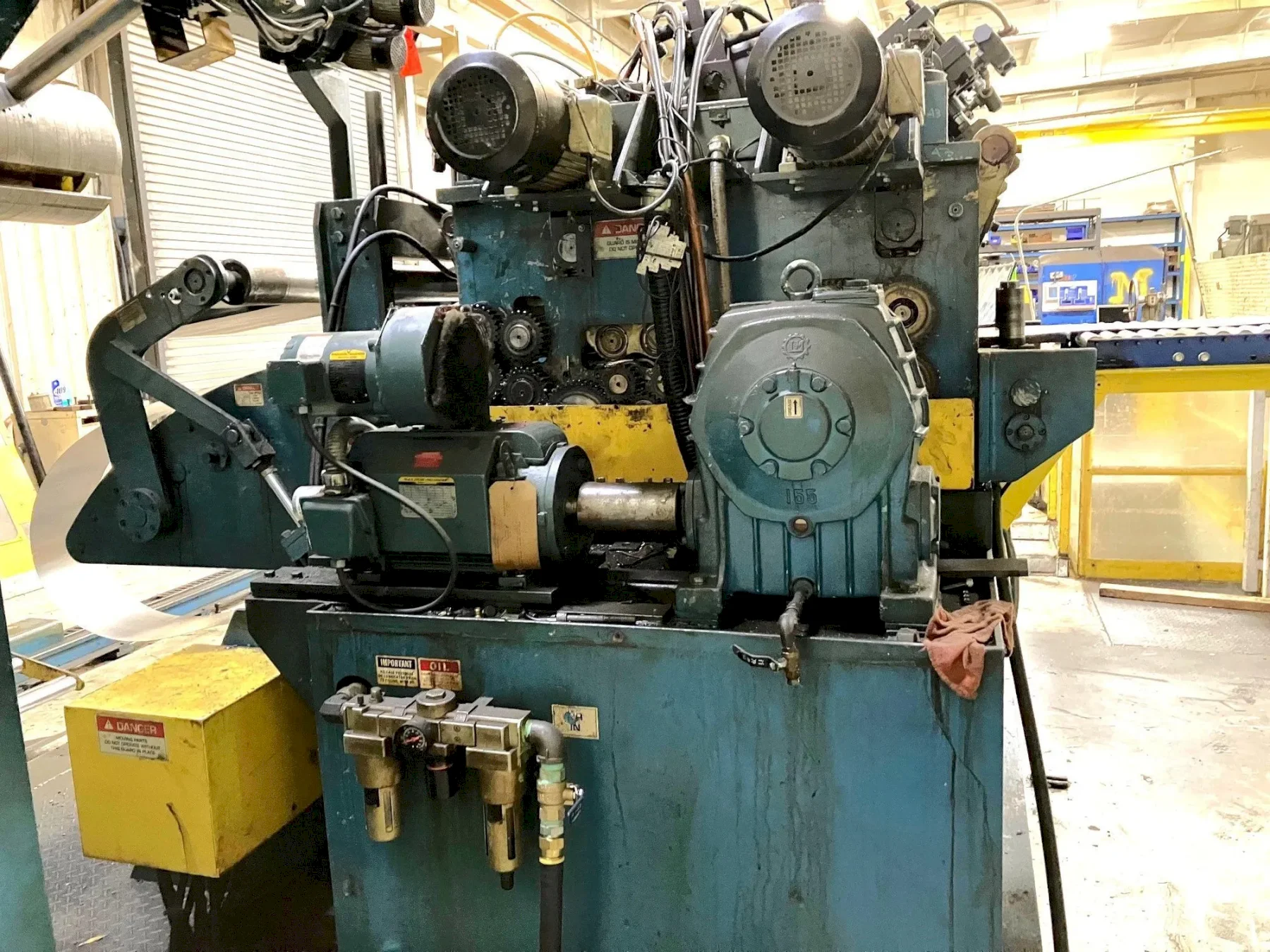

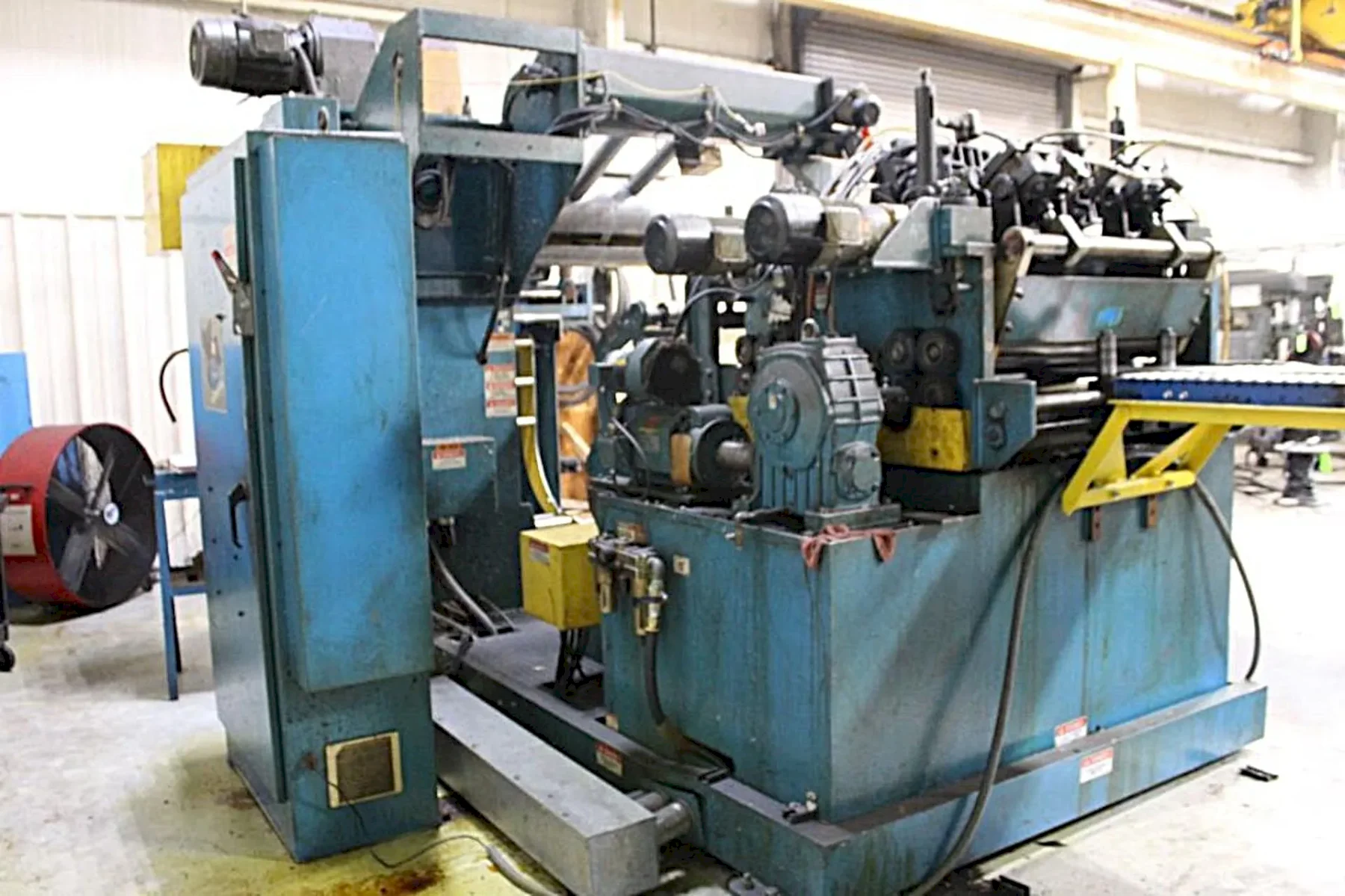

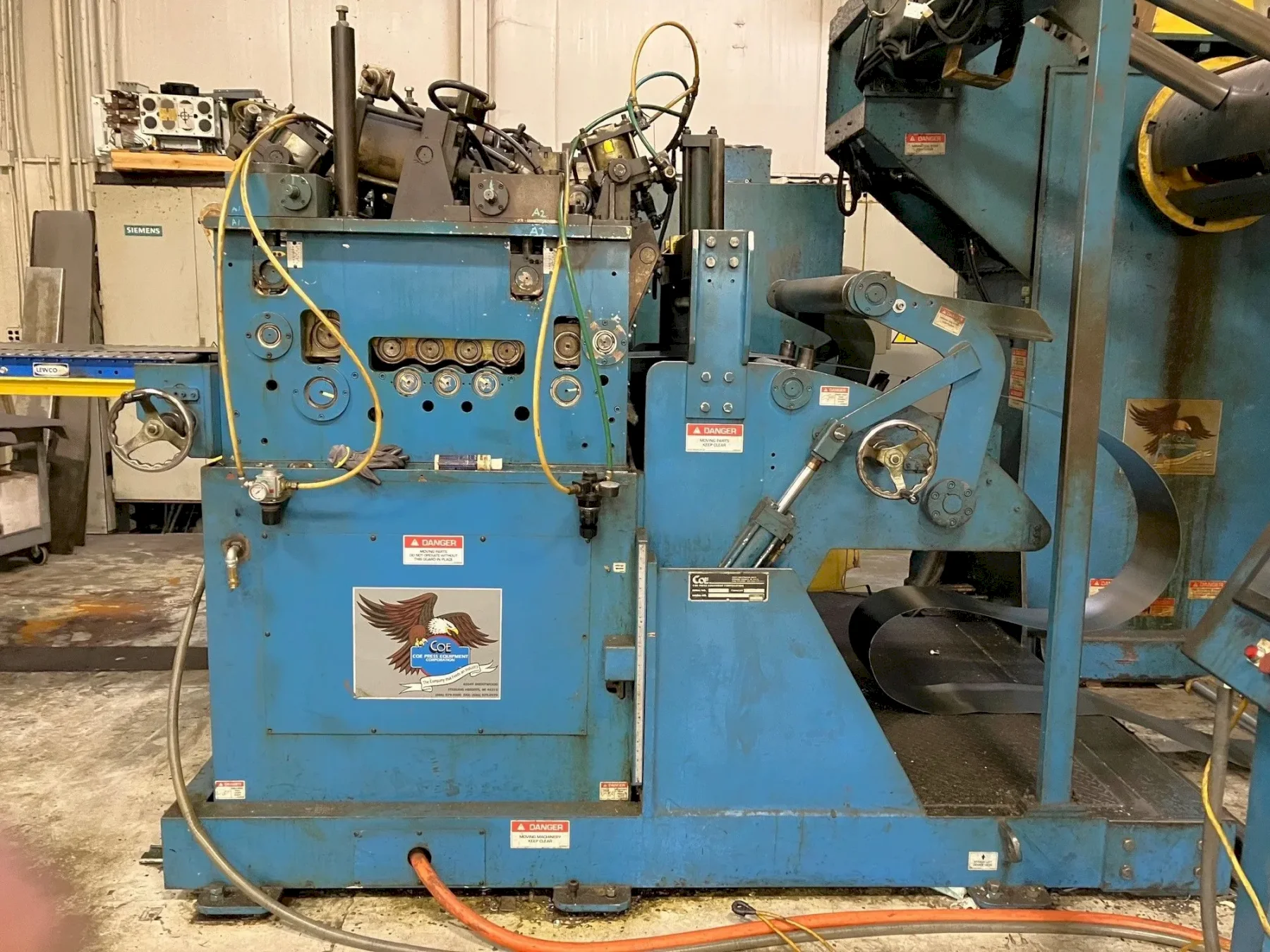

Straightening Capacity
Pinch Rollers: 2 rolls — 4.42" Dia.
Feeder Rollers: 2 rolls — 5.66" Dia.
Straightener Rollers: 7 rolls — 3.36" Dia. — 4 over 3
Material Specifications — High-Strength Low-Alloy Steel (HSLA)
HSLA 50k Yield (Max): .250" thick @ 18" wide
HSLA 50k Yield (Min): .020" thick @ 36" wide
HSLA 50k Yield (Min): .187" thick @ 36" wid
SPECIFICATIONS:
MAX WEIGHT OF COIL 20,000 Lbs
MAX WIDTH OF COIL 40"
MAX DIA. OF COIL 72"
MAX THICKNESS 0.25"
