Equipped With

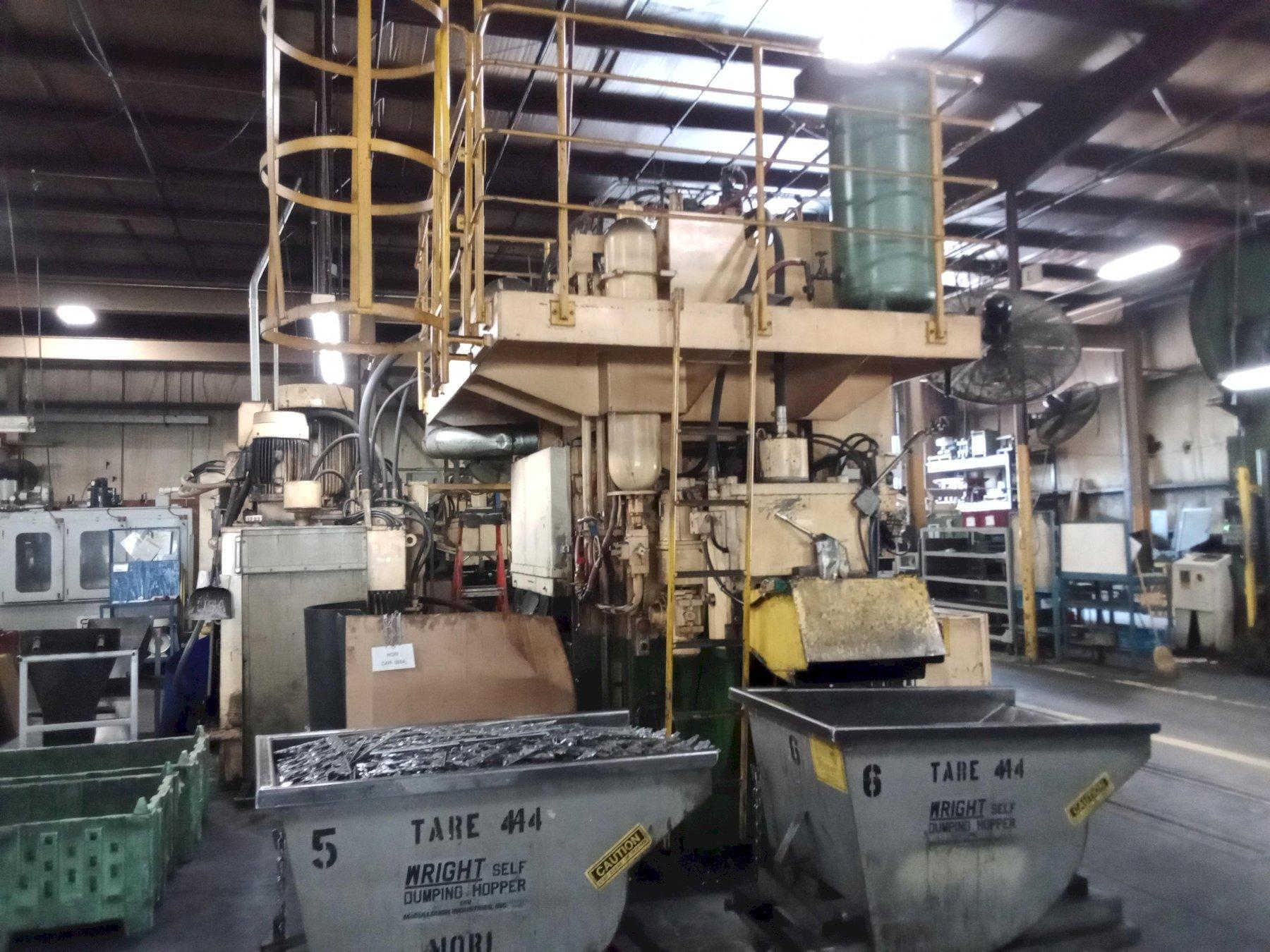

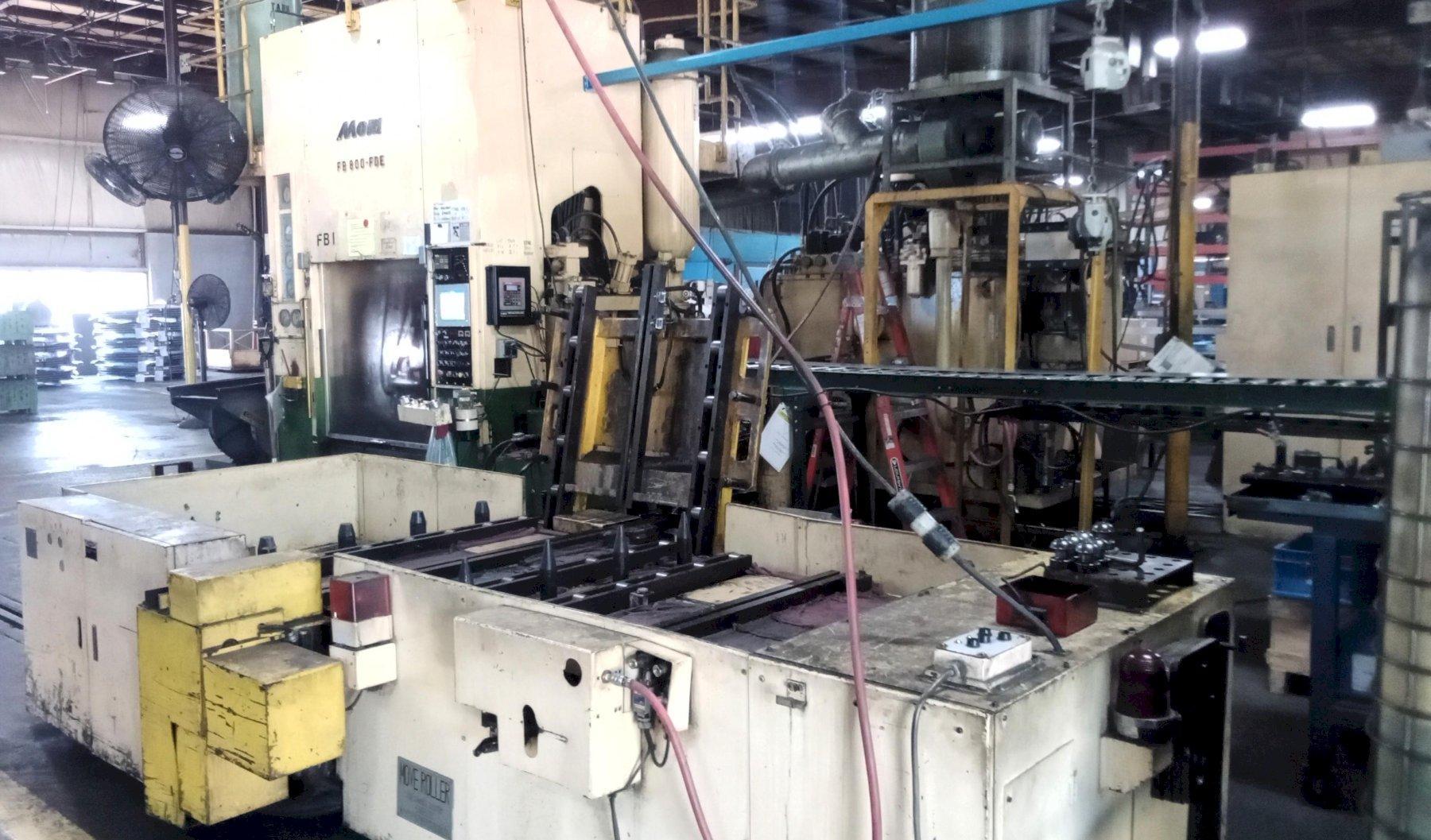

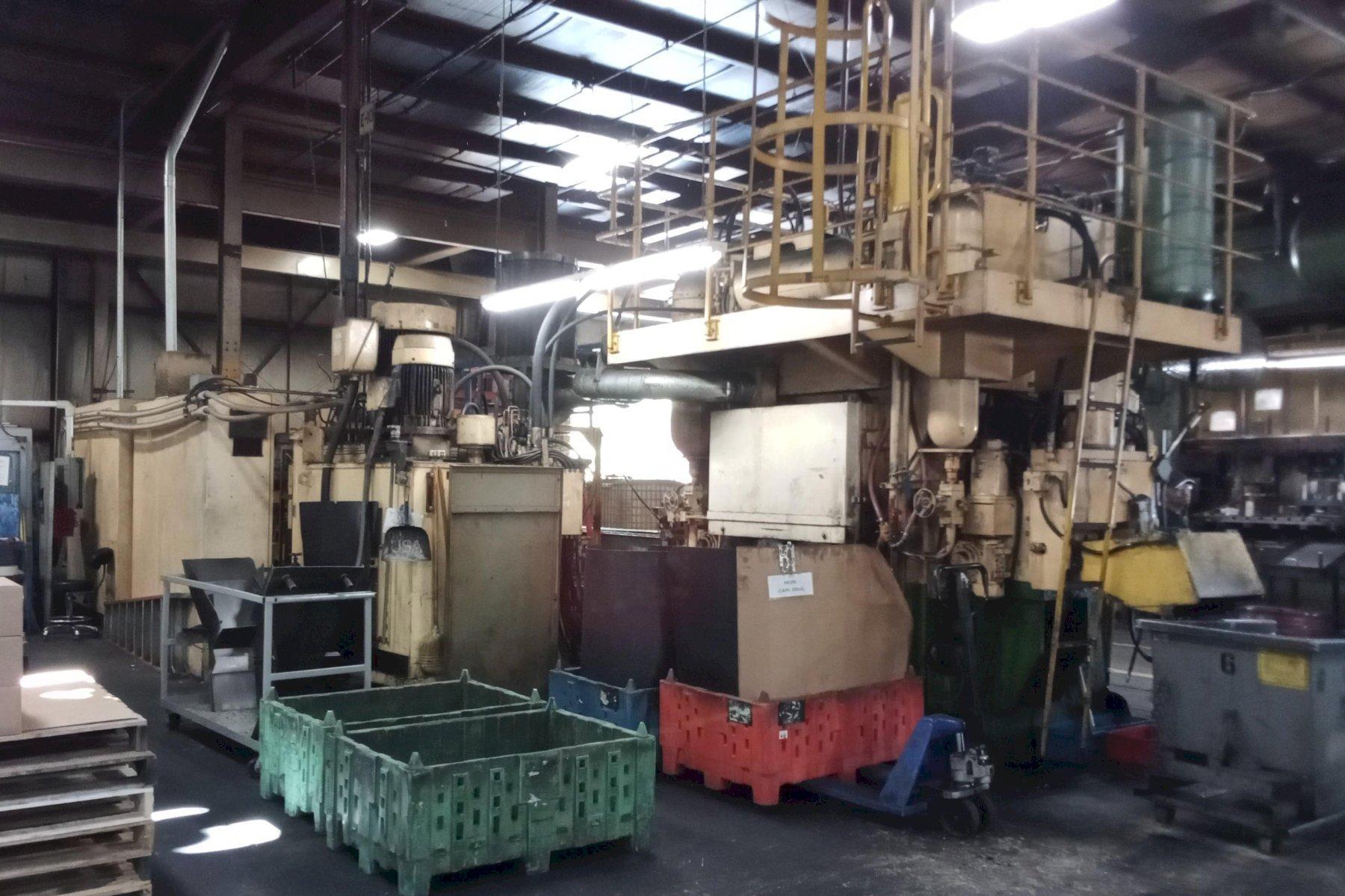

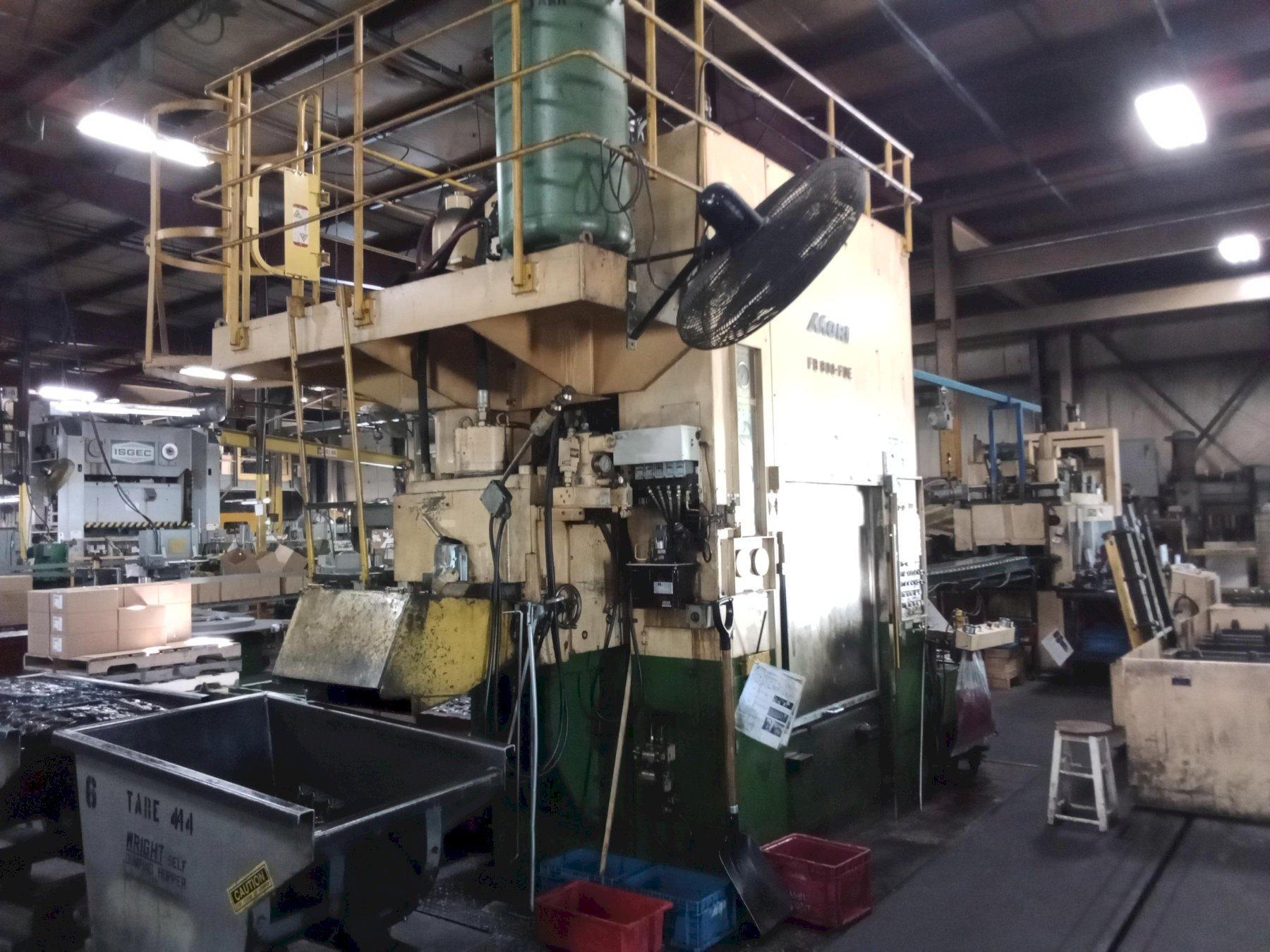

800 Ton MORI Hyd Fine Blanking press
Model FB 800 FDE
Bolster 43.3 x 47.244
1100 x 1200 mm
L-R / F-B
SPM Min 3 mm/sec Cutting
10 mm/sec Approach
10 mm/sec Return
SPM Max 40 mm/sec Cutting
180 mm/sec Aproach
180 mm/sec Return
Feed direction R to L
Target Pass Line 47.24 Inches
1200 mm

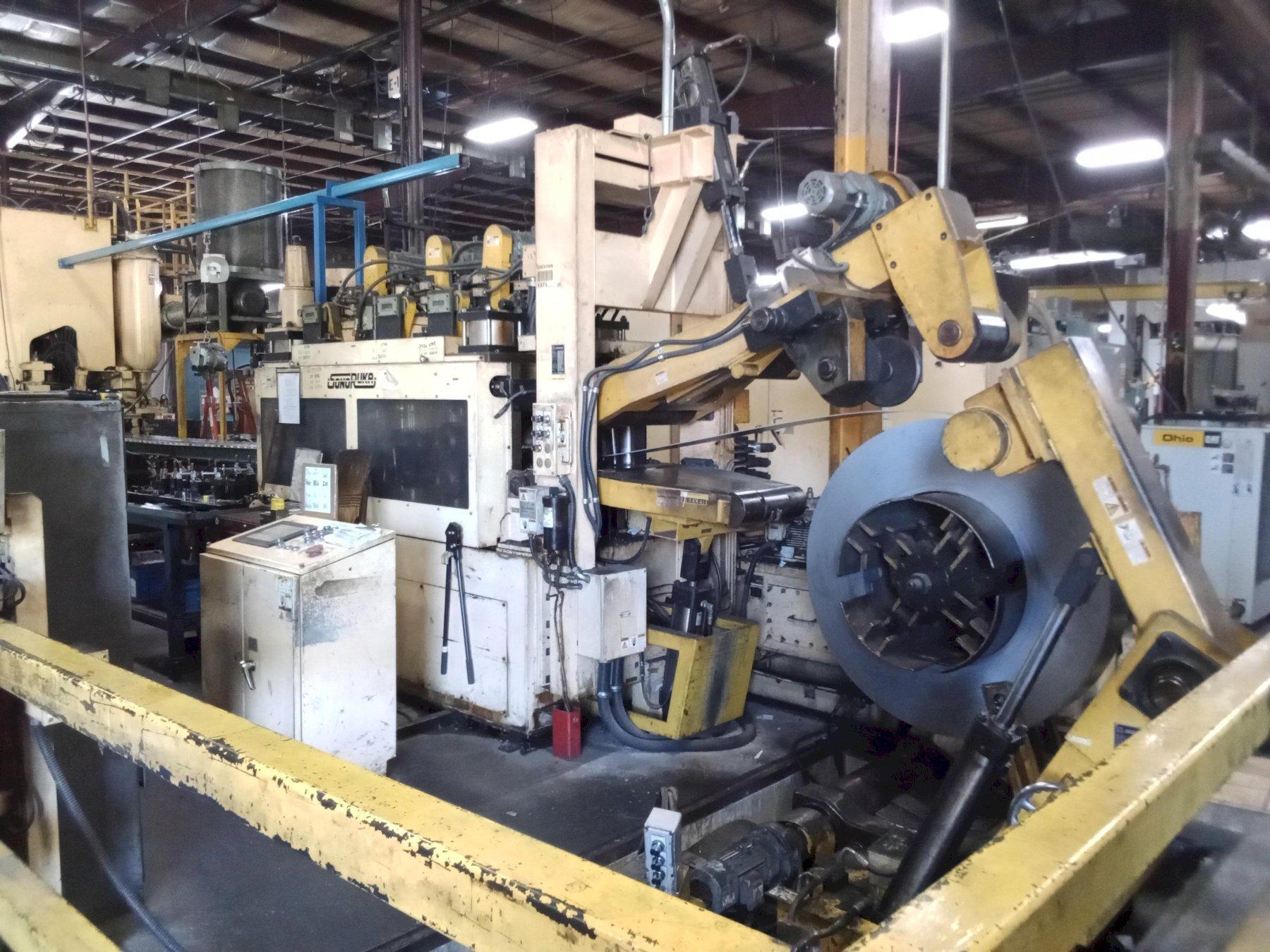

Decoiler information:
Manufacturer: SONORUKA
Model UC-1545VM
Max coil weight 11,000 Lbs
5 tons
Max OO 50 inches
1500 mm
Min coil OO 24 inches
610 mm
Feeder information:
Manufacturer: SONORUKA
Model LF-18045V
Serial # 4242
Min Thickness 0.20 inches
0.5 mm
Max Thickness .630 inches
16 mm
Max Width 17.71 inches
450 mm
