Equipped With

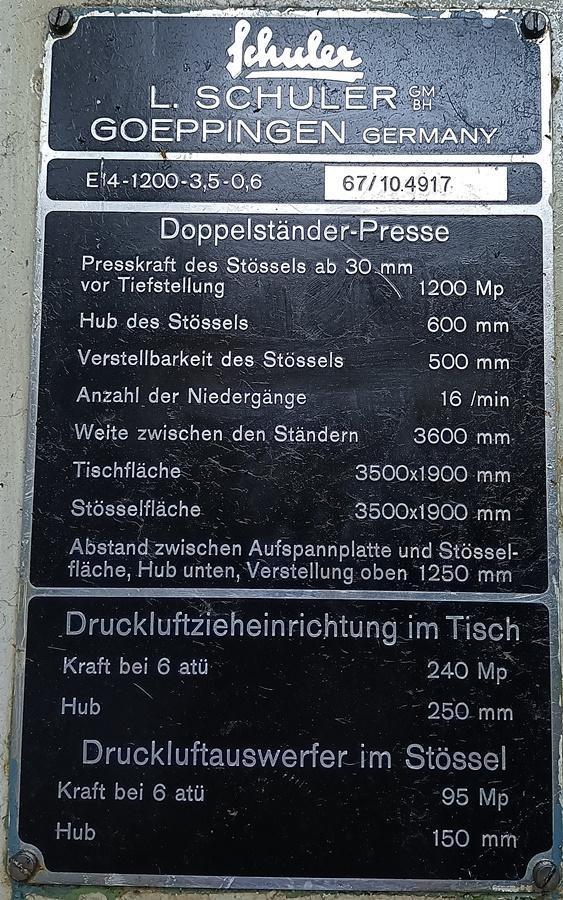

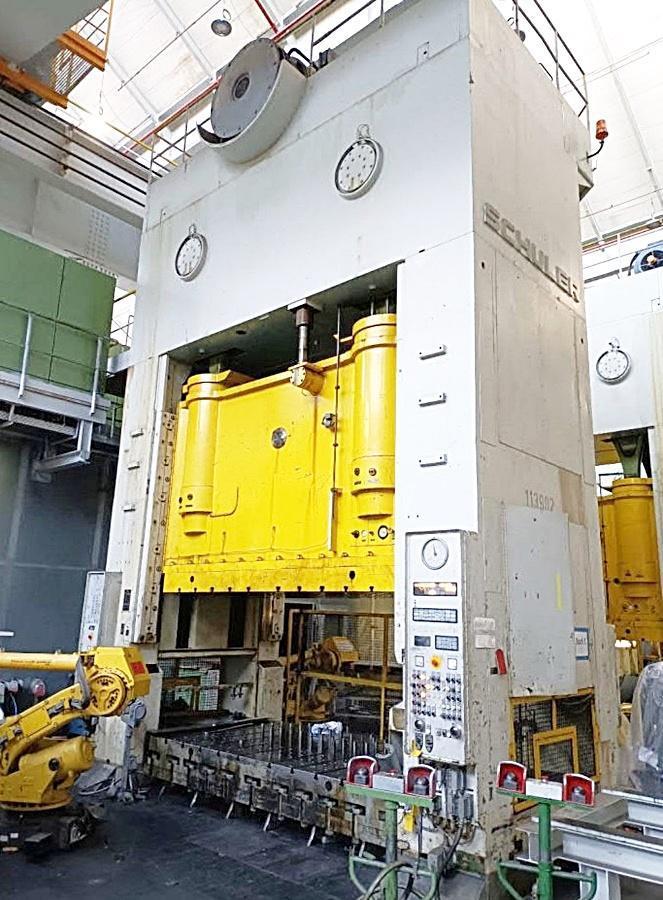

- capacity 1200 ton

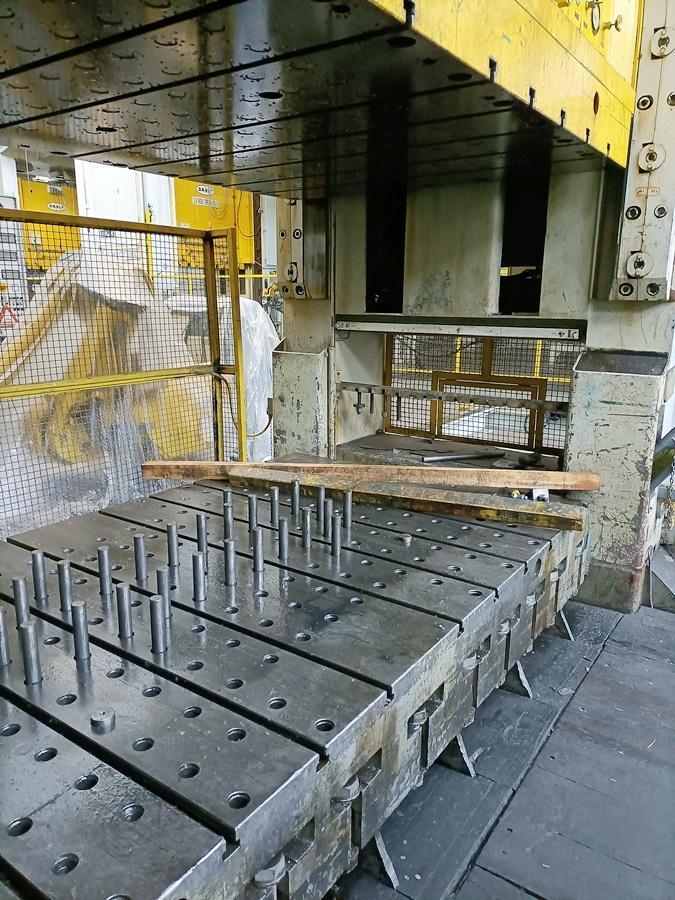

- fixed bolster dimensions 3500 x 1900 mm
- slide dimensions 3500 x 1900 mm
- slide stroke 600 mm
- shut height 1250 mm
- adjustment 500 mm
- bolster height 300 mm
- 16 stroke/min
- cushion in bed capacity 240 ton
- cushion in bed stroke 250 mm

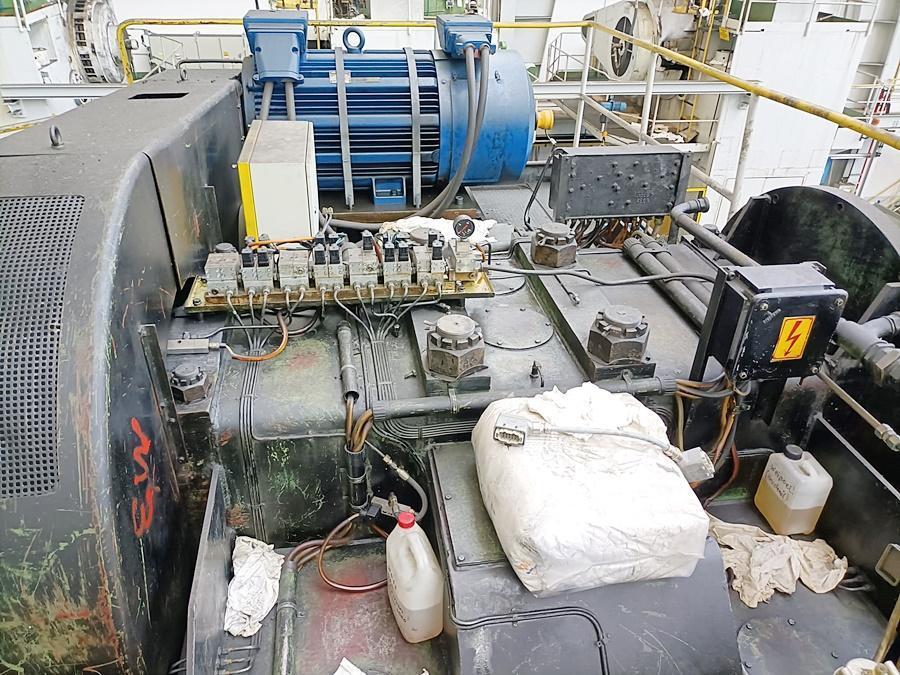

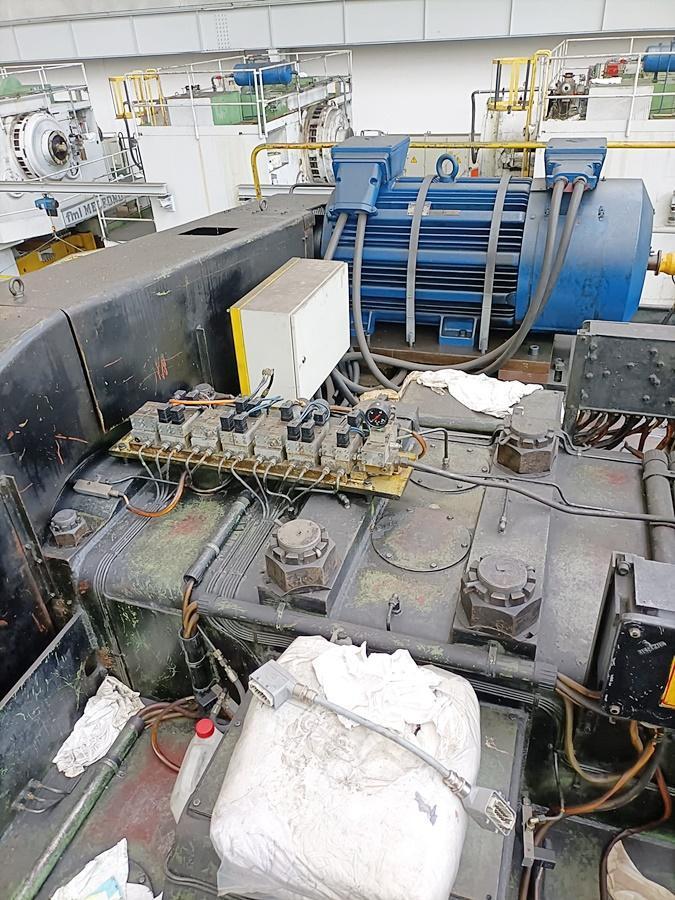

- main motor capacity 200 kW
- distance between columns (L-R) 3600 mm
- distance between columns (F-B) 1500 mm
- weight 300 tons
