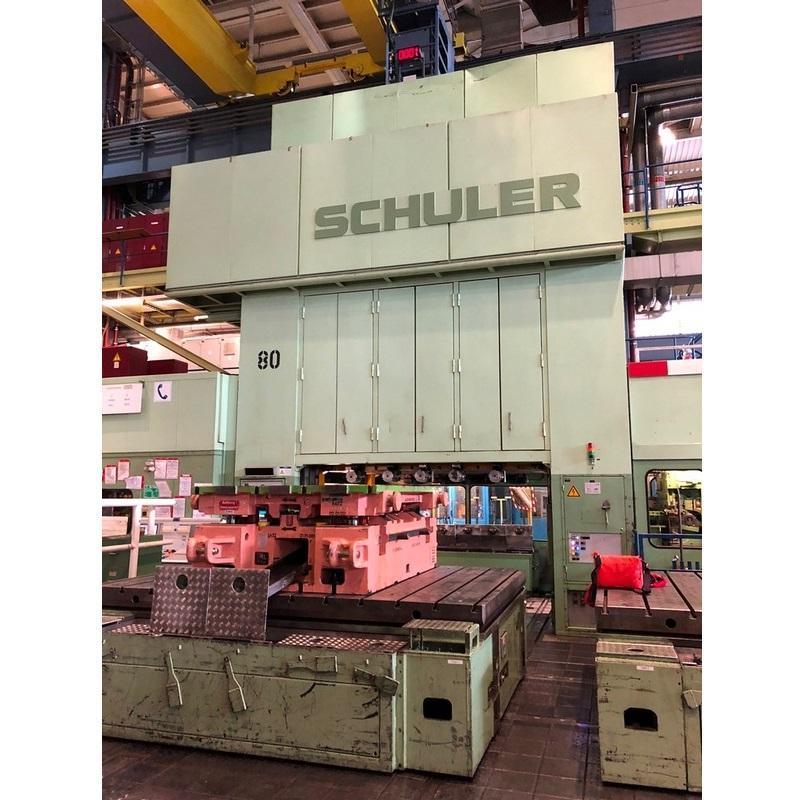

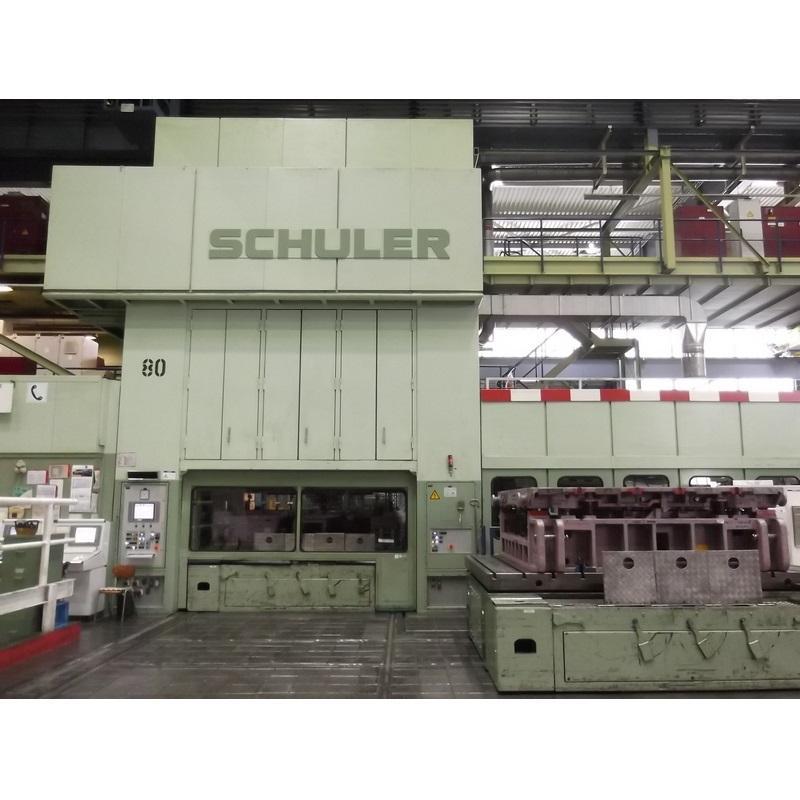

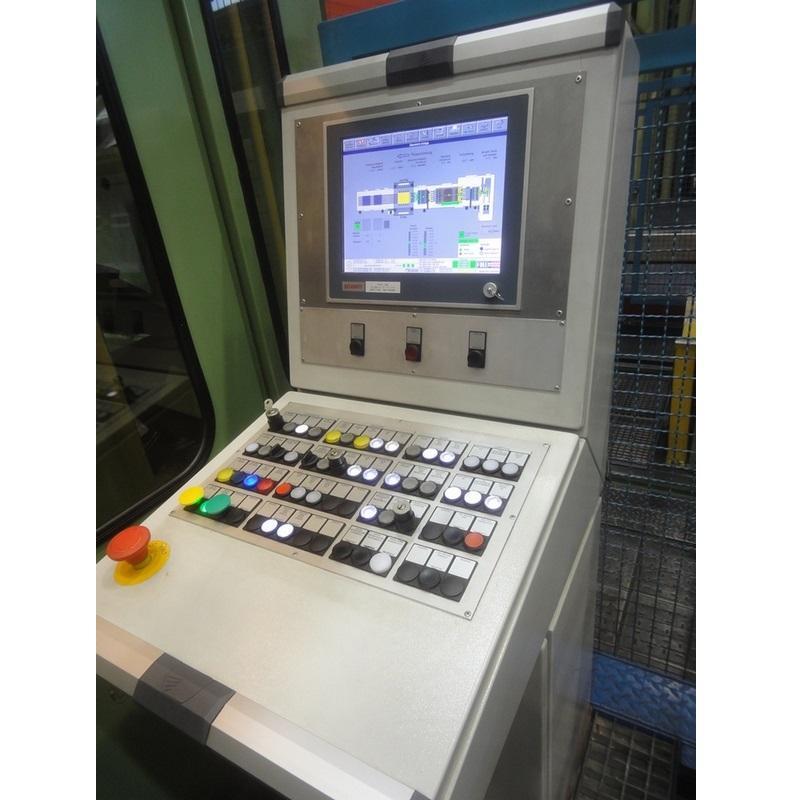

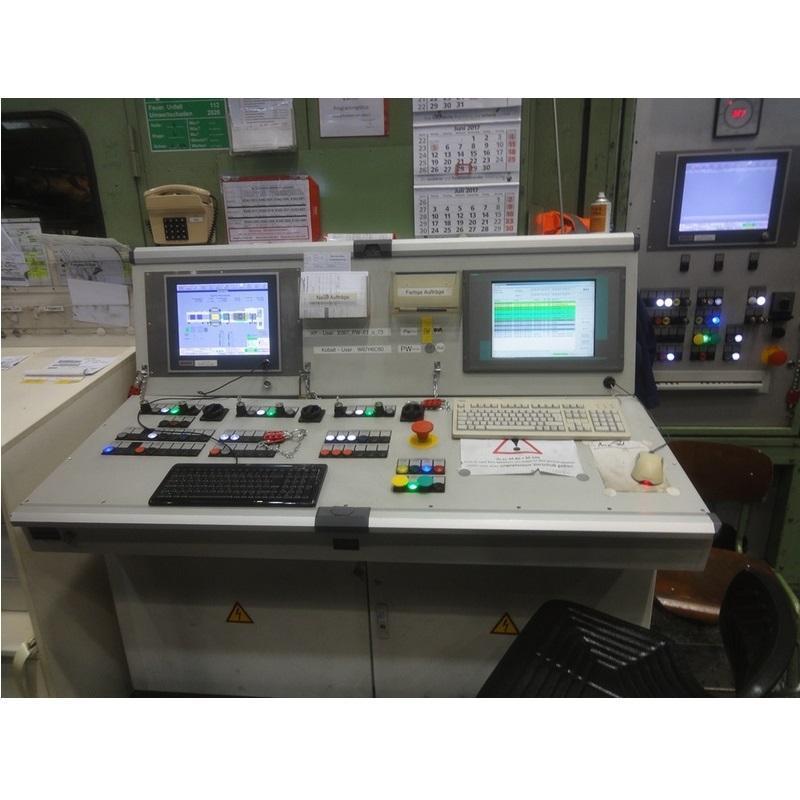

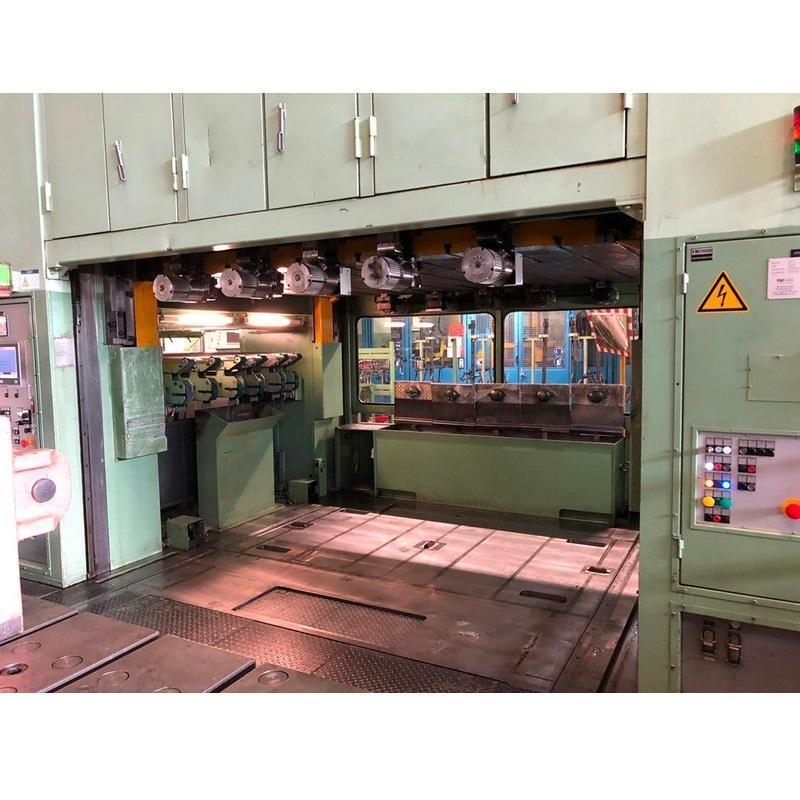

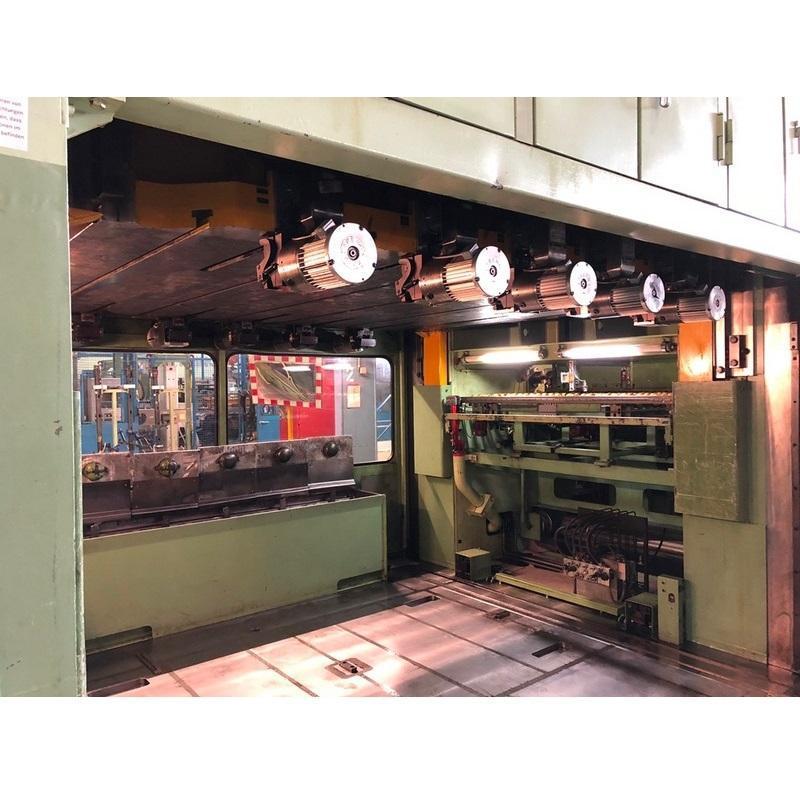

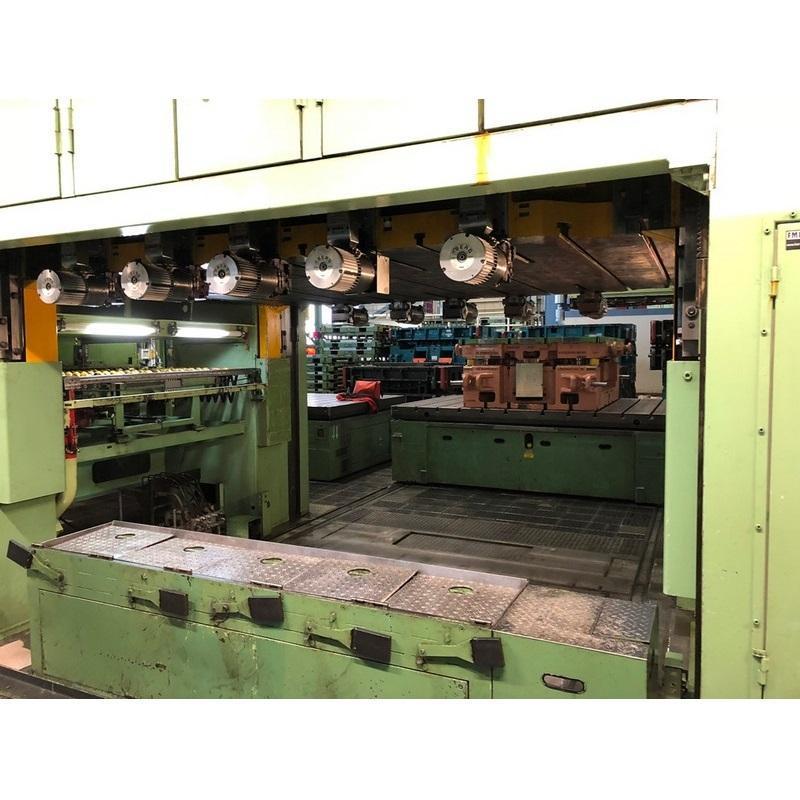

Presse Schuler, EBS 4-600-3,6-350 Blanking Line (press, coil line, blank stacking system)
Press Force 600,00 t
Stroke fix 350 mm
Stroke Rate 11 - 44 1 / min
Distance between Columns 3640 mm
Side Window 2200 mm
Daylight (max.Stroke up, Adjustment up) 1.550 mm
Surface of Table 3600 x 2500 mm
Surface of Ram 3600 x 2500 mm
Adjustment of Ram 400 mm
Power Requirement 112,0 + 35,0 kW
Weight 390,00 t
Dimensions (WxDxH) 7,3 x 5,1 x 15,0 m
Height above Floor 9,10 m
Height beneath Floor 5,90 m
Coil Line:
Coil line consisting of:
- Decoiler make Schleicher, Type HE - 355 - 2100, yom 1994
with auxiliary drive, snubber roll
- Coil lifting device
- Extractor device make Schleicher
- Shear
- Straightening machine make Schnutz, Type RME 18/50/13-2000 TZ, yom 1994
with infinitely variable drive, 30 intermediate rolls, 117 supporting rolls
- Coil loop bridge
- Roll feed make Schleicher, Type WV-SYS-A 160-2000, yom 1994
Material Width 2000 mm
Material Thickness 0,6 - 2,5 mm
Material Thickness / at Material Wicth 2,5 / 1200 mm / mm
Material Thickness / at Material Wicth 2,0 / 1850 mm / mm
Material Thickness / at Material Wicth 1,75 / 1950 mm / mm
Material Cross-Cut 1600 x 2,5 mm
Coil Weight 35,0 t
Coil Internal Diameter - 610 mm
Coil External Diameter 900 - 1900 mm
No. of Straightening Rolls 13
Diameter of Straightening Rolls 50 mm
Speed 0 - 60 m / min
Power Requirement 81,0 + kW
Weight of Straightener 14,10 t
