Equipped With

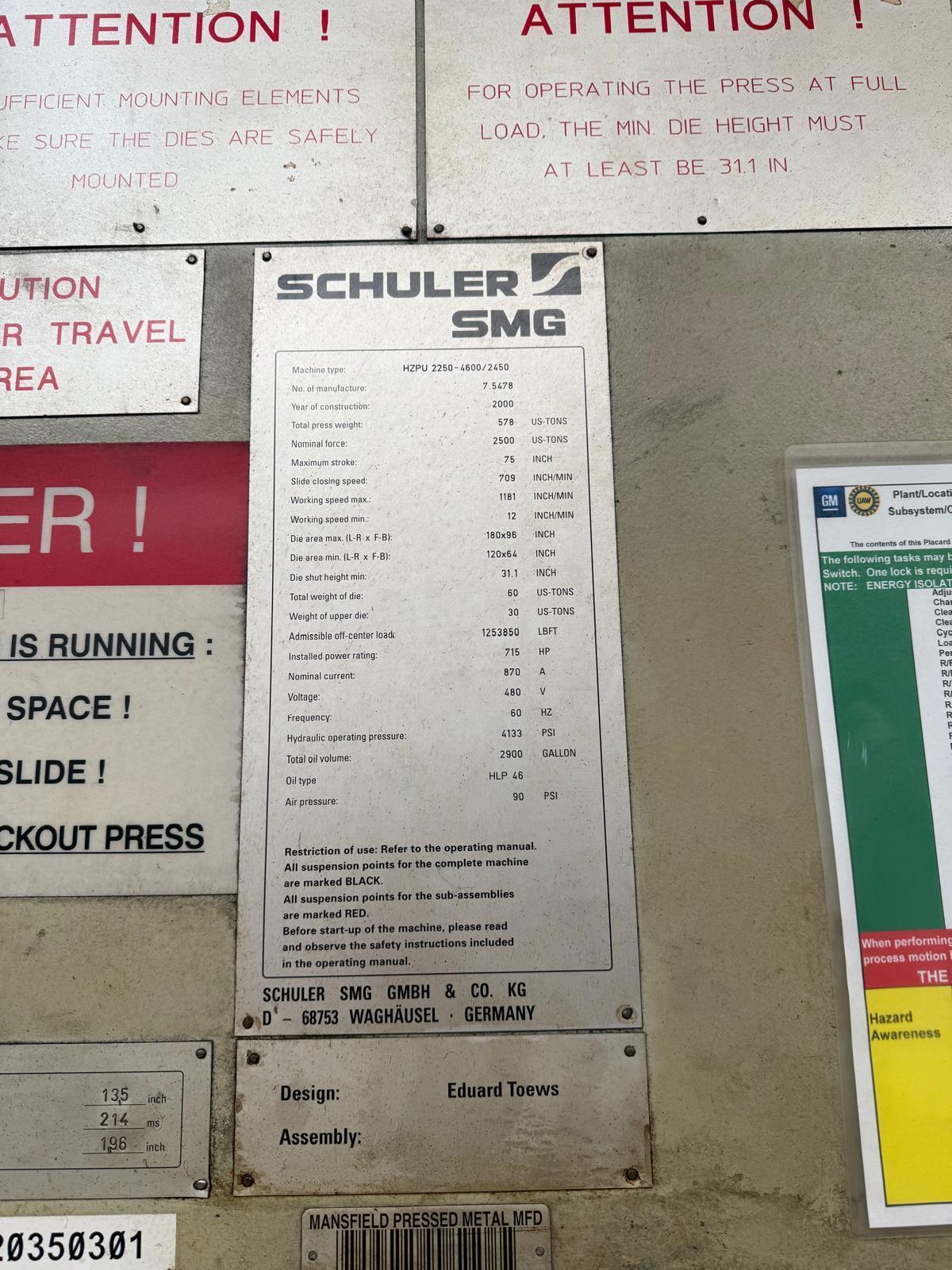

No of manufacture 7.5478
Year of construction 2000
Nominal force 2500 US TONS
Maximum stroke 75 INCH 1905.0 MM
Slide closing speed 709 INCH/MIN 18008.6 MM
Workin speed max: 1181 INCH/MIN 29997.4 MM
Working speed min: 12 INCH/MIN 304.8 MM

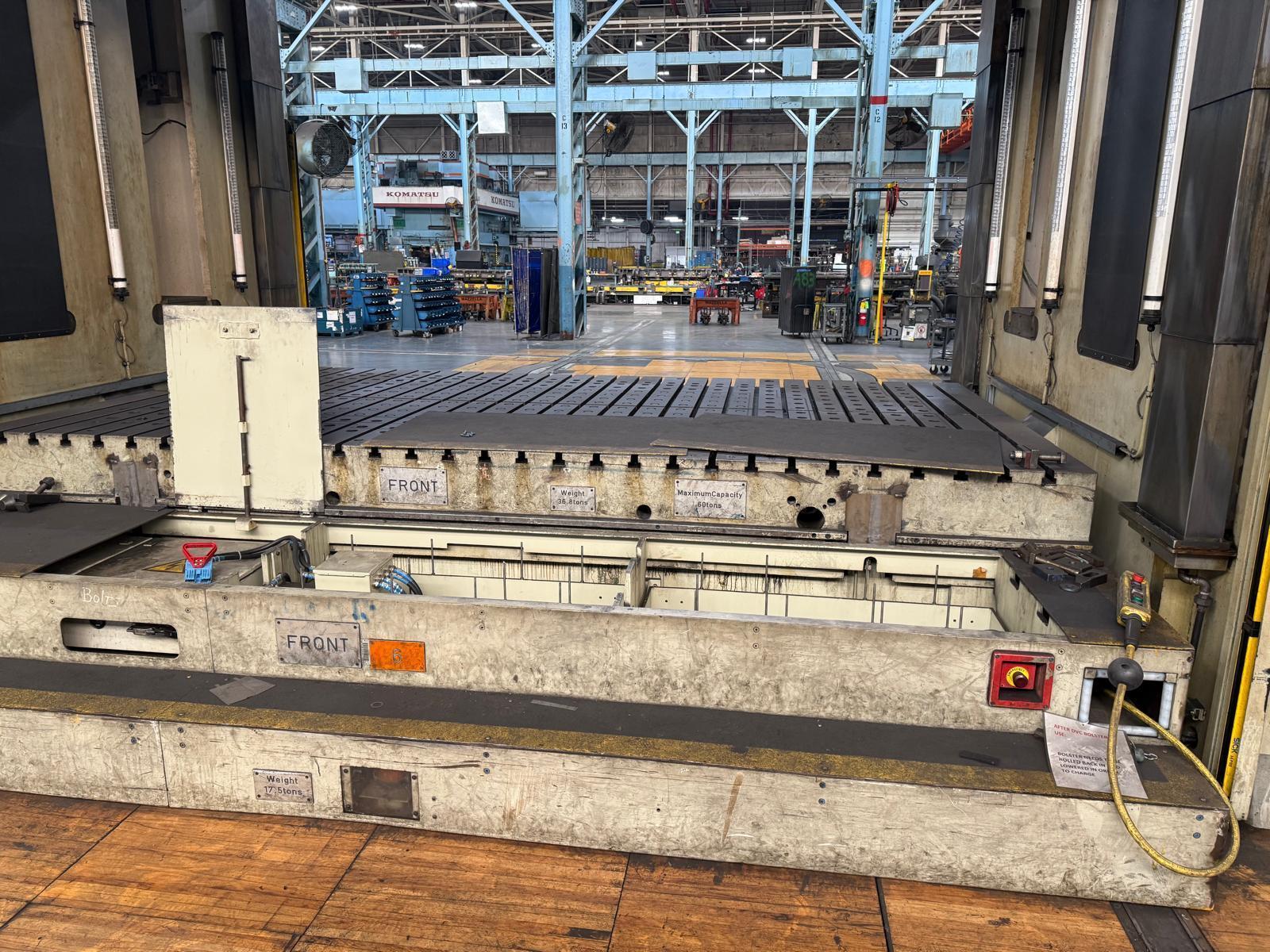

Die area max (L-R x F-B): 180 X 96 INCH 4572 MM X 2438.4 MM
Die area min. (L-R x F-B): 120 X 64 INCH 3048 MM X 1625.6 MM
Die shut height min: 31,1 INCH 789.94 MM
Total weight of die: 60 US TONS 60 US TONS
Weight of upper die: 30 US TONS 30 US TONS
Admissible off-center load: 1253850 LBFT
Installed power rating: 715 HP
Nominal current: 870 A
Voltage: 480 V
Frecuncy: 60 HZ
Hydraulic operating pressure: 4133 PSI
Total oil volume: 2900 GAL
Oil type HLP 46
Air pressure: 90 PSI
