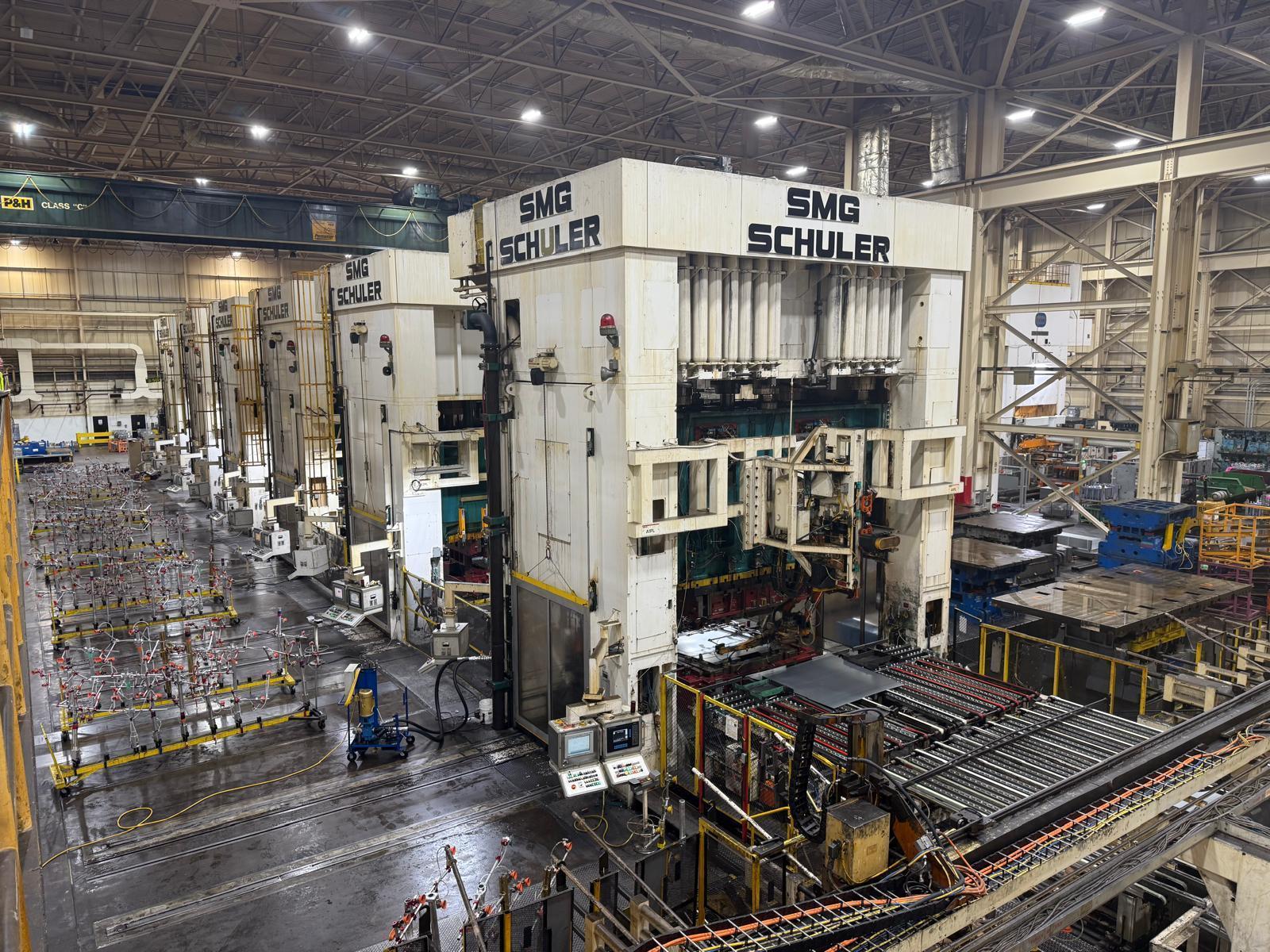

Specification

Value

Order no.

7.4907

Model

HZPUI-T 3000/1800-5400/2450
(+HZPUI-T 3250/2000-212/96'' US)

Year of constr.

1995

Customer

Active Tool
Michigan, USA

Total force

30000 kN

Slide force

12000 kN

Slide pull back force

1900 kN

Slide stroke

1325 mm

Bed installation - slide in TDC

2500 mm

Slide area (width x depth)

4600 x 1650 mm

Blankholder force

10000 kN

Blankholder stroke

1070 mm

Bed installation - blankholder in TDC

2245 mm

Blankholder area (width x depth)

5400 x 2450 mm

Clear distance between uprights
from left to right
between guides
from front to back

4600 mm
5410 mm
2500 mm

Bed area (width x depth)

5400 x 2450 mm

Bed cushion displacement force

4050 kN

Bed cushion ejection force

4050 kN

Bed cushion stroke

300 mm

Bed cushion area (width x depth)

3900 x 1760 mm

Drive capacity

4 x 160 kW

Pump capacity

4x 560 l/min, 1200 Rpm

Rapid closing speed (down/up)

500 / 470 mm/s

Max. working speed / speed at max. pressure

53 / 32 mm/s

Blankholder relative stroke adjustment
manual/motor

- / X

Smallest effective area of the die
acting on bed
acting on slide

3600 x 1650 mm
3000 x 1350 mm

Drive TDC/BDC

X / -

Eccentric load for the slide
from left to right

1350 kNm

Eccentric load for the slide
from front to back

675 kNm

Eccentric load with slide and blankholder coupled
from left to right

2250 kNm

Eccentric load with slide and blankholder coupled
from front to back

1125 kNm

Light curtain front/back

X / X

Safety guard left/right

2 pieces

Moving bolster travel speed

7500 mm/min

Moving bolster length of travel

7500 mm

Weight of machine

417125 kg

Oil quantity of one container filling

approx. 8600 l

Operating voltage (threephase current)

460 V

Operating voltage (alternating current)

110 V

Valve voltage (direct current)

24 V

Lamp voltage (direct current)

110 V

Frequency

60 Hz
