SMG Pressen -

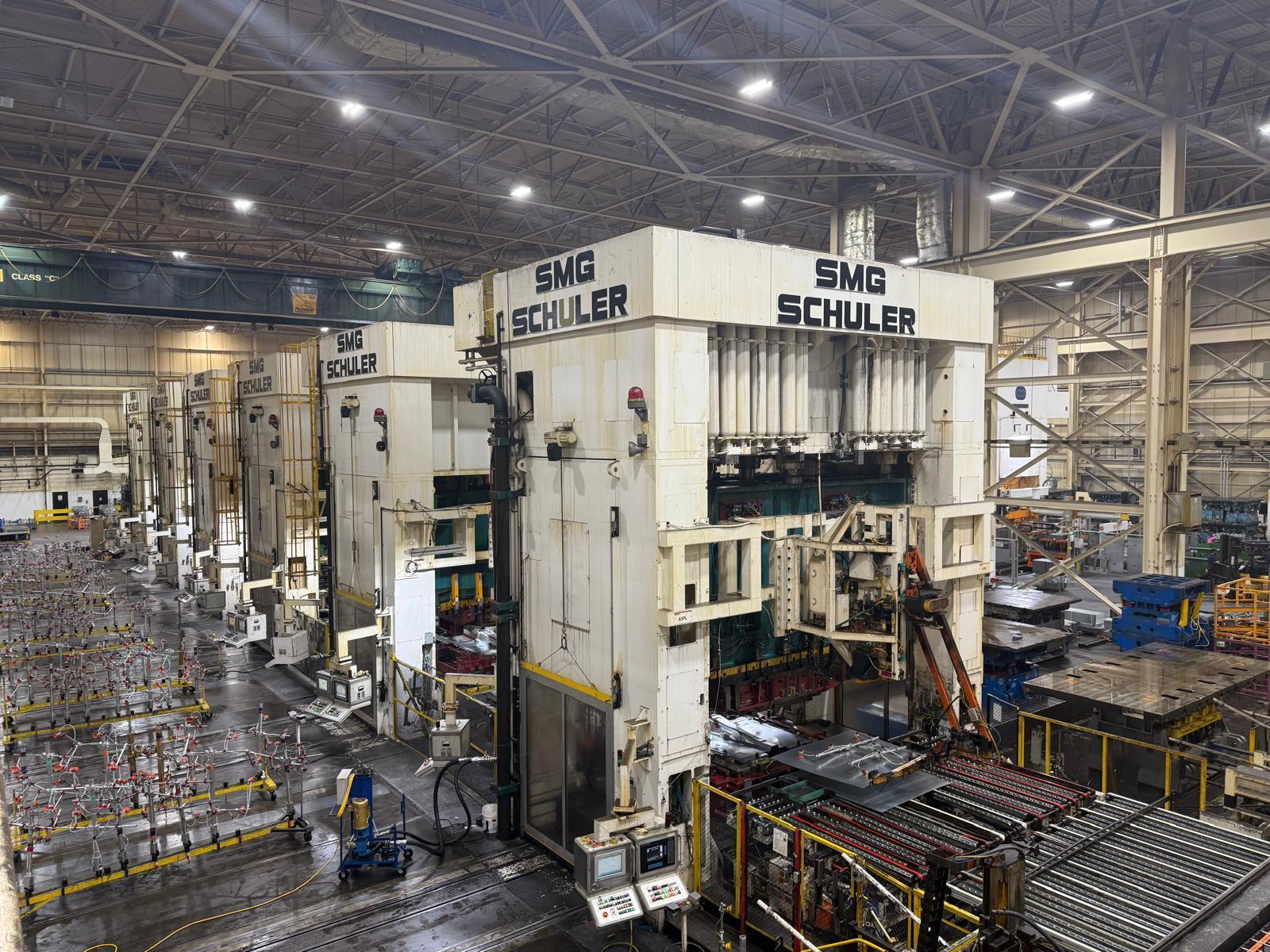

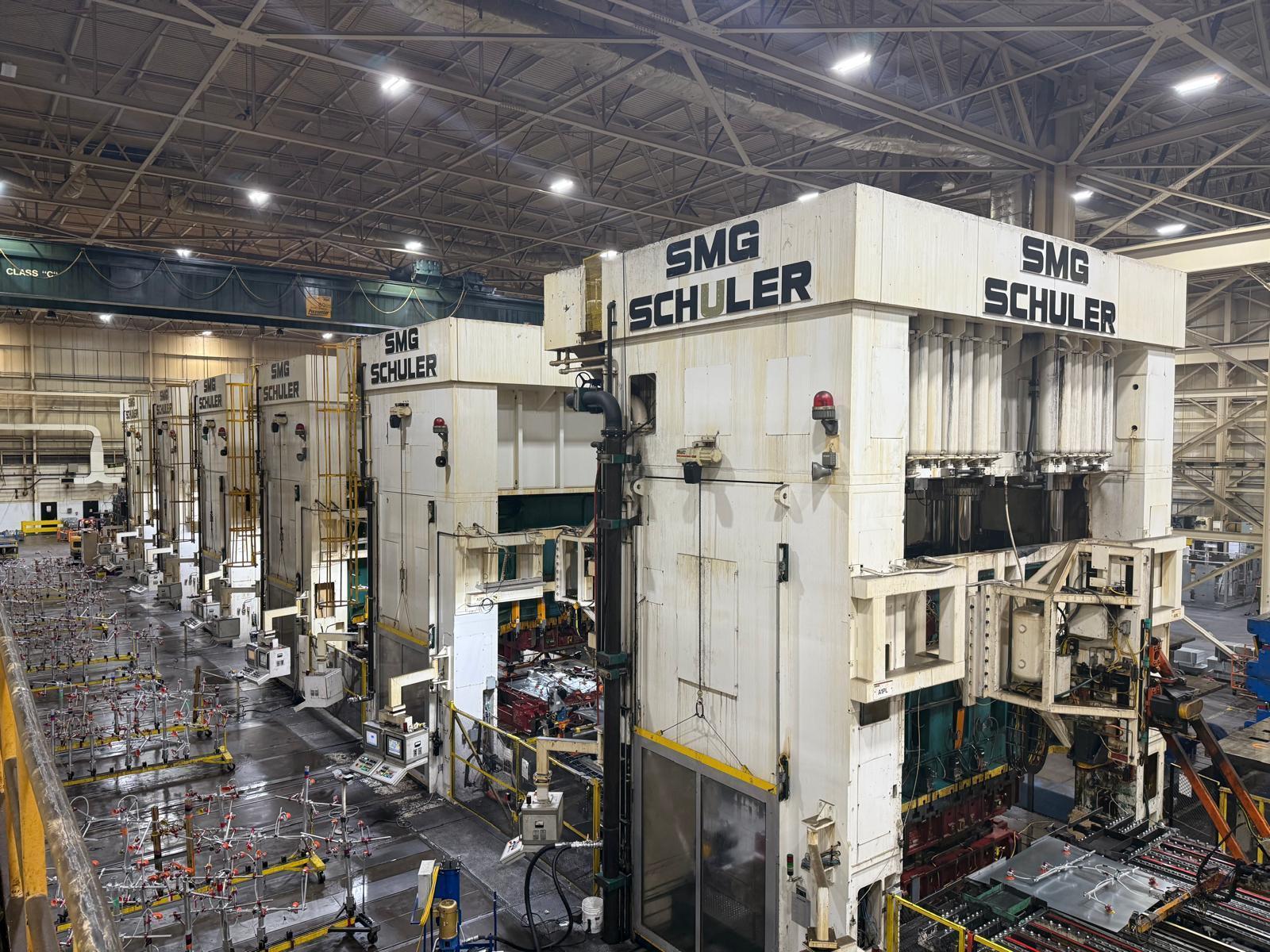

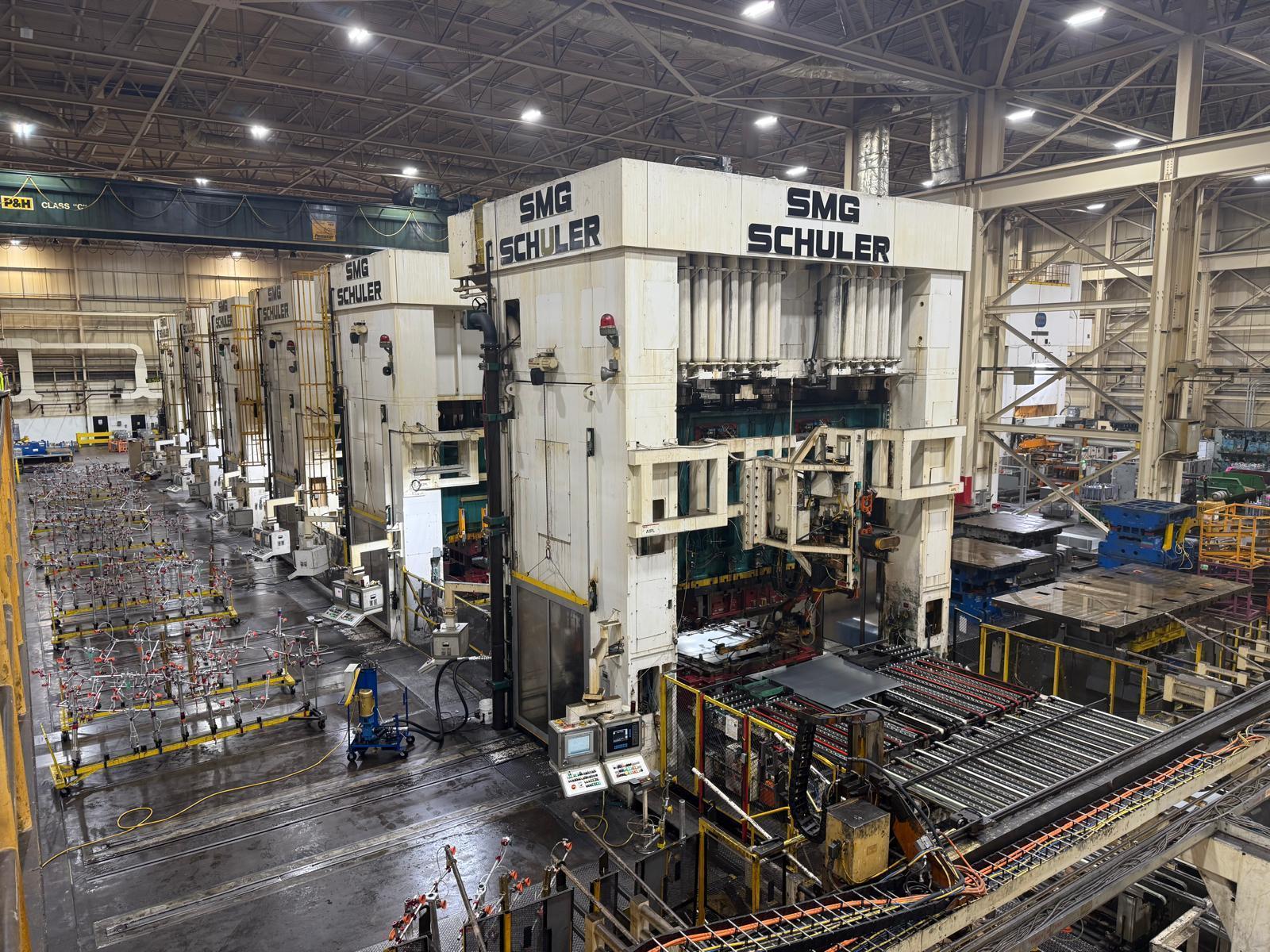

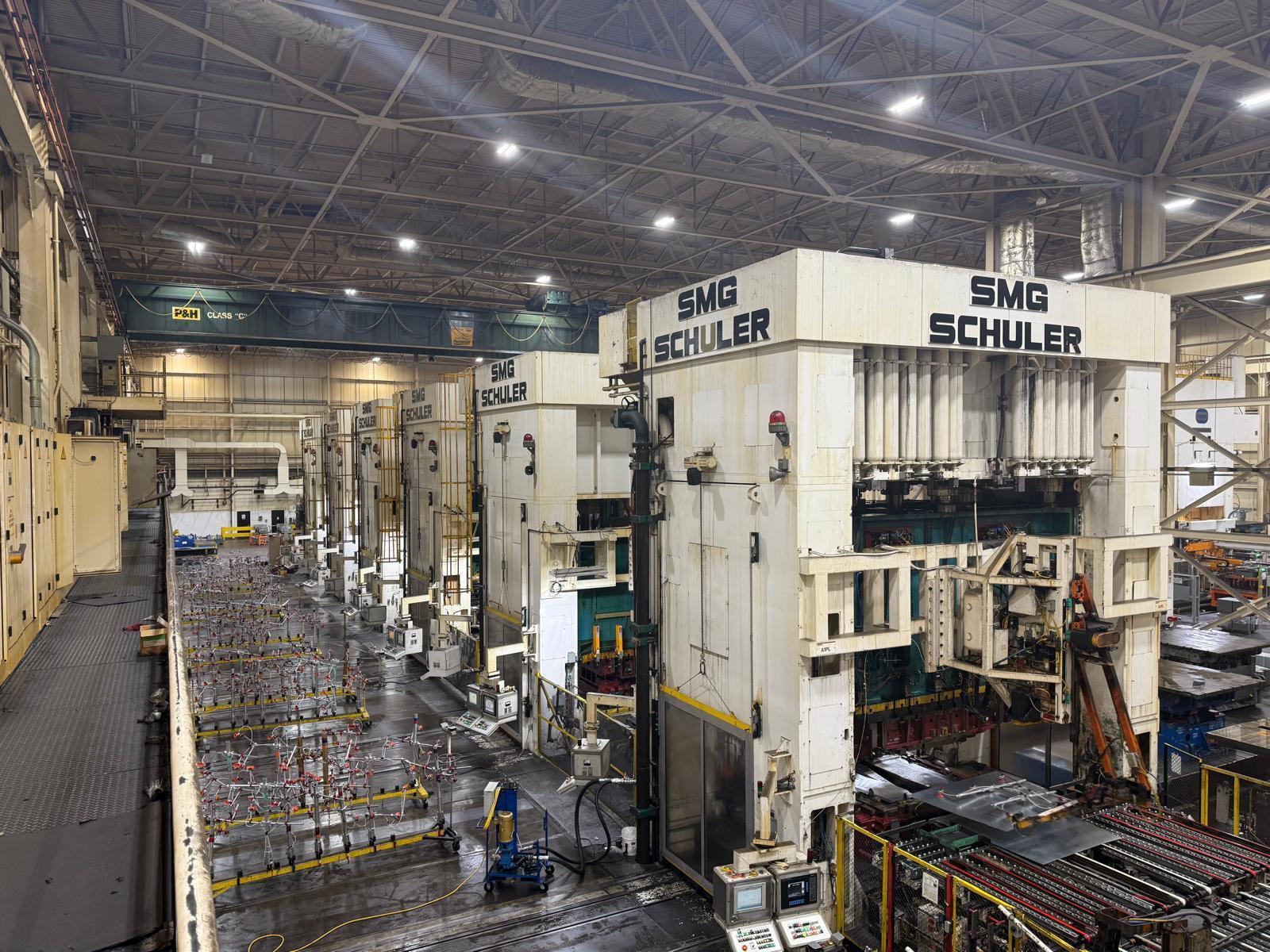

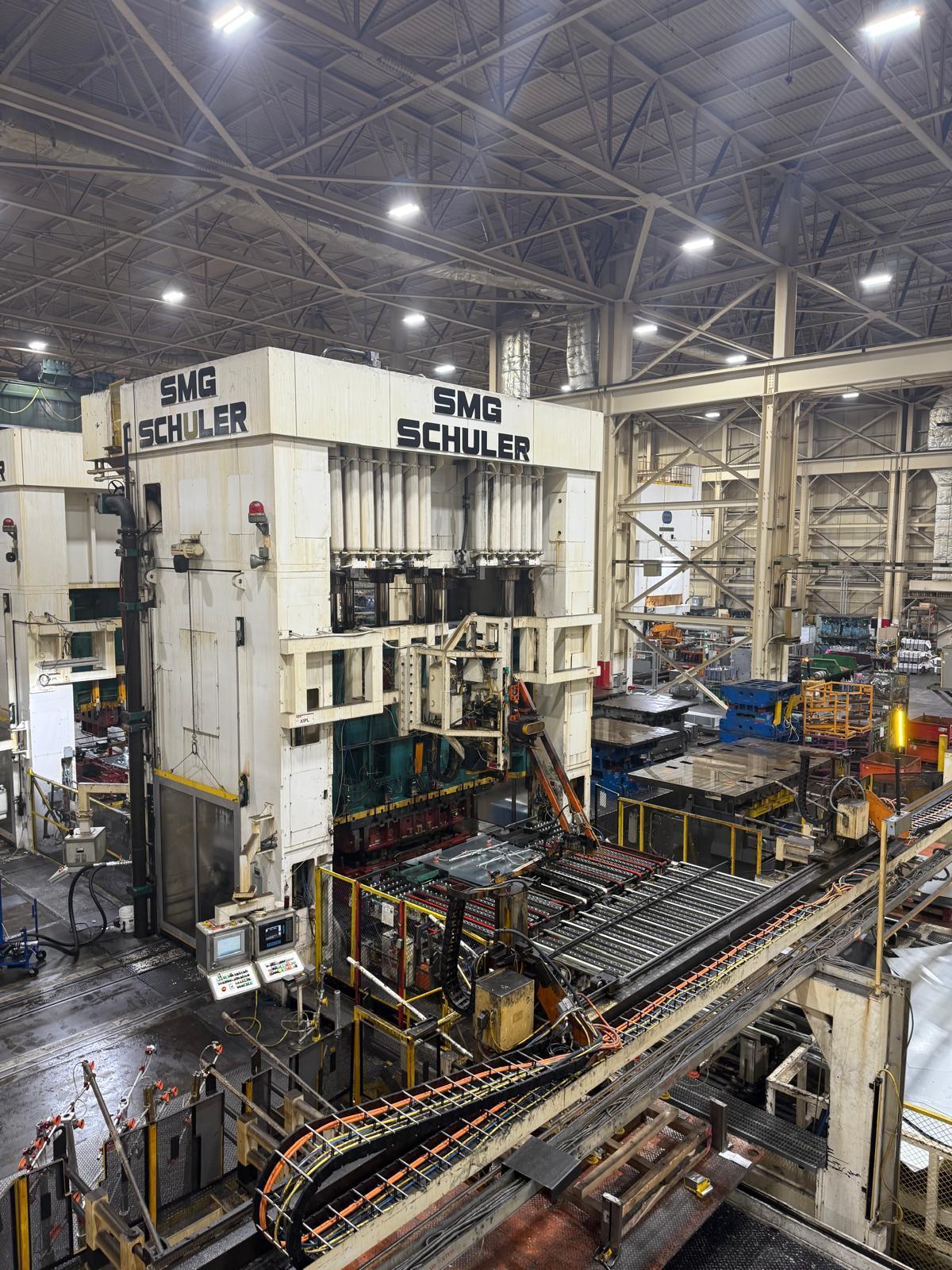

Technical Data Press 1 Lead Press

Specification	Value
Order no.	7.4907

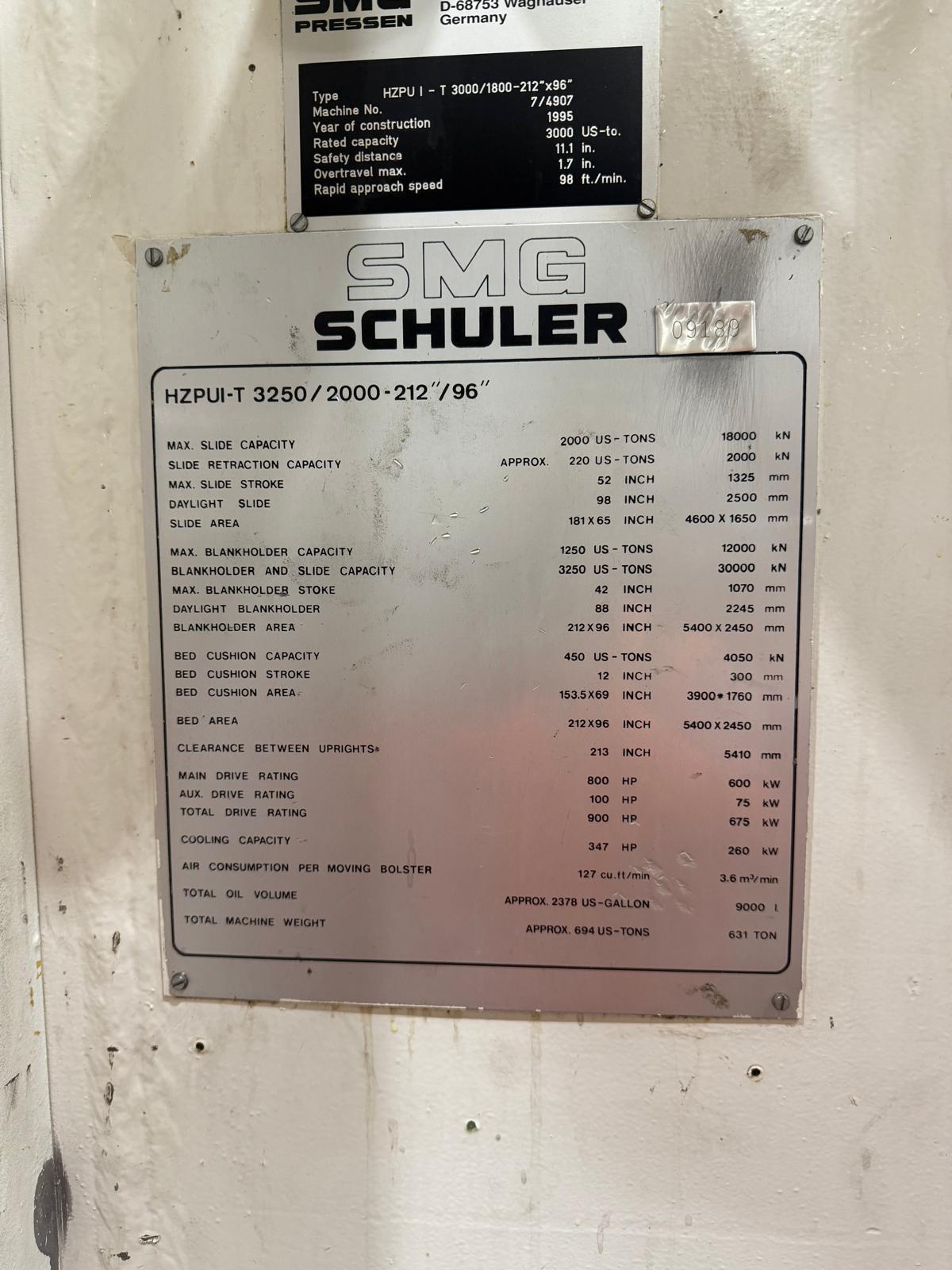

Model	HZPUI-T 3000/1800-5400/2450 (+HZPUI-T 3250/2000-212/96'' US)
Year of constr.	1995
Customer	Active Tool Michigan, USA
Total force	30000 kN
Slide force	12000 kN
Slide pull back force	1900 kN
Slide stroke	1325 mm
Bed installation - slide in TDC	2500 mm
Slide area (width x depth)	4600 x 1650 mm
Blankholder force	10000 kN
Blankholder stroke	1070 mm
Bed installation - blankholder in TDC	2245 mm
Blankholder area (width x depth)	5400 x 2450 mm
Clear distance between uprights from left to right between guides from front to back	4600 mm 5410 mm 2500 mm
Bed area (width x depth)	5400 x 2450 mm
Bed cushion displacement force	4050 kN
Bed cushion ejection force	4050 kN
Bed cushion stroke	300 mm
Bed cushion area (width x depth)	3900 x 1760 mm
Drive capacity	4 x 160 kW
Pump capacity	4x 560 l/min, 1200 Rpm
Rapid closing speed (down/up)	500 / 470 mm/s
Max. working speed / speed at max. pressure	53 / 32 mm/s
Blankholder relative stroke adjustment manual/motor	- / X
Smallest effective area of the die acting on bed acting on slide	3600 x 1650 mm 3000 x 1350 mm
Drive TDC/BDC	X / -


Eccentric load for the slide from left to right	1350 kNm
Eccentric load for the slide from front to back	675 kNm
Eccentric load with slide and blankholder coupled from left to right	2250 kNm
Eccentric load with slide and blankholder coupled from front to back	1125 kNm
Light curtain front/back	X / X
Safety guard left/right	2 pieces
Moving bolster travel speed	7500 mm/min
Moving bolster length of travel	7500 mm
Weight of machine	417125 kg
Oil quantity of one container filling	approx. 8600 l
Operating voltage (threephase current)	460 V
Operating voltage (alternating current)	110 V
Valve voltage (direct current)	24 V
Lamp voltage (direct current)	110 V
Frequency	60 Hz

Technical Data - Press 2

Specification	Value
Order no.	7.4923
Model	HZPU-T 1800-5400/2450 (HZPU-T 2000-212/96" US)
Year of constr.	1995
Customer	Active Tool, Michigan, USA
Total force	18000 kN
Slide force	18000 kN
Slide pull back force	1900 kN
Slide stroke	1100 mm
Bed installation - slide in TDC	2275 mm
Slide area (width x depth)	5400 x 2450 mm
Bed cushion displacement force	4100 kN
Bed cushion ejector force	500 kN
Bed cushion stroke	300 mm
Bed cushion area (width x depth)	3900 x 1760 mm
Drive capacity	4x160 kW
Pump capacity	4x560/1200 l/min, Rpm
Rapid closing speed (down/up)	400/400 mm/s
Max. working speed / speed at max. pressure	53/32 mm/s

Specification	Value
Order no.	7.4925-27
Model	HZPU-T 1350-5400/2450 (HZPU-T 1500-212/96" US)
Year of constr.	1995
Customer	Active Tool, Michigan, USA
Total force	13500 kN
Slide force	13500 kN
Slide pull back force	1140 kN
Slide stroke	1100 mm
Bed installation - slide in TDC	2275 mm
Slide area (width x depth)	5400 x 2450 mm
Bed cushion displacement force	4100 kN
Bed cushion ejector force	500 kN
Bed cushion stroke	300 mm
Bed cushion area (width x depth)	3900 x 1760 mm
Drive capacity	3x160 kW
Pump capacity	3x560/1200 l/min, Rpm
Rapid closing speed (down/up)	400/400 mm/s
Max. working speed / speed at max. pressure	53/32 mm/s

- Thermostatically controlled oil cooling.

- Centralized lubrication with motor pump.

- Slide locking at TDC with mechanical indication.

- Parallelism control for the slide.

- Mechanical stroke limitation for the slide, adjustable by motor.

- Adjustment range 550 mm.

- Hydraulic damping, damping stroke 25 mm.

- SMG Numeric control D1 with screen.

- Overtravel monitoring equipment.

- Safety guard for the left and right side of the press (die change), movable by motor, secured by limit switches.

- 2 bolsters movable to left and right side equipped with separate drive.

- Each bolster is designed for max. die weight of 68 to.
