Brand
Not Specified
Model
Type
Coil Feeders
Stock #
501844
Condition
As-Is
Year
Location
Wayne, Michigan
United States
Brand: U.S. INDUSTRIAL

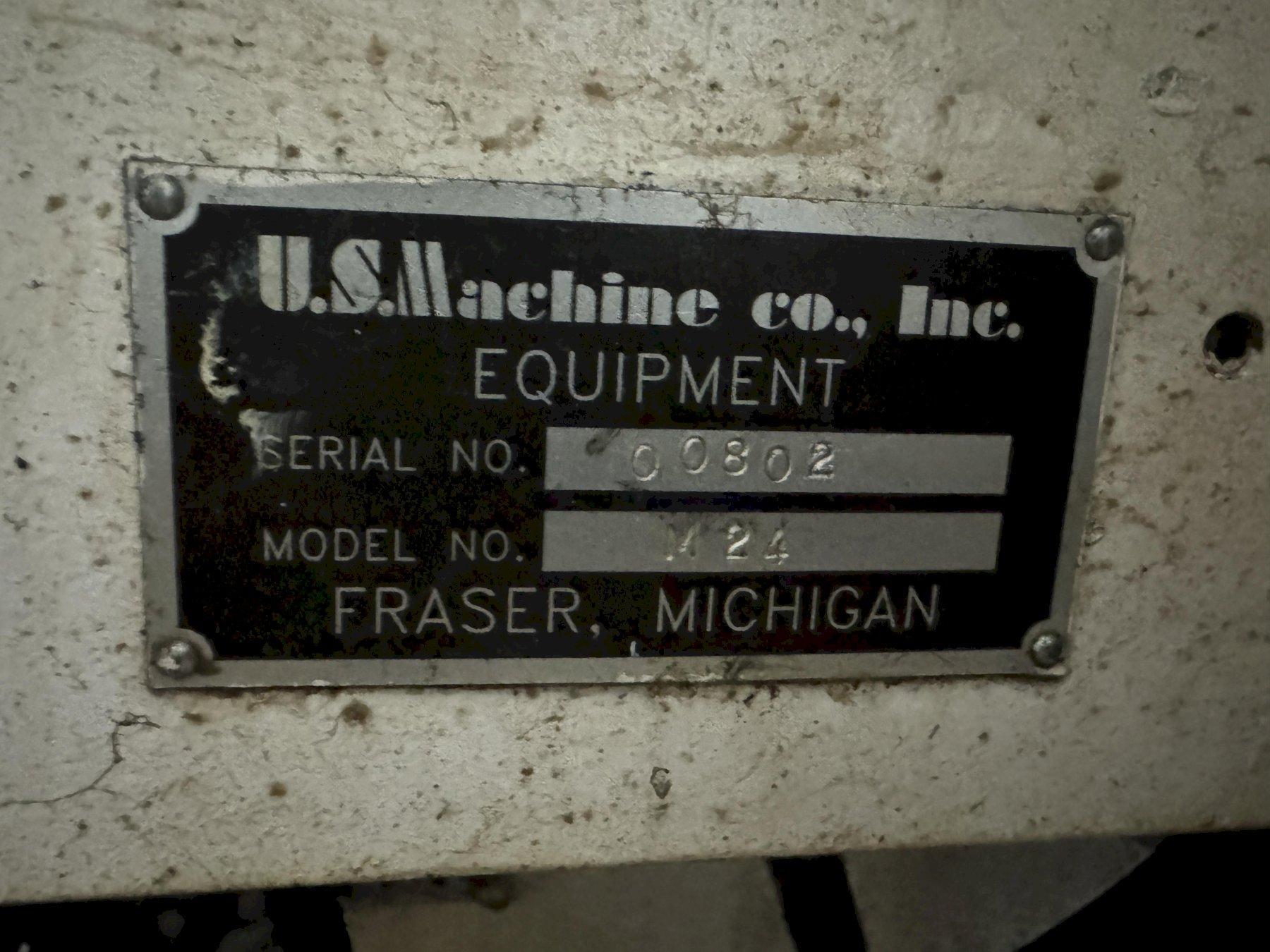

Serial # 00802
Condition: Used

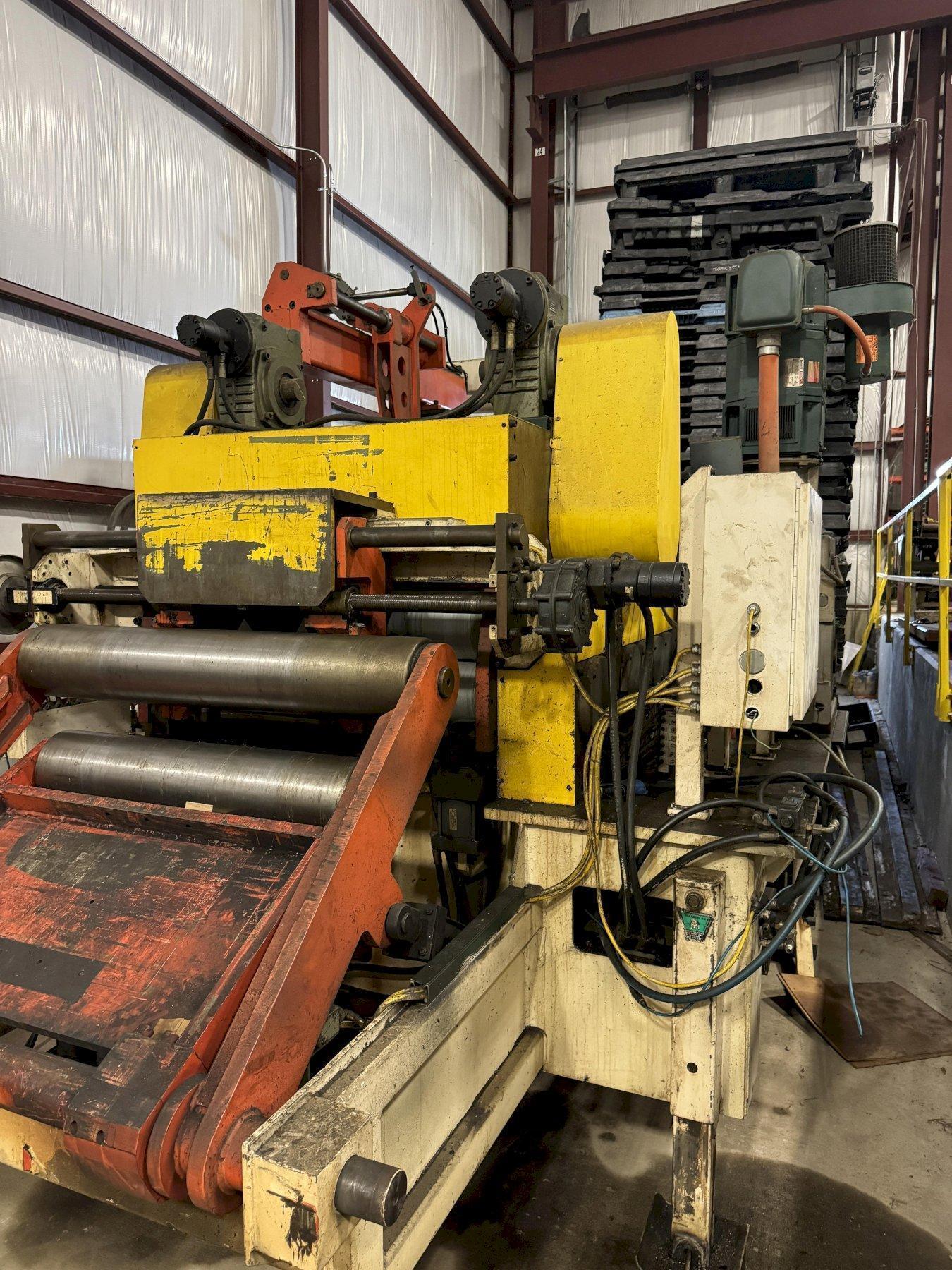

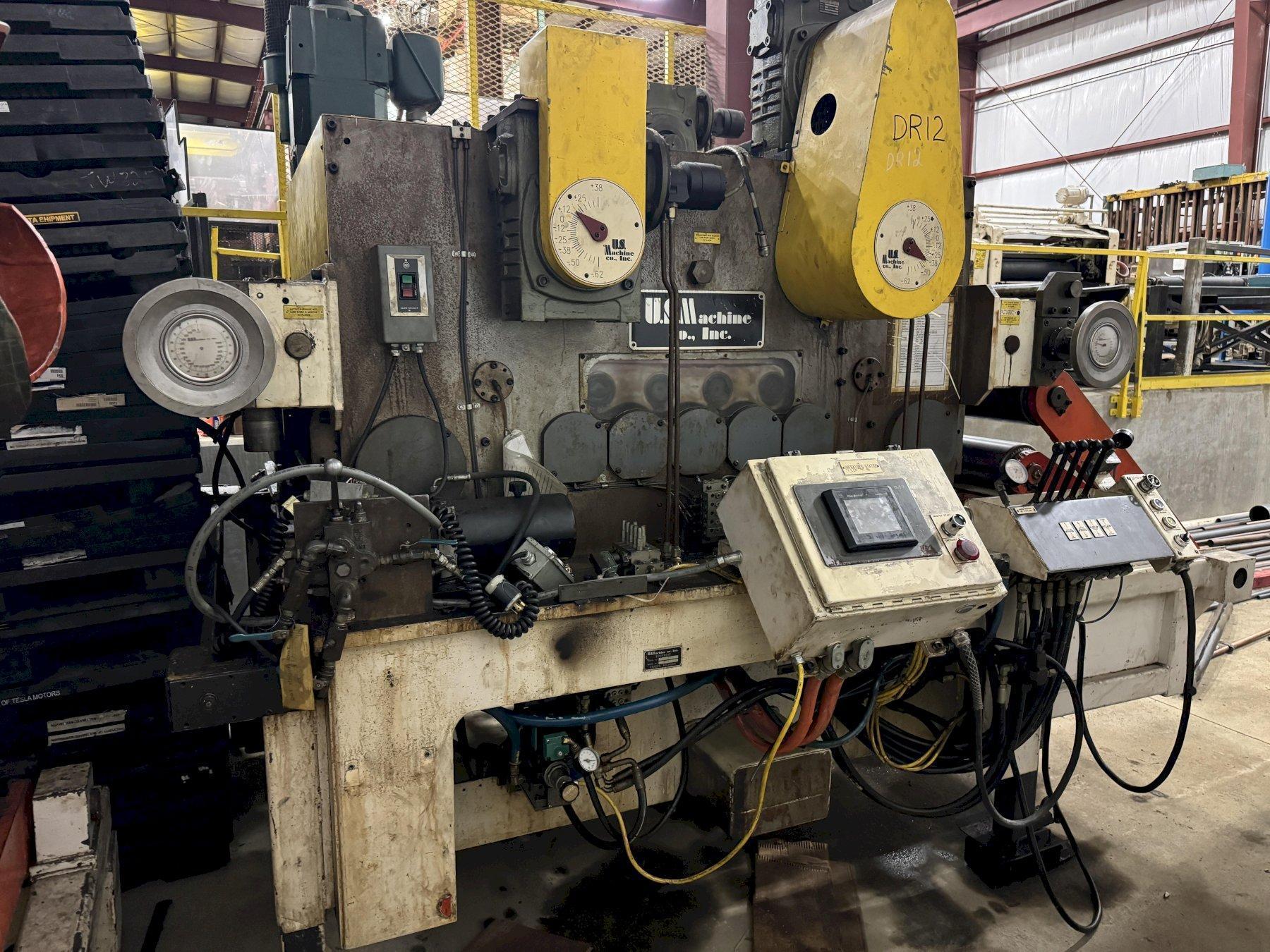

Description: 30,000 LB X 42" X .312" U.S. MACHINE CO M24 COIL-FEEDLINE. STOCK # 0446525
SPECIFICATIONS:
COIL WEIGHT......................: 30,000 LB
COIL O.D.........................: 30" MIN -72" MAX

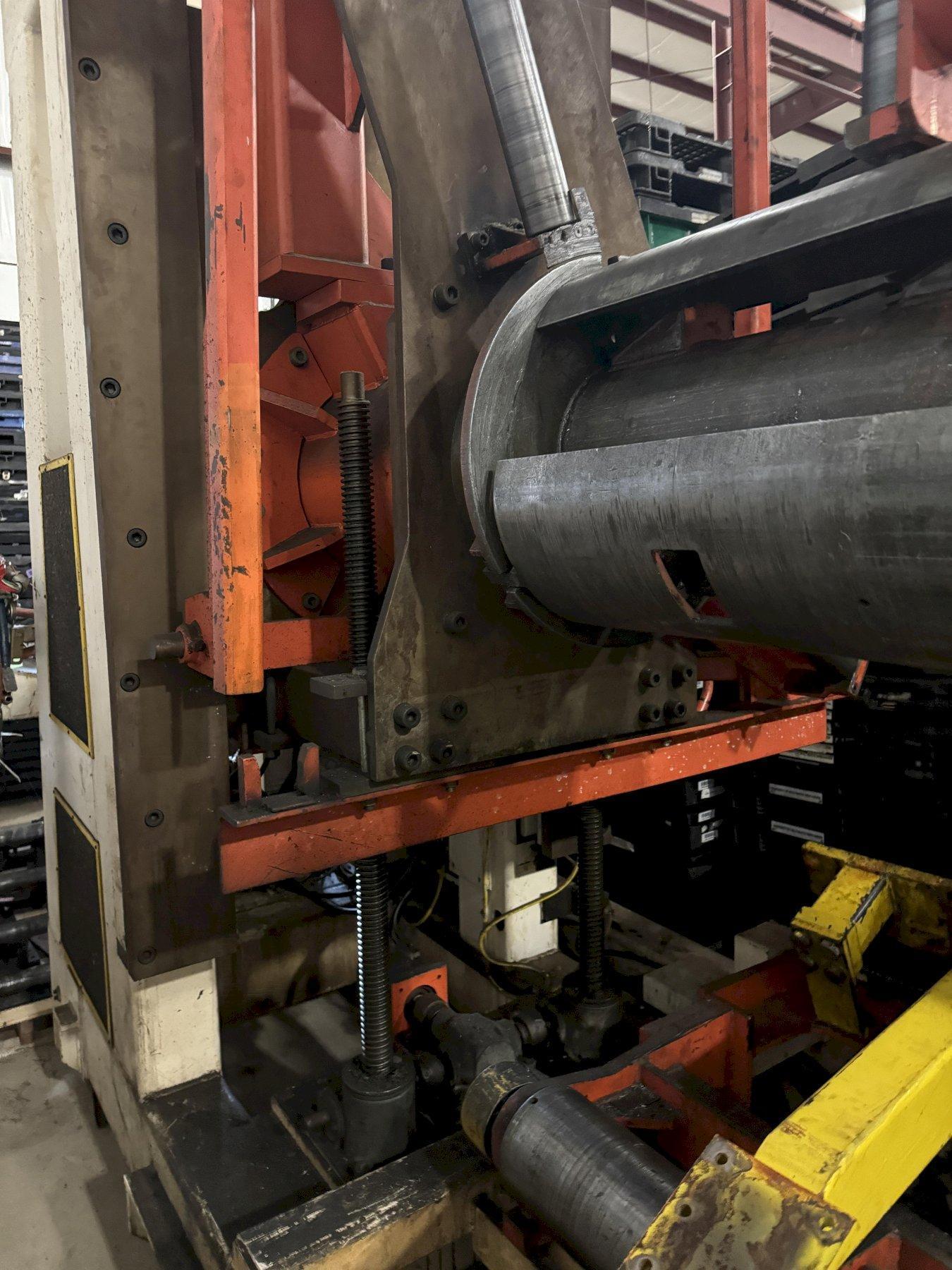

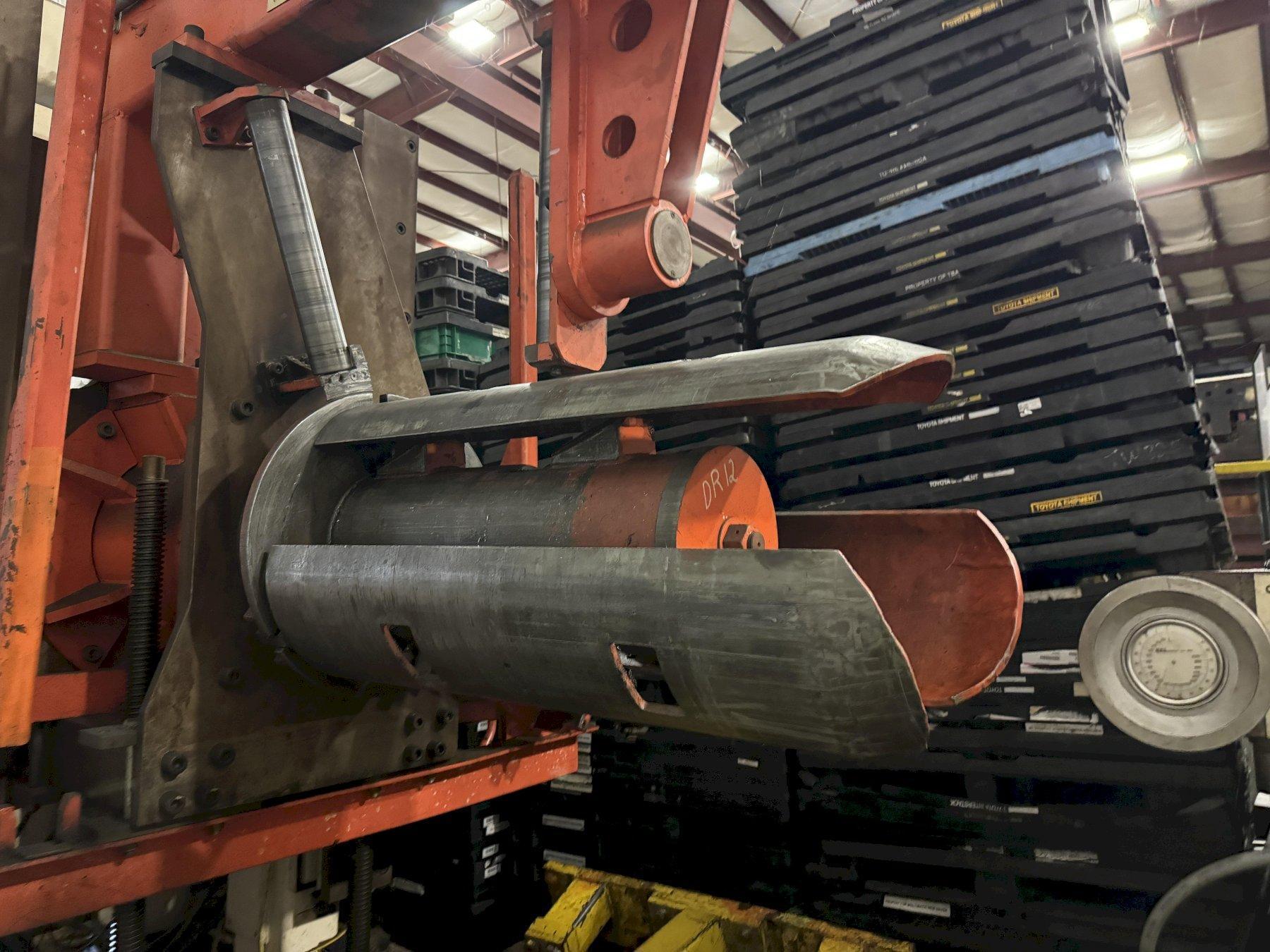

COIL I.D...........................: 20" - 24" (EXPANSION 19-1/2" - 24-1/2")
STOCK WIDTH................... 6" MIN - 42" MAX
STOCK THICKNESS:
COLD ROLLED STEEL @ 50,000 YIELD.: .030" - .075" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .075" - .312" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .510" X 18" WIDE
HSLA STEEL @ 70,000 YIELD........: .38" X 30" WIDE
ACCURACY.........................: PLUS OR MINUS .010"

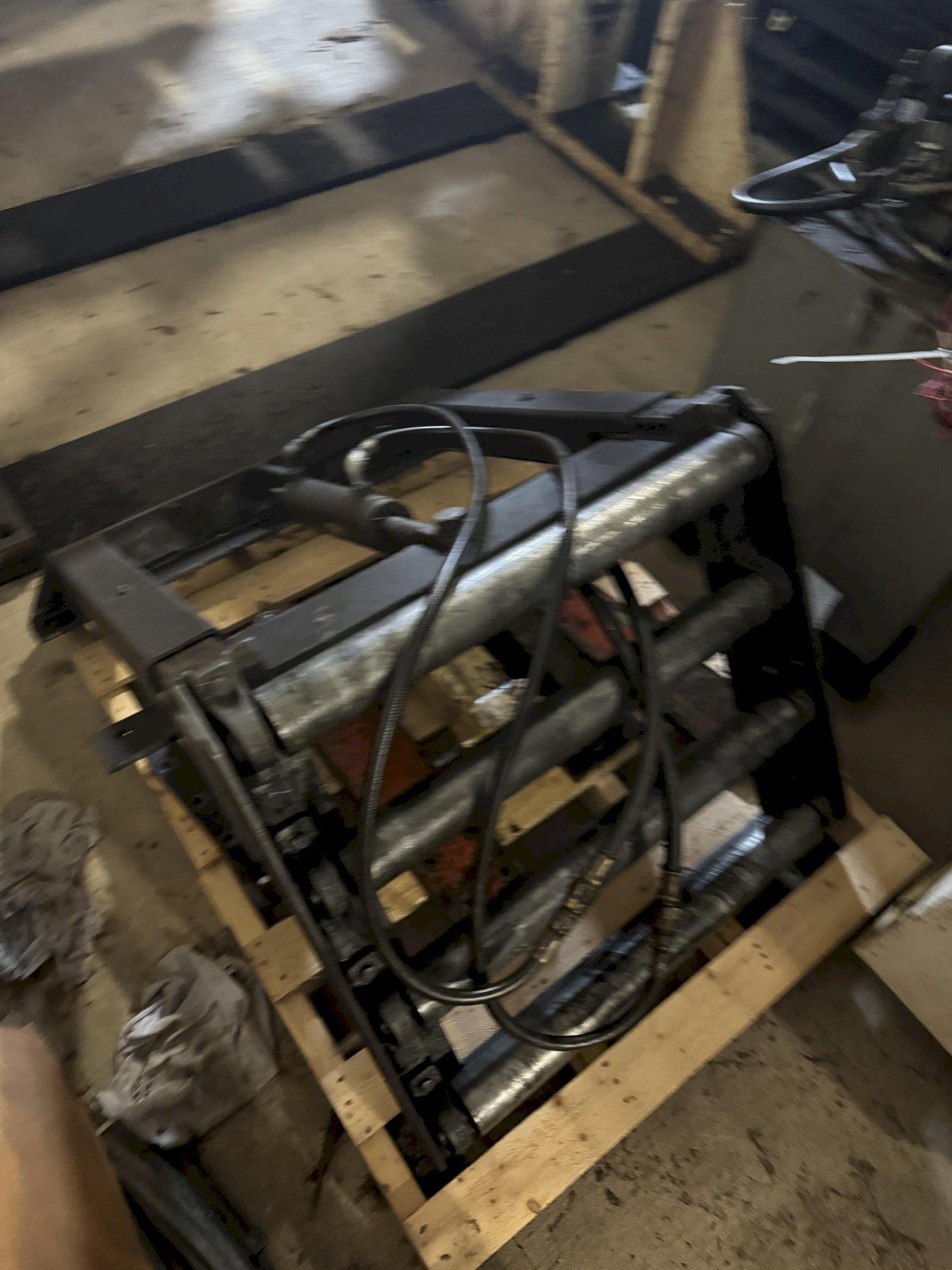

# OF ROLLS.......................: 9(4 OVER 5)

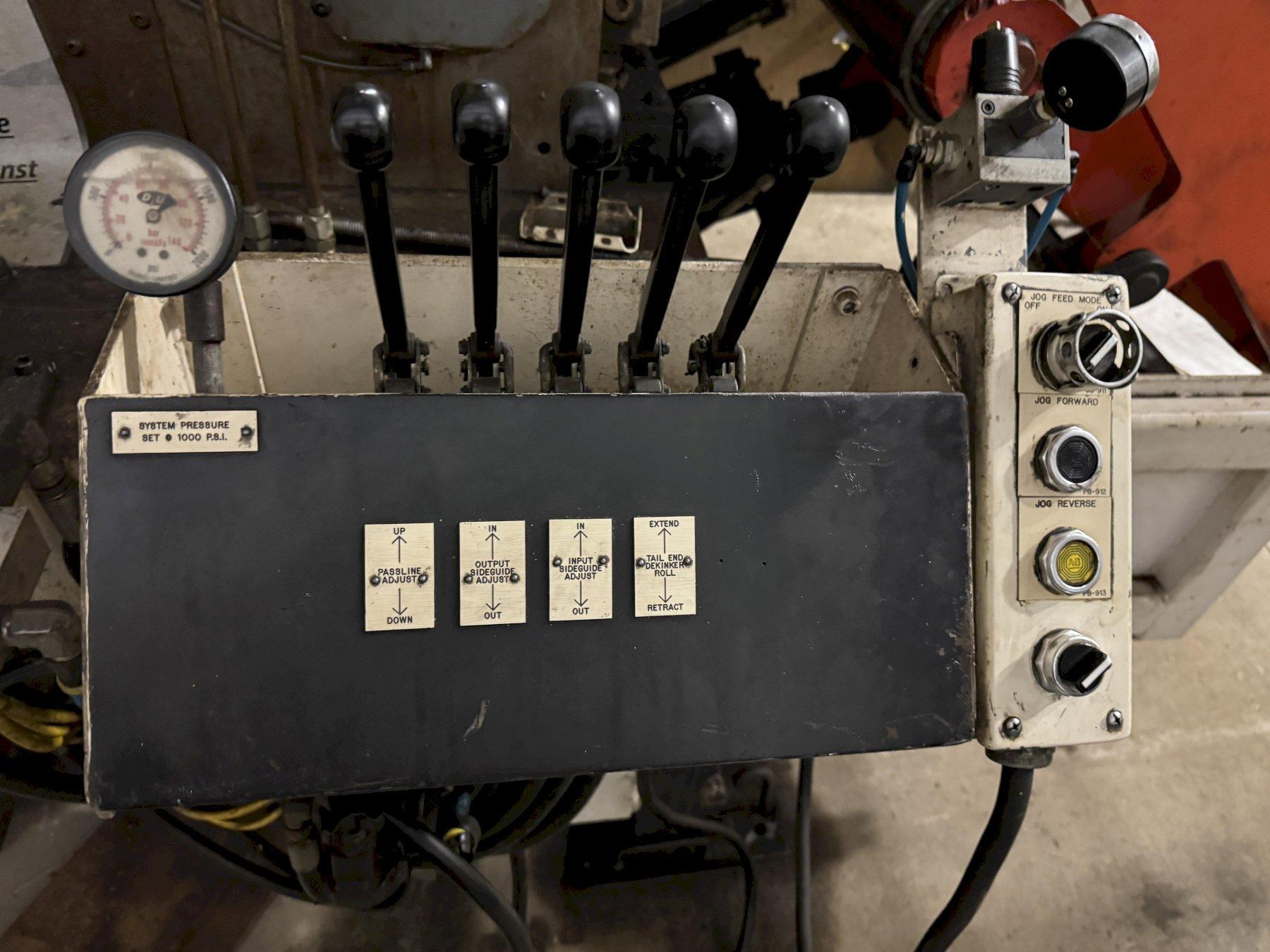

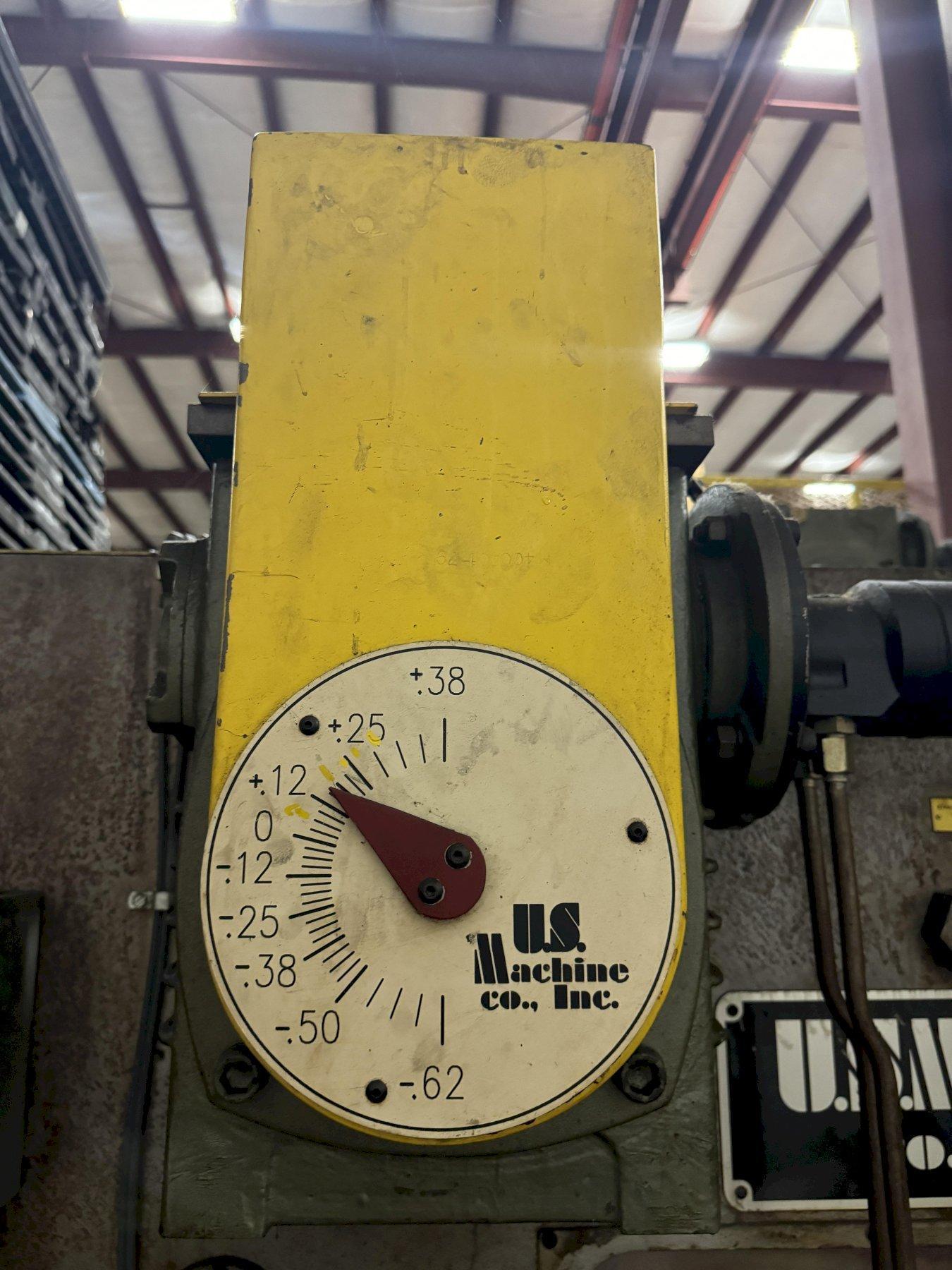

PASSLINE POWER ADJUSTMENT........: 48" PLUS OR MINUS 4"
FEED ROLLS.......................: 8" DIAMETER NOMINAL(SATIN FINISHED)BACKED UP

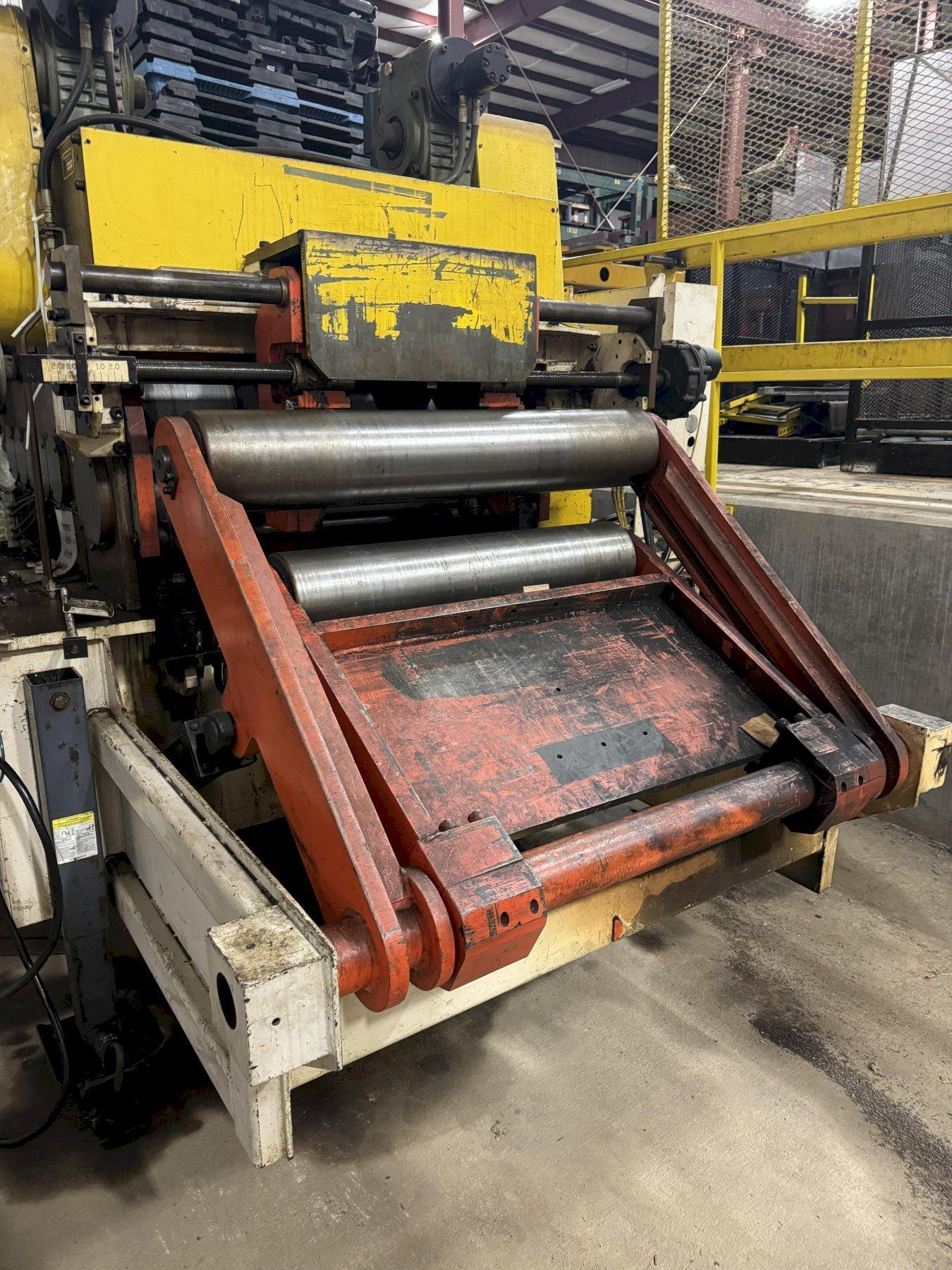

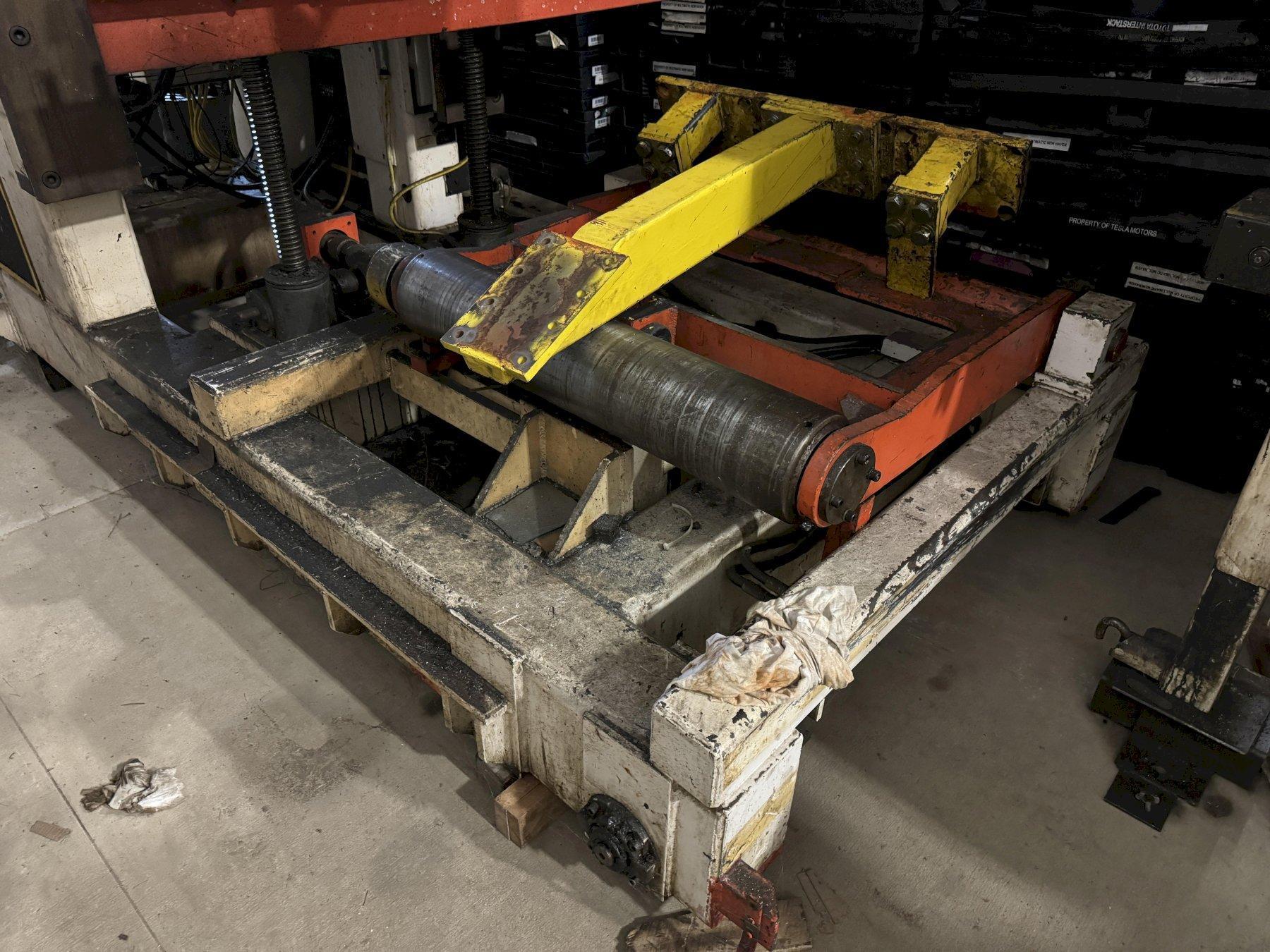

ENTRY AND EXIT PINCH ROLLS.......: YES
PINCH ROLL DIAMETER..............: 12"
SIDE GUIDE.......................: HYDRAULIC POWER ADJUSTED

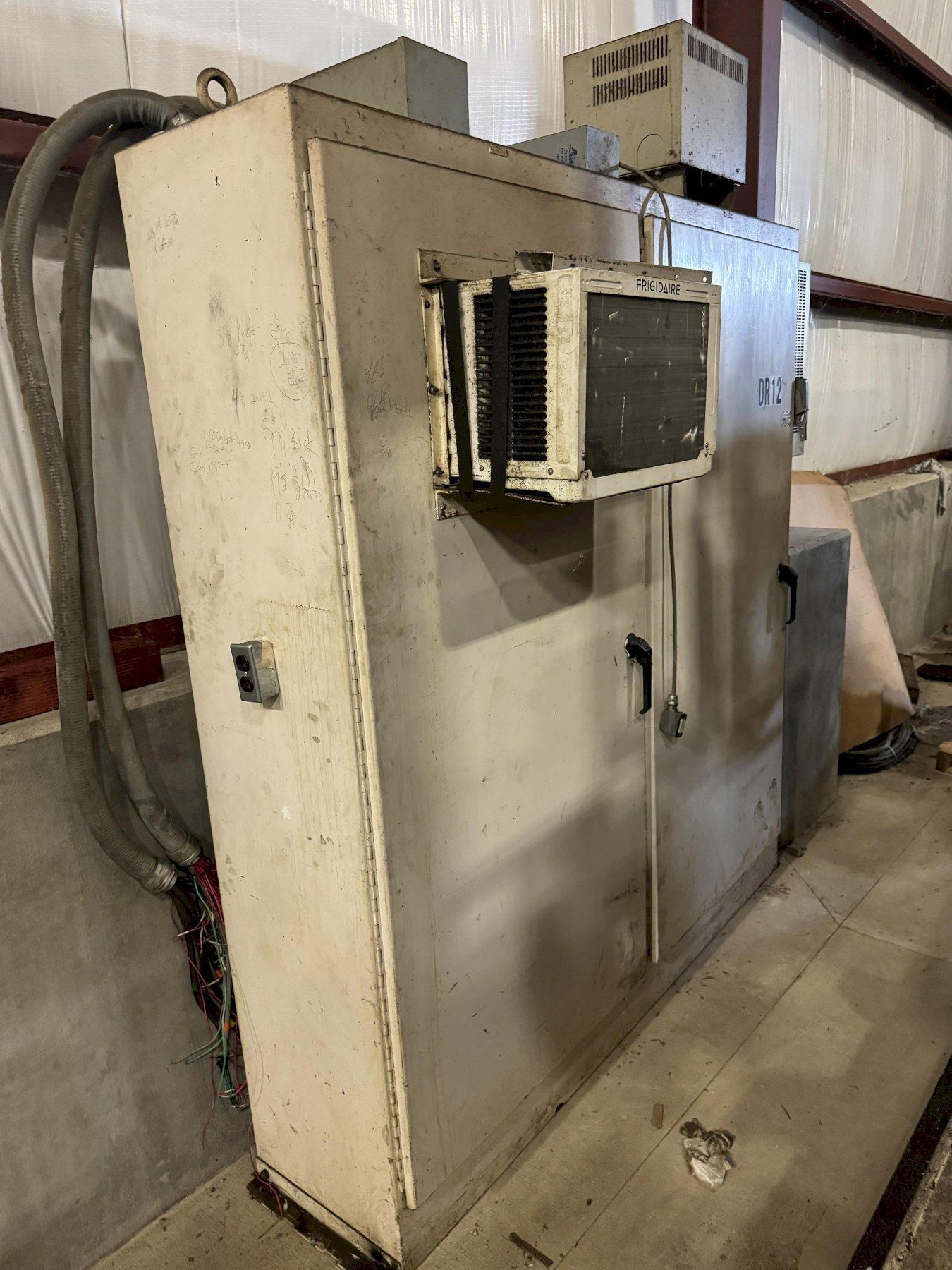

POWER............................: AC VECTOR DRIVE
VOLTAGE..........................: 440 VOLT, 3 PHASE, 60 HERTZ

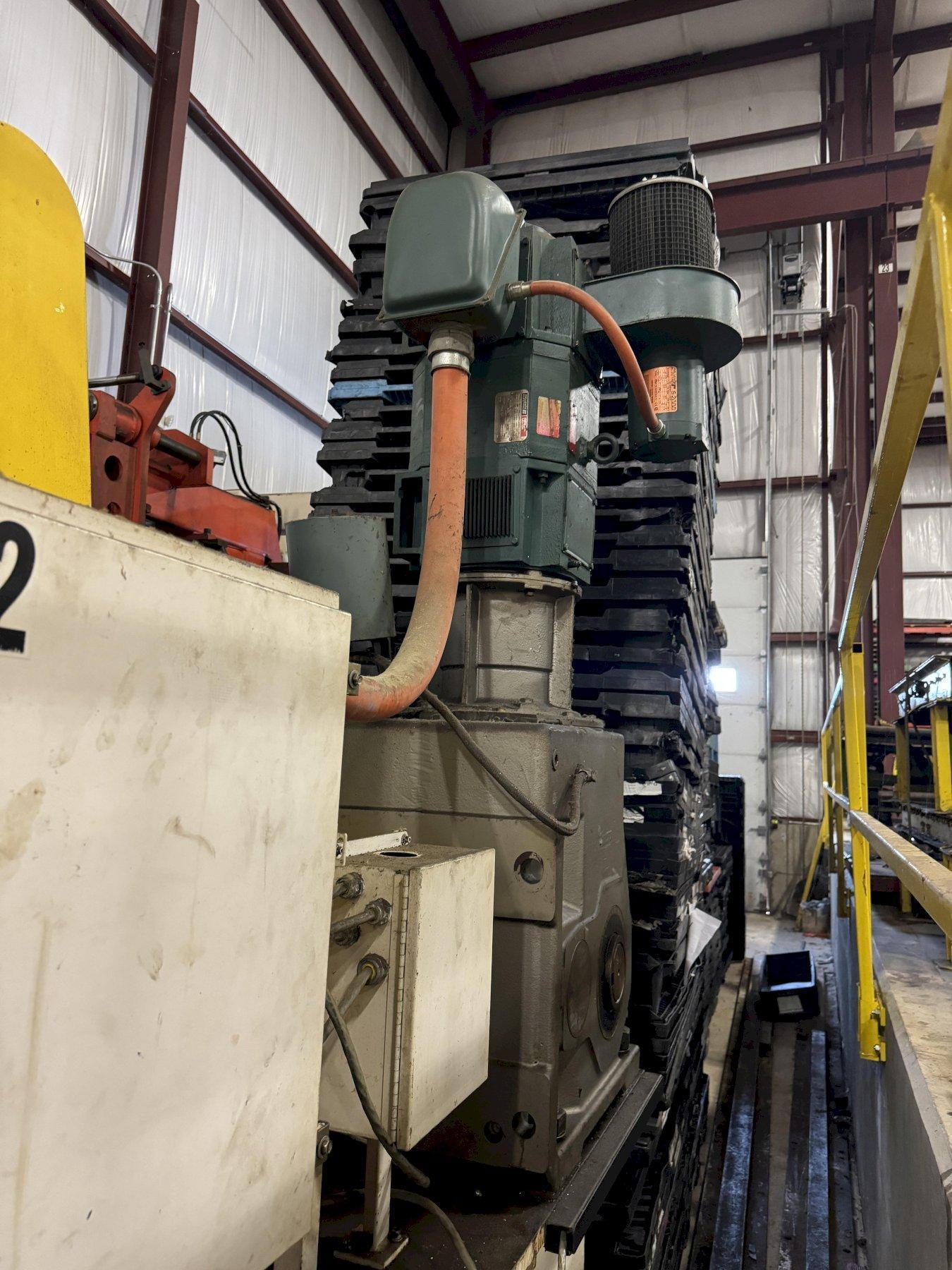

MOTOR............................: 150 HP RELIANCE ELECTRIC
